Volume: 12, Value of Resistance: 30R - 0307 1/4W 0410 1/2W 0510 1W Color Ring Inductors DIP Inductance 0.22uH 10mH 1 2.2UH 3.3 4.7UH 10 22 33UH 47 68 100 220 330 uH mH
$3.70 NZD
or 4 payments of $0.93 with
Origin: Mainland ChinaModel Number: 0307 1/4W 0410 1/2W 0510 1WCertification: RoHSCertification: weeeUnit Type: lot (20 pieces/lot)Package Weight: 0.01kg (0.02lb.)Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)Size Code: 0307 1/4W 0410 1/2W 0510 1WInductance: 0.22uH-10mHChoice: yessemi_Choice: yes
RM3770225373688913
RM3770225373688915

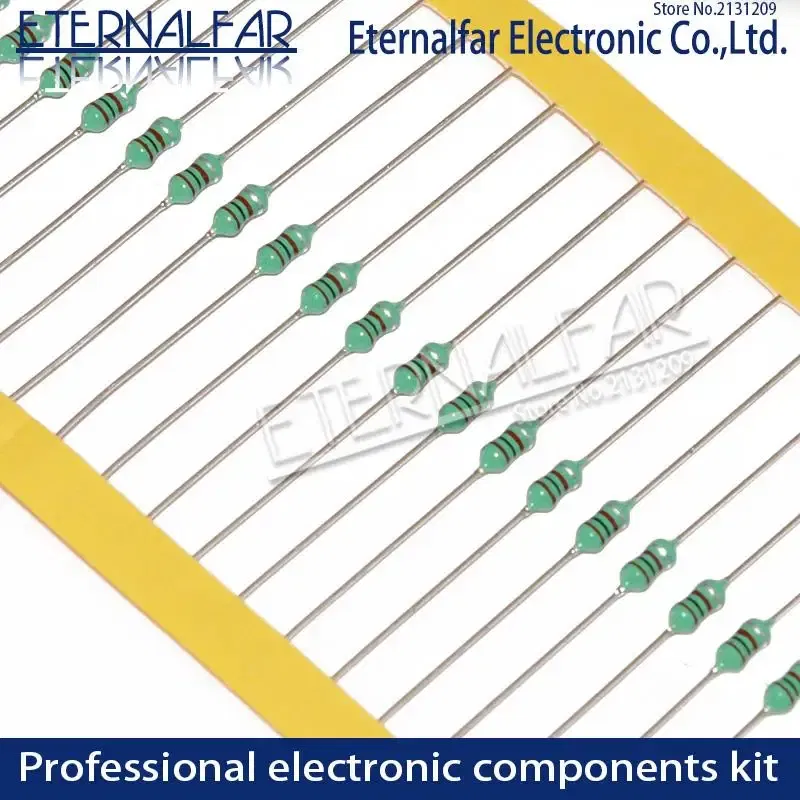

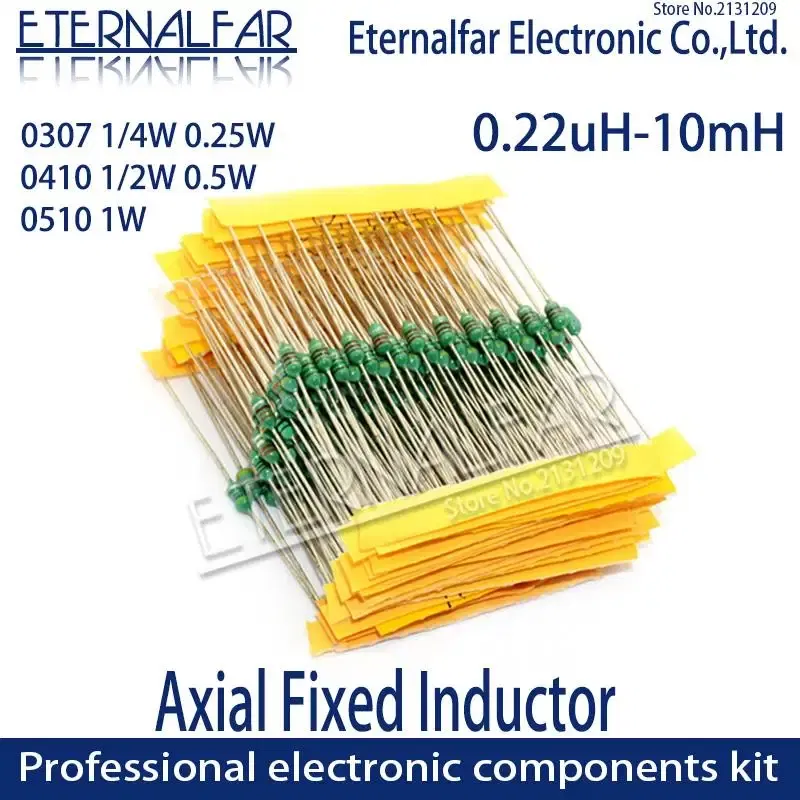

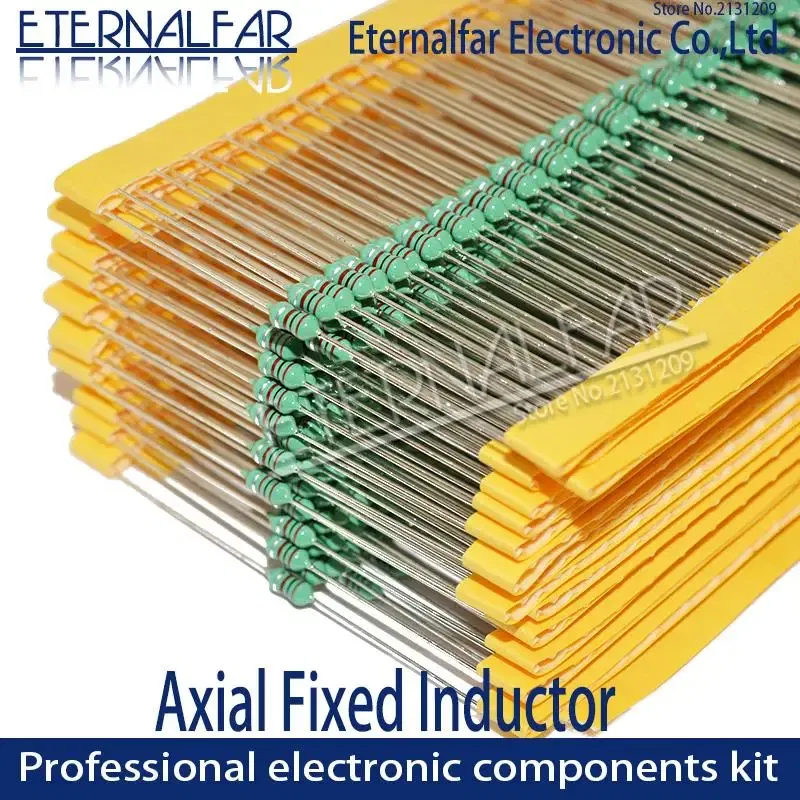

Axial Fixed Inductor
● Features
1. Design to be compact, small and light-weight, wide range of inductance.
2.Contibute to be high Q and self-resonent frequencies, tapping type that is convenient for automatic insertion, coating epoxy resin that ensure the humidity resistance to be long life.
● Applications
For TV, radios and radio transceivers, telephones. . Others various electronic products
● Electrical Characteristics
(1) Isat: DC current at which the inductance drops approximate 10% from its value without current;
(2) Irms: DC current that causes the temperature rise (△T ≤40°C ) from 25°C ambient.
(3) Rated Current: It is either the inductance is 10% lower than its initial value in DC saturation characteristics or temperature raise becomes △T=40°(Ta=25°), whichever is lower.
(4) Operating Temperature Ranges: -25～85°.
(5) Dielectric with standing voltage:250V AC r.m.s.
● Test Equipments
(1) Inductance(L): HP 4284A/HM 9481/CD 1063/HP 4291A;
(2) Q: HP 4284A/HM 9481;
(3) DCR: CH 502A/CH 502BC;
(4) SRF: HM 9461;
(5) Rated Current/Isat./Irms.: HP 4284+HP 4284A/CD 1068+CD 1320. Test Condition: at 25°,75%H.
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
