2255799836173331
$22.70 NZD
or 4 payments of $5.68 with

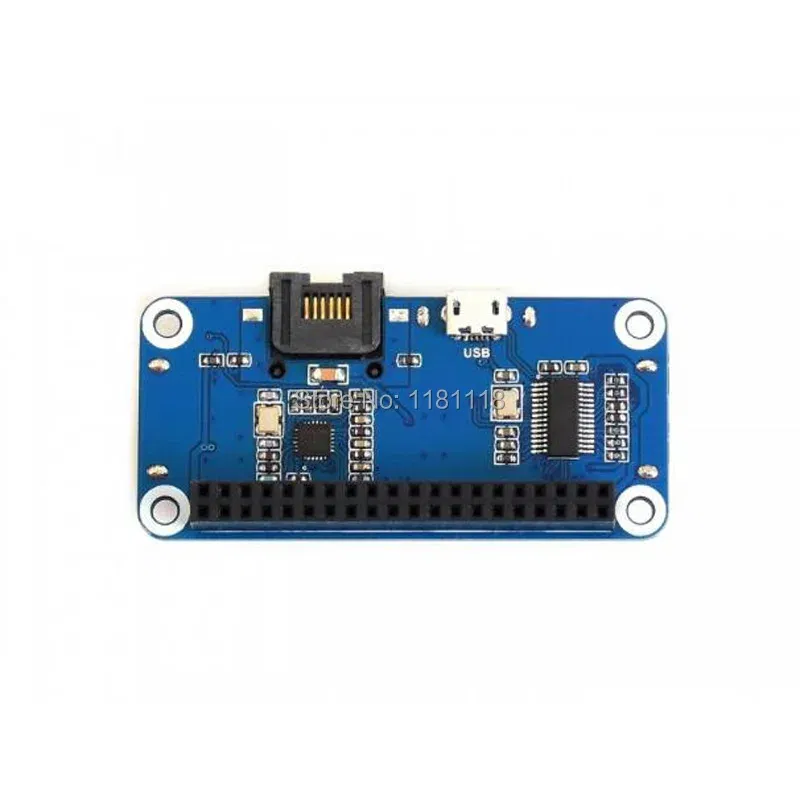

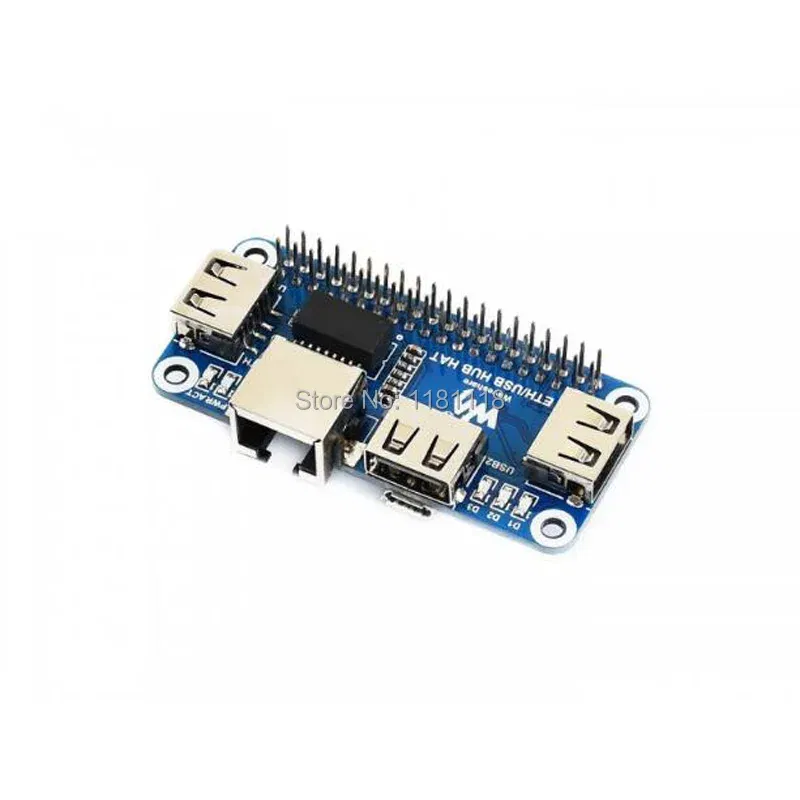

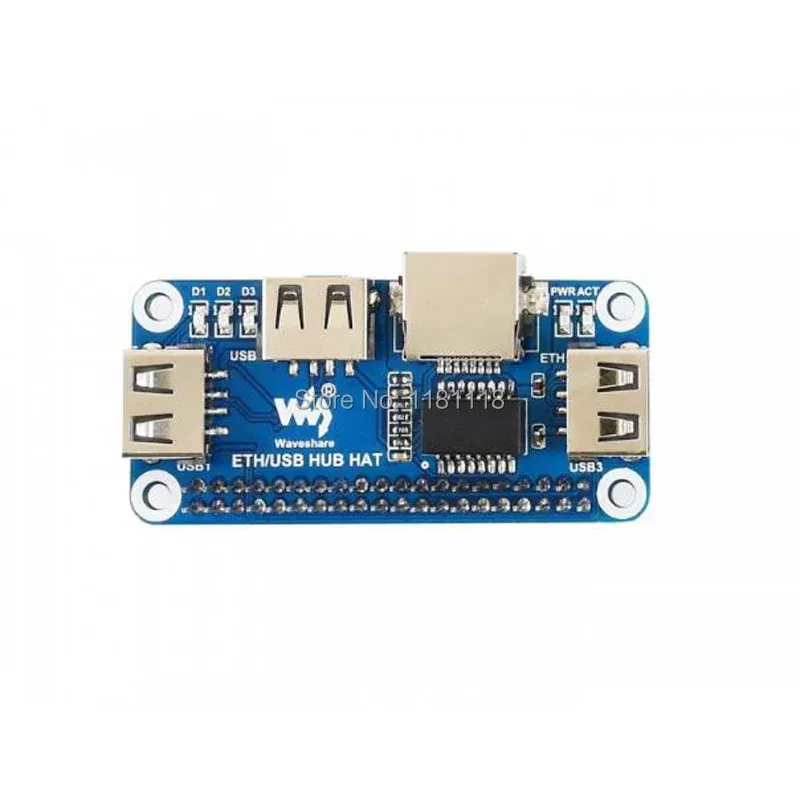

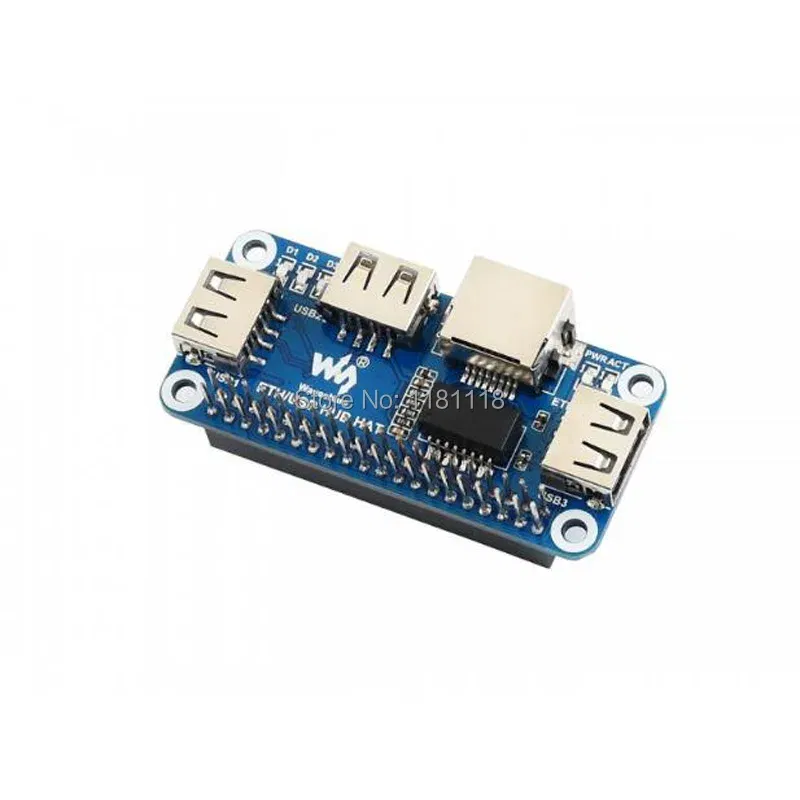

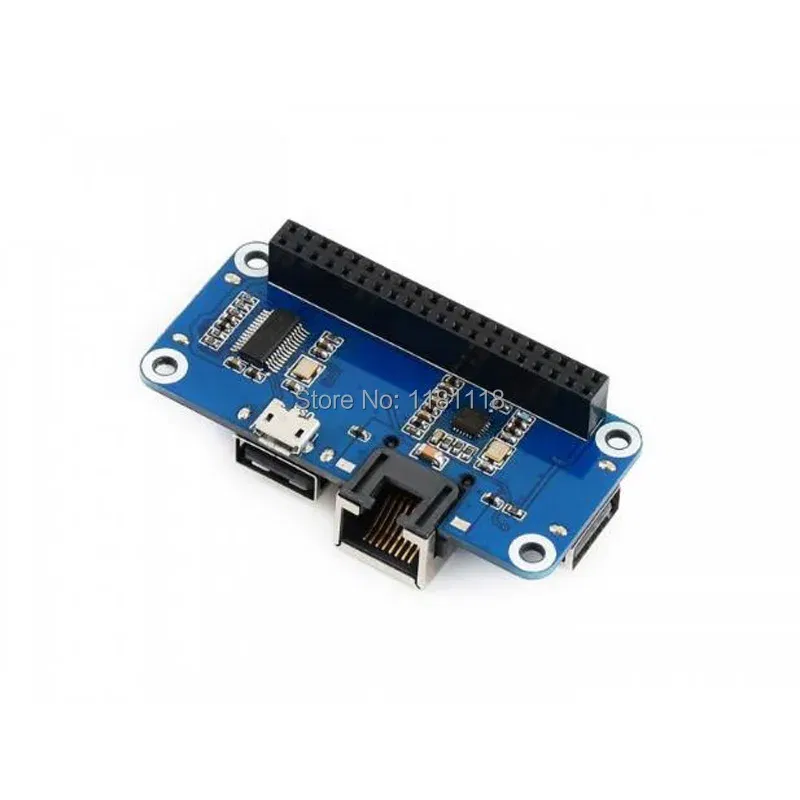

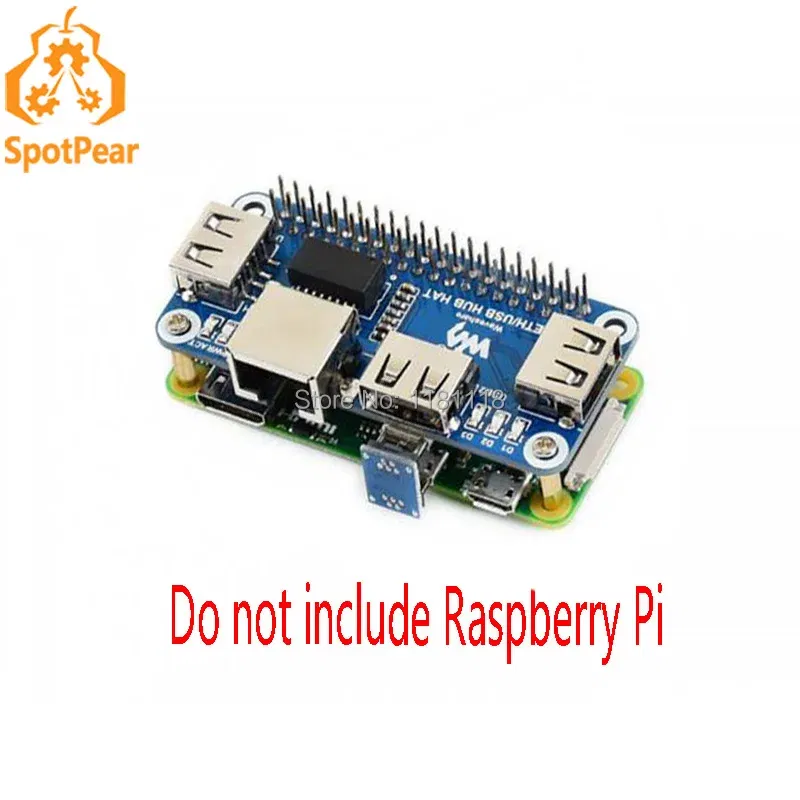

Demo Board Type: Raspberry pi 2 bOrigin: Mainland ChinaCertification: CEChoice: yessemi_Choice: yesDo not include Raspberry Pi ZeroEthernet / USB HUB HAT for Raspberry Pi, 1x RJ45 Ethernet Port, 3x USB PortsOverviewThis Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.Features3x USB ports, compatible with USB2.0/1.11x RJ45 10/100M port, based on the RTL8152B Ethernet chipOnboard multi indicators, for monitoring the status of power, Ethernet, and each USB porWhat's on Board Raspberry Pi GPIO interface: for connecting Raspberry PiUSB extended ports: USB1~USB3RJ45 port: 10/100M Ethernet interfaceUSB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB portRaspberry Pi Zero / Zero W / Zero WH: connected via Micro USB connectorRaspberry Pi B+ / 2B / 3B / 3B+: connected via extra Micro USB cable(Our pacakge do not include, buy it alone)TS8121A: Ethernet wave filterRTL8152B: 10/100M Ethernet chipFE1.1S: USB HUB chipLED indicators:PWR: power indicatorACT: Ethernet indicatorD1~D3: dedicated indicator for USB1~USB3 respectivelySpecifications Operating voltage: 5VDimension: 65mm × 30mmMounting hole size: 3.0mmDimensionsPackage ContainsETH/USB HUB HAT x1Micro USB connector x1Micro USB cable x1RPi screws pack (2pcs) x1
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
