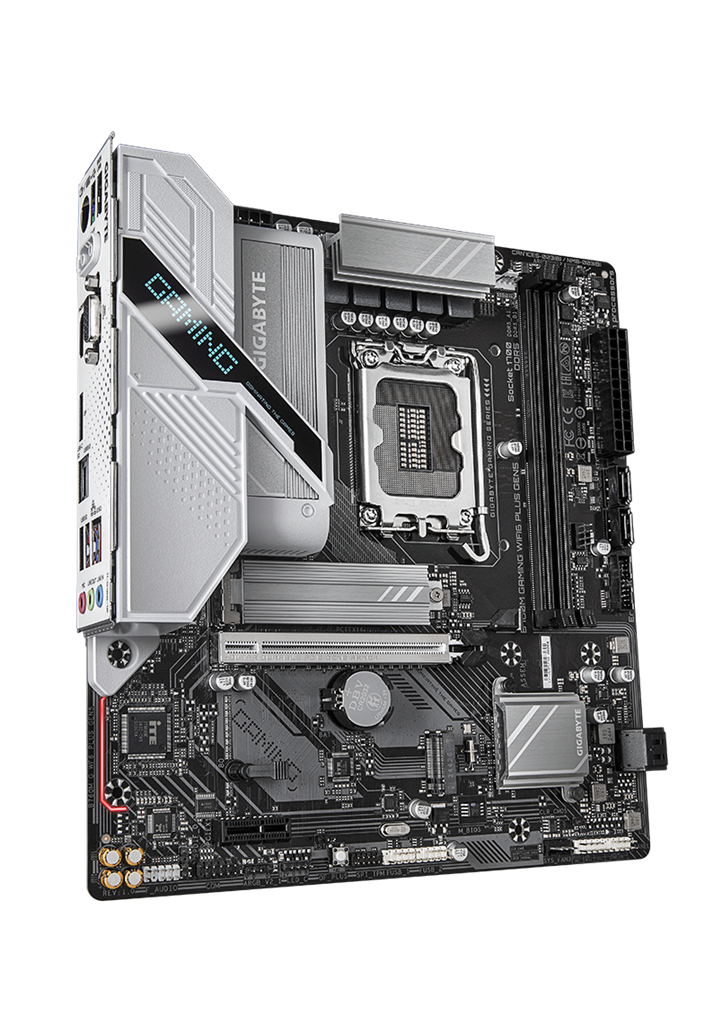

Gigabyte B760M G WF6 PLUS Gen5 DDR5 mATX LGA1700 Motherboard

1. Product Description

The Gigabyte B760M G WF6 PLUS Gen5 DDR5 mATX LGA1700 Motherboard is engineered to deliver exceptional performance and future-proof features for users in New Zealand seeking a reliable foundation for their Intel-based systems. Built with the Intel B760 chipset and LGA1700 socket, this motherboard supports the latest 12th, 13th, and 14th Gen Intel Core processors, offering outstanding performance for demanding applications, gaming, and content creation.

Equipped with DDR5 memory support, PCIe 5.0, Wi-Fi 6, and 2.5GbE LAN, the B760M G WF6 PLUS motherboard ensures fast data transfer, low latency, and seamless online experiences. Its mATX form factor provides ample space for expansion, making it ideal for users looking to build a powerful yet compact system.

Designed with durability in mind, the motherboard features advanced thermal solutions, including M.2 thermal guards and Smart Fan 6 technology, to keep your system running cool during intensive tasks. The 6+2+1 hybrid digital VRM design ensures stable power delivery, even when overclocking.

Whether you're building a high-end gaming rig, a content creation workstation, or a professional-grade system, the Gigabyte B760M G WF6 PLUS Gen5 DDR5 mATX LGA1700 Motherboard offers the performance, connectivity, and reliability you need.

2. Key Features

Processor Compatibility

• Socket: LGA1700

• CPU Support: Intel Core 12th, 13th, and 14th Gen processors

• Overclocking: Unlocked for CPU and memory overclocking

• Chipset: Intel B760 chipset for stable and efficient performance


Memory Support

• Memory Slots: 2 x DDR5 DIMM slots

• Maximum Capacity: Up to 64GB

• Memory Speeds: Supports DDR5 speeds from 4800MHz to 7600MHz (OC)

• XMP Support: Yes, for easy memory overclocking

• Dual-Channel Memory: Optimizes performance for heavy applications and multitasking


Expansion Slots

• PCIe Slots:

  • 1 x PCIe 5.0 x16 slot (CPU connected) for next-gen graphics cards

  • 1 x PCIe 3.0 x1 slot for additional expansion cards


Storage Solutions

• M.2 Slots:

  • 2 x M.2 PCIe 4.0 x4 slots for NVMe SSDs

• SATA Ports: 4 x SATA 6Gb/s ports for additional storage devices

• RAID Support: RAID 0, 1, 5, 10 for both SATA and NVMe SSDs

• Fast Data Transfers: PCIe 4.0 x4 provides up to 64GB/s bandwidth for high-speed SSDs


Networking and Connectivity

• LAN: 1 x 2.5GbE LAN port (Realtek) for fast wired connections

• Wi-Fi: Intel Wi-Fi 6 (802.11ax) for fast and stable wireless connectivity

• Bluetooth: Bluetooth 5.3 support for seamless wireless peripherals

• USB Ports:

  • 1 x USB 3.2 Gen 2x2 Type-C for ultra-fast data transfer

  • 1 x USB 3.2 Gen 2 Type-A

  • 4 x USB 3.2 Gen 1 Type-A

  • 4 x USB 2.0 Type-A for general connectivity


Display Outputs

• HDMI: 1 x HDMI 2.1 for 4K display support

• DisplayPort: 1 x DisplayPort 1.2 for high-quality visuals


Audio

• Audio Codec: Realtek ALC897 for high-definition sound

• Channels: 7.1-channel high-definition audio for immersive sound

• Audio Features: Audio Noise Guard, high-end audio capacitors for superior sound quality


Thermal and Power Design

• VRM Design: 6+2+1 hybrid digital VRM with 60A DrMOS for stable power delivery during demanding tasks

• Thermal Solutions:

  • M.2 Thermal Guard for efficient heat dissipation of storage devices

  • Enlarged MOSFET heatsinks for cooling power delivery components

  • Premium choke and capacitors for enhanced durability and reliability


User-Friendly Features

• EZ-Latch Plus: Screwless PCIe slot design for easy GPU installation

• Q-Flash Plus: BIOS update without CPU, memory, or GPU installation

• RGB Fusion 2.0: Support for addressable and RGB LED strips for system customization


3. Benefits

Exceptional Performance for Gaming and Content Creation

The 6+2+1 hybrid digital VRM design ensures stable power delivery, even during overclocking sessions, allowing you to maximize the performance of your Intel Core processors. Whether you're gaming, streaming, or creating content, this motherboard delivers smooth, uninterrupted performance.

Future-Proof Features

With support for DDR5 memory, PCIe 5.0, and Wi-Fi 6, this motherboard is built to handle next-generation components and technologies, ensuring longevity and relevance in your system build.

Enhanced Thermal Management

The motherboard features advanced thermal solutions, including enlarged MOSFET heatsinks and a PCIe 4.0-ready PCB, which keep your system cool during long gaming sessions or heavy workloads. The FAN STOP feature ensures the system operates silently during light load or idle conditions.

Comprehensive Storage Options

With two M.2 PCIe 4.0 x4 slots and four SATA 6Gb/s ports, this motherboard provides ample storage options for your system, allowing you to take full advantage of fast storage devices and large capacity hard drives. It also supports RAID configurations for added redundancy or performance.

Seamless Networking and Connectivity

The inclusion of 2.5GbE LAN, Wi-Fi 6, and Bluetooth 5.3 ensures fast and stable wired and wireless connections, making it ideal for online gaming, streaming, and data-intensive tasks. The USB 3.2 Gen 2x2 Type-C port provides high-speed data transfer and is perfect for modern peripherals.

4. Why Choose the Gigabyte B760M G WF6 PLUS?

If you're a gamer, content creator, or professional in New Zealand looking for a motherboard that offers future-proof features, high performance, and reliable connectivity, the Gigabyte B760M G WF6 PLUS Gen5 DDR5 mATX LGA1700 Motherboard is the ideal choice. Here's why:

• Intel Core 12th, 13th, and 14th Gen Support: The motherboard supports the latest Intel processors, ensuring excellent performance for both gaming and productivity tasks.

• High-Speed Memory Support: With support for DDR5 memory up to 7600MHz (OC), the motherboard provides high bandwidth for demanding applications and multitasking.

• Next-Generation Connectivity: PCIe 5.0, Wi-Fi 6, and 2.5GbE LAN ensure fast data transfer and low latency, enhancing your overall system performance.

• Advanced Thermal Solutions: The motherboard’s advanced thermal design keeps your components cool under load, preventing overheating and ensuring stability.

• User-Friendly Features: Features like EZ-Latch Plus, Q-Flash Plus, and RGB Fusion 2.0 simplify system building and maintenance, making the motherboard accessible for both beginners and experienced builders.


5. Conclusion

The Gigabyte B760M G WF6 PLUS Gen5 DDR5 mATX LGA1700 Motherboard offers exceptional performance, future-proof features, and reliable connectivity, making it an excellent choice for users in New Zealand. Whether you're building a high-performance gaming rig, a content creation workstation, or a professional-grade system, this motherboard provides the performance and features required to power your system to its peak.

With support for Intel Core processors, DDR5 memory, PCIe 5.0, and Wi-Fi 6, the B760M G WF6 PLUS ensures you are ready for the next generation of computing technologies. The advanced thermal solutions and user-friendly features make it a solid choice for both beginners and experienced builders.

Specifications
