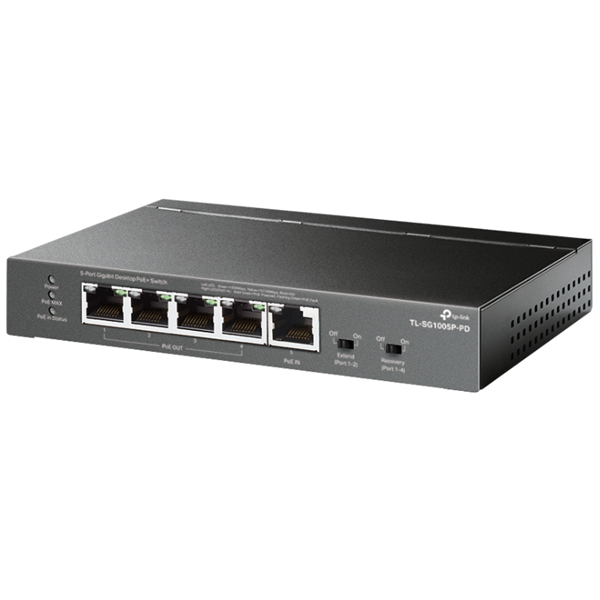

TP-Link SG1005P-PD 5 Port Gigabit Switch PoE Powered
TP-Link SG1005P-PD 5 Port Gigabit Switch PoE Powered
5-Port Gigabit Desktop, PoE Powered, PoE+ Output up to 66W/47W/21W/9W depending on input PoE power level Note: only powered by PoE, no power adapter
Specifications
Device Type | 5 Port Gigabit Desktop Switch |
Interface | 5× 10/100/1000Mbps RJ45 Ports 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4) 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at) AUTO Negotiation AUTO MDI/MDIX |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
PoE Ports (RJ45) | PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4 PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE Power Budget: -66 W when powered by 802.3bt Type 4 (90 W) -47 W when powered by 802.3bt Type 3 (60 W) -21 W when powered by 802.3at (30 W) -9 W when powered by 802.3af (15.4 W) |
Fan Quantity | Fanless |
Dimensions (mm) | 158 × 101 × 25 mm |
TP-Link SG1005P-PD 5 Port Gigabit Switch PoE Powered
Description
The TP-Link SG1005P-PD 5 Port Gigabit Switch PoE Powered is a powerful networking solution designed to streamline your network setup while providing high-speed data transfer and efficient power delivery. Featuring five gigabit Ethernet ports, including PoE (Power over Ethernet) support for up to four devices, this switch is perfect for both home and office environments that require seamless connectivity and device power.
The SG1005P-PD supports Power over Ethernet (PoE), delivering power and data to devices such as IP cameras, access points, and VoIP phones through the Ethernet cable, reducing the need for additional power adapters and simplifying your network design. Its robust construction and energy-efficient features make it a reliable, cost-effective choice for anyone looking to expand their network with ease.
Key Points
-
5 Gigabit Ethernet Ports: Equipped with five gigabit ports, the SG1005P-PD delivers ultra-fast data transfer speeds,
perfect for demanding tasks such as HD video streaming, online gaming, and large file transfers.
-
4 PoE Ports: Four of the five ports support Power over Ethernet (PoE), allowing you to power devices such as IP cameras,
wireless access points, and VoIP phones directly through the Ethernet cable. This feature simplifies your setup and reduces the need for
additional power outlets.
-
PoE Powered: Unlike typical switches that require an external power source, the SG1005P-PD itself is powered via PoE,
offering a more flexible and convenient installation.
-
Plug-and-Play Setup: The device requires no configuration, making it easy to set up and deploy right out of the box. It’s
perfect for users who need a simple, hassle-free networking solution.
-
Energy-Efficient Design: The SG1005P-PD is designed to minimize energy consumption without compromising performance, making
it an environmentally friendly choice for long-term use.
Benefits
-
Simplified Network Expansion: The ability to deliver both data and power through a single cable reduces clutter and
simplifies the installation of network devices like cameras and wireless access points.
-
Cost-Effective Solution: By eliminating the need for extra power adapters and outlets, the SG1005P-PD helps reduce
installation costs while maintaining a high level of performance and reliability.
-
Reliable and Stable Performance: With TP-Link’s proven reputation for quality and durability, the SG1005P-PD ensures that
your network stays up and running smoothly, even under heavy use.
-
Scalable for Growing Networks: Whether you are setting up a small home office or expanding a larger network, the SG1005P-PD
offers the flexibility to grow your network infrastructure without the need for complex upgrades.
-
Quiet and Compact: The compact form factor and fanless design make the SG1005P-PD ideal for installation in noise-sensitive
areas, such as home offices or small businesses.
Why Choose This Product?
The TP-Link SG1005P-PD 5 Port Gigabit Switch PoE Powered is the ideal choice for users who need a reliable, high-performance switch with Power over Ethernet (PoE) capabilities. Whether you are powering IP cameras, VoIP phones, or wireless access points, this switch provides a hassle-free and cost-effective solution.
For New Zealand businesses and homes looking for an easy-to-install, energy-efficient networking device that offers both power and data transmission in one, the SG1005P-PD is an excellent choice. Its flexibility, reliability, and simplicity make it a perfect addition to any network.
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
