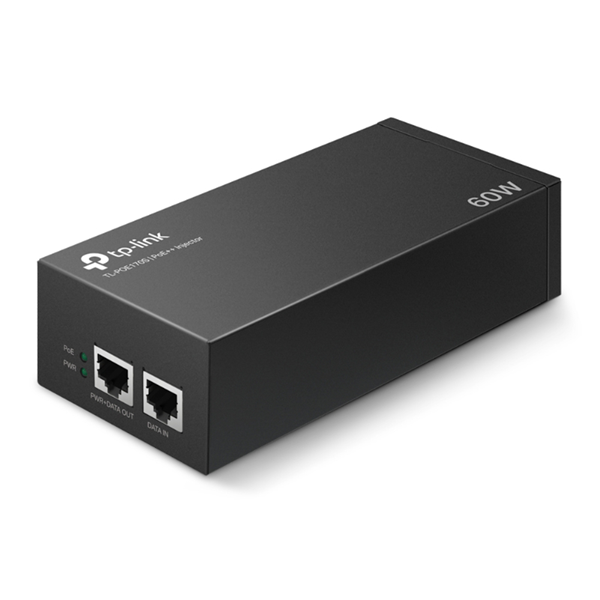

TP-Link PoE170S Power Over Ethernet Injector Adapter PoE++
TP-Link PoE170S Power Over Ethernet Injector Adapter PoE++
PoE++ Injector Adapter PORT: 1× Gigabit PoE Port, 1× Gigabit Non-PoE Port SPEC: 802.3bt/at/af Compliant, 60 W PoE Power, Data and Power Carried over The Same Cable Up to 100 Meters, Steel Case, Pocket Size, Integrated Power Supply
Specifications
Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt |
Certification | FCC, CE, RoHS |
Environment | Operating Temperature: 0°C to 45°C Storage Temperature: -40°C to 70°C Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing |
Material | Metal Casing |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |
Ports | 1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket |
Power Consumption | Input: 100-240 V, 50/60 Hz, 1.6A Output: Auto-determine the necessary power requirements (max. 60 W) |
Dimensions (W x D x H) | 155 x 70 x 42 mm |
TP-Link PoE170S Power Over Ethernet Injector Adapter PoE++
Description
The TP-Link PoE170S Power Over Ethernet Injector Adapter PoE++ is an advanced and highly efficient solution for delivering both power and data over a single Ethernet cable. This PoE++ injector is designed for high-performance environments where more power is required, such as for advanced networking devices, high-end IP cameras, and other power-hungry devices. With a power output of up to 60 watts per port, the TP-Link PoE170S supports PoE++ (IEEE 802.3bt), making it the ideal choice for powering devices in large-scale, data-heavy networks.
Perfect for businesses, offices, or surveillance systems in New Zealand, the TP-Link PoE170S ensures reliable and seamless performance while reducing the need for additional power outlets and cables. Its robust design and easy installation make it a top choice for those looking to simplify their network setup while maintaining top-tier functionality.
Key Points
-
Supports PoE++ (IEEE 802.3bt) Standard: Delivers up to 60 watts of power per port, enabling it to power more demanding
devices such as advanced wireless access points, high-resolution IP cameras, and other enterprise-grade network equipment.
-
Plug-and-Play Setup: Simple to install with no need for complex configurations. Just connect the injector to your network
and start powering your devices immediately.
-
Wide Compatibility: Works with a variety of PoE++ devices, including the latest security cameras, access points, and other
high-powered network equipment.
-
High Data Transfer Rates: Offers data speeds of up to 1000 Mbps, ensuring fast and reliable network communication for both
power and data transmission.
-
Durable and Reliable Construction: Built to last with a robust housing, the TP-Link PoE170S is designed to withstand
long-term use in demanding environments, from corporate offices to surveillance setups.
-
Space-Saving Design: A compact and efficient form factor that makes it easy to fit into tight spaces while ensuring optimal
performance.
Benefits
-
Increased Power Delivery: With up to 60 watts of power per port, the PoE170S is ideal for powering more energy-intensive
devices, making it perfect for large-scale installations, surveillance systems, and high-performance networking environments.
-
Reduces Clutter: By combining power and data transmission in a single Ethernet cable, the TP-Link PoE170S eliminates the
need for multiple cables and power supplies, reducing clutter and simplifying your setup.
-
Efficient Power Distribution: Whether you're running IP cameras, access points, or other high-demand devices, this injector
ensures that each device gets the necessary power without the hassle of extra adapters or power outlets.
-
Simplified Network Expansion: The plug-and-play design ensures quick and easy setup, enabling businesses and home users in
New Zealand to expand their networks effortlessly without the need for complex configurations.
-
Energy-Efficient: The PoE++ standard is more energy-efficient compared to previous PoE standards, meaning less power is
wasted and your devices perform optimally with minimal energy consumption.
-
Future-Proof: The TP-Link PoE170S is built to support future network demands, ensuring that as your network grows and your
devices require more power, the injector will be able to handle it without needing upgrades or replacements.
Why Choose This Product?
The TP-Link PoE170S Power Over Ethernet Injector Adapter PoE++ is the ideal solution for businesses, offices, or surveillance setups that require high power output for advanced networking devices. Whether you're upgrading your network or building a new one, the TP-Link PoE170S provides a future-proof, reliable, and space-efficient way to power your devices while maintaining high data transfer speeds. It is particularly beneficial for users in New Zealand who need reliable, long-lasting network equipment for their home or office infrastructure.
-
High Power Output: With a PoE++ standard and up to 60W per port, it supports even the most demanding devices.
- Easy to Install: No configuration required, making it perfect for users looking for a hassle-free setup.
-
Versatile Compatibility: Works with a broad range of PoE++ devices, offering excellent flexibility for diverse network
needs.
-
Cost-Effective Solution: By consolidating power and data transmission, the PoE170S reduces both installation time and the
need for additional outlets, making it a highly cost-effective solution for network deployment.
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
