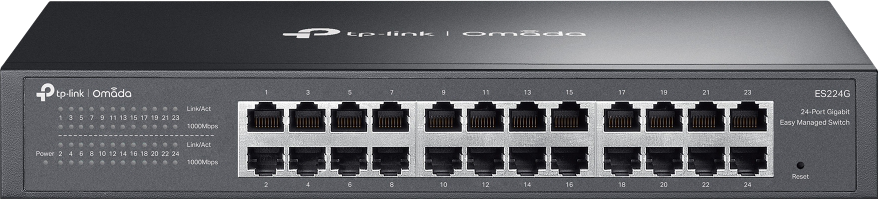

TP-Link ES224G 24 Port Gigabit Switch Easy Smart Rack Mount Omada
TP-Link ES224G 24 Port Gigabit Switch Easy Smart Rack Mount Omada
"Omada 24-Port Gigabit Easy Managed Switch PORT: 24× Gigabit RJ45 Ports SPEC: 1U 13-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller and Omada Cloud Essentials, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control"
Specifications
Interface | 24× 10/100/1000 Mbps RJ45 Ports Auto-Negotiation/Auto MDI/MDIX |
Fan Quantity | Fanless |
Installation | Desktop, Rackmountable |
Physical Security Lock | Yes |
Power Supply | 100 - 240 V ~ 50/60Hz |
Dimensions (W x D x H) | 294 x 140 x 44mm |
Surge Protection | ±6kV |
Switching Capacity | 48 Gbps |
Packet Forwarding Rate | 35.7 Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4 Mbit |
Jumbo Frame | 15 KB |
Quality of Sercice | Port-based/802.1p/DSCP QoS 8 Priority Queues Priority Schedule Mode - WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control - Port-Based Rating Limit Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control |
L2 Features | Static Link Aggregation Loop Prevention / Loopback Detection Flow Control - 802.3x Flow Control Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both Port Statistics - Port Mirror Status - Traffic Statistics 802.1ab LLDP |
L2 Multicast | IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
VLAN | MTU VLAN Port-Based VLAN 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
Transmission Method | Store-And-Forward |
Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller |
Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
Management Features | Web-based GUI DHCP Client Cable Diagnostics Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Unified Configuration |
Certification | FCC, CE, RoHS |
Operating Temperature | -5℃~50℃ |
Operating Humidity | 10%~90% non-condensing |
TP-Link ES224G 24 Port Gigabit Switch Easy Smart Rack Mount Omada
Description
The TP-Link ES224G 24 Port Gigabit Switch Easy Smart Rack Mount Omada is a powerful and scalable network switch designed for small to medium-sized businesses and enterprise environments that require high-performance, easy management, and reliable connectivity. With 24 gigabit Ethernet ports, this rack-mountable switch delivers high-speed data transfer for a wide range of applications, from file sharing and cloud applications to streaming and video conferencing.
As part of the Omada SDN (Software Defined Networking) platform, the ES224G offers centralized cloud management, providing businesses in New Zealand with the flexibility and control to monitor and configure the network from anywhere. Its rack-mountable design ensures a professional, space-efficient setup, ideal for server rooms and network closets. The easy smart features like VLAN support, QoS, and network monitoring ensure that your network operates efficiently and securely.
Key Points
-
24 Gigabit Ethernet Ports: The ES224G features 24 gigabit ports, ensuring high-speed connectivity for all your network
devices, including computers, servers, printers, and more. Perfect for businesses with high data throughput needs.
-
Omada SDN Integration: Integrated with TP-Link’s Omada SDN platform, the ES224G provides centralized management for your
network. This feature allows businesses to monitor, configure, and manage their network remotely via the Omada Cloud or the Omada app.
-
Rack-Mountable Design: The ES224G is designed for easy installation in standard 19-inch server racks, making it perfect for
professional environments where space optimization and organization are key.
-
Easy Smart Features: The switch comes with simple-to-use management tools such as VLAN, Quality of Service (QoS), and
network monitoring. These features allow businesses to optimize traffic flow, prioritize critical applications, and improve network
performance.
-
Energy-Efficient: The ES224G is designed with energy-saving technology, reducing power consumption without compromising on
performance, making it both cost-effective and environmentally friendly.
Benefits
-
Centralized Network Management: With Omada SDN integration, businesses can manage their network from a single location,
whether on-premise or via the cloud. This centralized management streamlines network setup, monitoring, and maintenance.
-
High-Speed Performance: The 24 gigabit ports deliver fast and reliable network connectivity, ensuring smooth data transfers
and uninterrupted access to cloud applications, servers, and other business-critical services.
-
Scalable and Flexible: The ES224G is perfect for growing businesses in New Zealand, offering 24 ports that allow for easy
expansion as your network needs increase. Whether adding new workstations or upgrading network devices, this switch scales with your
business.
-
Professional Setup: The rack-mountable design makes the ES224G ideal for professional environments such as server rooms,
network closets, and enterprise offices. It helps maintain a neat and organized network setup.
-
Quiet and Efficient: The fanless design ensures the ES224G operates quietly, making it suitable for environments where
noise reduction is essential, such as offices or data centers. Its energy-efficient operation also lowers long-term operating costs.
Why Choose This Product?
The TP-Link ES224G 24 Port Gigabit Switch Easy Smart Rack Mount Omada is the ideal solution for New Zealand businesses looking for a scalable, high-performance network switch with centralized management and easy-to-use smart features. Its integration with the Omada SDN platform provides businesses with greater control and flexibility over their network, while the 24 gigabit ports ensure that all devices are connected at high speeds for seamless performance.
For companies looking to optimize their network setup, improve efficiency, and manage devices remotely, the ES224G offers a powerful, cost-effective solution that can grow with your business.
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
