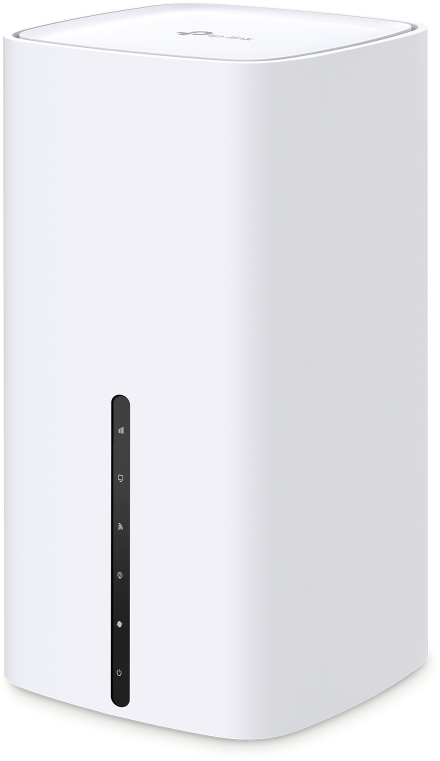

TP-Link Archer NX200 Router 5G with AX1800
TP-Link Archer NX200 5G AX1800 Wireless Dual-Band Gigabit Router
The TP-Link Archer NX200 is a cutting-edge 5G router designed to deliver ultra-fast internet speeds and seamless connectivity. Supporting the latest Wi-Fi 6 (AX1800) technology, this router offers high-speed 5G capabilities, making it ideal for applications that demand high bandwidth, such as streaming 8K content, online gaming, and large file transfers. Whether for home or small office use, the Archer NX200 ensures reliable performance and efficient network management.
Key Features
5G Connectivity
-
Ultra-Fast 5G Speeds: Achieve download speeds up to 4.67 Gbps with 5G technology for
high-speed internet without buffering.
-
Backward Compatibility: Supports 4G LTE (up to 150 Mbps download) for broader coverage
and reliable connectivity even when 5G is unavailable.
Wi-Fi 6 (AX1800) Dual-Band Performance
-
5 GHz Band: Up to 1201 Mbps for fast and reliable high-bandwidth applications such as HD streaming and
online gaming.
- 2.4 GHz Band: Up to 574 Mbps for standard web browsing, email, and video conferencing.
-
Wi-Fi 6 Features: Supports OFDMA and 1024-QAM, which improve network efficiency,
allowing more devices to connect with faster speeds and less interference.
Flexible Connectivity
-
Multiple WAN Ports: Includes 1 WAN port for 5G/4G network and 2 LAN ports for wired
connections to devices such as computers, printers, and smart TVs.
-
Dual SIM Slots: Insert two nano SIM cards for more flexible mobile data connections, including one for
failover.
Easy Setup and Management
-
Plug and Play: Simply insert your SIM card, power on the device, and you're good to go, providing internet to your home or
office in minutes.
-
TP-Link Tether App: Manage your settings, monitor data usage, and control connected devices via the easy-to-use TP-Link
Tether app
available for both iOS and Android devices.
Security Features
- WPA3 Encryption: Provides the latest Wi-Fi encryption to ensure your network is secure.
- Guest Network: Create separate networks for guests to ensure privacy and security.
-
Parental Controls: Manage internet access for specific devices and set usage limits for children or guests.
Performance and Stability
- Dual-Core Processor: Ensures smooth operation even with multiple devices connected simultaneously.
-
Beamforming Technology: Improves coverage and reliability by focusing Wi-Fi signals directly toward devices.
Technical Specifications
- Network Type: 5G (FDD-LTE, TDD-LTE); 4G LTE (FDD-LTE, TDD-LTE)
- Wi-Fi Speed: 1201 Mbps (5 GHz), 574 Mbps (2.4 GHz)
- Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax
- Ports: 1 × WAN port, 2 × LAN ports, 1 × USB 3.0 port for file sharing or LTE dongle
- Antennas: 4 external antennas (2 for 5 GHz and 2 for 2.4 GHz)
- Security: WPA3 encryption, SPI Firewall, Access Control
- Battery: Powered by a typical power adapter (12V/1.5A)
Ideal Use Cases
- High-Speed Internet: Stream 8K videos, online gaming, and file sharing with ultra-fast 5G speeds.
-
Remote Work: Ensure stable and fast internet for video calls, cloud services, and team collaboration tools.
-
Backup Internet: Use the Archer NX200 as a backup internet source when fixed-line broadband is unavailable or during
service outages.
-
Multiple Device Connectivity: Connect multiple devices seamlessly, from smartphones and laptops to IoT devices.
Conclusion
The TP-Link Archer NX200 is a next-generation router offering blazing-fast 5G speeds, Wi-Fi 6 performance, and a host of advanced features for both home and office use. Whether you need high-speed internet for multiple devices or a backup solution for your primary broadband connection, the Archer NX200 is designed to provide seamless, reliable connectivity for all your internet needs.
TP-Link Archer NX200 Router 5G with AX1800
5G Router with Wi-Fi 6, 1201Mbps (5GHZ) + 574Mbps (2.4GHz), Gigabit WAN/LAN port, Tether App, Cloud support. SIM Card Slot
Specifications
Interface | 1 × 10/100/1000 Mbps LAN/WAN Port 2 × 10/100/1000 Mbps LAN Ports 1 × Nano SIM Card Slot 2 × 5G/4G External Antenna Ports |
Button | WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button |
External Power Supply | Power Adapter: Input Power 100-240v~50/60 Hz 0.6A Output parameter 12VDC 2A |
Dimensions (W x D x H) | 99 × 99 × 190 mm |
Antenna | 8 × 5G/LTE Internal Antennas 2 × Wi-Fi Internal Antennas |
Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | 574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz |
Reception Sensitivity | 5GHz: 11a 54M:-80 dBm 11ax HE20:-68 dBm 11ax HE40:-65 dBm 11ax HE80:-62 dBm 11ac VHT20:-76 dBm 11ac VHT40:-72 dBm 11ac VHT80:-68 dBm 11n HT20:-79 dBm 11n HT40:-75 dBm 2.4GHz 11g 54M:-78 dBm 11ax HE20:-65 dBm 11ax HE40:-62 dBm 11ac VHT20:-73 dBm 11ac VHT40:-68 dBm 11n HT20:-75 dBm 11n HT40:-72 dBm |
Transmit Power | <23dBm (5.15GHz~5.35GHz) <30dBm (5.47GHz~5.71GHz) <20dBm (2.4GHz) |
Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
WAN Failover | Yes |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
Network Type | 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz) FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz) TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz) DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
Quality of Service | Prioritizes network traffic by device or application |
Security | DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
Management | TP-Link Cloud, Local Management, Remote Management |
DHCP | Server, DHCP Client List, Address Reservation |
Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS | TP-Link, DynDns, NO-IP |
VPN | PPTP VPN, IPSec VPN , OpenVPN |
Access Control | Parental Control, Local Management Control |
Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
Protocols | IPv4, IPv6 |
Guest Network | 2.4 GHz Guest Network x 1 5 GHz Guest Network x 1 |
Certification | CE, RoHS |
Package Contents | 5G AX1800 Wireless Dual-Band Gigabit Router Archer NX200 1.5m Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vistaâ„¢/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Nano SIM Card |
Operating Temperature | 0℃~40℃ |
Operating Humidity | 10%~90% non-condensing |
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
