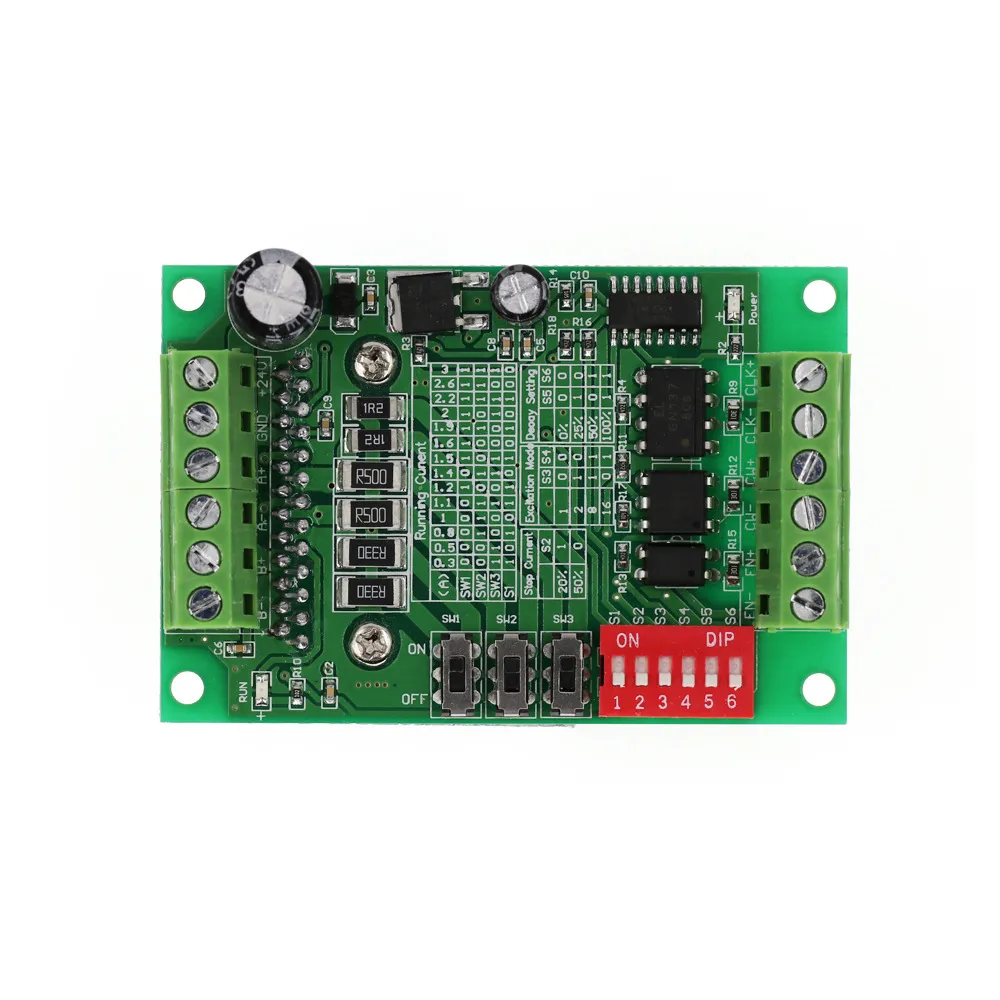

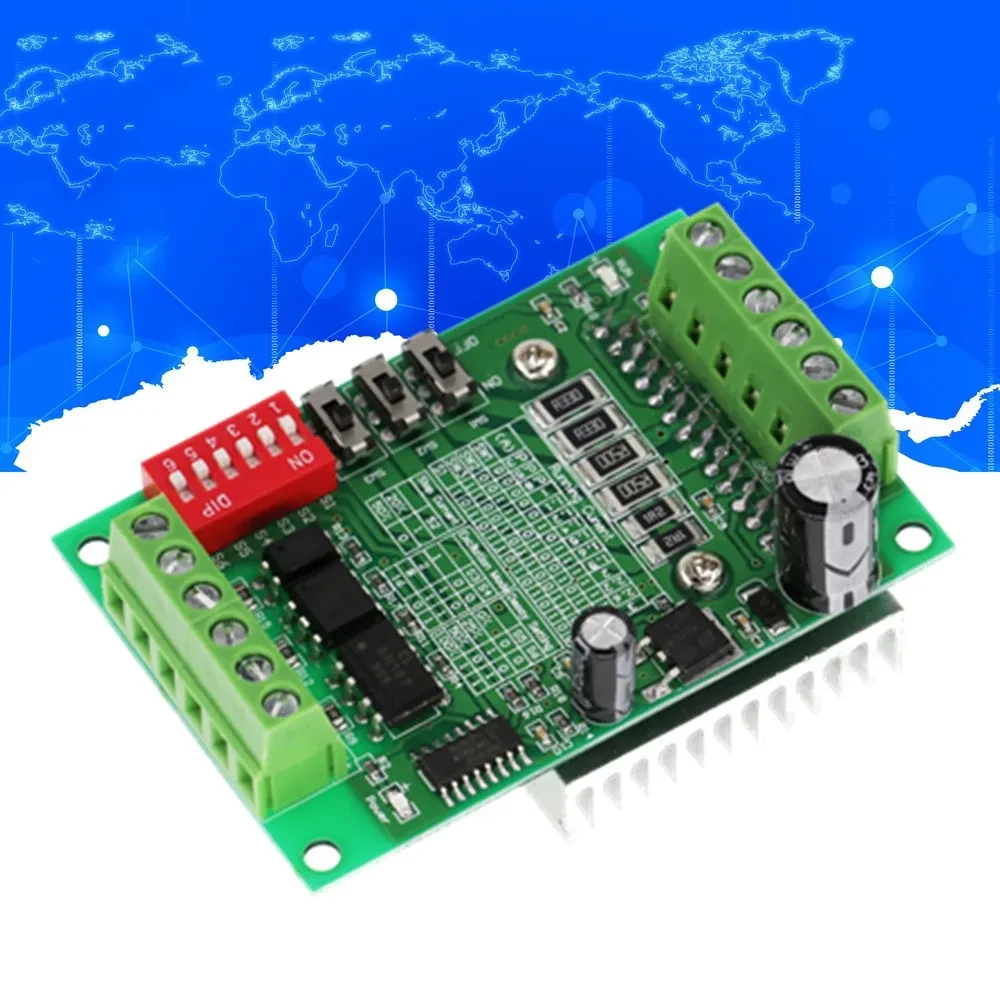

TB6560 3A stepper motor driver

This product has been fully tested and has been applied to engraving machines, placement machines and other equipment. The quality is guaranteed and can be used with confidence.

This module does not have any protection circuit, so you must be very careful when using it, otherwise the chip will burn out easily. The chip is not covered by the warranty.
1) Working voltage DC 10V-35V. It is recommended to use switching power supply DC24V for power supply.
2) 6N137 high-speed light beam is used to ensure high speed without losing steps.
3) Toshiba TB6560AHQ brand new original chip, with low-voltage shutdown, over-temperature shutdown and over-current protection circuits to ensure optimal performance.
4) The rated maximum output is: ± 3A, with a peak of 3.5A.
5) Suitable for two-phase / four-phase / four-wire / six-wire stepper motors within 42, 57 steps and 3A, not suitable for step motors over 3A.
6) Automatic half flow function.
7) Subdivision: full step, half step, 1/8 step, 1/16 step, maximum 16 subdivisions.
8) Volume: width 50 * length 75 * height 35 (MM)
Features in similar products:
1. The current level is adjustable one by one to meet your various application needs.
2. Automatic half-flow adjustable.
3. 6N137 high-speed light beam is used to ensure high speed without losing steps.
4, plate printing settings instructions, you can operate without manuals.
5, using thick and dense tooth radiator, good heat dissipation.

TB6560 3A Stepper Motor Driver
do not add link

Reliable Motor Control for CNC and Automation Projects
The TB6560 3A Stepper Motor Driver is designed to provide stable, precise control for stepper motors used in CNC machines, 3D printers, engraving systems, robotics projects, and other automated equipment. Known for its durability and strong current-handling capability, it offers smooth motion, reduced vibration, and high torque output—making it a popular choice for both hobbyists and professional builders.

Supports Up to 3A Output for Strong Performance
With a maximum output of 3A per phase, this driver is capable of powering NEMA 17 and NEMA 23 stepper motors commonly found in DIY CNC and motion-control systems. Its robust current capacity ensures consistent torque even under heavy load, helping motors run smoothly during precision operations such as cutting, engraving, plotting, and positioning tasks.

Microstepping for Smooth and Accurate Motion
The TB6560 driver supports multiple microstepping modes, allowing motors to operate with improved resolution and reduced noise. Depending on the board version, options may include full-step, half-step, 1/4-step, 1/8-step, and possibly finer microsteps. This flexibility ensures smoother motion, greater accuracy, and better performance in applications that require exact positioning.

Built-in Protections for Safe Operation
To protect both the driver and the connected motor, the TB6560 typically includes:
– Overcurrent protection
– Short circuit protection
– Overheat protection
– Under-voltage lockout

These safety features help prevent hardware damage and ensure stable, long-term use, especially in machines that operate for extended hours.

Easy Integration with Controllers
Compatible with common control signals from Arduino, Mach3, CNC controllers, and other microcontroller platforms, the TB6560 is easy to integrate into new or existing builds. Standard step and direction inputs allow straightforward wiring, making it suitable for beginners and experienced technicians alike.

Adjustable Settings for Custom Performance
The board often includes DIP switches or adjustable jumpers for setting:
– Current levels
– Microstep modes
– Decay modes
– Motor operating characteristics

These adjustments allow you to fine-tune motor behavior depending on load, speed, and machine design, improving overall performance and responsiveness.

Durable Construction for Continuous Use
Built with a heat-dissipating design and often featuring an integrated heatsink, the TB6560 is made to withstand long hours of operation. Its reliable architecture supports demanding applications in CNC carving, milling, automation lines, and mechanical prototyping.

Perfect for CNC Machines, Robotics, and Motion Control
Whether you're building a new CNC router, upgrading a stepper motor system, or experimenting with robotics, the TB6560 3A Stepper Motor Driver offers a dependable, adjustable, and high-performance solution for controlled stepper motor movement. It’s the ideal driver for projects that require precision, durability, and strong torque output.
