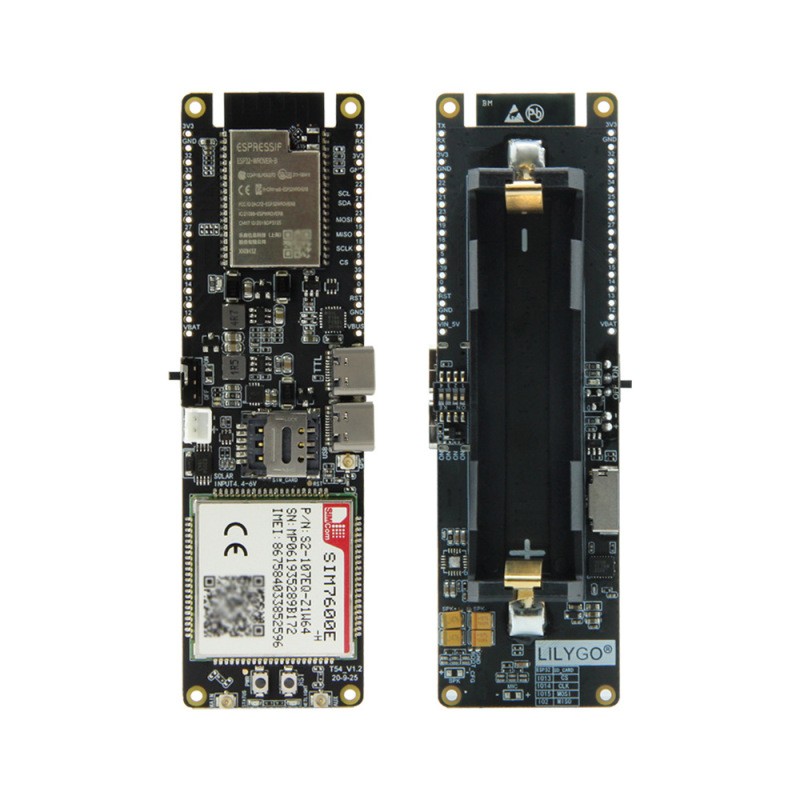

T-SIM7600E-H 4G LTE CAT4 USB Dongle Industrial Ethernet Card ESP32

Name: T-SIM7600E-H 4G LTE CAT4 USB Dongle Industrial Ethernet Card ESP32
Brand: Gift Tree
Price: 129.99 NZD
Availability: InStock

Gift Tree

$129.99 NZD

or 4 payments of $32.50 with

Product information:

Main chip: ESP32
Module: ESP32-WROVER-B SIM7600E-H

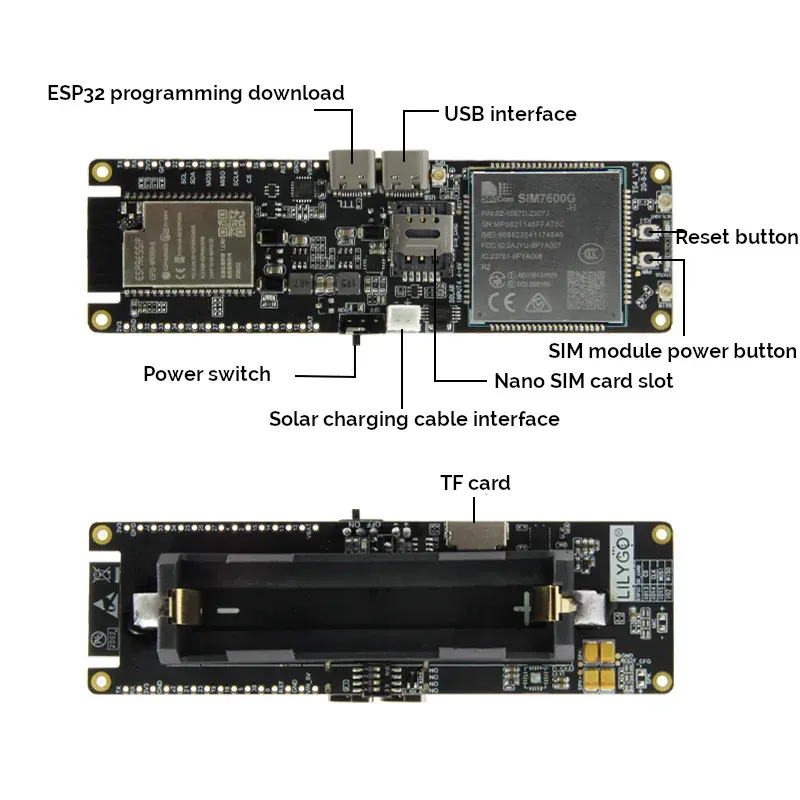

Interface: USB, SD card, solar input interface
Flash: 4M Flash/8M PSRAM
Button: reset, power switch
USB to TTL: CP2104
Clock: 240 Mhz
SIM card size: Nano SIM card
Working temperature range: -40-85 degrees Celsius
Product size: 111mm * 37mm * 20mm
Product weight: 50 grams
Working voltage: 5V input

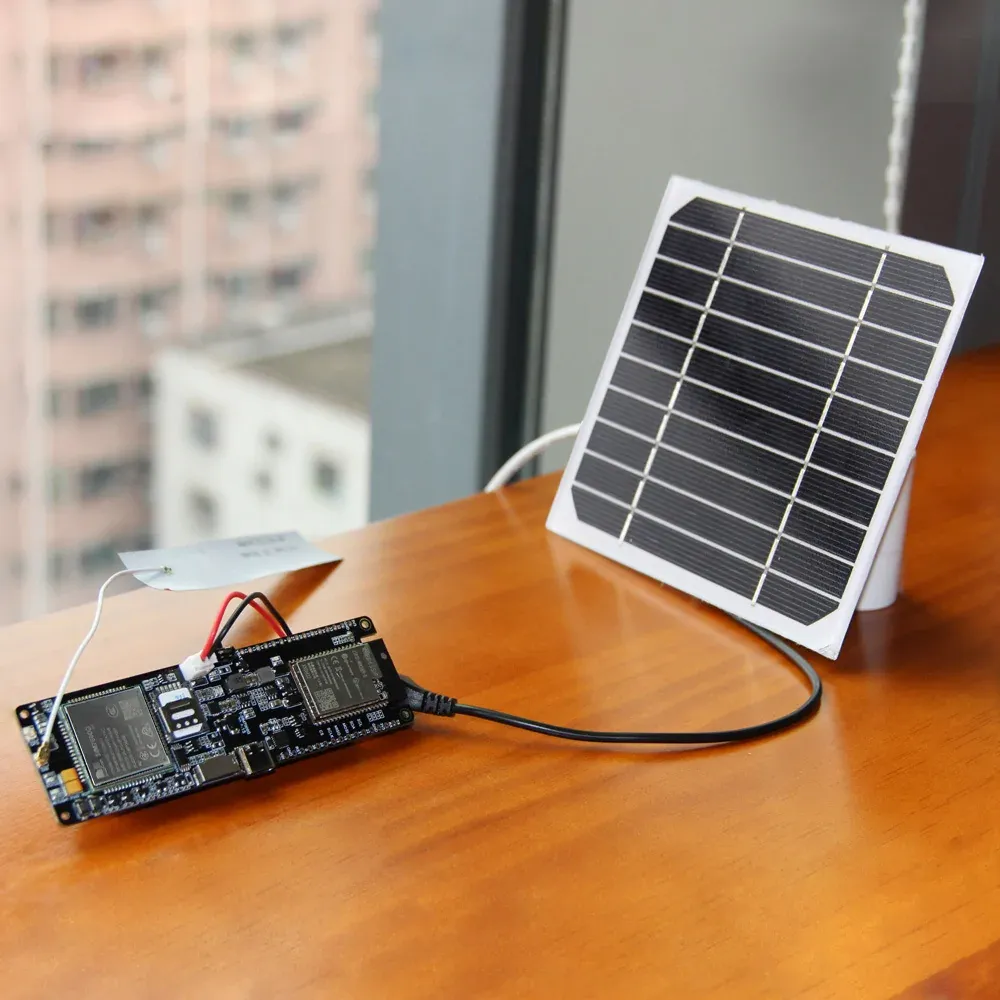

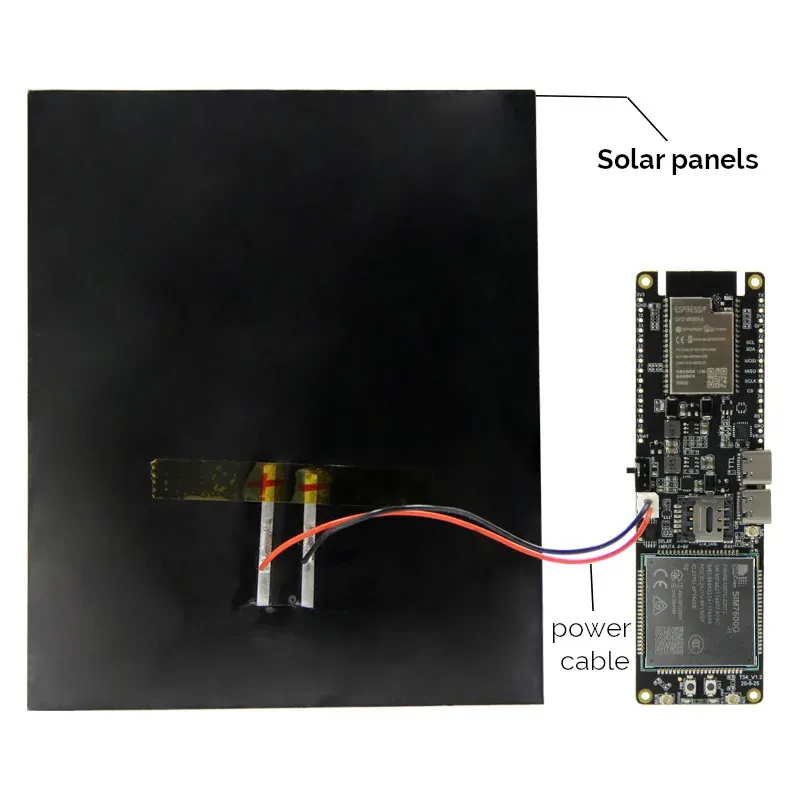

Solar input voltage range: 4.4-6v
Working current: approximately 200mA
Charging current: 780 ma
Battery model: 18650
Battery holder model: 18650 Battery holder
JST connector: 2pin 2mm
USB: C-type 3.0
Standards: FCC/CE RED/IC/TELEC KCC/SRRC/NCC
Protocol: 802.11 b/g/n (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU aggregation, supporting 0.4 μ S protection interval
Frequency: 2.4 ghz~2.5 ghz range (2400~2483.5)
Power of Communication: 22 dbm
Communication distance: 300m
Protocol compliant with Bluetooth: v4.2BR/EDR and BLE standards
RF: -97dBm sensitivity NZIF receiver Class 1, Class 2, and Class 3 transmitter AFH
Audio: CVSD&SBC audio
Wi Fi mode: AP, Station, AP+Station
Security mechanism: "WPA/WPA2/WPA2- enterprise/WPS"
Encryption type: AES/RSA/ECC/SHA
Firmware upgrade: UART download/OTA (write firmware through network/host download)
Software development: supports cloud server development/SDK for user firmware development
Network protocols: IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
User configuration: AT+instruction set, cloud server, Android/iOApp
Operating System: FreeRTOS

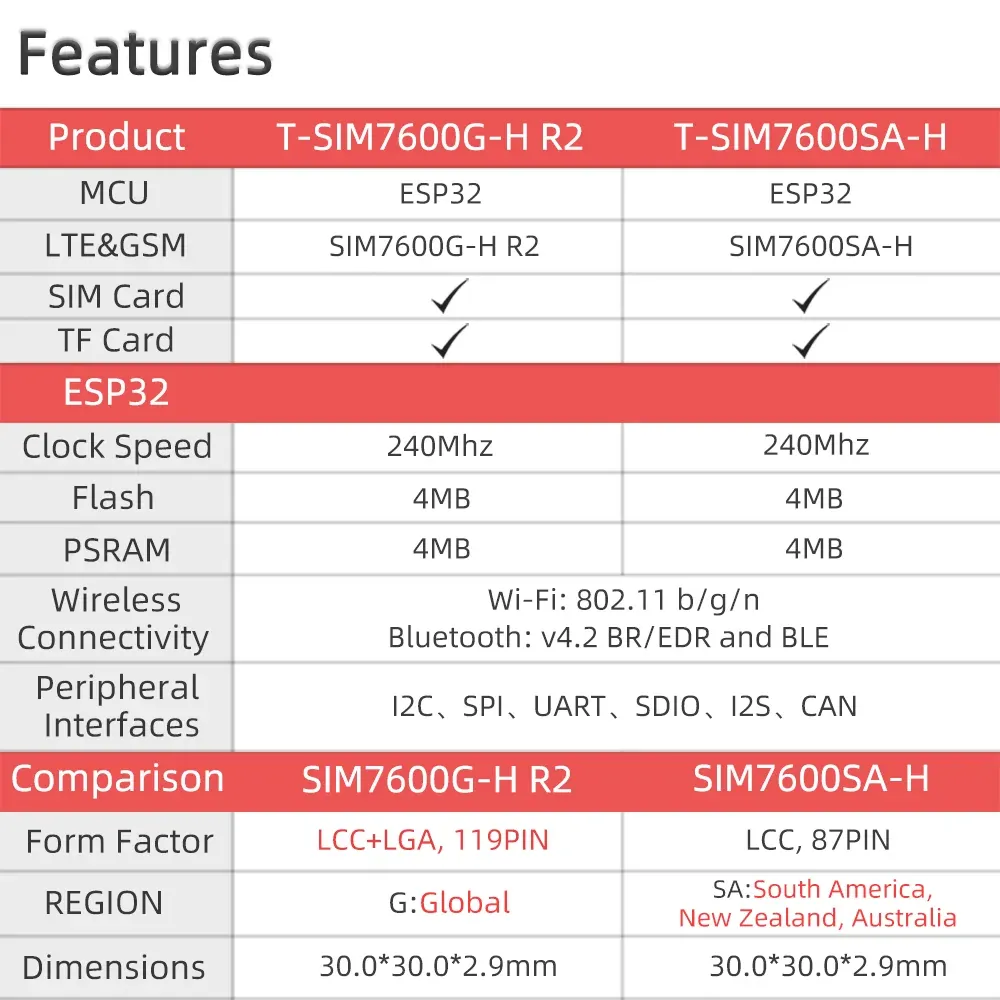

Feature:

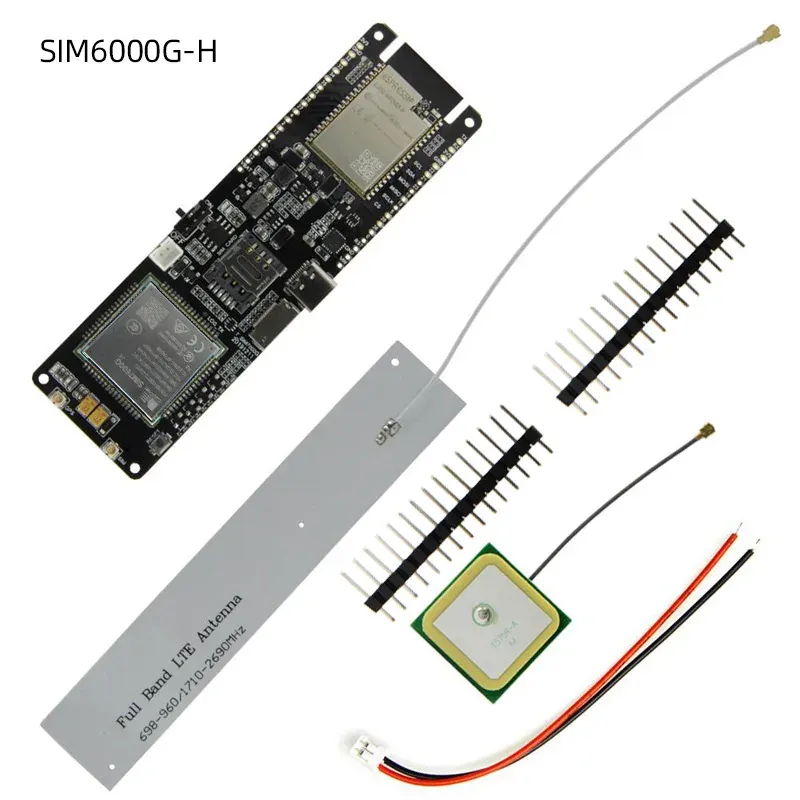

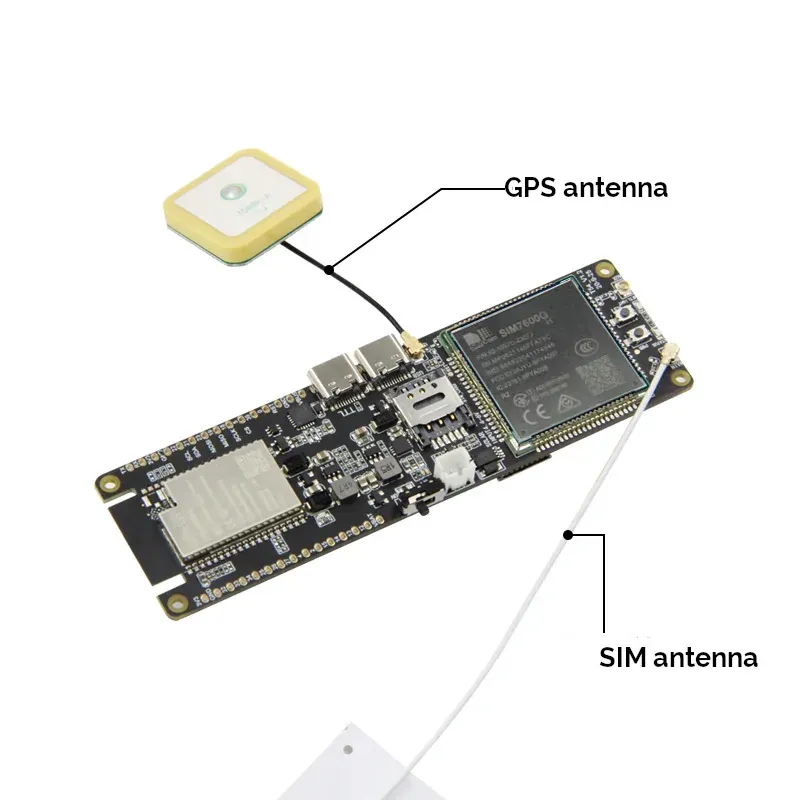

Package includes:

1 X T-SIM7600G-H module

1 X LTE antenna

1 X GPS antenna

The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
