Synology DS1823XS+ 8 Bay NAS

3.6GHz AMD Ryzen V1780B, 8GB DDR4 ECC SODIMM RAM (2 slots, Upgradeable to 32GB, 2x 16GB Max), 8 x 3.5" or 2.5" Drive Bays (Maximum of 10 bays with Expansion), 2x M.2 2280 NVMe SSD, 3 x USB 3.2 Gen 1, 2 x eSATA Port, 2 x 1GbE LAN, 1x 10GbE LAN, 1 x PCIe Gen3 x8 slot (x8 link) for optional 10GbE or M.2 SSD adapter card, Max IP Cams - 75 (2 Free Licences). ONLY SUPPORTS SYNOLOGY DRIVES Compatible RAM Models: D4ECSO-2666-16G (DDR4 ECC SODIMM) - 16GB D4ES01-8G (DDR4 ECC SODIMM) - 8GB Expansion Unit Available - DX517 (5 Additional Bays)

Specifications

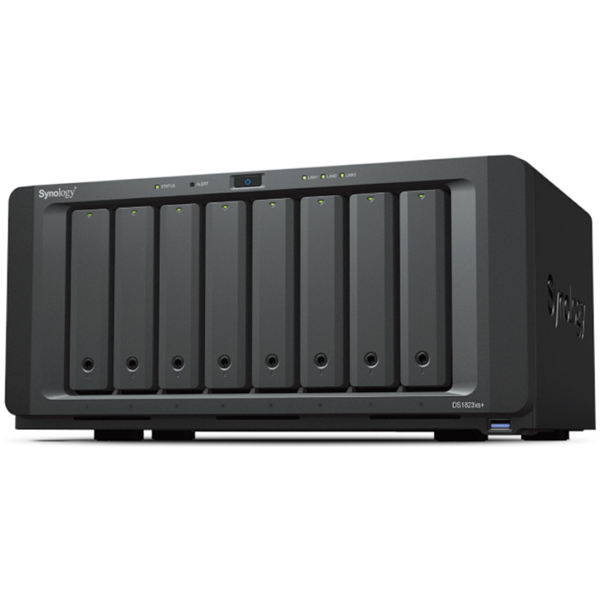

Synology DS1823xs+ 8-Bay NAS

1. Description

The Synology DS1823xs+ 8-Bay NAS is a powerful enterprise-class desktop network-attached storage system built to address the demanding data-management needs of modern organisations in New Zealand. It combines exceptional performance, high-capacity scalability, enterprise-grade data protection, and hybrid-cloud flexibility in a compact tower form factor.

Equipped with a six-core AMD Ryzen™ V1780B 3.35 GHz processor, 8 GB DDR4 ECC memory (expandable up to 32 GB), and integrated 10 GbE networking, the DS1823xs+ is optimised for intensive file-serving, backup, virtual-machine hosting, media-production, and data-analysis workloads.

With eight hot-swappable drive bays supporting up to 144 TB of raw storage (18 TB per bay), plus two built-in M.2 NVMe SSD slots for caching, the DS1823xs+ combines vast storage capacity with ultra-responsive performance.

It runs on Synology’s award-winning DiskStation Manager (DSM) operating system, which integrates centralised file sharing, multi-layered data-protection tools, team-productivity apps, and cloud-sync capabilities.

For New Zealand businesses, creative studios, education providers, and IT professionals, the DS1823xs+ offers enterprise-grade power and security in a cost-efficient desktop format, eliminating the need for large, noisy rack servers while delivering all the features needed for data-driven operations.

2. Key Points

a) Enterprise-Level Performance

• Powered by a six-core AMD Ryzen™ V1780B 3.35 GHz processor with AES-NI hardware encryption for secure and efficient data processing.

• Comes with 8 GB DDR4 ECC RAM (expandable to 32 GB) to support heavy multi-tasking, VM hosting, and collaborative workloads.

• Delivers sequential read/write speeds up to 3,100 MB/s / 2,600 MB/s with NVMe cache and 10 GbE networking.


b) Eight-Bay High-Capacity Scalable Storage

• Supports up to 144 TB raw capacity using eight 18 TB SATA drives.

• Compatible with RAID 0, 1, 5, 6, 10, Basic, and JBOD configurations, allowing NZ users to optimise for performance, redundancy, or cost.

• Expandable with two DX517 expansion units for a total of 18 drive bays (up to 324 TB) to meet future growth needs.


c) Integrated 10 GbE Networking and Upgrade Options

• Comes with built-in 10 GbE RJ-45 port and 2× 1 GbE ports, ensuring high-speed connectivity out-of-the-box.

• Features a PCIe Gen3 x8 slot for installing additional 10/25 GbE NICs, NVMe adapter cards, or Fibre Channel cards for SAN environments.

• Supports Link Aggregation and Failover for enhanced throughput and network resilience.


d) NVMe SSD Cache Acceleration

• Dual built-in M.2 2280 NVMe SSD slots enable read/write cache acceleration without occupying drive bays.

• Improves responsiveness for database queries, VM I/O, high-traffic file sharing, and media-editing workloads.

• Extends HDD lifespan by reducing repeated read/write cycles.


e) Powered by Synology DSM

• Provides a modern, intuitive web-based interface for managing storage, backups, user permissions, and apps.

• Includes Synology Drive, Active Backup Suite, Hyper Backup, Snapshot Replication, and Synology Office for comprehensive data management and team collaboration.

• Supports Btrfs file system with advanced snapshot technology and self-healing for higher data integrity.


f) Advanced Data Protection and Business Continuity

• Built-in AES-256 encryption, firewall, MFA, and granular permission controls keep data safe from unauthorised access.

• Supports instant snapshots, off-site replication, and cloud backups (e.g., Synology C2, AWS S3, Azure) for disaster recovery and compliance with NZ data-protection regulations.

• High-availability options minimise downtime for mission-critical services.


g) Hybrid-Cloud and Virtualisation-Ready

• Seamless integration with public cloud services for tiered storage, archiving, and off-site data protection.

• Certified for VMware vSphere®, Microsoft Hyper-V®, Citrix® and OpenStack Cinder, enabling efficient VM storage.

• Ideal for NZ organisations running hybrid-cloud workflows or transitioning from legacy infrastructure.


3. Benefits

Centralised Data Hub for NZ Businesses

The DS1823xs+ consolidates dispersed data sources—workstations, laptops, cameras, cloud services—into a centralised, secure platform, simplifying IT administration and ensuring staff always access current versions of files.

Enterprise-Grade Performance in a Desktop Form

Thanks to its Ryzen™ CPU, 10 GbE networking, NVMe cache, and expandable RAM, the DS1823xs+ delivers server-level speed and reliability without the complexity and noise of rackmount hardware—ideal for offices and studios across NZ.

Robust Data Protection and Business Continuity

With Btrfs snapshots, encryption, multi-site replication, and cloud-integrated backups, NZ organisations can keep mission-critical information safe from hardware failures, cyberthreats, or natural disasters.

Optimised for Creative and Technical Workloads

The combination of high-speed storage, NVMe cache, and 10 GbE connectivity makes the DS1823xs+ perfect for resource-intensive tasks such as 4K/8K video editing, large-scale backups, and AI/ML dataset processing.

Scalable for Future Growth

As NZ businesses grow, the DS1823xs+ can expand capacity up to 18 bays and integrate with hybrid-cloud platforms, delivering long-term value and avoiding costly infrastructure migrations.

Cost-Efficient and Energy-Aware

By combining high-capacity HDD storage with SSD cache and energy-efficient components, the DS1823xs+ reduces operational costs while maintaining top-tier performance—important for NZ enterprises seeking sustainable IT solutions.

4. Why You Should Choose This

Tailored for NZ’s Data-Driven Organisations

From media production houses in Auckland and Wellington to educational institutions, healthcare providers, engineering firms, and financial services, the DS1823xs+ delivers the speed, resilience, and scalability required for business-critical operations.

Trusted Synology Reliability and Local Support

Synology is renowned for its dependable hardware, robust software ecosystem, regular security updates, and strong NZ distribution and support networks, ensuring fast assistance when needed.

Balanced Power and Affordability

The DS1823xs+ offers enterprise-class capabilities—10 GbE, NVMe caching, hybrid-cloud integration—at a price accessible to SMBs and creative teams, bridging the gap between SMB-friendly NAS and costly rack-based servers.

Future-Ready Hybrid-Cloud Platform

As NZ organisations continue adopting cloud-first strategies, the DS1823xs+ serves as an ideal on-premises anchor, providing local performance and control while seamlessly tiering less-frequently accessed data to the cloud.
