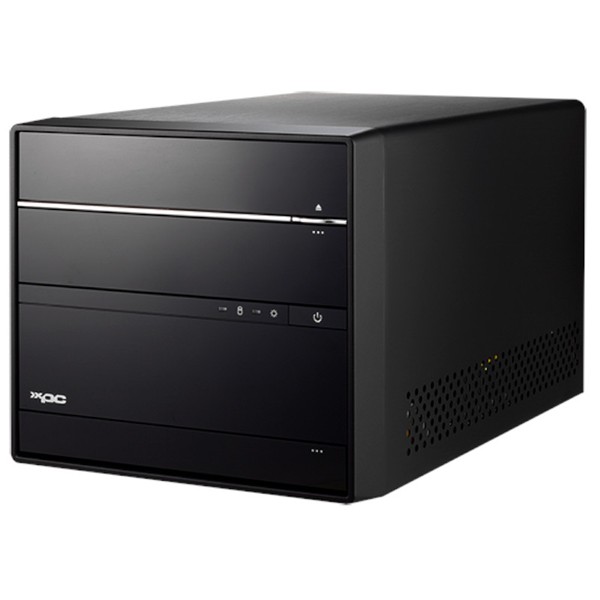

Shuttle SH570R6 LGA1200 DDR4 Cube Barebones PC

Shuttle SH570R6 LGA1200 DDR4 Cube Barebones PC

Intel H570 Chipset/ Support 10th/11th Gen CPUs/DDR4 DIMM x4 (128GB max), DisplayPort x2 & HDMI x1, 300W PSU, 2x 3.5" HDD (expand to 3x with HWZ997)

Specifications

Shuttle SH570R6 LGA1200 DDR4 Cube Barebones PC

The Shuttle SH570R6 LGA1200 DDR4 Cube Barebones PC is a compact and powerful computing solution designed for professionals seeking high performance in a small form factor. Powered by the Intel® H570 chipset, this mini PC supports 10th and 11th generation Intel® Core™ processors with a maximum TDP of 125W, offering robust performance for demanding applications.

Key Features

• Processor Support: Compatible with Intel® 10th and 11th generation Core™ processors (i9, i7, i5, i3), Pentium®, and Celeron® with a maximum TDP of 125W.

• Memory: Supports up to 128GB of DDR4-3200MHz memory across four DIMM slots, providing ample capacity for multitasking and memory-intensive applications.

• Graphics: Integrated Intel® UHD Graphics, capable of supporting triple independent 4K displays via HDMI 2.0b and DisplayPort 1.4 outputs.

• Expansion Slots: Features a PCIe x16 v4.0 slot for dual-slot graphics cards (up to 273mm in length) and a PCIe x4 v3.0 slot for additional expansion cards.

• Storage: Offers multiple storage options, including two 3.5" SATA bays, one 5.25" optical drive bay, and two M.2 slots (M.2-2280 for SSDs and M.2-2230 for optional WLAN modules).

• Connectivity: Equipped with dual Gigabit Ethernet ports (Intel i210AT and i219LM), four USB 3.2 Gen 2 ports, one USB 3.2 Gen 2 Type-C port, four USB 3.2 Gen 1 ports, and four USB 2.0 ports, providing extensive connectivity options.

• Audio: Supports 5.1-channel high-definition audio via Realtek ALC897 codec.

• Cooling: Utilizes Shuttle's exclusive I.C.E. 2 heat pipe technology for efficient cooling, ensuring stable long-term operation.

• Power Supply: Includes a 300W 80 PLUS Bronze certified internal power supply, providing reliable power for the system.

• Operating System Support: Compatible with Windows 10/11 (64-bit) and Linux (64-bit), offering flexibility in operating system choice.


Benefits

• Compact Design: With a volume of just 14 liters, the SH570R6 offers a small footprint without compromising on performance.

• High Performance: The combination of a powerful processor, ample memory, and integrated graphics ensures smooth operation for demanding applications.

• Versatile Connectivity: Multiple USB ports, dual Gigabit Ethernet, and support for triple 4K displays provide extensive connectivity options for various peripherals and networks.

• Flexible Storage Options: Multiple storage bays and M.2 slots allow for customization based on storage needs.

• Efficient Cooling: The I.C.E. 2 heat pipe technology ensures efficient cooling, maintaining optimal performance even under load.


Why Choose the Shuttle SH570R6?

The Shuttle SH570R6 LGA1200 DDR4 Cube Barebones PC is an excellent choice for professionals seeking a compact, high-performance computing solution. Its powerful processor support, ample memory capacity, and versatile connectivity options make it ideal for applications such as digital signage, video conferencing, and office environments where space is limited but performance is essential.

Conclusion

In conclusion, the Shuttle SH570R6 LGA1200 DDR4 Cube Barebones PC offers a compelling combination of performance, compact design, and versatility. Whether you're looking to enhance your digital signage setup, deploy a silent office workstation, or create a powerful home theater PC, the SH570R6 provides the performance and flexibility needed to meet your requirements.
