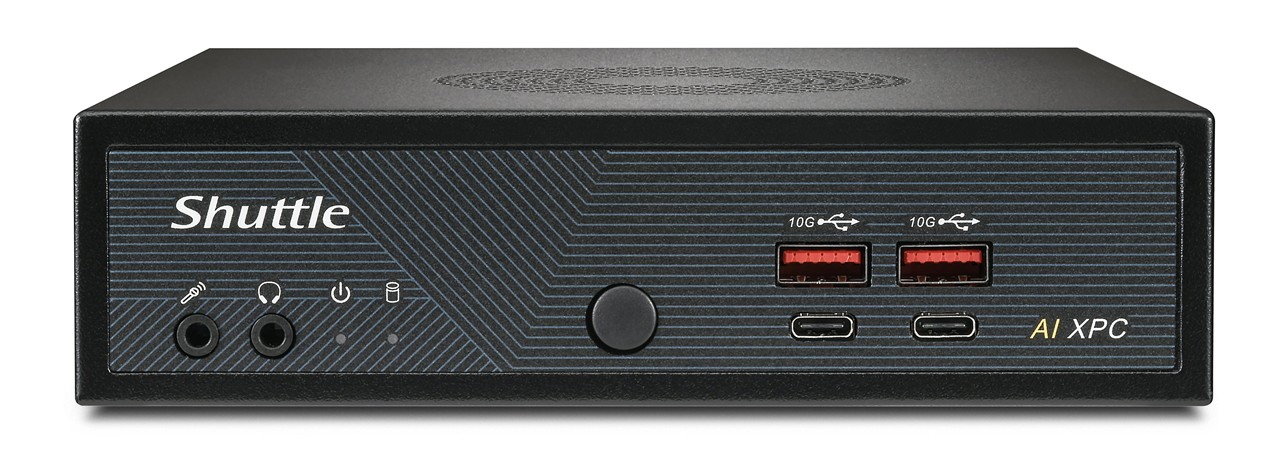

Shuttle DN11H7 Ultra 7 155H DDR5 1.3L MINI PC

Shuttle DN11H7 Ultra 7 155H DDR5 1.3L MINI PC

AI XPC, Intel ® Meteor Lake Core Ultra 7 155H processor, 2x DDR5, 3x M.2 2280, 2x HDMI, 2x DP, 8x USB, 4x 2.5G LAN, 1x M.2 2230, Built in Neural Processing Unit (NPU) & Intel APC GPU

Specifications

Shuttle DN11H7 Ultra 7 155H DDR5 1.3L MINI PC

The Shuttle DN11H7 Ultra 7 155H DDR5 1.3L MINI PC is a compact and powerful computing solution designed for demanding applications. Powered by the Intel® Core™ Ultra 7-155H processor, this mini PC delivers exceptional performance in a small form factor. Whether you're setting up a network video recorder, engaging in image processing, or running virtual reality simulations, the DN11H7 offers the power and flexibility needed to meet your requirements.

Key Features

• Processor: Equipped with the Intel® Core™ Ultra 7-155H processor, featuring 6 performance cores and 8 efficient cores, delivering a total of 20 threads. This processor provides robust performance for multitasking and demanding applications.

• Graphics: Integrated Intel® Arc™ graphics engine with 12 Xe cores (192 execution units), capable of supporting up to four independent 4K displays at 60Hz, making it ideal for multi-display setups.

• Memory: Supports up to 96 GB of DDR5-5600 SO-DIMM memory across two 262-pin slots, allowing for smooth multitasking and efficient performance in memory-intensive applications.

• Storage: Features three M.2-2280 PCIe Gen4 x4 NVMe SSD slots and one M.2-2230 slot for optional WLAN modules, providing flexible storage configurations.

• Connectivity: Includes four 2.5G Ethernet ports (Intel i226LM), two USB 3.2 Gen 2 Type-A ports, two USB 3.2 Gen 2x2 Type-C ports with Power Delivery, two HDMI 2.1 ports, and two DisplayPort 1.4a ports, offering versatile connectivity options for various devices and peripherals.

• Design: Housed in a slim 1.3-liter metal chassis measuring 190 x 165 x 43 mm and weighing 1.23 kg, the DN11H7 is designed for space-constrained environments.

• Cooling: Equipped with a heat-pipe cooling system and an 80-mm fan, supporting temperature-controlled RPM fan speed to maintain optimal operating temperatures under load.

• Operating System Support: Compatible with Windows 11 and Linux (64-bit), providing flexibility in operating system choice.


Benefits

• Compact Form Factor: The small size allows for deployment in space-constrained environments, such as behind monitors or in digital signage applications.

• High Performance: The powerful Intel Core Ultra 7 processor and integrated Intel Arc graphics ensure smooth operation of demanding applications, including multitasking, digital signage, and video conferencing.

• Flexible Storage Options: Support for multiple storage devices and RAID configurations provides flexibility and data redundancy for critical applications.

• Versatile Connectivity: Multiple USB ports, display outputs, and network connectivity options allow for seamless integration with various peripherals and networks.

• Silent Operation: The efficient cooling system ensures the mini PC operates quietly, making it suitable for noise-sensitive environments.


Why Choose the Shuttle DN11H7?

The Shuttle DN11H7 Ultra 7 155H DDR5 1.3L MINI PC is an excellent choice for professionals seeking a compact, high-performance computing solution. Its powerful processor, flexible storage options, and versatile connectivity make it ideal for applications such as digital signage, video conferencing, and office environments where space is limited but performance is essential.

Conclusion

In conclusion, the Shuttle DN11H7 Ultra 7 155H DDR5 1.3L MINI PC offers a compelling combination of performance, compact design, and versatility. Whether you're looking to enhance your digital signage setup, deploy a silent office workstation, or create a powerful home theater PC, the DN11H7 provides the performance and flexibility needed to meet your requirements.
