Shuttle DH610 LGA1700 DDR4 M.2 Slim Barebones PC 2GbE

Shuttle DH610 LGA1700 DDR4 M.2 Slim Barebones PC 2GbE

Intel H610 chipset /Support Intel 12 & 13th Gen 65W / 2x DDR4 SODIMM (64GB Max), Dual Intel GigabitLAN, 1x HDMI, 2x DP, 1x M.2 2280 Type M key, 1x M.2 2230 Type E key, USB 3.0, 1x RS-232, 1x RS-232/422/485. SX9927 for a VGA port. Supports 19V & 12V Optional accessories incl. WiFi, rackmounting, LTE/4G. See https://www.shuttle.eu/en/products/slim/dh610 for full details.

Specifications

Shuttle DH610 LGA1700 DDR4 M.2 Slim Barebones PC with 2GbE

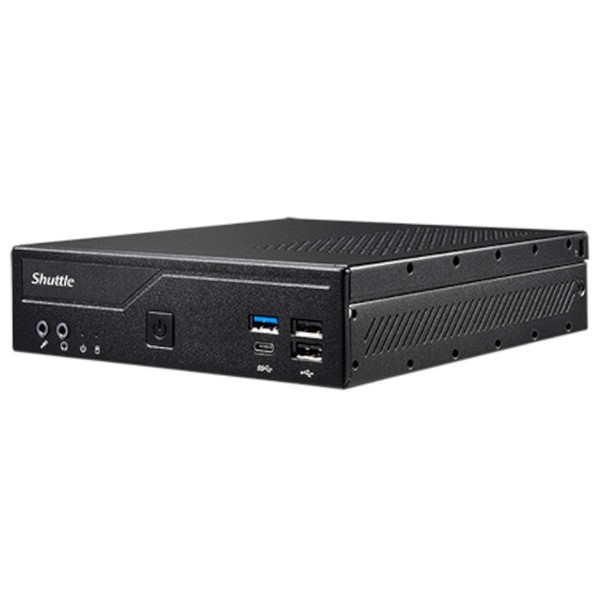

The Shuttle DH610 is a compact and versatile barebones PC designed to meet the demands of modern computing environments. Housed in a sleek 1.3-liter chassis, this mini PC supports Intel's 12th, 13th, and 14th generation LGA1700 processors, offering robust performance for a variety of applications, including digital signage, kiosks, office workstations, and industrial use.

Key Features

• Processor Support: Compatible with Intel® 12th, 13th, and 14th generation Core™ processors (i3, i5, i7, i9), Pentium®, and Celeron® with a maximum TDP of 65W.

• Chipset: Intel® H610 Express chipset, providing a stable and efficient platform for the supported processors.

• Memory: Supports up to 64GB of DDR4-3200 SO-DIMM memory across two slots, enabling smooth multitasking and handling of memory-intensive applications.

• Storage:

  • One 2.5" SATA III drive bay for additional storage.

  • One M.2 2280 M-Key slot for NVMe or SATA SSDs, offering high-speed storage options.

  • One M.2 2230 E-Key slot for optional WLAN cards, providing wireless connectivity.

• Graphics: Integrated Intel® UHD Graphics, capable of supporting up to three independent displays via one HDMI 2.0b and two DisplayPort 1.4a outputs, suitable for 4K video playback and multi-monitor setups.

• Networking:

  • Dual Intel® Ethernet ports: one 2.5GbE and one 1GbE, offering flexible networking options and support for advanced networking configurations.

• USB Ports:

  • Four USB 3.2 Gen 1 ports (including one Type-C).

  • Four USB 2.0 ports, providing ample connectivity for various peripherals.

• Serial Ports:

  • One RS232 port.

  • One RS232/RS422/RS485 port, supporting 5V/12V, catering to industrial and embedded applications.

• Audio: High-definition audio output, suitable for multimedia applications.

• Cooling: Equipped with a heatpipe-based cooling system and dual fans, ensuring efficient heat dissipation and reliable operation in environments with ambient temperatures up to 50°C.

• Mounting: VESA mount included, allowing for flexible installation options behind monitors or on walls, saving valuable desk space.

• Operating System Support: Compatible with Windows 10/11 (64-bit) and Linux (64-bit), offering flexibility in operating system choice.


Applications

The Shuttle DH610 is ideal for a wide range of professional applications:

• Digital Signage: Delivering high-quality video playback for advertising and information displays.

• Kiosks: Providing interactive interfaces for self-service stations in public spaces.

• Thin Clients: Serving as a reliable endpoint for cloud-based computing solutions.

• Office PCs: Offering a compact and efficient solution for everyday computing tasks.

• Industrial PCs: Catering to industrial automation and control applications.


Why Choose the Shuttle DH610?

The Shuttle DH610 offers a powerful combination of performance, compact design, and versatile connectivity options. Its support for the latest Intel processors, high-speed networking, and multiple display outputs make it an excellent choice for modern computing needs. Whether you're setting up a digital signage system, deploying a thin client solution, or building a compact office workstation, the DH610 provides the performance and flexibility required to meet your objectives.

Conclusion

In conclusion, the Shuttle DH610 LGA1700 DDR4 M.2 Slim Barebones PC with 2GbE is a high-performance, compact computing solution suitable for a variety of professional applications. Its robust features, including support for the latest Intel processors, dual Ethernet ports, and multiple display outputs, ensure it can handle demanding tasks with ease. The inclusion of a VESA mount and efficient cooling system further enhances its suitability for diverse environments.
