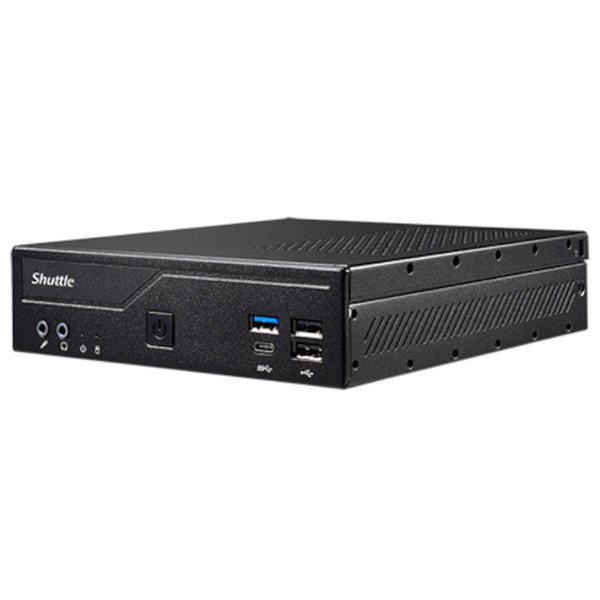

Shuttle DH610 i3-14100 16GB M.2 512GB SSD Assembled

14th Gen i3-14100 (4C/8T 3.50 Ghz 4.7Ghz boost 12MB Cache). Performance/experience equivalent of NUC i5-1340P 1 x 16GB DDR4-3200, 512GB NVMe M.2 SSD, 1x HDMI 2.0, 2x DisplayPort, 2x RJ45, 4x USB3.2, 4x USB2.0, 2x COM. Add WiFi with SX9942 or TP2112

Specifications

Shuttle DH610 i3-14100 16GB M.2 512GB SSD Assembled Mini PC

Product Overview

The Shuttle DH610 i3-14100 16GB M.2 512GB SSD Assembled Mini PC is a compact yet powerful computing solution designed for professionals and businesses seeking reliable performance in space-constrained environments. Housed in a 1.3-liter slim chassis, this system features the Intel Core i3-14100 processor, 16GB of DDR4-3200 RAM, and a 512GB NVMe M.2 SSD, providing a balance between performance and energy efficiency. Pre-assembled and ready to use, it is ideal for applications such as digital signage, kiosks, control rooms, and multi-display setups.

Key Features

• Processor: Intel Core i3-14100 (4 cores, 8 threads) with a base clock of 3.5 GHz and a turbo boost up to 4.7 GHz.

• Chipset: Intel H610 Express chipset.

• Memory: 16GB DDR4-3200 SO-DIMM RAM (expandable up to 64GB).

• Storage: 512GB NVMe M.2 SSD.

• Graphics: Integrated Intel UHD Graphics 730.

• Video Outputs: One HDMI 2.0b port and two DisplayPort 1.4a ports, supporting triple 4K displays simultaneously.

• Networking: Dual Intel Gigabit Ethernet ports.

• USB Ports: One USB 3.2 Gen 2 Type-C, three USB 3.2 Gen 1, and four USB 2.0 ports.

• Audio: Realtek High Definition Audio.

• Operating System: No operating system pre-installed; users can install their preferred OS.

• Mounting Options: Includes VESA mount for wall or monitor mounting.

• Operating Temperature: Designed for 24/7 operation with an operating temperature range up to 50°C.


Benefits

• Compact Design: The 1.3-liter chassis saves valuable desk or floor space, making it ideal for environments where space is limited.

• Customizable Configuration: As a barebones system, users have the flexibility to choose their preferred RAM, storage, and operating system, tailoring the PC to their specific needs.

• Triple Display Support: With one HDMI and two DisplayPort outputs, the DH610 supports up to three independent 4K displays, enhancing productivity and providing a comprehensive view of critical information.

• High-Speed Networking: Dual Intel Ethernet ports ensure fast and reliable network connections, suitable for data-intensive applications.

• Energy Efficiency: The Intel Core i3-14100 processor offers a balance between performance and power consumption, making it suitable for continuous operation in energy-conscious environments.


Why Choose the Shuttle DH610?

The Shuttle DH610 stands out as an excellent choice for professionals seeking a compact yet powerful mini-PC solution. Its ability to support triple 4K displays makes it particularly suitable for applications that require extensive visual outputs, such as digital signage and control rooms. The energy-efficient Intel Core i3-14100 processor ensures that the system operates efficiently, even during continuous use. Additionally, the customizable nature of the barebones configuration allows users to select components that best fit their specific requirements, whether it's for business, education, or industrial applications.

For users in New Zealand, the Shuttle DH610 offers a reliable and versatile computing solution that can be easily integrated into various environments. Its compact size, combined with robust performance and connectivity options, makes it a valuable asset for businesses and organizations looking to deploy efficient and scalable computing solutions.

Conclusion

The Shuttle DH610 i3-14100 16GB M.2 512GB SSD Assembled Mini PC is a powerful and flexible mini-PC designed to meet the demands of modern professional applications. With its support for multiple 4K displays, energy-efficient processor, and customizable configuration, it provides a comprehensive solution for environments that require reliable and scalable computing power. Whether you're setting up a digital signage network, a control room, or a kiosk system, the DH610 offers the performance and versatility needed to get the job done efficiently.
