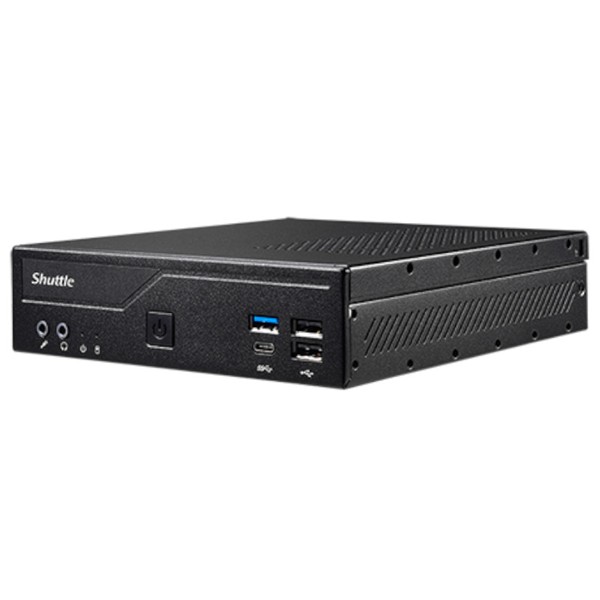

Shuttle DH610 i3-13100 DDR4 SODIMM Small Form PC Kit

Intel H610 chipset w/ preinstalled i3-13100 / 2x DDR4 SODIMM (64GB Max), Dual Intel GigabitLAN, 1x HDMI, 2x DP, 1x M.2 2280 Type M key, 1x M.2 2230 Type E key, USB 3.0, 1x RS-232, 1x RS-232/422/485. SX9927 for a VGA port. Supports 19V & 12V Optional accessories incl. WiFi, rackmounting, LTE/4G. See https://www.shuttle.eu/en/products/slim/dh610 for full details. Assembled from local stock - allow 1-2 days if no stock is showing as available.

Specifications

Shuttle DH610 i3-13100 DDR4 SODIMM Small Form PC Kit

Product Overview

The Shuttle DH610 i3-13100 DDR4 SODIMM Small Form PC Kit is a compact and versatile barebone system designed for professionals and businesses seeking a reliable and customizable computing solution. Featuring the Intel Core i3-13100 processor, this system offers efficient performance for a variety of applications, including office tasks, digital signage, kiosks, and multi-platform deployments.

Key Features

• Processor: Intel Core i3-13100 (4 cores, 8 threads) with a base clock of 3.4 GHz and a turbo boost up to 4.5 GHz.

• Chipset: Intel H610 Express chipset.

• Memory: Supports up to 64GB of DDR4 SO-DIMM RAM (2 x 32GB) at 3200 MHz.

• Storage: One M.2-2280 NVMe/SATA slot and one 2.5" SATA drive bay for flexible storage options.

• Graphics: Integrated Intel UHD Graphics 730.

• Video Outputs: One HDMI 2.0b port and two DisplayPort 1.4a ports, supporting triple 4K displays simultaneously.

• Networking: Dual Intel Ethernet ports—one 2.5GbE and one 1GbE—for high-speed networking.

• USB Ports: One USB 3.2 Gen 2 Type-C, three USB 3.2 Gen 1, and four USB 2.0 ports.

• Audio: Realtek High Definition Audio.

• Expansion Slots: One M.2-2230 E-Key slot for Wi-Fi/Bluetooth modules.

• Mounting Options: Includes VESA mount for wall or monitor mounting.

• Operating Temperature: Designed for 24/7 operation with an operating temperature range up to 50°C.


Benefits

• Compact Design: The 1.3-liter chassis saves valuable desk or floor space, making it ideal for environments where space is limited.

• Customizable Configuration: As a barebone system, users have the flexibility to choose their preferred RAM, storage, and operating system, tailoring the PC to their specific needs.

• Triple Display Support: With one HDMI and two DisplayPort outputs, the DH610 supports up to three independent 4K displays, enhancing productivity and providing a comprehensive view of critical information.

• High-Speed Networking: Dual Intel Ethernet ports (2.5GbE and 1GbE) ensure fast and reliable network connections, suitable for data-intensive applications.

• Energy Efficiency: The Intel Core i3-13100 processor offers a balance between performance and power consumption, making it suitable for continuous operation in energy-conscious environments.


Why Choose the Shuttle DH610?

The Shuttle DH610 stands out as an excellent choice for professionals seeking a compact yet powerful mini-PC solution. Its ability to support triple 4K displays makes it particularly suitable for applications that require extensive visual outputs, such as digital signage and control rooms. The energy-efficient Intel Core i3-13100 processor ensures that the system operates efficiently, even during continuous use. Additionally, the customizable nature of the barebones configuration allows users to select components that best fit their specific requirements, whether it's for business, education, or industrial applications.

For users in New Zealand, the Shuttle DH610 offers a reliable and versatile computing solution that can be easily integrated into various environments. Its compact size, combined with robust performance and connectivity options, makes it a valuable asset for businesses and organizations looking to deploy efficient and scalable computing solutions.

Conclusion

The Shuttle DH610 i3-13100 DDR4 SODIMM Small Form PC Kit is a powerful and flexible mini-PC designed to meet the demands of modern professional applications. With its support for multiple 4K displays, energy-efficient processor, and customizable configuration, it provides a comprehensive solution for environments that require reliable and scalable computing power. Whether you're setting up a digital signage network, a control room, or a kiosk system, the DH610 offers the performance and versatility needed to get the job done efficiently.
