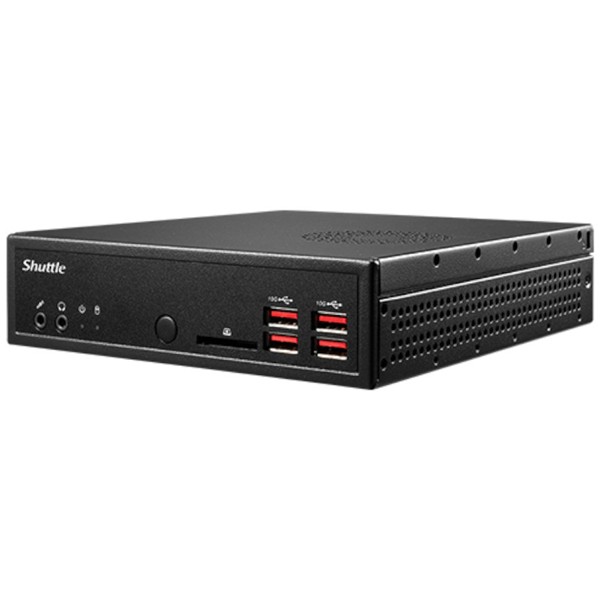

Shuttle DH32U Pentium Gold 7505 4x HDMI Barebones PC

Intel Tiger lake-U Pentium 7505 15W CPU, 2x DDR4 SODIMM (max 64GB), 4x HDMI, 2x GbE, 4x USB 3.2 Gen2, 1x RS232/422/485, 1x RS232

Specifications

Shuttle DH32U Pentium Gold 7505 4x HDMI Barebones PC

Description

The Shuttle DH32U Pentium Gold 7505 4x HDMI Barebones PC is a compact and versatile mini-PC designed for professional environments that require multiple display outputs and reliable performance. With its slim 1.3-litre chassis, this system integrates an energy-efficient Intel Pentium Gold 7505 processor, offering a balance between power consumption and processing capability. The DH32U supports up to four independent Ultra HD (4K) displays via its four HDMI 2.0b ports, making it ideal for applications such as digital signage, control rooms, kiosks, and surveillance systems.

This barebones PC allows users to customize their setup by adding their choice of RAM, storage, and operating system. Its robust design ensures reliable operation in ambient temperatures of up to 50°C, and the inclusion of a VESA mount provides flexibility for various installation scenarios. Whether you're looking to deploy a multi-display setup or require a compact solution for space-constrained environments, the Shuttle DH32U offers the performance and versatility needed to meet your requirements.

Key Points

• Processor: Intel Pentium Gold 7505 (2 cores, 4 threads) with a base clock of 2.0 GHz and a turbo boost up to 3.5 GHz.

• Graphics: Intel UHD Graphics for 11th Gen Intel Processors, capable of driving up to four 4K displays at 60Hz.

• Memory: Supports up to 64GB of DDR4-3200 SO-DIMM RAM across two slots.

• Storage: Offers one M.2-2280 NVMe/SATA slot and one 2.5" SATA drive bay for flexible storage options.

• Connectivity: Equipped with dual Gigabit Ethernet ports, four USB 3.2 Gen 2 ports, and two RS232/422/485 serial ports.

• Display Outputs: Four HDMI 2.0b ports supporting independent 4K displays.

• Audio: Realtek ALC662/897/888S 2-channel High Definition Audio.

• Operating Temperature: Designed for 24/7 operation with an operating temperature range up to 50°C.

• Mounting Options: Includes VESA mount for wall or monitor mounting.


Benefits

• Multi-Display Capability: The four HDMI ports allow for seamless multi-display setups, enhancing productivity and providing a comprehensive view of critical information.

• Energy Efficiency: The Intel Pentium Gold 7505 processor offers a balance between performance and power consumption, making it suitable for continuous operation in energy-conscious environments.

• Customizable Configuration: As a barebones system, users have the flexibility to choose their preferred RAM, storage, and operating system, tailoring the PC to their specific needs.

• Compact Design: The 1.3-litre chassis saves valuable desk or floor space, making it ideal for environments where space is limited.

• Reliable Performance: With its robust design and support for 24/7 operation, the DH32U ensures consistent performance in demanding applications.


Why Choose the Shuttle DH32U?

The Shuttle DH32U stands out as an excellent choice for professionals seeking a compact yet powerful mini-PC solution. Its ability to support four independent 4K displays makes it particularly suitable for applications that require extensive visual outputs, such as digital signage and control rooms. The energy-efficient Intel Pentium Gold 7505 processor ensures that the system operates efficiently, even during continuous use. Additionally, the customizable nature of the barebones configuration allows users to select components that best fit their specific requirements, whether it's for business, education, or industrial applications.

For users in New Zealand, the Shuttle DH32U offers a reliable and versatile computing solution that can be easily integrated into various environments. Its compact size, combined with robust performance and connectivity options, makes it a valuable asset for businesses and organizations looking to deploy efficient and scalable computing solutions.

Conclusion

The Shuttle DH32U Pentium Gold 7505 4x HDMI Barebones PC is a powerful and flexible mini-PC designed to meet the demands of modern professional applications. With its support for multiple 4K displays, energy-efficient processor, and customizable configuration, it provides a comprehensive solution for environments that require reliable and scalable computing power. Whether you're setting up a digital signage network, a control room, or a kiosk system, the DH32U offers the performance and versatility needed to get the job done efficiently.
