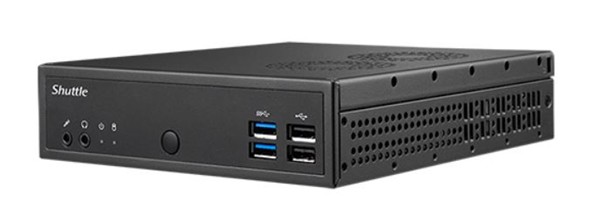

Shuttle DH02U5 4* HDMI GTX1050 i5-7200U 1L Barebones PC

Shuttle DH02U5 4* HDMI GTX1050 i5-7200U 1L Barebones PC

1L Small Form Factor Barebones PC. Intel Kabylake i5-7200U, 4x Independent HDMI support 4x Displays in 4k via included GTX 1050 4GB GDDR5 Graphics, M.2 2280 Type M and M,2 2230 Type E Key slot, Supports Dual Channel DDR4 2133 soDIMM (max 32GB, 2x 16GB), Intel Gigabit LAN.

Specifications

Shuttle DH02U5 4x HDMI GTX 1050 i5-7200U 1L Barebones PC

The Shuttle DH02U5 is a compact and versatile barebones PC designed to meet the demands of modern computing environments. Housed in a robust 1.3-liter chassis, this mini PC supports Intel's 7th generation LGA1151 processors, offering exceptional performance for a variety of applications, including digital signage, kiosks, office workstations, and industrial use.

Key Features

• Processor Support: Equipped with the Intel® Core™ i5-7200U processor (2 cores, 4 threads, base clock 2.5 GHz, turbo up to 3.1 GHz), providing efficient performance for everyday tasks.

• Graphics: Integrated NVIDIA® GeForce® GTX 1050 with 4GB GDDR5 VRAM, capable of supporting up to four independent 4K UHD displays via HDMI 2.0b outputs, suitable for high-resolution video playback and multi-monitor setups.

• Memory: Supports up to 32GB of DDR4-2133 SO-DIMM memory across two slots, enabling smooth multitasking and handling of memory-intensive applications.

• Storage:

  • One 2.5" SATA III drive bay for additional storage.

  • One M.2 2280 M-Key slot for NVMe or SATA SSDs, offering high-speed storage options.

  • One M.2 2230 E-Key slot for optional WLAN cards, providing wireless connectivity.

• Networking: One Intel® i211 Gigabit Ethernet port, offering reliable wired network connections.

• USB Ports:

  • Two USB 3.0 ports.

  • Two USB 2.0 ports, providing ample connectivity for various peripherals.

• Audio: High-definition audio output, suitable for multimedia applications.

• Expansion Slots:

  • One M.2 2280 Type M slot.

  • One M.2 2230 Type E slot.

• Cooling: Equipped with a heatpipe-based cooling system and dual fans, ensuring efficient heat dissipation and reliable operation in environments with ambient temperatures up to 50°C.

• Mounting: VESA mount included, allowing for flexible installation options behind monitors or on walls, saving valuable desk space.

• Operating System Support: Compatible with Windows 10/11 (64-bit) and Linux (64-bit), offering flexibility in operating system choice.


Applications

The Shuttle DH02U5 is ideal for a wide range of professional applications:

• Digital Signage: Delivering high-quality video playback for advertising and information displays.

• Kiosks: Providing interactive interfaces for self-service stations in public spaces.

• Thin Clients: Serving as a reliable endpoint for cloud-based computing solutions.

• Office PCs: Offering a compact and efficient solution for everyday computing tasks.

• Industrial PCs: Catering to industrial automation and control applications.


Why Choose the Shuttle DH02U5?

The Shuttle DH02U5 offers a powerful combination of performance, compact design, and versatile connectivity options. Its support for the Intel® Core™ i5-7200U processor, NVIDIA® GeForce® GTX 1050 graphics, and multiple display outputs make it an excellent choice for modern computing needs. Whether you're setting up a digital signage system, deploying a thin client solution, or building a compact office workstation, the DH02U5 provides the performance and flexibility required to meet your objectives.

Conclusion

In conclusion, the Shuttle DH02U5 4x HDMI GTX 1050 i5-7200U 1L Barebones PC combines reliable performance, a compact design, and versatile connectivity in a small form factor. Perfect for a variety of professional environments, this mini PC provides an ideal solution for applications that require low power consumption, quiet operation, and efficient performance.
