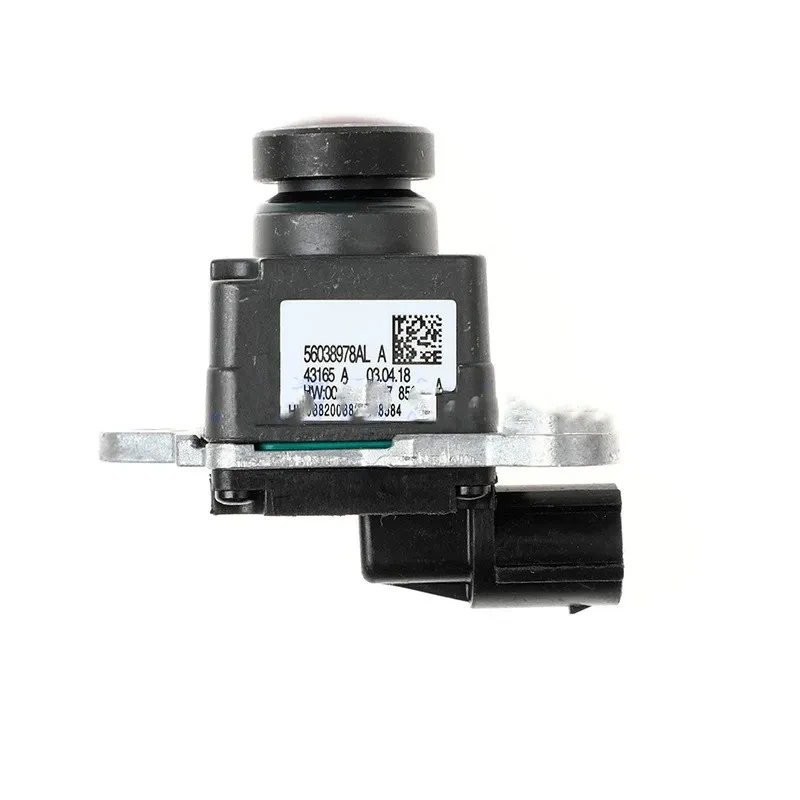

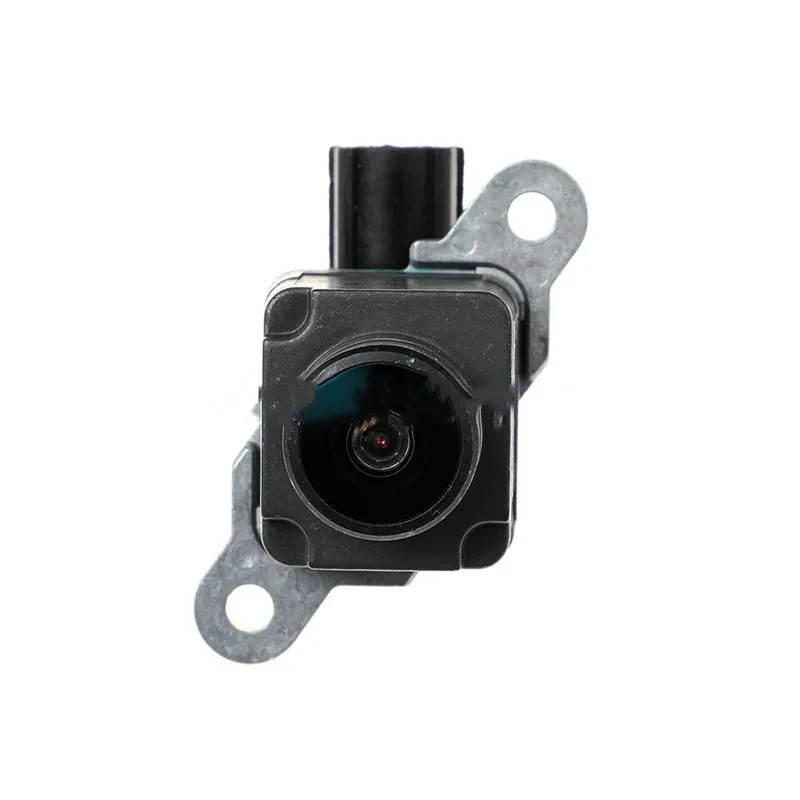

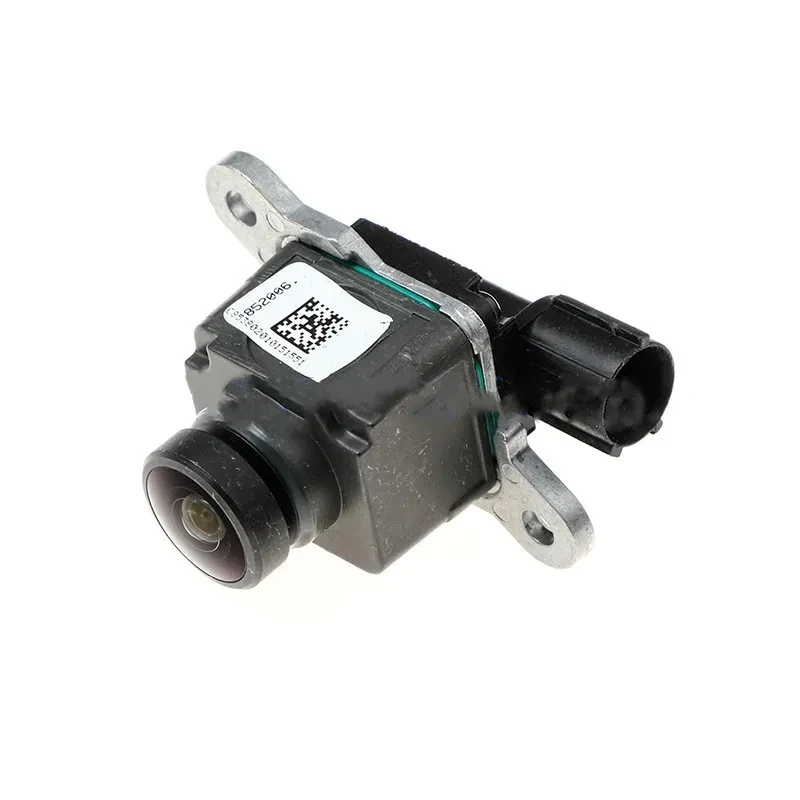

Rear View Reversing Camera

Product information:

Material: plastic shell
Model: 56038978AL, 68274731AD
Applicable vehicle type: 13-17 Dodge 1500 2500 3500 4500
Power supply voltage: 220 (V)
Adjusting angles: rotating
Resolution: 480 * 600
Power: 6 (W)
Seismic strength: strong
Shell material: plastic
Weight: 31.9 (g)

Packing list:

Camera * 1

Rear View Reversing Camera — Clear Parking, Safer Maneuvers

Add confident visibility to every reverse. This rear-view reversing camera delivers a wide, bright image so you can spot low obstacles, curbs, pets, and pedestrians while parking or backing out—day or night.

Key Features

• HD Wide-Angle View
  120–170° field of view (model-dependent) captures the full area behind your vehicle, reducing blind spots.

• Night Vision
  Low-light sensor with IR/LED assistance keeps the picture clear at dusk, in garages, and during rainy nights.

• Parking Guide Lines
  On-screen distance lines help you judge space; selectable/mirror flip options match hatchbacks, sedans, SUVs, and trucks.

• Waterproof & Dustproof
  IP67/IP68-class sealed housing resists rain, road spray, and car-wash cycles.

• Flexible Mounting
  Choose license-plate frame, flush/bumper mount, or bracket/under-lip mount. Compact shell blends with trim.

• Universal Compatibility
  Standard RCA video output works with most aftermarket head units and dash displays; 12 V power trigger from reverse light. Some variants support AHD or digital inputs.

• Mirror/Normal Image Switch
  Quick wire loop or menu setting to select rear-view (mirror) or front-view (normal) orientation.


Benefits You’ll Notice

• Easier parking: Wide view and guide lines make parallel and tight spots simpler.

• Safer reversing: See children, pets, and poles before it’s too late.

• All-weather confidence: Sealed body and low-light clarity for year-round use.

• Clean install: Multiple mounts suit sedans, SUVs, vans, utes, and RVs.


Typical Specifications (may vary by model)

• Resolution: 720p/AHD 1080p-class video

• FOV: 120–170° diagonal

• Minimum Illumination: ≤0.1–0.5 lux; IR/LED assist on select versions

• Video Output: NTSC/PAL composite (RCA) or AHD; 1.0 Vp-p, 75 Ω

• Power: 12 V DC (from reverse lamp), ≤150 mA

• Ingress Rating: IP67–IP68

• Operating Temp: −20 °C to 70 °C

• Image Options: Mirror/normal; guidelines on/off


Installation Overview

1. Mount the camera at the license-plate area, tailgate handle, or bumper.

2. Run the video cable to the head unit/display; connect RCA (or AHD).

3. Power the camera from the reverse-light 12 V line; add a ground.

4. Configure mirror/guidelines; aim the camera slightly downward.

5. Test in daylight and at night; adjust tilt to see bumper + road.


If unsure, have a professional installer handle wiring and sealing.

What’s in the Box

• Rear view camera (chosen mount style)

• Power/video harness & RCA lead

• Mounting hardware & hole saw (flush models)

• User/installation guide


Why Choose This Camera

You get clear, wide, night-ready vision in a rugged, easy-to-install package that works with almost any display—making every reverse smoother, safer, and less stressful.
