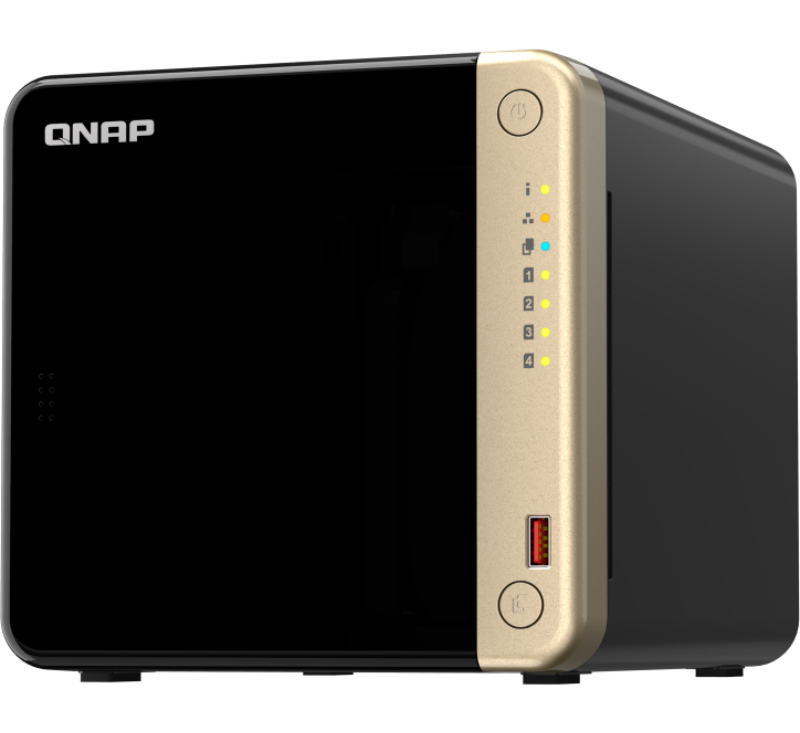

QNAP TS-464-8G 4-Bay NAS
QNAP TS-464-8G 4-Bay NAS
4-Bay NAS, Intel® Celeron® N5095 , 8GB RAM (expandable to 16GB), 4x 3.5/2.5" SATA, 2x M.2 2280, 2x 2.5GbE, 2x USB2.0, 2x USB3.2, HDMI output up to 4096x2160 165 × 170 × 226.5 mm Mini Tower Find compatible drives here: https://www.qnap.com/en/compatibility/
Specifications
Processor | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
CPU Architecture | 64-bit x86 |
Graphics Processors | Intel® UHD Graphics |
Floating Point Unit | Yes |
Encryption Engine | Yes (AES-NI) |
Hardware-accelerated Transcoding | Yes |
System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) |
Maximum Memory | 16 GB (2 x 8GB) |
Memory Slot | 2 x SODIMM DDR4 |
Flash Memory | 4GB (Dual boot OS protection) |
Drive Bay | 4 x 3.5-inch SATA 6Gb/s |
Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
Hot-swappable | Yes - (Not supported M.2 SSD) |
M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1 |
SSD Cache Acceleration Support | Yes |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card |
10 Gigabit Ethernet Port | Optional via PCIe expansion card |
Wake on LAN (WOL) | Yes |
Jumbo Frame | Yes |
PCIe Slot | 1x PCIe Gen 3 x2 |
USB 2.0 Port | 2 |
USB 3.2 Gen 2 (10Gbps) Port | 2x Type-A |
IR Sensor | Yes (Optional QNAP RM-IR004 remote control) |
HDMIâ„¢ Output | 1, HDMIâ„¢ 2.1 (up to 4096 x 2160 @ 60Hz) |
Form Factor | Tower |
LED Indicators | Power/Status, LAN, USB, HDD1-4 |
Buttons | Power, USB copy, Reset |
Dimensions (HxWxD) | 165 × 170 × 226.5 mm |
Weight (Net) | 2.26 kg |
Weight (Gross) | 3.59 kg |
Operating Temperature | 0 - 40 °C |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27ËšC |
Power Supply Unit | 90W adapter, 100-240V |
Power Consumption: Disk Standby Mode | 21.618 |
Power Consumption: Operating Mode, Typical | 40.536 W |
Fan | 1 x 120mm, 12VDC |
System Warning | Buzzer |
Kensington Security Slot | Yes |
Standard Warranty | 3 |
Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
Operating System | QTS 5.2.5 |
Supported Client Operating Systems | Apple Mac OS 10.10 or later Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux IBM AIX 7, Solaris 10 or later UNIX Microsoft Windows 7, 8, 10 and 11 Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 202 |
Supported Browsers | Apple Safari (latest version) Google Chrome (latest version) Microsoft Edge (latest version) Mozilla Firefox (latest version) |
Supported Languages | Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish |
Maximum Pool size | 308 TB |
Maximum number of storage pool | 128 |
Volume Type | Thick, Thin, Static |
Maximum volume size | 250 TB |
Maximum number of volume | 128 |
QNAP TS-464-8G 4-Bay NAS
Description
The QNAP TS-464-8G 4-Bay NAS is a high-performance, compact network-attached storage solution designed for both home and small office environments in New Zealand. Powered by an Intel® Celeron® N5095 quad-core processor with a burst speed of up to 2.9 GHz, this NAS offers robust performance for data storage, backup, and multimedia applications. With 8GB of DDR4 RAM (expandable up to 16GB), dual 2.5GbE ports, and multiple expansion options, the TS-464-8G ensures fast data access, seamless media streaming, and efficient multitasking capabilities.
Whether you're looking to centralize your data storage, set up a personal cloud, or enhance your home entertainment system, the TS-464-8G provides a reliable and scalable solution to meet your needs.
Key Points
-
Intel® Celeron® N5095 Processor: Quad-core CPU with burst speeds up to 2.9 GHz, delivering efficient multitasking and
smooth performance for various applications.
-
8GB DDR4 RAM: Pre-installed memory with an option to expand up to 16GB, ensuring smooth operation even under heavy
workloads.
-
Dual 2.5GbE Ports: Supports port trunking for up to 5Gbps combined bandwidth, enhancing data transfer speeds and network
reliability.
-
4 x 3.5-inch SATA 6Gb/s Drive Bays: Hot-swappable bays compatible with both 3.5-inch SATA hard drives and 2.5-inch SATA
solid-state drives, offering flexible storage options.
-
2 x M.2 2280 PCIe Gen 3 x1 Slots: Allows for SSD caching or additional storage pools to improve system performance.
-
HDMI 2.1 Output: Supports resolutions up to 4096 x 2160 @ 60Hz, enabling smooth video playback and media streaming.
-
PCIe Gen 3 x2 Slot: Provides expandability for adding network cards, USB expansion cards, or other accessories to enhance
NAS functionality.
-
Comprehensive Backup Solutions: Offers multi-cloud backup, cloud storage gateways, and supports QNAP's QVR Pro &
Surveillance Station for surveillance needs.
Benefits
-
High-Speed Data Transfer: With dual 2.5GbE ports and SSD caching support, the TS-464-8G ensures fast data access and
transfer speeds, making it ideal for media streaming, large file transfers, and backup operations.
-
Scalable Storage Capacity: The 4-bay design allows for flexible storage configurations, including RAID 0, 1, 5, 6, 10, and
JBOD, providing data redundancy and performance optimization.
-
Enhanced Multimedia Experience: The HDMI 2.1 output and hardware-accelerated transcoding capabilities enable smooth 4K
video playback and streaming to various devices, enhancing your home entertainment setup.
-
Robust Data Protection: Built-in encryption and comprehensive backup solutions ensure that your data is secure and
protected against potential threats.
-
Future-Proof Expandability: The PCIe Gen 3 x2 slot and M.2 slots provide options for future upgrades, allowing you to
enhance NAS functionality as your needs grow.
-
User-Friendly Management: QNAP's QTS operating system offers an intuitive interface for easy setup, management, and
monitoring of your NAS, making it accessible for both beginners and advanced users.
Why Choose This Product?
The QNAP TS-464-8G 4-Bay NAS is an excellent choice for users in New Zealand seeking a versatile and high-performance storage solution. Its combination of powerful hardware, scalable storage options, and comprehensive features make it suitable for a wide range of applications, from personal data storage to small business needs. Whether you're looking to centralize your data, set up a personal cloud, or enhance your multimedia experience, the TS-464-8G provides the tools and capabilities to meet your requirements.
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
