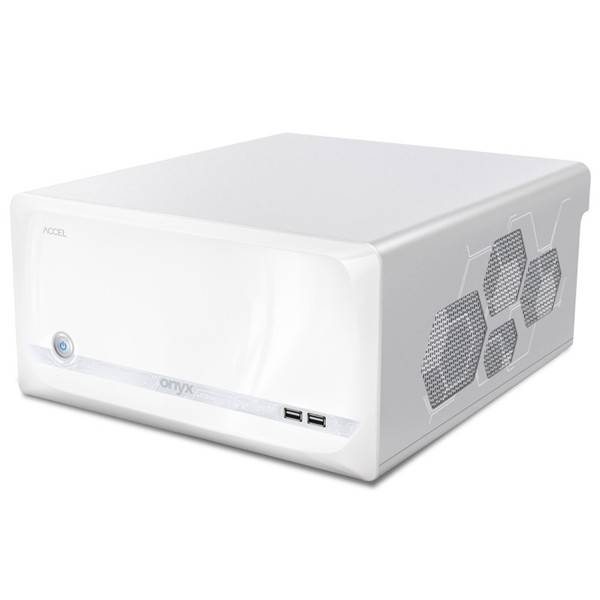

Onyx ACCEL-VM500 I7-9700E Medical PC

Medical Box PC.I7-9700E.FAN.4PCIe slot.AC100~240V.White

Specifications

Onyx ACCEL-VM500 i7-9700E Medical PC

Product Overview

The Onyx ACCEL-VM500 i7-9700E Medical PC is a high-performance, medical-grade computing solution designed for demanding healthcare environments. Powered by the Intel® 9th Generation Core i7-9700E processor and equipped with the Intel® C246A chipset, this system ensures reliable and efficient operation in critical medical applications. Its compact design and robust features make it ideal for integration into operating rooms, imaging centers, and other clinical settings.

Key Features

• Processor: Intel® 9th Generation i7-9700E

• Chipset: Intel® C246A

• System Memory: Supports ECC/Non-ECC DDR4 2133 DIMM x 4 up to 64GB

• Operating System Support: Windows® 10, Windows® 11, Linux (optional)

• Storage:

  • 2.5" SATA SSD x 2

  • M.2 2280 M Key SSD x 1 (NVMe or SATA SSD)

• USB Ports:

  • Rear USB 3.1 Gen 1 x 4

  • Front USB 2.0 or USB 3.0 (optional)

  • Rear USB 3.1 Gen 2 x 6 (optional)

• Ethernet: Gigabit LAN x 2

• Audio: Line-in x 1, Mic-in x 1, Line-out x 1

• Serial Ports: RS-232 x 2

• Expansion Slots:

  • PCIe 3.0[x16] x1

  • PCIe 3.0[x4] x2

  • PCIe 3.0[x1] x1

• Capture I/O (optional):

  • 4Kp60: HDMI 2.0 in

  • FHD: HDMI x1, DVI-I x1, YPbPr x1, SDI x1, CVBS x1, S-Video x1

• Power Consumption: 100V to 240V AC Input, 500W

• Operating Temperature: 0°C ~ 35°C

• Storage Temperature: -20°C ~ 60°C

• Dimensions: 330 x 357.4 x 168 mm

• Weight: 8.6 kg (gross), 8 kg (net)

• Certifications:

  • CE: EN 60601-1-2:2015(V4.0), EN 60601-1:2006/A1:2013/A12:2014 (V3.1)

  • FCC: Part 18 Class B

  • UL: ANSI/AAMI ES60601-1:2012 (V3.1)

  • cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)


Benefits

• High Performance: The Intel® i7-9700E processor and support for up to 64GB of ECC DDR4 memory ensure smooth operation of demanding medical applications.

• Versatile Connectivity: Multiple USB ports, dual Gigabit LAN, and various video outputs facilitate integration with a wide range of medical devices and systems.

• Medical Certification: Compliant with international medical standards ensures safety and reliability in healthcare settings.

• Expandability: PCIe slots and M.2 slots allow for future upgrades and customization to meet evolving medical needs.

• Compact Design: The system's compact form factor allows for flexible installation in space-constrained environments.


Why Choose the Onyx ACCEL-VM500?

The Onyx ACCEL-VM500 i7-9700E Medical PC stands out for its combination of performance, expandability, and medical-grade certifications. Its powerful processing capabilities and versatile connectivity options make it suitable for a wide range of medical applications, from imaging and diagnostics to patient monitoring and data management. The system's compliance with international medical standards ensures that it meets the stringent requirements of healthcare environments.

Conclusion

In summary, the Onyx ACCEL-VM500 i7-9700E Medical PC offers a robust and reliable computing solution for healthcare providers seeking high-performance systems for critical medical applications. Its powerful hardware, versatile connectivity, and medical-grade certifications make it a valuable asset in modern healthcare settings.
