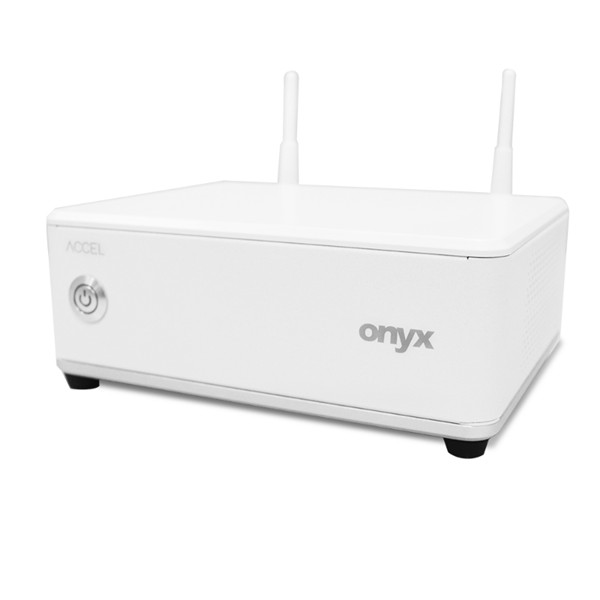

Onyx ACCEL-JS500 JETSON AGX Xavier Medical Ai Edge Video Input
available on orders under $4,000.00Onyx ACCEL-JS500 JETSON AGX Xavier Medical Ai Edge Video Input
Medical AI Edge.Jetson AGX Xaiver.Fan.HDMI2.0.32GB DDR4.32G eMMC.JetpackOS.speaker.Adapter - Other video input models available - contact sales
Specifications
| AI Engine | Nvidia Jetson AGX Xavier |
| CPU | 8-Core ARM v8.2 64bit CPU, 8MB L2 + 4MB L3 |
| System Memory | 32GB 256-bit LPDDR4 w/ECC |
| Graphics | 512 Core Volta GPU with Tensor Cores |
| Storage | 64GB eMMC Onboard |
| OS Support | Linux with Jetpack OS |
| Security | TPM 2.0 |
| USB | USB Type C x 2 for USB 3.1 USB Type A x 1 for USB 3.0 USB Type A x 1 for USB 2.0 |
| Ethernet | 1x Gigabit LAN |
| Video Out | 1x HDMI 2.0 1x DisplayPort |
| Audio | 1x Mic-in 1x Line out |
| COM | 1x RS232 |
| DC-in | 12V DC Jack |
| Power | Medical adapter 12V 84W |
| Operating Temperature | 0°C ~ 35°C |
| Storage Temperature | -20°C ~ 60°C |
| Dimensions | 184(W) x 145(L) x 66(H) mm |
| Gross Weight | 3.1 kg |
Onyx ACCEL-JS500 Jetson AGX Xavier Medical AI Edge: Video Input Capabilities
Overview
The Onyx ACCEL-JS500 is a compact, high-performance AI edge computing platform designed for medical imaging applications. Powered by the NVIDIA Jetson AGX Xavier, it delivers exceptional computational capabilities in a medically certified form factor, making it ideal for deployment in clinical environments requiring real-time AI processing.
Video Input Capabilities
The ACCEL-JS500 offers versatile video input options to accommodate various medical imaging needs:
- 3G-SDI Input: Supports resolutions up to 1920×1080p at 60fps, suitable for Full HD video capture.
- 12G-SDI Input: Supports resolutions up to 4096×2160p at 60fps, enabling 4K video capture.
-
HDMI 2.0 Input: Supports resolutions up to 4096×2160p at 60fps, providing flexibility for different video sources.
These input options allow the ACCEL-JS500 to integrate seamlessly with a wide range of medical imaging devices, facilitating real-time AI analysis and enhancing diagnostic workflows.
Applications
The ACCEL-JS500's video input capabilities make it suitable for various medical applications:
- Digital Operating Rooms: Integrates with surgical cameras and imaging systems for real-time analysis.
- Medical Laboratories: Processes imaging data from diagnostic equipment for AI-driven insights.
- Radiology Units: Enhances image analysis workflows with high-resolution video input.
Conclusion
In summary, the Onyx ACCEL-JS500 offers robust video input options, including 3G-SDI, 12G-SDI, and HDMI 2.0, to support a wide range of medical imaging applications. Its compact design, powerful AI capabilities, and medical-grade certifications make it a valuable asset for healthcare providers seeking advanced imaging solutions.
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
