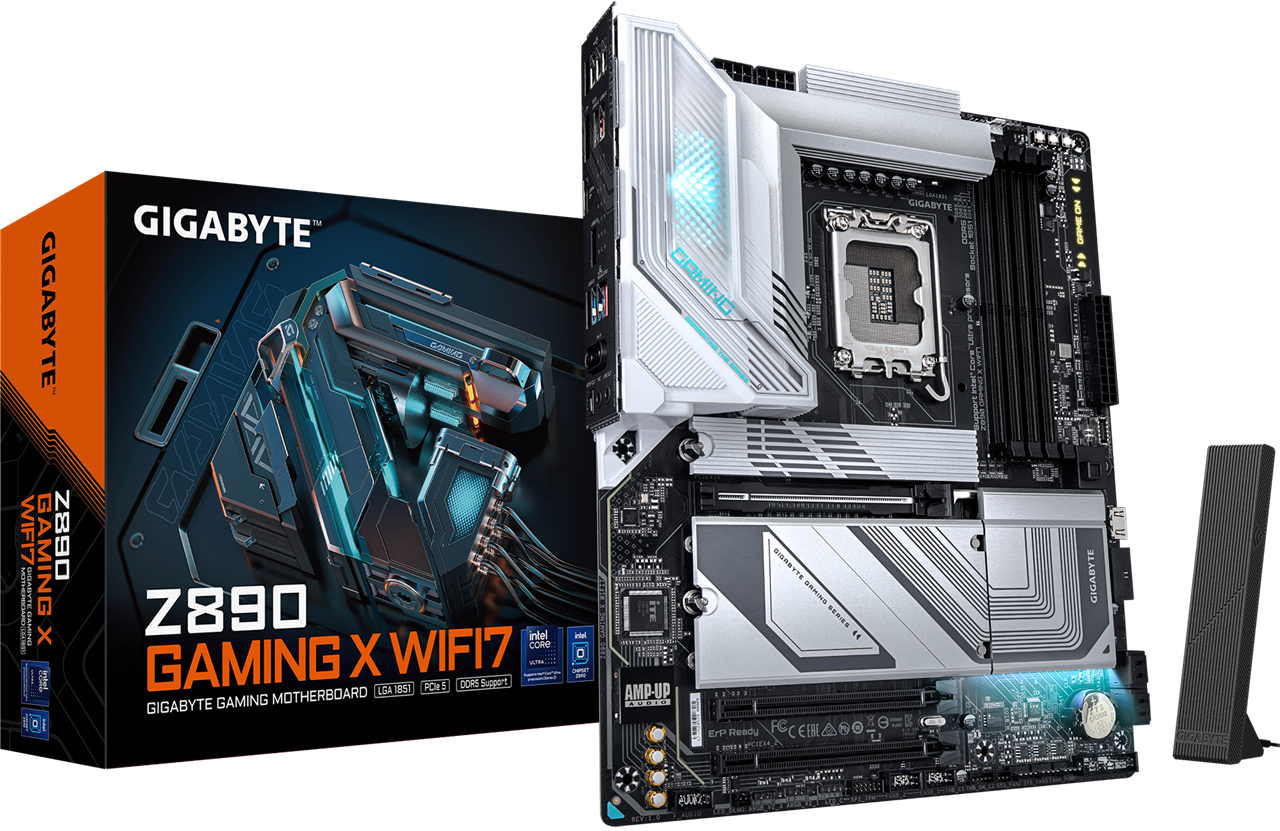

Gigabyte Z890 GAMING X WIFI7 ATX LGA1851 Motherboard

1. Product Description

The Gigabyte Z890 GAMING X WIFI7 ATX LGA1851 Motherboard is engineered to deliver exceptional performance, advanced connectivity, and robust durability for users in New Zealand seeking a high-performance foundation for their Intel-based systems. Designed to support the latest Intel Core Ultra processors (Series 2), this motherboard leverages the Intel Z890 chipset and LGA1851 socket, ensuring compatibility with cutting-edge technologies.

Equipped with DDR5 memory support, PCIe 5.0, Wi-Fi 7, and 2.5GbE LAN, the Z890 GAMING X WIFI7 offers blazing-fast data transfer speeds, low latency, and stable connectivity for demanding applications such as gaming, content creation, and professional workloads. Its 16+1+2 digital VRM design with 60A DrMOS ensures stable power delivery, even during overclocking scenarios.

The motherboard's ATX form factor provides ample space for expansion, while its tool-free installation features like EZ-Latch Plus and M.2 EZ-Latch simplify the building process, making it ideal for both novice and experienced builders.

2. Key Features

Processor Compatibility

• Socket: LGA1851

• CPU Support: Intel Core Ultra processors (Series 2)

• Chipset: Intel Z890 chipset

• Overclocking: Supports CPU and memory overclocking for enhanced performance


Memory Support

• Memory Slots: 4 x DDR5 DIMM slots

• Maximum Capacity: Up to 256GB DDR5 memory

• Memory Speeds: Supports DDR5 speeds from 5600MHz to 8800MHz (OC)

• XMP Support: Yes, for easy memory overclocking

• Dual-Channel Memory: Optimizes bandwidth for demanding applications


Expansion Slots

• PCIe Slots:

  • 1 x PCIe 5.0 x16 (CPU connected) for high-speed graphics cards

  • 2 x PCIe 4.0 x4 for additional expansion cards (network, sound, storage)


Storage Solutions

• M.2 Slots:

  • 1 x PCIe 5.0 x4 M.2 slot

  • 3 x PCIe 4.0 x4 M.2 slots

• SATA Ports: 4 x SATA 6Gb/s ports for additional storage devices

• RAID Support: RAID 0, 1, 5, 10 for both SATA and NVMe SSDs


Networking and Connectivity

• LAN: 1 x 2.5GbE LAN (Realtek) for fast wired connections

• Wi-Fi: MediaTek Wi-Fi 7 (802.11be) for fast, stable wireless connectivity

• Bluetooth: Bluetooth 5.4 for seamless wireless peripheral connections

• USB Ports:

  • 1 x USB4 Type-C with DisplayPort Alt Mode

  • 1 x USB 3.2 Gen 2 Type-C

  • 2 x USB 3.2 Gen 2 Type-A

  • 3 x USB 3.2 Gen 1 Type-A

  • 4 x USB 2.0 Type-A for legacy devices


Video Outputs

• DisplayPort: 1 x DisplayPort 1.4 for high-quality video output


Audio

• Audio Codec: Realtek ALC1220 for high-definition audio

• Channels: 7.1-channel high-definition audio for immersive sound

• Audio Features: Audio Noise Guard with high-end capacitors for superior sound clarity


Thermal and Power Design

• VRM Design: 16+1+2 digital VRM with 60A DrMOS for stable power delivery during high loads

• Thermal Solutions:

  • VRM Thermal Armor Advanced for efficient heat dissipation

  • M.2 Thermal Guard for effective cooling of NVMe SSDs

  • Enlarged MOSFET heatsinks for better heat management


User-Friendly Features

• EZ-Latch Plus: Screwless PCIe slot design for easy installation and removal of graphics cards

• M.2 EZ-Latch: Tool-free M.2 SSD installation for convenience

• Wi-Fi EZ-Plug: Quick and easy design for Wi-Fi antenna installation

• EZ-Debug Zone: Onboard diagnostics for troubleshooting

• Q-Flash Plus: BIOS update without the need for CPU, memory, or GPU installation


3. Benefits

• High Performance: Supports the latest Intel Core Ultra processors and DDR5 memory, ensuring top-tier performance for demanding applications.

• Future-Proofing: PCIe 5.0 and Wi-Fi 7 support prepare your system for next-generation hardware and connectivity.

• Enhanced Cooling: Advanced thermal solutions maintain optimal temperatures, ensuring system stability during intensive tasks.

• Ease of Use: Tool-free installation features simplify the building process, making it accessible for users of all experience levels.

• Comprehensive Connectivity: A wide range of connectivity options, including USB4, DisplayPort, 2.5GbE LAN, and Wi-Fi 7, cater to diverse peripheral needs.


4. Why Choose the Gigabyte Z890 GAMING X WIFI7?

If you're building a high-performance system in New Zealand and require a motherboard that offers cutting-edge features, robust build quality, and ease of use, the Gigabyte Z890 GAMING X WIFI7 ATX LGA1851 Motherboard is an excellent choice. Here's why:

• Intel Core Ultra Processor Support: Leverage the power of Intel's latest processors for exceptional performance.

• DDR5 and PCIe 5.0 Support: Future-proof your system with the latest memory and expansion slot technologies.

• Advanced Thermal Solutions: Keep your system cool under load with advanced cooling mechanisms.

• DIY-Friendly Features: Simplify the building process with tool-free installation features.

• Comprehensive Connectivity: Enjoy fast and stable connections with a variety of ports and wireless options.


5. Conclusion

The Gigabyte Z890 GAMING X WIFI7 ATX LGA1851 Motherboard stands out as a top-tier choice for users in New Zealand seeking a motherboard that combines performance, future-proofing, and ease of use. Its support for Intel's latest processors, DDR5 memory, and PCIe 5.0 ensures that your system is ready for the demands of modern applications and future upgrades. Coupled with advanced thermal solutions and user-friendly features, this motherboard provides a solid foundation for building a high-performance system.

Specifications
