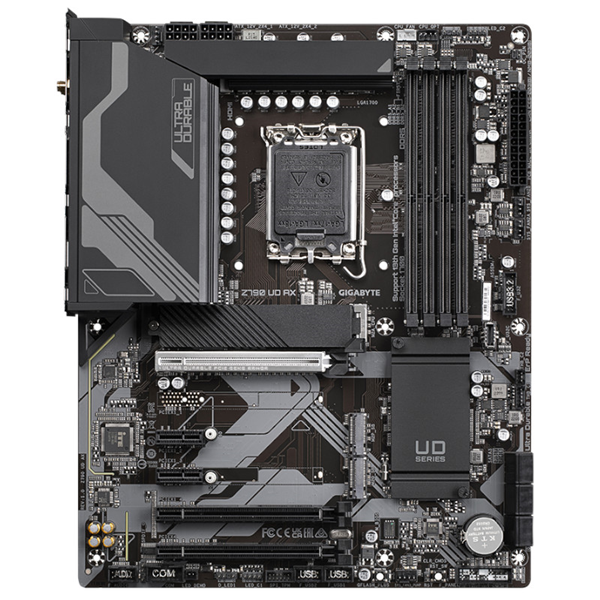

Gigabyte Z790 UD AX DDR5 ATX LGA1700 Motherboard

1. Product Description

The Gigabyte Z790 UD AX DDR5 ATX LGA1700 Motherboard is engineered for gamers, content creators, and professionals in New Zealand seeking a high-performance, future-proof foundation for their Intel-based systems. Built with the Intel Z790 chipset and LGA1700 socket, this motherboard supports the latest 13th and 12th Gen Intel Core processors, offering exceptional performance for demanding applications.

Equipped with DDR5 memory support, PCIe 5.0, Wi-Fi 6E, and 2.5GbE LAN, the Z790 UD AX motherboard ensures fast data transfer, low latency, and seamless online experiences. The ATX form factor provides ample space for expansion, making it an ideal choice for users looking to build a powerful and versatile system.

Designed with durability in mind, the motherboard features advanced thermal solutions, including fully covered MOSFET heatsinks and an M.2 thermal guard, to maintain optimal temperatures during intensive workloads. The 16+1+1 twin hybrid phases digital VRM design ensures stable power delivery, even during overclocking sessions.

Whether you're building a high-end gaming rig, a content creation workstation, or a professional-grade system, the Gigabyte Z790 UD AX DDR5 ATX LGA1700 Motherboard offers the performance, connectivity, and reliability you need.

2. Key Features

Processor Compatibility

• Socket: LGA1700

• CPU Support: Intel Core 13th and 12th Gen processors

• Overclocking: Unlocked for CPU and memory overclocking


Memory Support

• Memory Slots: 4 x DDR5 DIMM slots

• Maximum Capacity: Up to 192GB

• Memory Speeds: Supports DDR5 speeds from 4800MHz to 7600MHz (OC)

• XMP Support: Yes, for easy memory overclocking


Expansion Slots

• PCIe Slots:

  • 1 x PCIe 5.0 x16 slot (CPU connected)

  • 1 x PCIe 4.0 x16 slot (x4 mode, chipset connected)

  • 1 x PCIe 3.0 x16 slot (x1 mode, chipset connected)

  • 2 x PCIe 3.0 x1 slots


Storage Options

• M.2 Slots:

  • 1 x M.2 PCIe 4.0 x4 slot (M2A_CPU)

  • 2 x M.2 PCIe 4.0 x4 slots (M2Q_SB, M2P_SB)

• SATA Ports: 6 x SATA 6Gb/s ports

• RAID Support: RAID 0, 1, 5, 10 for both SATA and NVMe SSDs


Networking and Connectivity

• LAN: 1 x 2.5GbE LAN port (Realtek)

• Wi-Fi: Intel Wi-Fi 6E AX200 (802.11ax)

• Bluetooth: Bluetooth 5.3

• USB Ports:

  • 1 x USB 3.2 Gen 2x2 Type-C

  • 1 x USB 3.2 Gen 2 Type-A

  • 4 x USB 3.2 Gen 1 Type-A

  • 4 x USB 2.0 Type-A


Display Outputs

• HDMI: 1 x HDMI 2.1

• DisplayPort: 1 x DisplayPort 1.2


Audio

• Audio Codec: Realtek ALC897

• Channels: 7.1-channel high-definition audio

• Audio Features: Audio Noise Guard, high-end audio capacitors


Thermal and Power Design

• VRM Design: 16+1+1 twin hybrid phases digital VRM with 60A DrMOS

• Thermal Solutions:

  • Fully covered MOSFET heatsinks

  • M.2 thermal guard

  • Ultra Durable Armor

  • 6-layer & 2X copper PCB


User-Friendly Features

• EZ-Latch Plus: Screwless PCIe slot design for easy GPU installation

• Multi-Key: Customizable button for BIOS access, safe mode, or RGB control

• Q-Flash Plus: BIOS update without CPU, memory, or GPU installation

• RGB Fusion 2.0: Support for addressable and RGB LED strips


3. Benefits

Unmatched Performance

The 16+1+1 twin hybrid phases digital VRM design ensures stable power delivery, even during overclocking sessions, allowing you to maximize the performance of your Intel Core processors.

Future-Proof Connectivity

With support for PCIe 5.0, DDR5 memory, and Wi-Fi 6E, the Z790 UD AX motherboard is built to handle next-generation components and technologies, ensuring longevity and relevance in your system build.

Enhanced Thermal Management

The motherboard's advanced thermal solutions, including fully covered MOSFET heatsinks and an M.2 thermal guard, maintain optimal temperatures during intensive workloads, preventing thermal throttling and ensuring consistent performance.

Comprehensive Storage Options

With three M.2 slots and six SATA ports, the Z790 UD AX motherboard offers ample storage options for SSDs and HDDs, supporting RAID configurations for improved data redundancy and performance.

Seamless Networking and Connectivity

The inclusion of 2.5GbE LAN, Intel Wi-Fi 6E, and Bluetooth 5.3 ensures fast and stable wired and wireless connections, ideal for online gaming, streaming, and data-intensive tasks.

4. Why Choose the Gigabyte Z790 UD AX DDR5 ATX LGA1700 Motherboard?

If you're a gamer, content creator, or professional in New Zealand looking for a motherboard that offers high performance, future-proof features, and reliable connectivity, the Gigabyte Z790 UD AX DDR5 ATX LGA1700 Motherboard is the ideal choice. Here's why:

• Intel Core 13th and 12th Gen Support: The motherboard supports the latest Intel processors, ensuring excellent performance for both gaming and productivity tasks.

• High-Speed Memory Support: With support for DDR5 memory up to 7600MHz (OC), the motherboard provides high bandwidth for demanding applications and multitasking.

• Next-Generation Connectivity: The inclusion of PCIe 5.0, Wi-Fi 6E, and 2.5GbE LAN ensures fast data transfer and low latency, enhancing your overall system performance.

• Advanced Thermal Solutions: The motherboard's advanced thermal design, including MOSFET heatsinks and an M.2 thermal guard, keeps your components cool under load, preventing overheating and ensuring stability.

• User-Friendly Features: Features like EZ-Latch Plus, Multi-Key, and Q-Flash Plus simplify system building and maintenance, making the motherboard accessible for both beginners and experienced builders.


5. Conclusion

The Gigabyte Z790 UD AX DDR5 ATX LGA1700 Motherboard is an exceptional choice for users in New Zealand seeking a high-performance, future-proof platform for their Intel-based systems. With support for DDR5 memory, PCIe 5.0, Wi-Fi 6E, and 2.5GbE LAN, this motherboard provides the necessary performance and connectivity for gaming, content creation, and professional workloads.

Its advanced thermal solutions ensure optimal temperatures during intensive tasks, while its user-friendly features simplify system building and maintenance. Whether you're building a high-end gaming rig, a content creation workstation, or a professional-grade system, the Gigabyte Z790 UD AX DDR5 ATX LGA1700 Motherboard delivers outstanding value and performance.
