Gigabyte X870 GAMING X WIFI7 AM5 Motherboard
$626.99 NZD
or 4 payments of $156.75 with

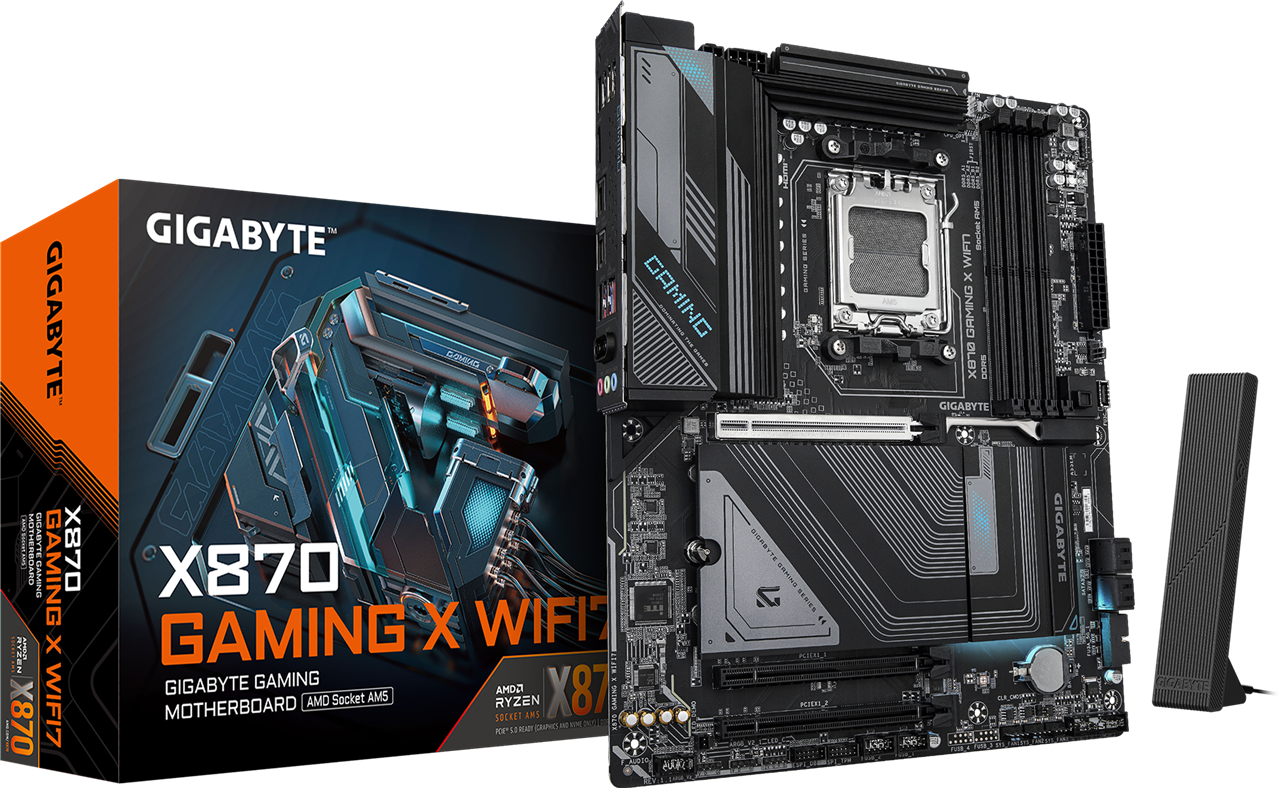

Gigabyte X870 GAMING X WiFi7 AM5 Motherboard
1. Product Overview
The Gigabyte X870 GAMING X WiFi7 AM5 Motherboard is a high-performance ATX motherboard designed to support the latest AMD Ryzen™ 7000, 8000, and 9000 Series processors. Built on the AMD X870 chipset and featuring the AM5 socket, this motherboard offers cutting-edge technology and robust features for gamers, content creators, and professionals in New Zealand seeking top-tier performance.
With support for DDR5 memory up to 8000 MT/s, PCIe 5.0, and WiFi 7 connectivity, the X870 GAMING X is engineered to handle the most demanding workloads, including high-resolution gaming, 3D rendering, and video editing. Its sleek design and advanced features make it a standout choice for building a powerful and future-proof system.
2. Key Features
Processor Compatibility
-
Socket AM5: Supports AMD Ryzen™ 7000, 8000, and 9000 Series processors, offering exceptional multi-core
performance and power efficiency.
Memory Support
-
DDR5 Memory: Up to 8000 MT/s, with support for 4 DIMMs and AMD EXPO™ memory
modules,
providing high-speed data transfer and enhanced system responsiveness.
Graphics and Expansion
-
PCIe 5.0 x16 Slot: Future-proof your system with the latest PCIe 5.0 technology, ensuring compatibility
with next-generation graphics cards and storage devices.
-
M.2 Slots: Includes 3 M.2 slots, with one supporting PCIe 5.0 x4 for ultra-fast storage
solutions.
Networking and Connectivity
-
WiFi 7: Experience the latest in wireless technology with WiFi 7, offering faster speeds and lower latency
for seamless online gaming and streaming.
- 2.5GbE LAN: Provides high-speed wired networking for stable and fast internet connections.
-
USB Ports: Multiple USB4 Type-C and USB 3.2 Gen 2 ports for fast data transfer and
peripheral connectivity.
Thermal Design
-
VRM Thermal Armor Advanced: Equipped with a 5 W/mK thermal pad and superior heatpipe design to ensure
efficient heat dissipation.
-
M.2 Thermal Guard: Extended coverage for 3 M.2 slots, preventing thermal throttling and ensuring
consistent performance.
DIY-Friendly Features
-
EZ-Latch Plus: Tool-free installation and removal of PCIe and M.2 devices.
- WiFi EZ-Plug: Simplifies the installation of WiFi antennas with an integrated adapter.
- Sensor Panel Link: Onboard video port for easy in-chassis panel setup.
3. Benefits
Enhanced Performance
-
DDR5 Memory Support: Achieve higher memory speeds and bandwidth, improving overall system performance and responsiveness.
-
PCIe 5.0 Compatibility: Future-proof your system with the latest PCIe technology, ensuring compatibility with
next-generation GPUs and storage devices.
Superior Connectivity
-
WiFi 7: Enjoy faster wireless speeds and lower latency, ideal for online gaming, streaming, and remote work.
- 2.5GbE LAN: Provides a stable and high-speed wired connection for uninterrupted internet access.
Efficient Cooling
-
Advanced Thermal Solutions: The VRM Thermal Armor and M.2 Thermal Guard ensure that your components stay cool under load,
preventing thermal throttling and maintaining optimal performance.
User-Friendly Design
-
EZ-Latch Plus and WiFi EZ-Plug: Simplify the installation and removal of components, making the building process more
accessible for both beginners and experienced users.
4. Why Choose the X870 GAMING X WiFi7
For PC enthusiasts in New Zealand, the Gigabyte X870 GAMING X WiFi7 AM5 Motherboard offers a combination of cutting-edge technology, robust performance, and user-friendly features. Its support for the latest AMD Ryzen™ processors, DDR5 memory, and PCIe 5.0 ensures that your system is ready for the demands of modern applications and future upgrades.
The inclusion of WiFi 7 and 2.5GbE LAN provides versatile connectivity options, catering to various networking needs. Additionally, the motherboard's advanced thermal design ensures that your components operate efficiently, even under heavy workloads.
Whether you're building a high-performance gaming rig, a content creation workstation, or a professional PC, the X870 GAMING X WiFi7 delivers the performance and features you need to succeed.
5. Conclusion
The Gigabyte X870 GAMING X WiFi7 AM5 Motherboard stands out as a top-tier choice for users in New Zealand seeking a powerful, reliable, and aesthetically pleasing foundation for their PC builds. With support for the latest technologies, superior connectivity options, and efficient thermal solutions, this motherboard is designed to meet the demands of modern computing.
Investing in the X870 GAMING X WiFi7 ensures that your system is equipped to handle current and future applications, providing a seamless and high-performance computing experience.
Specifications
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD X870 |
| Memory | Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication Module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2B_SB connector operates at up to x2 mode when a PCIe SSD is installed in the M2C_SB connector. 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB 3.2 Gen 1 port on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x Q-Flash Plus button 2 x antenna connectors (2T2R) 1 x HDMI port(Note) 2 x USB4® USB Type-C® ports (DisplayPort*) 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks * Actual support may vary by CPU. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
