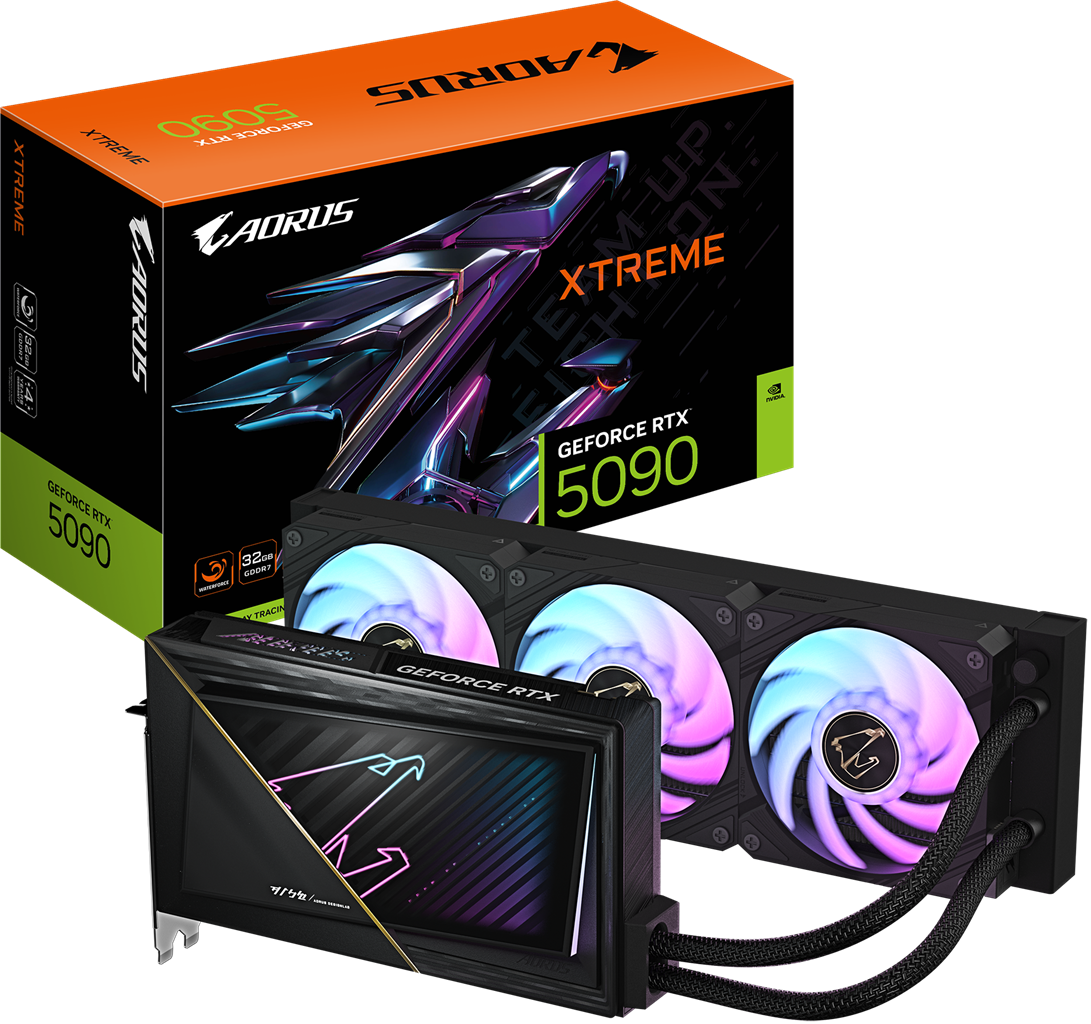

Gigabyte GV-N5090AorusX W-32GD RTX5090 32GB GDDR6X PCIE Graphics Card

The Gigabyte GV-N5090AORUSX W-32GD is a premium graphics card from Gigabyte's AORUS XTREME WATERFORCE series, featuring the NVIDIA GeForce RTX 5090 GPU. This card is designed for enthusiasts seeking top-tier performance in gaming and content creation.

🎮 Key Specifications

• GPU: NVIDIA GeForce RTX 5090 (Blackwell architecture)

• CUDA Cores: 21,760

• Base Clock: 2,017 MHz

• Boost Clock: Up to 2,655 MHz

• Memory: 32GB GDDR7

• Memory Interface: 512-bit

• Memory Speed: 28 Gbps

• Interface: PCIe 5.0 x16

• Power Connectors: 1x 16-pin PCIe

• Recommended PSU: 1,000W

• Outputs: 3x DisplayPort 2.1a, 1x HDMI 2.1b

• Dimensions: 245 mm (L) x 146 mm (W) x 36 mm (H)

• Maximum Resolution: 7680 x 4320 (8K)

• Cooling System: WATERFORCE all-in-one liquid cooling

• Warranty: 4 years (with online registration)


❄️ Cooling System

The GV-N5090AORUSX W-32GD is equipped with Gigabyte's WATERFORCE all-in-one liquid cooling system, which includes:

• 360mm Radiator: Equipped with three 120mm ARGB fans for efficient heat dissipation.

• Liquid Metal Thermal Grease: Enhances thermal conductivity for the GPU.

• Server-Grade Thermal Conductive Gel: Applied to VRAM and MOSFETs for improved cooling.

• Protective Metal Back Plate: Adds structural integrity and aesthetic appeal.

• RGB Lighting: Customizable lighting effects controllable via Gigabyte Control Center.


These features contribute to maintaining optimal temperatures during intensive gaming sessions.

🖥️ Performance

The RTX 5090 delivers exceptional performance for 1440p and 4K gaming. It supports NVIDIA's DLSS 4 technology, which utilizes AI rendering to produce images of higher quality at a lower computational cost, enhancing performance without sacrificing visual fidelity. Additionally, the card supports real-time ray tracing, providing realistic lighting, shadows, and reflections for lifelike visuals in supported games and applications.

🧩 Design and Build Quality

The GV-N5090AORUSX W-32GD features a sleek design with RGB lighting accents, making it an excellent choice for aesthetic builds. Its full-height, dual-slot form factor ensures compatibility with a wide range of cases, and the reinforced backplate adds structural integrity to the card, preventing potential damage during installation or transport.

✅ Conclusion

The Gigabyte GV-N5090AORUSX W-32GD is a reliable and efficient graphics card that offers excellent performance for mainstream gamers and content creators. With its 32GB GDDR7 memory, advanced cooling system, and support for modern technologies like DLSS 4 and ray tracing, it provides a compelling option for those seeking high-quality gaming experiences at 1440p and 4K resolutions.
