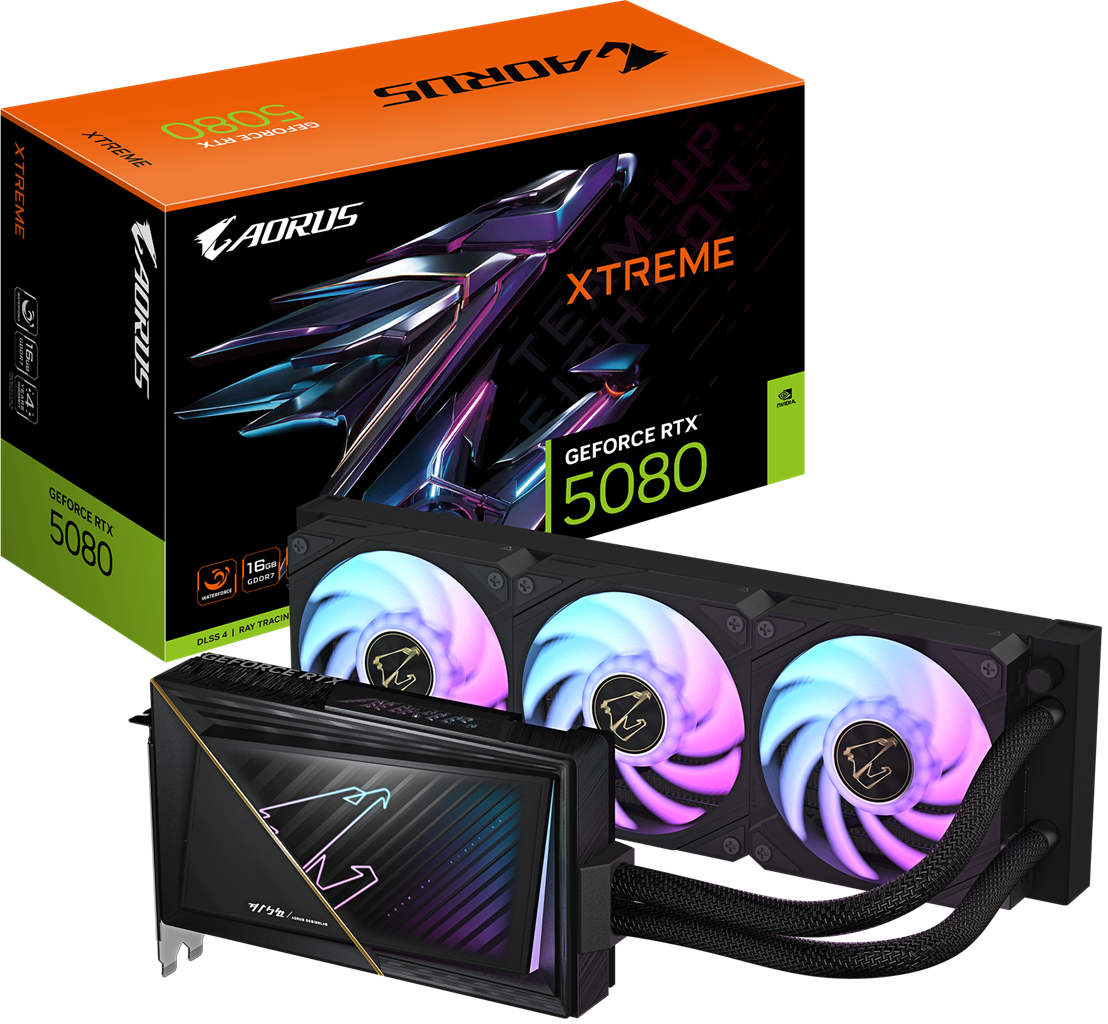

Gigabyte GV-N5080AorusX W-16GD RTX5080 16GB GDDR6X PCIE Graphics Card

The Gigabyte GV-N5080AORUSX W-16GD is a high-end graphics card from Gigabyte's AORUS XTREME WATERFORCE series, featuring the NVIDIA GeForce RTX 5080 GPU. This card is designed for enthusiasts seeking top-tier performance in gaming and creative applications.

🎮 Key Specifications

• GPU: NVIDIA GeForce RTX 5080 (Blackwell architecture)

• CUDA Cores: 10,752

• Base Clock: 2,617 MHz

• Boost Clock: Up to 2,805 MHz

• Memory: 16GB GDDR7

• Memory Interface: 256-bit

• Memory Speed: 30 Gbps

• Interface: PCIe 5.0 x16

• Power Connectors: 1x 16-pin PCIe

• Recommended PSU: 850W

• Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b

• Dimensions: 220mm (L) x 130mm (W) x 40mm (H)

• Maximum Resolution: 7680 x 4320 (8K)

• Cooling: 360mm radiator with three 120mm ARGB fans

• Thermal Design Power (TDP): 360W


❄️ Cooling System

The GV-N5080AORUSX W-16GD is equipped with Gigabyte's WATERFORCE all-in-one liquid cooling system, which includes:

• 360mm Radiator: Equipped with three 120mm ARGB fans for efficient heat dissipation.

• Liquid Metal Thermal Grease: Applied to the GPU for improved thermal conductivity.

• RGB Lighting: Customizable lighting effects for aesthetic builds.

• Protective Metal Back Plate: Enhances structural integrity and durability.


These features contribute to maintaining optimal temperatures during intensive gaming sessions.

🖥️ Performance

The RTX 5080 delivers exceptional performance for 1440p and 4K gaming. It supports NVIDIA's DLSS 4 technology, which utilizes AI rendering to produce images of higher quality at a lower computational cost, enhancing performance without sacrificing visual fidelity. Additionally, the card supports real-time ray tracing, providing realistic lighting, shadows, and reflections for lifelike visuals in supported games and applications.

🧩 Design and Build Quality

The GV-N5080AORUSX W-16GD features a sleek design with RGB lighting accents, making it an excellent choice for aesthetic builds. Its full-height, dual-slot form factor ensures compatibility with a wide range of cases, and the reinforced backplate adds structural integrity to the card, preventing potential damage during installation or transport.

✅ Conclusion

The Gigabyte GV-N5080AORUSX W-16GD is a reliable and efficient graphics card that offers excellent performance for mainstream gamers and content creators. With its 16GB GDDR7 memory, advanced cooling system, and support for modern technologies like DLSS 4 and ray tracing, it provides a compelling option for those seeking high-quality gaming experiences at 1440p and 4K resolutions.
