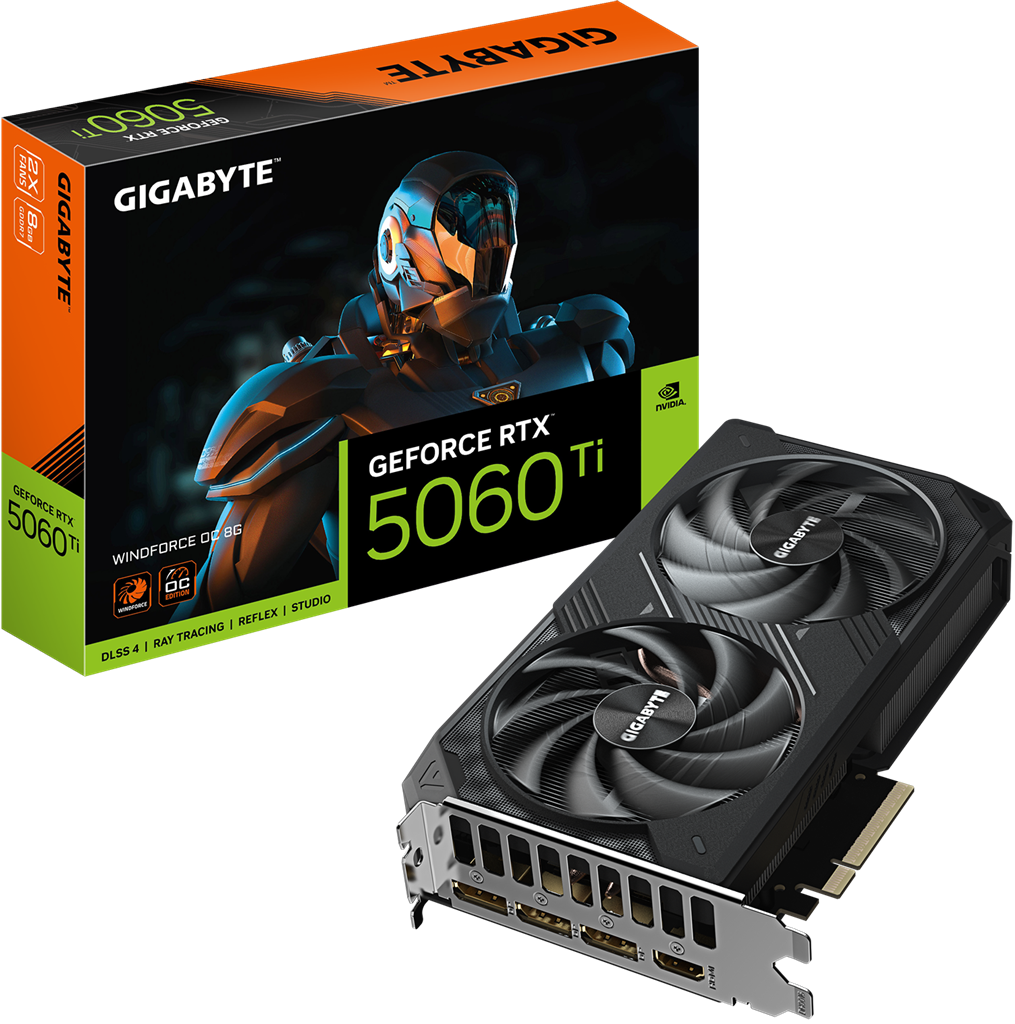

Gigabyte GV-N506TWF2OC-8GD RTX5060TI 8GB PCIE Graphics Card

The Gigabyte GV-N506TWF2OC-8GD is a compact and efficient graphics card from Gigabyte's WindForce series, designed for gamers and content creators seeking reliable performance in 1080p and 1440p gaming.

🎮 Key Features

• GPU: NVIDIA GeForce RTX 5060 Ti (Blackwell architecture)

• CUDA Cores: 4,608

• Base Clock: 2,572 MHz

• Boost Clock: Up to 2,587 MHz

• Memory: 8GB GDDR7

• Memory Interface: 128-bit

• Effective Memory Speed: 28 Gbps

• Interface: PCIe 5.0 x8

• Power Connectors: 1x 8-pin PCIe

• Recommended PSU: 650W

• Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b

• Dimensions: 208mm x 120mm x 40mm

• Form Factor: Dual-slot, ATX


❄️ Cooling System

The GV-N506TWF2OC-8GD features Gigabyte's WINDFORCE cooling system, which includes:

• Dual 90mm Fans: Designed with alternate spinning to reduce turbulence and increase airflow pressure.

• Server-Grade Thermal Conductive Gel: Enhances heat dissipation for critical components.

• Composite Copper Heat Pipes and Copper Plate: Facilitate efficient heat transfer from the GPU and VRAM to the heatsink.

• Screen Cooling: Allows air to pass through the extended heatsink for better heat dissipation.


These features contribute to maintaining optimal temperatures during gaming sessions.

🖥️ Performance

The RTX 5060 Ti delivers solid performance for 1080p and 1440p gaming. It supports NVIDIA's DLSS 4 technology, which utilizes AI rendering to produce images of higher quality at a lower computational cost, enhancing performance without sacrificing visual fidelity. Additionally, the card supports real-time ray tracing, providing realistic lighting, shadows, and reflections for lifelike visuals in supported games and applications.

🧩 Design and Build Quality

The GV-N506TWF2OC-8GD features a compact design, measuring 208mm in length, making it suitable for small form factor PC cases. The dual-fan cooling solution ensures efficient heat dissipation while maintaining a relatively quiet operation. The reinforced backplate adds structural integrity to the card, preventing potential damage during installation or transport.

✅ Conclusion

The Gigabyte GV-N506TWF2OC-8GD is a reliable and efficient graphics card that offers excellent performance for mainstream gamers. With its 8GB GDDR7 memory, advanced cooling system, and support for modern technologies like DLSS 4 and ray tracing, it provides a compelling option for those seeking high-quality gaming experiences at 1080p and 1440p resolutions.

Specifications
