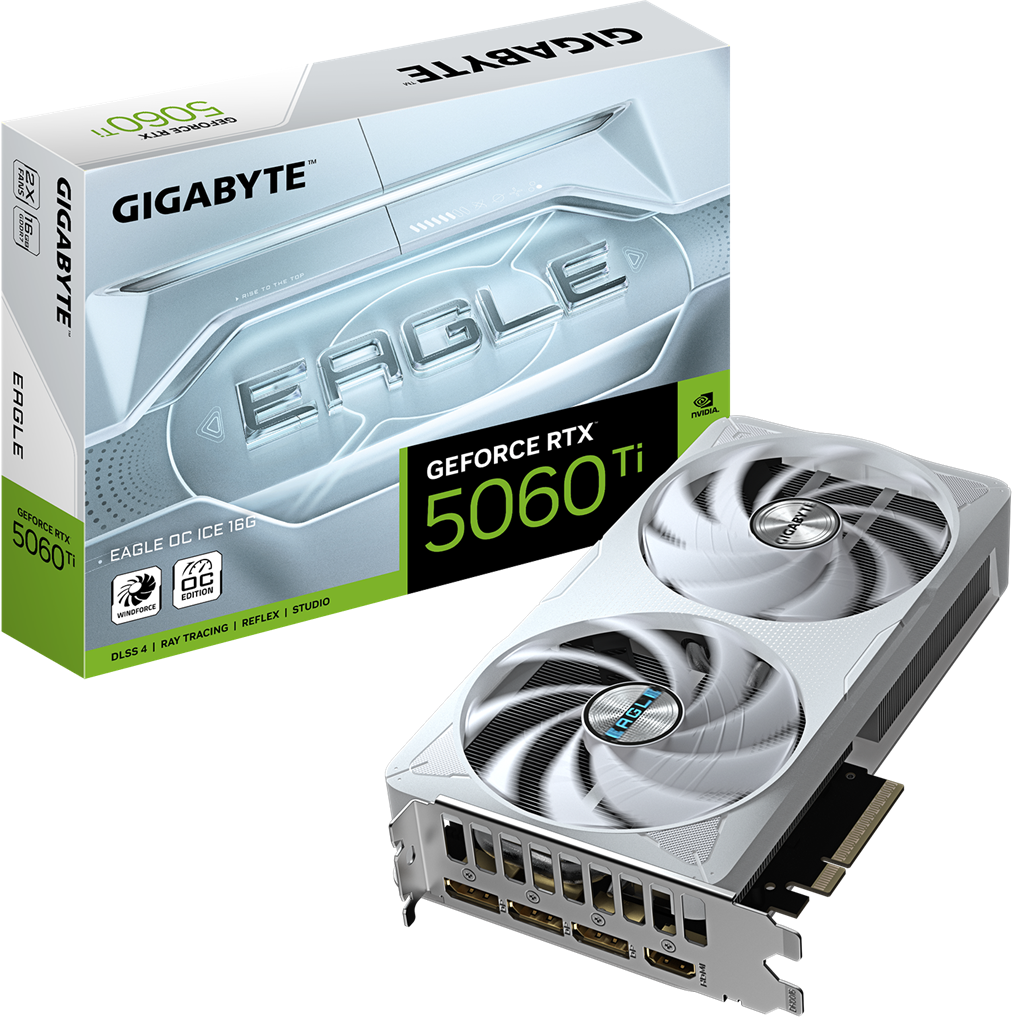

Gigabyte GV-N506TEAGLEOC ICE-16GD RTX5060TI 16GB PCIE Graphics Card

The Gigabyte GV-N506TEAGLEOC ICE-16GD is a high-performance graphics card from Gigabyte's Eagle OC ICE series, featuring the NVIDIA GeForce RTX 5060 Ti GPU. This model is equipped with 16GB of GDDR7 memory, making it well-suited for 1440p and 4K gaming, as well as demanding creative applications.

🎮 Key Features

• GPU: NVIDIA GeForce RTX 5060 Ti (Blackwell architecture)

• CUDA Cores: 4,608

• Base Clock: 2,572 MHz

• Boost Clock: Up to 2,617 MHz

• Memory: 16GB GDDR7

• Memory Interface: 128-bit

• Memory Speed: 28 Gbps

• Interface: PCIe 5.0 x8

• Power Connectors: 1x 8-pin PCIe

• Recommended PSU: 650W

• Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b

• Dimensions: 215mm x 122mm x 40mm

• Form Factor: Dual-slot, ATX


❄️ Cooling System

The GV-N506TEAGLEOC ICE-16GD features Gigabyte's WINDFORCE cooling system, which includes:

• Dual 100mm Fans: Designed with alternate spinning to reduce turbulence and increase airflow pressure.

• Server-Grade Thermal Conductive Gel: Enhances heat dissipation for critical components.

• Composite Copper Heat Pipes and Copper Plate: Facilitate efficient heat transfer from the GPU and VRAM to the heatsink.

• Screen Cooling: Allows air to pass through the extended heatsink for better heat dissipation.


These features contribute to maintaining optimal temperatures during gaming sessions.

🖥️ Performance

The RTX 5060 Ti delivers solid performance for 1440p and 4K gaming. It supports NVIDIA's DLSS 4 technology, which utilizes AI rendering to produce images of higher quality at a lower computational cost, enhancing performance without sacrificing visual fidelity. Additionally, the card supports real-time ray tracing, providing realistic lighting, shadows, and reflections for lifelike visuals in supported games and applications.

🧩 Design and Build Quality

The GV-N506TEAGLEOC ICE-16GD features a compact design, measuring 215mm in length, making it suitable for small form factor PC cases. The dual-fan cooling solution ensures efficient heat dissipation while maintaining a relatively quiet operation. The reinforced backplate adds structural integrity to the card, preventing potential damage during installation or transport.

✅ Conclusion

The Gigabyte GV-N506TEAGLEOC ICE-16GD is a reliable and efficient graphics card that offers excellent performance for mainstream gamers. With its 16GB GDDR7 memory, advanced cooling system, and support for modern technologies like DLSS 4 and ray tracing, it provides a compelling option for those seeking high-quality gaming experiences at 1440p and 4K resolutions.

Specifications
