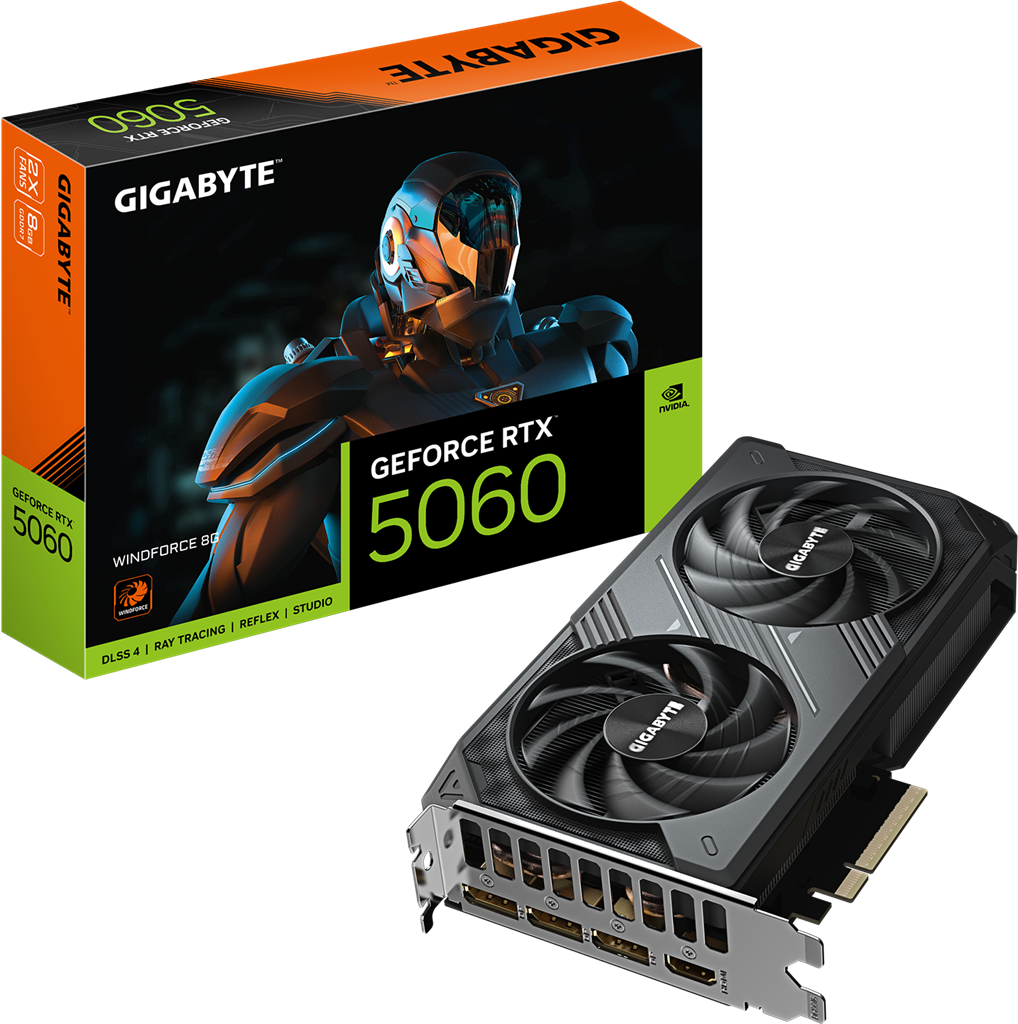

Gigabyte GV-N5060WF2-8GD RTX5060 8GB PCIE Graphics Card

🎮 Product Overview

The Gigabyte GV-N5060WF2-8GD is a mid-range graphics card powered by NVIDIA's GeForce RTX 5060 GPU, based on the Blackwell architecture. It features 8GB of GDDR7 memory and utilizes a PCIe 5.0 x8 interface, offering a balance between performance and power efficiency. This card is designed to deliver smooth gaming experiences at 1080p and 1440p resolutions, making it suitable for mainstream gamers.

⚙️ Specifications

• GPU: NVIDIA GeForce RTX 5060

• CUDA Cores: 3,840

• Base Clock: 2,497 MHz

• Boost Clock: Up to 2,512 MHz

• Memory: 8GB GDDR7

• Memory Interface: 128-bit

• Memory Speed: 28 Gbps

• Interface: PCIe 5.0 x8

• Power Connectors: 1x 8-pin PCIe

• Recommended PSU: 450W

• Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b

• Dimensions: 199mm x 116mm x 40mm


❄️ Cooling System

The GV-N5060WF2-8GD is equipped with Gigabyte's WINDFORCE cooling system, which includes:

• Hawk Fans: Designed with alternate spinning to reduce turbulence and increase airflow pressure.

• Server-Grade Thermal Conductive Gel: Enhances heat dissipation for critical components.

• Composite Copper Heat Pipes and Copper Plate: Facilitate efficient heat transfer from the GPU and VRAM to the heatsink.

• 3D Active Fans: Provide semi-passive cooling by remaining off during low-load scenarios.

• Screen Cooling: Allows air to pass through the extended heatsink for better heat dissipation.


These features contribute to maintaining optimal temperatures during gaming sessions.

🖥️ Performance

The RTX 5060 delivers solid performance for 1080p and 1440p gaming. It supports NVIDIA's DLSS 4 technology, which utilizes AI rendering to produce images of higher quality at a lower computational cost, enhancing performance without sacrificing visual fidelity. Additionally, the card supports real-time ray tracing, providing realistic lighting, shadows, and reflections for lifelike visuals in supported games and applications.

🧩 Design and Build Quality

The GV-N5060WF2-8GD features a compact design, measuring 199mm in length, making it suitable for mid-sized PC cases. The dual-fan cooling solution ensures efficient heat dissipation while maintaining a relatively quiet operation. The reinforced backplate adds structural integrity to the card, preventing potential damage during installation or transport.

✅ Conclusion

The Gigabyte GV-N5060WF2-8GD is a reliable and efficient graphics card that offers excellent performance for mainstream gamers. With its 8GB GDDR7 memory, advanced cooling system, and support for modern technologies like DLSS 4 and ray tracing, it provides a compelling option for those seeking high-quality gaming experiences at 1080p and 1440p resolutions.
