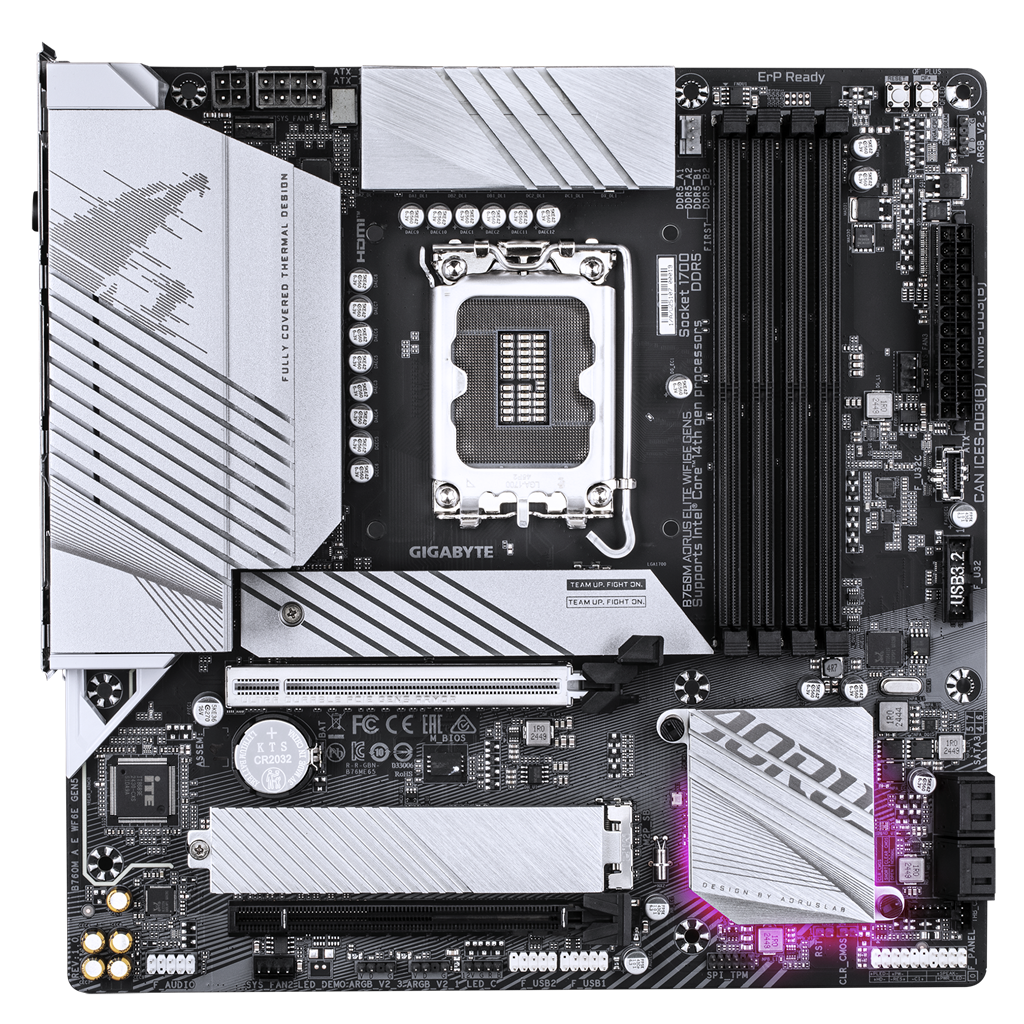

Gigabyte B760M A E WF6E Gen5 DDR5 mATX LGA1700 Motherboard

1. Product Description

The Gigabyte B760M A E WF6E Gen5 DDR5 mATX LGA1700 Motherboard is designed to provide unparalleled performance and future-proof features, making it an ideal choice for users in New Zealand seeking a reliable and powerful motherboard for their Intel-based systems. Built with the Intel B760 chipset and LGA1700 socket, this motherboard is fully compatible with the latest 12th, 13th, and 14th Gen Intel Core processors to provide an exceptional computing experience.

This motherboard is equipped with cutting-edge features such as DDR5 memory support, PCIe 5.0, Wi-Fi 6E, and 2.5GbE LAN, ensuring fast data transfer, low latency, and stable connectivity for a smooth user experience. Whether you are a gamer, content creator, or professional, the B760M A E WF6E will handle demanding applications with ease.

In addition to its high-speed performance, the B760M A E WF6E motherboard features advanced thermal solutions like M.2 thermal guards and Smart Fan 6 technology, helping to maintain optimal temperatures during long gaming sessions or intense workloads. The 12+1+1 hybrid digital VRM design ensures stable and efficient power delivery, even when overclocking.

If you are building a gaming rig, content creation workstation, or a high-performance system, the Gigabyte B760M A E WF6E Gen5 DDR5 mATX LGA1700 Motherboard is the perfect choice to power your next project.

2. Key Features

Processor Compatibility

• Socket: LGA1700

• CPU Support: Compatible with Intel Core 12th, 13th, and 14th Gen processors

• Overclocking: Supports CPU and memory overclocking for enhanced performance

• Chipset: Intel B760 chipset provides stable, efficient performance for demanding tasks


Memory Support

• Memory Slots: 4 x DDR5 DIMM slots for ample memory expansion

• Maximum Capacity: Supports up to 128GB of memory

• Memory Speeds: Supports DDR5 speeds from 4800MHz to 7600MHz (OC), providing high-speed data handling

• XMP Support: Yes, for easy memory overclocking and improved system performance

• Dual-Channel Memory: Optimizes bandwidth for demanding applications


Expansion Slots

• PCIe Slots:

  • 1 x PCIe 5.0 x16 slot (CPU connected) for high-speed graphics cards and other PCIe devices

  • 1 x PCIe 4.0 x4 slot for additional expansion

  • 2 x PCIe 3.0 x1 slots for legacy devices


Storage Solutions

• M.2 Slots:

  • 2 x M.2 PCIe 4.0 x4 slots for high-speed NVMe SSDs

• SATA Ports: 4 x SATA 6Gb/s ports for connecting additional storage devices

• RAID Support: RAID 0, 1, 5, 10 for both SATA and NVMe SSDs, allowing for high-speed, redundant storage configurations

• PCIe 4.0 x4 Support: Enables fast data transfers and maximizes the performance of your storage devices


Networking and Connectivity

• LAN: 1 x 2.5GbE LAN port (Realtek) for fast wired network connections

• Wi-Fi: Intel Wi-Fi 6E (802.11ax) for high-speed wireless connectivity

• Bluetooth: Bluetooth 5.3 for seamless connection with wireless peripherals and devices

• USB Ports:

  • 1 x USB 3.2 Gen 2x2 Type-C port for ultra-fast data transfer

  • 1 x USB 3.2 Gen 2 Type-A for high-speed USB devices

  • 4 x USB 3.2 Gen 1 Type-A for everyday USB devices

  • 4 x USB 2.0 Type-A for basic connectivity options


Display Outputs

• HDMI: 1 x HDMI 2.1 port for connecting high-definition displays with 4K support

• DisplayPort: 1 x DisplayPort 1.2 for connecting compatible monitors with high-quality visual output


Audio

• Audio Codec: Realtek ALC1220 for high-quality, 7.1-channel surround sound

• Channels: 7.1-channel high-definition audio for immersive sound experiences

• Audio Features: Audio Noise Guard and high-end capacitors for superior sound clarity


Thermal and Power Design

• VRM Design: 12+1+1 hybrid digital VRM design with 60A DrMOS for stable power delivery, especially under high load or overclocking scenarios

• Thermal Solutions:

  • M.2 Thermal Guard for cooling high-speed storage devices

  • Enlarged MOSFET heatsinks for cooling power delivery components

  • Premium capacitors and chokes to enhance durability and performance under heavy workloads


User-Friendly Features

• EZ-Latch Plus: Screwless PCIe slot design for easy installation and removal of graphics cards

• Q-Flash Plus: BIOS update without the need for a CPU, memory, or GPU installed, making the process easy and hassle-free

• RGB Fusion 2.0: Customizable RGB lighting with support for both addressable and non-addressable LED strips for a personalized look

• Smart Fan 6 Technology: Multiple temperature sensors and hybrid fan headers for optimized cooling, with adjustable fan speeds for different scenarios


3. Benefits

Exceptional Performance for Gaming and Content Creation

The 12+1+1 hybrid digital VRM design ensures that the motherboard delivers stable power, allowing you to push the limits of Intel Core processors. Whether you're gaming, streaming, or content creating, this motherboard offers the performance needed to tackle the most demanding tasks without skipping a beat. The support for DDR5 memory and PCIe 5.0 maximizes the potential of your graphics card, ensuring smooth and lag-free gaming.

Future-Proof Features

With support for DDR5 memory and PCIe 5.0, the B760M A E WF6E is ready to handle future hardware upgrades. The PCIe 5.0 slot ensures that your graphics card and storage devices can benefit from the latest advancements in speed and data transfer capabilities, making this motherboard an excellent choice for users looking for longevity in their system build.

Enhanced Thermal Management

The M.2 Thermal Guard, MOSFET heatsinks, and Smart Fan 6 technology all work together to ensure that your system stays cool during intensive tasks. The FAN STOP feature allows for silent operation during lighter usage, ensuring a noise-free experience when idle. These advanced thermal solutions help maintain performance without throttling, even during long gaming sessions or heavy workloads.

Comprehensive Storage Solutions

The two M.2 PCIe 4.0 x4 slots and four SATA 6Gb/s ports allow you to build a flexible storage setup that balances fast access speeds and ample storage capacity. RAID support further enhances your storage options, providing a reliable way to handle large files, media libraries, and games. Whether you need high-speed storage for your OS or large capacity drives for data, the B760M A E WF6E has you covered.

Seamless Connectivity

With 2.5GbE LAN, Wi-Fi 6E, and Bluetooth 5.3, this motherboard ensures that all your wired and wireless connections are stable and high-speed. Whether you're gaming online, streaming 4K content, or working from home, you'll experience uninterrupted connectivity. The USB 3.2 Gen 2x2 Type-C port offers ultra-fast data transfer speeds, making it perfect for modern peripherals such as external drives and high-resolution displays.

4. Why Choose the Gigabyte B760M A E WF6E?

If you’re looking for a motherboard that offers exceptional performance, future-proof features, and reliable connectivity, the Gigabyte B760M A E WF6E Gen5 DDR5 mATX LGA1700 Motherboard is the perfect choice. Here’s why:

• Intel Core 12th, 13th, and 14th Gen Support: The motherboard supports the latest Intel processors, providing the necessary power to run the most demanding applications.

• High-Speed Memory and Storage: With DDR5 memory and PCIe 5.0, your system will be equipped to handle high-demand tasks and future upgrades.

• Advanced Connectivity: Wi-Fi 6E, Bluetooth 5.3, and 2.5GbE LAN ensure fast and stable wired and wireless connections for gaming, streaming, and professional work.

• Optimized Cooling: The M.2 Thermal Guard, MOSFET heatsinks, and Smart Fan 6 technology ensure efficient cooling, even under high stress.

• User-Friendly Features: The EZ-Latch Plus, Q-Flash Plus, and RGB Fusion 2.0 allow for an easy setup and an enhanced user experience.


5. Conclusion

The Gigabyte B760M A E WF6E Gen5 DDR5 mATX LGA1700 Motherboard offers exceptional performance, future-proof features, and reliable connectivity, making it an ideal choice for users in New Zealand. Whether you're building a gaming PC, a content creation workstation, or a professional system, this motherboard has the performance and features required to meet all your needs.

With DDR5 memory, PCIe 5.0, Wi-Fi 6E, and 2.5GbE LAN, you’ll experience high-speed data transfer and seamless online connectivity. The advanced thermal solutions ensure that your system remains cool and stable under heavy workloads, while user-friendly features make system setup and customization easy.
