Free Hover Notebook Air Pressure Arm Bracket

Product information:
Color: silver, black
Material: aluminum alloy

Free-Hover Notebook Air-Pressure Arm Bracket

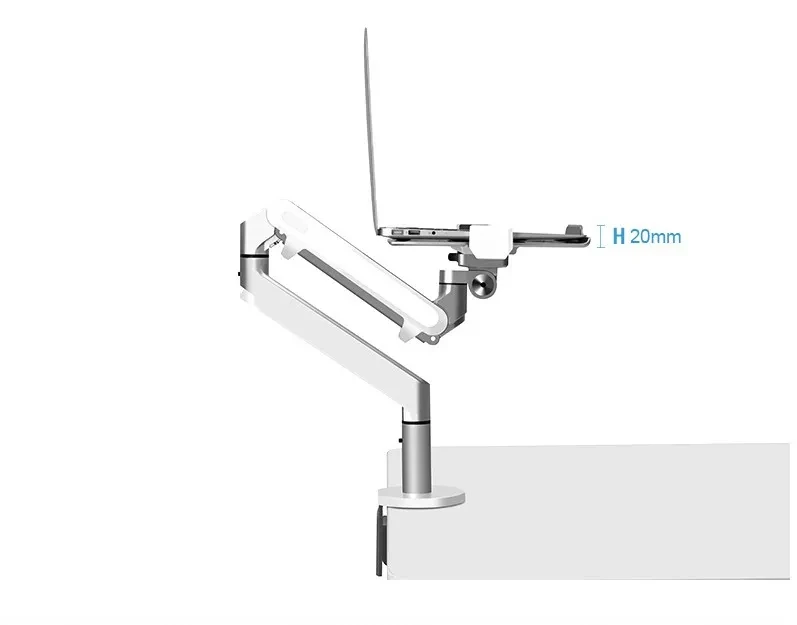

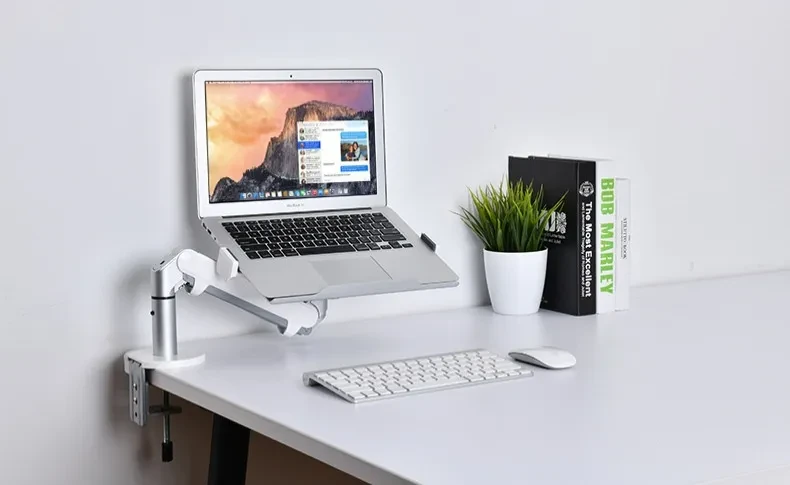

Float your laptop exactly where you want it. The Free Hover Notebook Air-Pressure Arm Bracket uses a counterbalanced gas-spring (air-pressure) arm to suspend your notebook in mid-air, letting you raise, lower, tilt, swivel, and pull it forward with fingertip effort—then push it away to reclaim your desk. It’s the ergonomic, space-saving upgrade for creative studios, home offices, retail counters, and workshops.

Key Features

• Gas-Spring “Free-Hover” Lift
  Counterbalanced arm holds position anywhere along its travel—no knobs to tighten. Dial in tension for your laptop’s weight and move it with one hand.

• Full-Range Ergonomics

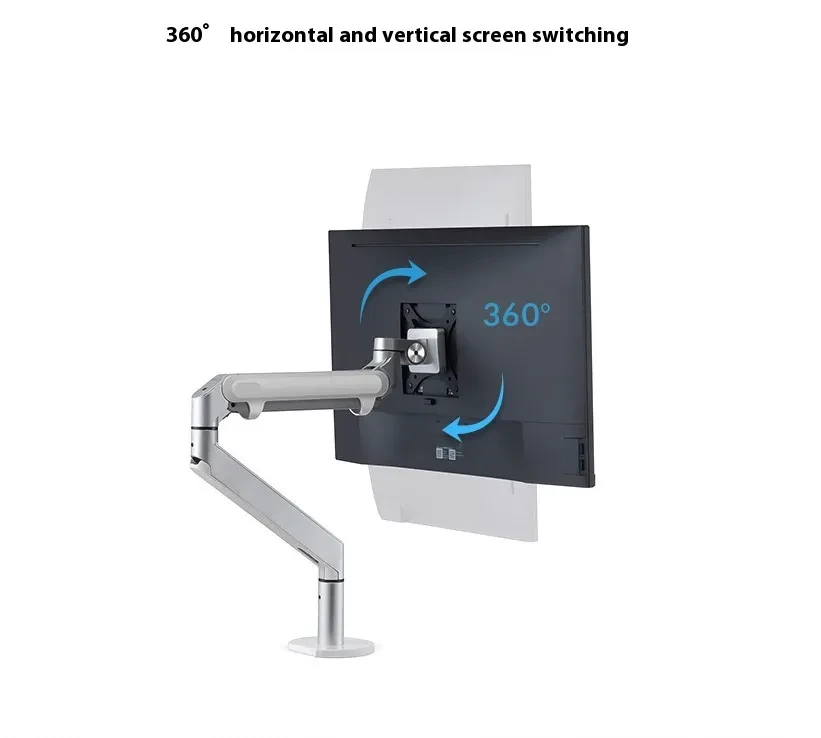

  Height up/down, tilt for typing or viewing, pan left/right, and 360° rotation for quick portrait/landscape changes. Set eye-level posture to reduce neck and shoulder strain.

• Universal Ventilated Tray
  Wide, perforated laptop platform (≈11–17.3") improves airflow. Adjustable side/retention lips and anti-slip pads keep devices stable—even at steep angles.

• Stout Load Capacity
  Gas spring supports typical laptops/portable workstations (e.g., 2–5.5 kg / 4.4–12 lb, model-dependent) without sagging.

• Dual Mounting Options
  C-clamp grips desks (≈10–90 mm thick). Grommet mount secures through a cable hole for a cleaner look.

• Clean Cable Management
  Built-in clips route power/USB neatly along the arm so cables move with the laptop, not across your workspace.

• Space Saver
  Clears desk surface for documents, tablets, mixers, or a full-size keyboard and mouse. Slides back when you need empty space.

• Durable Build
  Powder-coated aluminum/steel construction with high-cycle gas cylinder for years of smooth travel.


Benefits You’ll Notice

• Better posture, less fatigue: Lift the screen to eye level; tilt for wrist-friendly typing.

• More desk space: Free the footprint a stand would occupy; park peripherals underneath.

• Cooler performance: Ventilated tray and elevation improve laptop airflow.

• Flexible workflows: Swing beside a monitor, share with a coworker, or rotate for presenting.

• Instant adjustments: Sit-stand transitions without tools.


Ideal Use Cases

• Hybrid desks: Pair with an external keyboard/trackpad for monitor-like comfort.

• Creators & coders: Position above tablets/mixers while keeping keys reachable.

• Retail & service: Flip or swivel for customer-facing viewing.

• Tight spaces: Corners, shallow counters, and multi-device surfaces.

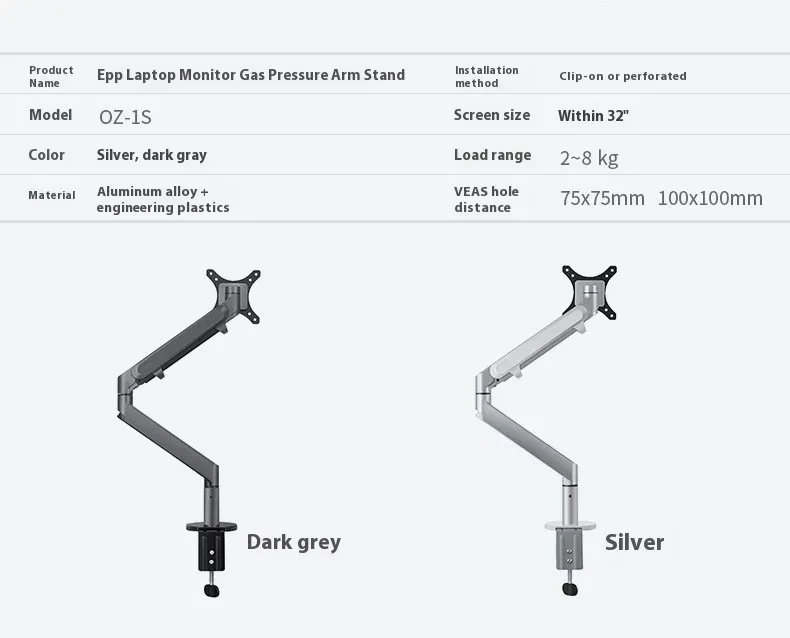

Typical Specifications (may vary by model)

• Laptop tray: Fits ≈11–17.3" (vented, anti-slip pads, front stop)

• Load range: ≈2–5.5 kg (adjustable gas-spring tension)

• Height range: ≈250–400 mm vertical travel

• Reach: ≈450–550 mm max extension; folds back to save space

• Tilt: −30° to +30° (typing/viewing)

• Swivel: ±90°; Rotate: 360°

• Mounts: C-clamp (10–90 mm), grommet (≈10–50 mm)

• Materials: Aluminum/steel, powder coat; integrated cable channels


Setup in Minutes

1. Choose mount: C-clamp the edge or use the grommet hole.

2. Attach arm & tray: Tighten the column/arm, then bolt the tray.

3. Set tension: Turn the gas-spring adjuster until the laptop hovers without rising or sinking.

4. Cable tidy: Clip power/USB into the arm channels.

5. Position: Lift, tilt, and swing to your perfect posture.


Safety & Care

• Use within the specified weight range; adjust tension gradually.

• Center heavier laptops on the tray; engage front stop for steep tilts.

• Check clamp/grommet tightness periodically; keep the gas spring clean and dry.

• Avoid placing hot vents directly against soft materials.


What’s in the Box

• Gas-spring arm assembly

• Desk C-clamp and grommet hardware

• Ventilated laptop tray with pads & retention lips

• Cable clips and fasteners

• Quick start guide & tension chart
