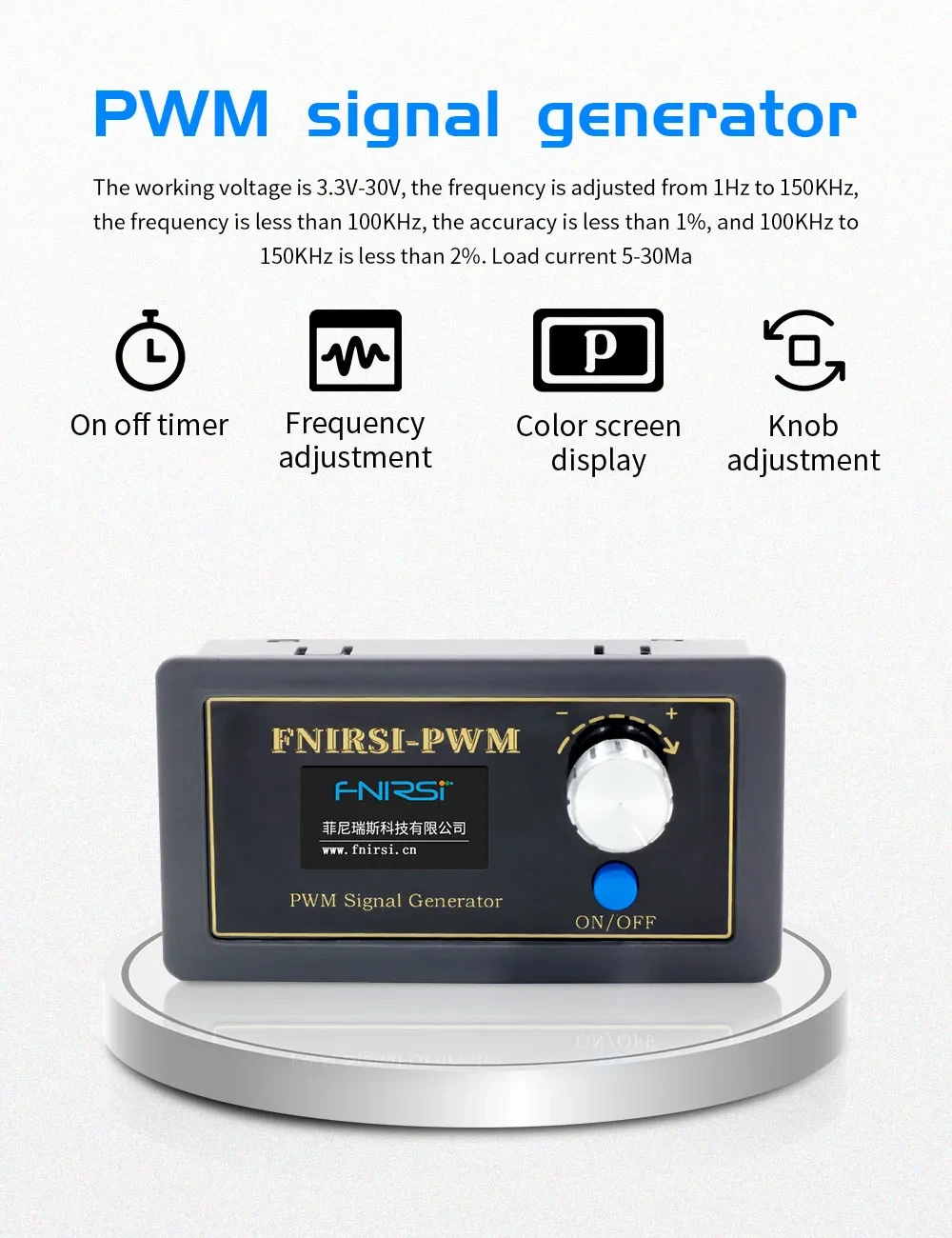

FNIRSI-PWM Square Wave Rectangular Wave Signal Generator

FNIRSI-PWM Signal Generator is a device that provides electrical signals at a variety of frequencies, square wave, and output levels.It is used as a signal source or excitation source for testing.Widely used in production practice and technology.

2.Package:

1pc *  FNIRSI-PWM Signal Generator;

FNIRSI-PWM Square & Rectangular Wave Signal Generator – Compact Test Tool for Labs and DIY Electronics

The FNIRSI-PWM Square Wave Rectangular Wave Signal Generator is a handy, compact instrument designed for anyone who works with digital electronics, control circuits, and PWM-based systems. It generates clean, adjustable square and rectangular waveforms that are ideal for testing microcontroller inputs, driver circuits, motor controllers, LEDs, audio stages, and general-purpose logic circuits. Whether you’re a hobbyist, student, repair technician, or engineer, this small generator gives you a simple way to create repeatable test signals without needing a full-sized bench function generator.

With easy-to-access controls, you can tune frequency, duty cycle, and output level (model-dependent) to match your circuit requirements. This makes the FNIRSI-PWM especially useful when experimenting with PWM dimming, servo-like control signals, timing pulses, or simulation of digital inputs during troubleshooting and development.

Precise PWM Output for Learning, Prototyping, and Debugging

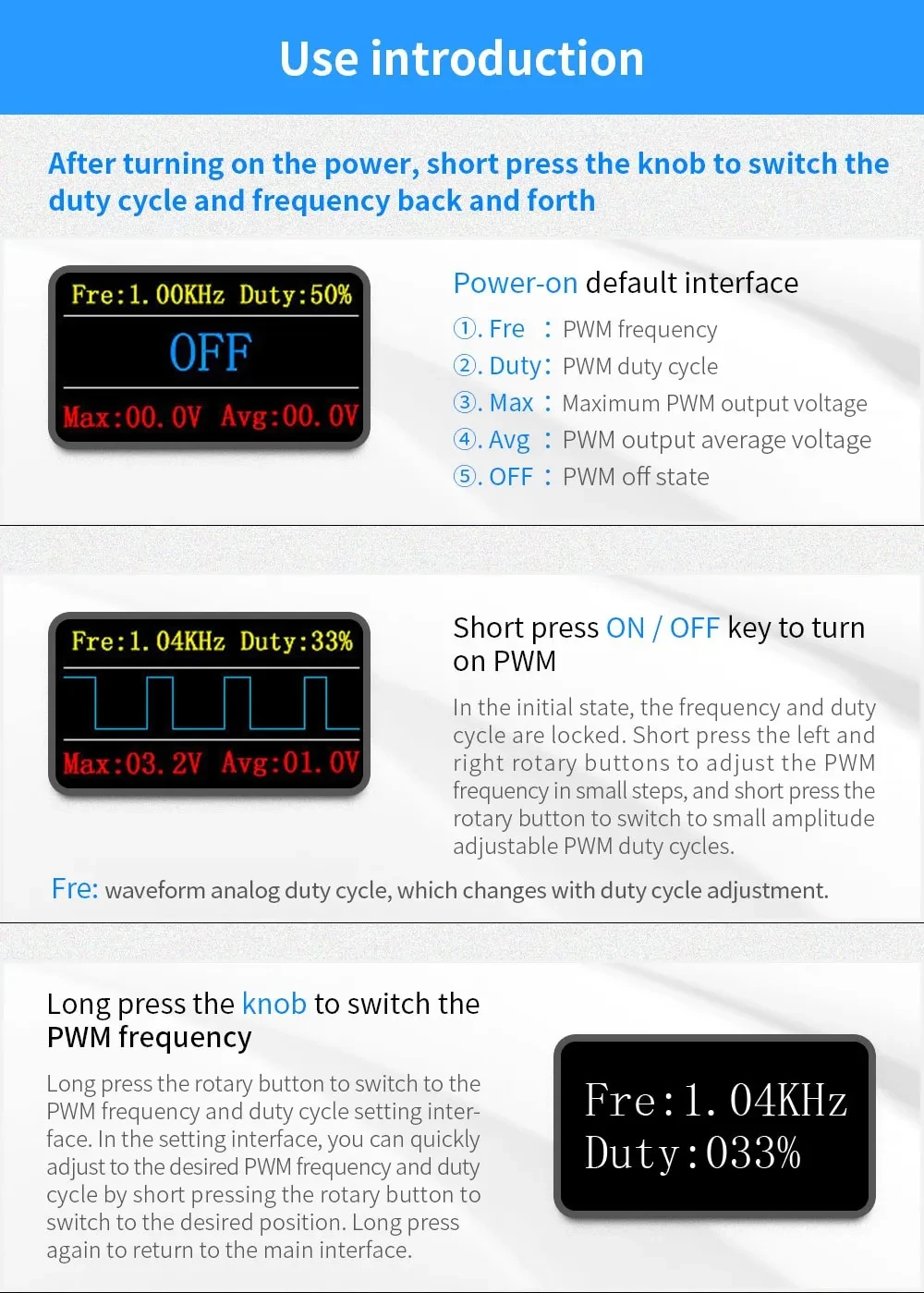

The FNIRSI-PWM generator is built around user-friendly PWM control, allowing you to adjust duty cycle and frequency to a fine degree. This is perfect for learning how pulse width modulation affects brightness, speed, or power in real circuits. You can quickly see how different duty cycles influence motor speed, LED intensity, or switching behaviour in power electronics.

Clear display and controls (where included) help you read settings at a glance, while the stable internal timing provides consistent, repeatable signals. For breadboard projects, Arduino-based builds, or sensor simulations, it becomes a reliable “signal source in your pocket” that removes guesswork and speeds up debugging.

Portable, Bench-Friendly Design for Everyday Use

Compact and lightweight, the FNIRSI-PWM Square Wave Rectangular Wave Signal Generator fits easily into a tool bag or sits neatly on a crowded bench. It’s ideal for field work, classroom demos, or hobby labs where space and budget are limited but proper test tools are still essential. Power is usually supplied via a convenient low-voltage input (such as USB or DC, depending on the model), making it simple to integrate into portable setups or use alongside a laptop and USB power bank.

Why Choose the FNIRSI-PWM Square Wave Rectangular Wave Signal Generator

Choosing this FNIRSI-PWM generator gives you an affordable, focused tool for PWM and digital-style signal testing. With adjustable square and rectangular wave outputs, intuitive controls, and a portable form factor, it’s a practical choice for learning electronics, speeding up prototyping, and performing targeted signal tests on a wide variety of circuits and devices.
