european 13 pin trailer wiring

Product information:

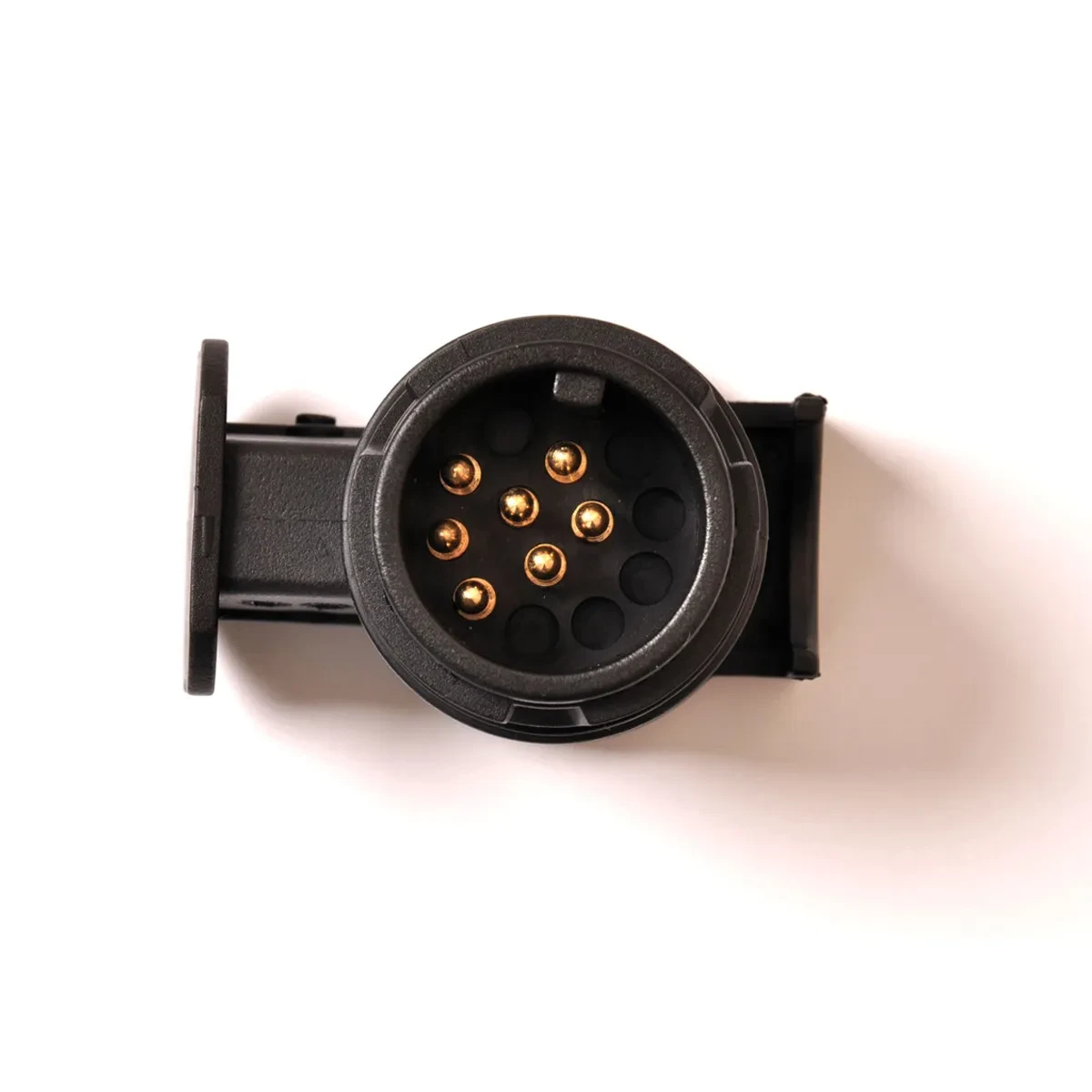

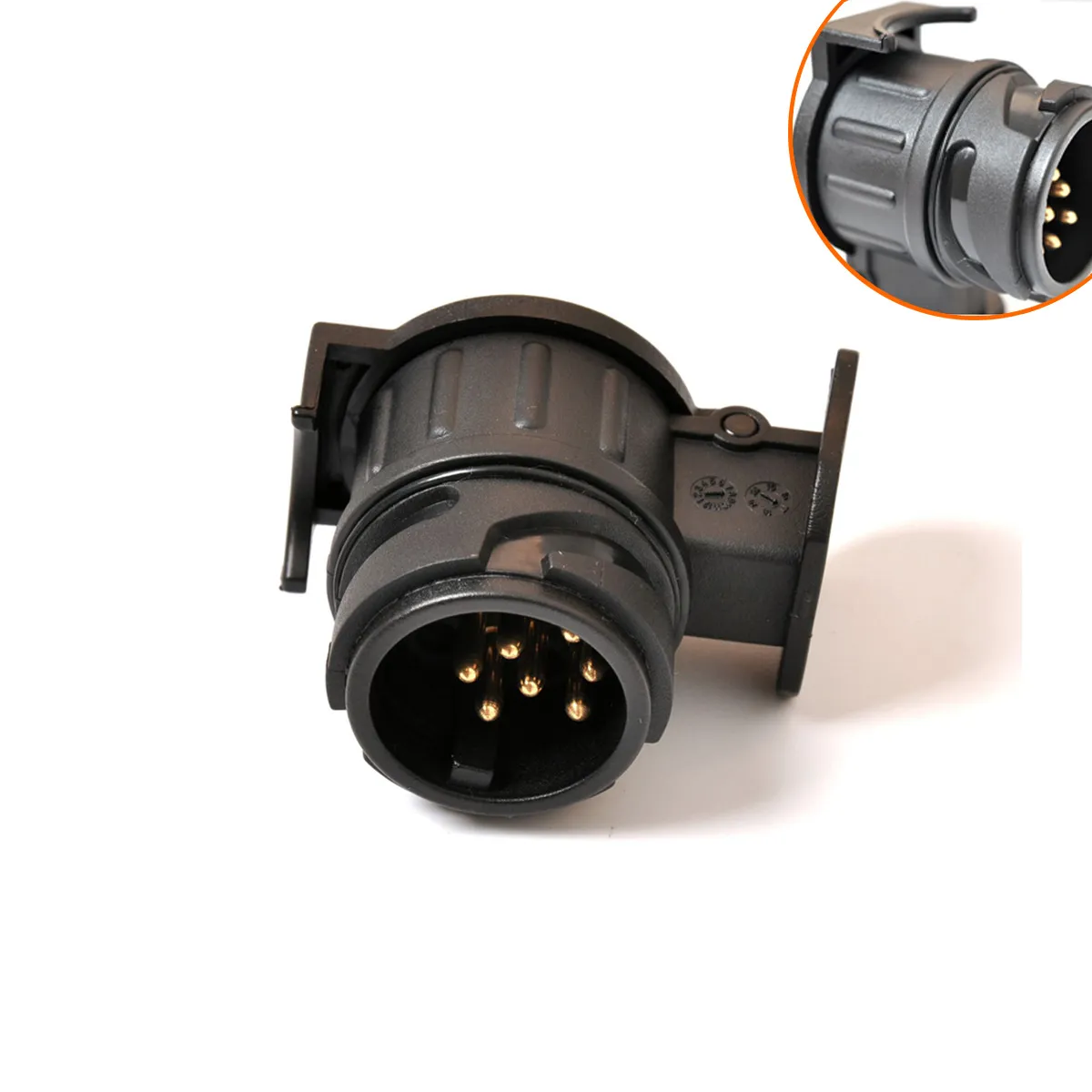

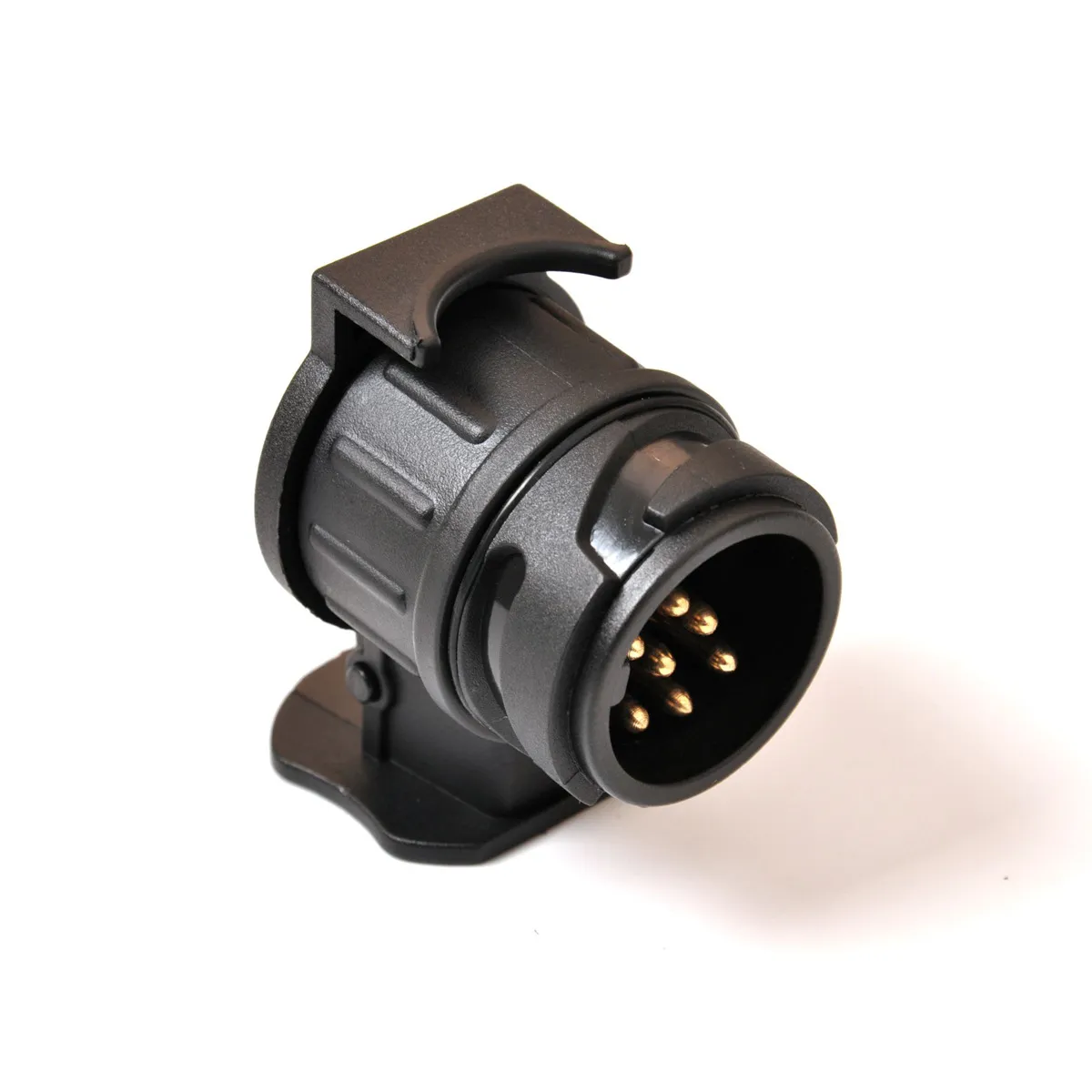

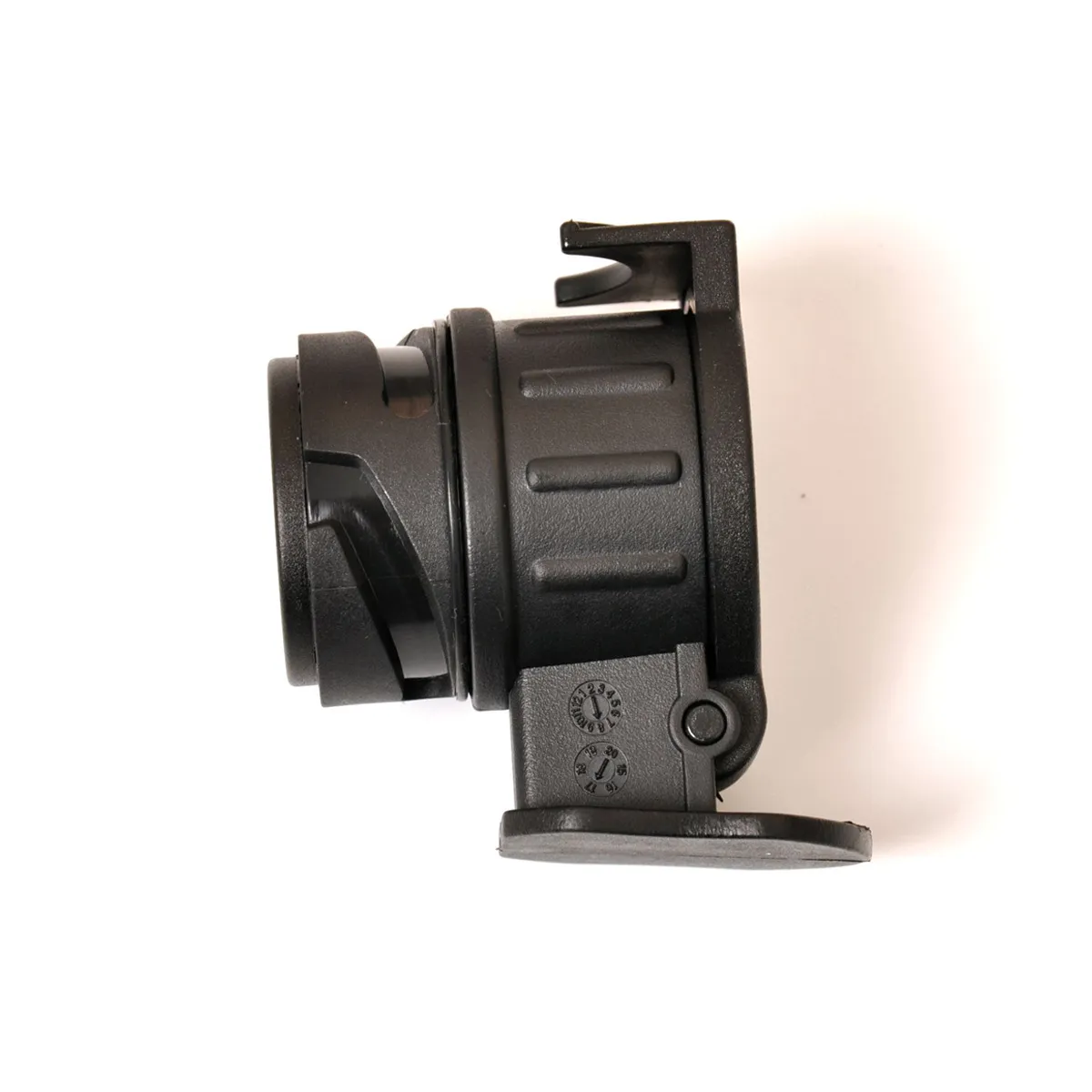

Model: 13P to 7P
Applicable models: Large vehicles, buses, trucks, RVs
Supporting relationship: Supporting
Material: Plastic
Colour: Black
Size: 4.6*4.5*5.2cm 1.8*2.1*2.7 (L W H)
Voltage: Voltage output 12V
Function: The main function is to connect the trailer and the power supply, suitable for the trailer signal light display


Packing: Trailer connector x1

13-Pin European Trailer Wiring: A Comprehensive Guide for Safe and Efficient Towing

When it comes to towing a trailer in New Zealand, whether it's a caravan, horse float, or utility trailer, the 13-pin European trailer wiring system is an increasingly popular and reliable choice. This system, adopted by many countries around the world, offers a higher level of functionality compared to older 7-pin systems, supporting a variety of electrical functions required for trailers and caravans. From lighting and braking to auxiliary power, the 13-pin system is a practical solution for ensuring safe and efficient towing. Understanding the 13-pin wiring system, its components, and how to install it can help make your towing experience in New Zealand safer and more reliable.

Understanding the 13-Pin Trailer Wiring System

The 13-pin trailer wiring system is designed to provide a comprehensive electrical connection between the towing vehicle and the trailer. It replaces the older 7-pin system by offering additional pins that can support more electrical functions. This system is standardized under ISO 11446 and is common for European trailers, but it’s also widely used in New Zealand due to its versatility and the increasing number of vehicles and trailers that require multiple electrical functions.

The system consists of a 13-pin plug that connects to the towing vehicle and a corresponding 13-pin socket mounted on the trailer. Each of the 13 pins serves a different purpose, from basic lighting functions to more advanced electrical needs like powering the trailer's battery or controlling additional features such as reversing lights.

Pin Configuration and Functions

Each of the 13 pins in the system has a specific role to play. Here is a breakdown of the pin configuration and the corresponding function for each pin:

• Pin 1 (Yellow): Left Turn Signal

• Pin 2 (Blue): Rear Fog Light

• Pin 3 (White): Ground (Common Return)

• Pin 4 (Green): Right Turn Signal

• Pin 5 (Brown): Right Tail/Side Light

• Pin 6 (Red): Brake/Stop Light

• Pin 7 (Black): Left Tail/Side Light

• Pin 8 (Pink): Reversing Light

• Pin 9 (Orange): 12V Permanent Power

• Pin 10 (Grey): 12V Ignition Switched Power

• Pin 11 (White/Black): Ground for Pin 10

• Pin 12 (White/Blue): Not Used

• Pin 13 (White/Red): Ground for Pin 9


This detailed configuration allows for a more secure connection, especially for caravans and larger trailers that require additional features such as reversing lights, battery charging, and auxiliary power.

Materials and Wiring Specifications

The wiring for the 13-pin system needs to be durable and robust to ensure it withstands the physical demands of towing, as well as environmental elements such as moisture, heat, and dirt. The most common materials used in 13-pin wiring are:

• Copper: Copper is widely used in trailer wiring due to its excellent conductivity. It ensures that electrical signals pass without significant loss, improving the performance of trailer functions such as lights and brakes.

• PVC Insulation: To protect the wires from damage, high-quality PVC insulation is used to prevent short circuits and ensure the safety of the electrical system.


The recommended wire gauge for the 13-pin system typically includes:

• 1.5mm² wire for Pin 1, 4, 5, 6, 7 (tail/side lights, turn signals)

• 2.5mm² wire for Pins 3, 9, 10, 11, and 13 (grounding, permanent power, ignition switched power)

• 1.5mm² wire for Pins 2, 8 (fog light, reversing light)


When installing the system, it's important to use the appropriate wire size to ensure the electrical signals are transmitted without loss or overheating.

Installation of the 13-Pin System

Installing the 13-pin European trailer wiring system on your trailer and towing vehicle is a straightforward process, but it requires attention to detail and some knowledge of vehicle and trailer electrical systems. Below is a step-by-step guide to help you install the 13-pin system:

• Step 1: Preparing the Trailer
  Before you begin the installation, ensure that your trailer is properly positioned and that the area around the trailer’s electrical socket is accessible. You'll need to mount the 13-pin socket on the trailer securely, typically near the drawbar.

• Step 2: Wiring the Trailer Socket
  The 13-pin trailer socket needs to be wired correctly to the trailer’s electrical system. Depending on the trailer, this may include connecting wires for tail lights, brake lights, turn signals, and any other functions the trailer requires. Use the recommended wire gauges to ensure a secure and functional connection.

• Step 3: Wiring the Vehicle Plug
  The 13-pin plug should be wired to your vehicle’s electrical system. This involves connecting the correct wires from the towing vehicle to the corresponding pins on the plug. Ensure that each pin is securely connected to the appropriate wire, paying special attention to grounding and power connections.

• Step 4: Testing the System
  Once the wiring is complete, plug the 13-pin trailer plug into the socket on the towing vehicle and test all functions, including the brake lights, turn signals, fog lights, reversing lights, and any auxiliary power features. If everything is functioning correctly, your installation is complete.


Common Issues with 13-Pin Trailer Wiring

Although the 13-pin system is highly reliable, some issues may arise over time due to wear and tear or poor installation. Common issues include:

• Corroded Connectors: Over time, moisture and dirt can cause corrosion in the connectors, leading to poor electrical contact. Regularly clean the connectors and apply dielectric grease to ensure a secure and reliable connection.

• Blown Fuses: If the system is not working correctly, check the fuses in both the vehicle and trailer. A blown fuse may cause certain functions, such as the brake lights or turn signals, to stop working.

• Loose Connections: Ensure that all connections are tightly secured. Loose wires or pins can cause electrical issues, such as flickering lights or intermittent power.

• Worn Wires: Over time, the wires may become worn or damaged, especially if they are exposed to excessive movement or harsh conditions. Inspect the wiring regularly and replace any worn-out sections.


Benefits of the 13-Pin System for New Zealand Towing

The 13-pin European trailer wiring system offers several advantages for towing in New Zealand:

• Increased Functionality: The 13-pin system supports a range of functions beyond basic lighting, making it ideal for larger trailers such as caravans and horse floats. Features like battery charging, reversing lights, and auxiliary power are all easily supported by the 13-pin system.

• Safety: With reliable connections and a full suite of electrical features, the 13-pin system ensures that your trailer’s lights and functions work correctly, enhancing safety on the road.

• Ease of Installation: Though it may seem complicated, the 13-pin system is relatively easy to install, and many retailers in New Zealand offer installation kits and professional assistance.

• Future-Proof: The 13-pin system is becoming more widely adopted, and its increasing use in New Zealand means that more vehicles and trailers will support it. This makes it a future-proof solution for those who want to ensure compatibility with modern towing vehicles.


Where to Buy 13-Pin Trailer Wiring Components in New Zealand

In New Zealand, several stores and online platforms offer 13-pin trailer wiring components, including plugs, sockets, and complete wiring kits. Some popular places to check out include:

• Supercheap Auto: A well-known retailer that stocks a variety of towing accessories, including 13-pin trailer wiring systems. They offer wiring kits, connectors, and other components for easy installation.

• Repco: Repco is another trusted retailer offering a range of towing accessories, including 13-pin wiring systems. They have stores nationwide and also provide online shopping options.

• Towing Solutions New Zealand: Specializing in all things towing, this store offers 13-pin trailer wiring components, as well as installation services to ensure a professional and secure connection.

• Bunnings Warehouse: For those looking for affordable towing and trailer wiring solutions, Bunnings offers a variety of towing kits and components for 13-pin systems.


Conclusion

The 13-pin European trailer wiring system is the perfect solution for ensuring that your trailer’s electrical functions operate seamlessly and safely. Whether you're towing a caravan for a long road trip, a horse float to an equestrian event, or a utility trailer for everyday use, the 13-pin system ensures that your lighting, power, and auxiliary functions are fully supported. With easy installation and reliable functionality, it’s no wonder that more people in New Zealand are opting for the 13-pin system for their towing needs.
