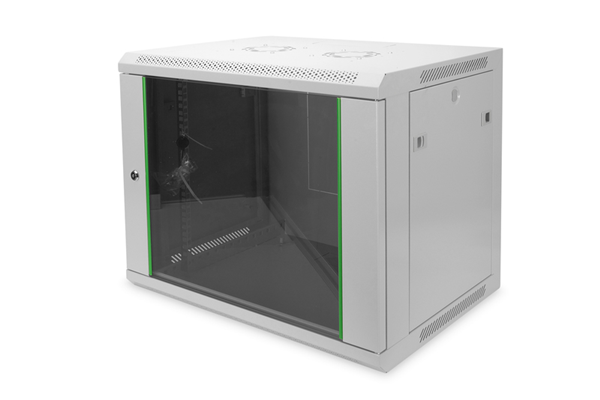

Digitus 9U 19" Wall Mount Server Cabinet 600(w)x450(d)x505(h)
The Digitus DN-19 09-U-EC 9U 19" Wall Mount Server Cabinet (600mm W x 450mm D x 505mm H) is a compact and secure solution designed for mounting 19-inch rack-mounted equipment in environments with limited space. Ideal for small to medium-sized server rooms, network closets, or home offices, this cabinet offers a balance between compact size and ample storage capacity.
🔧 Key Features
- Dimensions: 600mm (W) x 450mm (D) x 505mm (H)
- Rack Units: 9U
- Construction: Robust steel with welded joints for added strength
- Front Door: Lockable safety glass door with steel frame
- Side Panels: Lockable and removable
-
Ventilation: Roof prepared for fan units (punched out entries), ventilation slots for active and passive airflow
- Cable Management: Cable entry on the rear side and base with plastic cover; top with sliding cover
- Earthing: 4 earthing points (base, side panel, and front door) with protection cap
- Load Capacity: 60 kg
- IP Protection Class: IP20
- Color: Light grey, RAL 7035
📦 What's Included
- Digitus DN-19 09-U-EC 9U Wall Mount Server Cabinet
- Earthing wire set
- Installation set (screws, cage nuts, washers)
- 2 x Keys
💰 Pricing & Availability
| PB Tech | $190.42 | Ships from New Zealand |
| Office Connect | $217.83 | Ships from New Zealand |
Note: Prices are approximate and may vary based on shipping and taxes.
✅ Why Choose the Digitus DN-19 09-U-EC Wall Mount Server Cabinet?
- Space-Saving Design: Its compact size is perfect for environments where floor space is limited.
- Enhanced Security: Lockable doors and side panels protect valuable equipment from unauthorized access.
- Improved Airflow: The ventilation features ensure that equipment remains cool and operates efficiently.
-
Easy Access: Removable side panels and a lockable front door allow for convenient maintenance and adjustments.
🛠️ Conclusion
The Digitus DN-19 09-U-EC 9U 19" Wall Mount Server Cabinet offers a blend of security, accessibility, and compactness, making it an excellent choice for mounting 19-inch rack-mounted equipment in confined spaces. Its thoughtful design features ensure that your equipment remains secure, well-ventilated, and easily accessible.
DIGITUS 9U SERVER CABINET 505 x 600 x 450mm H*W*D Wall mountable Lockable safety glass door (IP20) 483mm 19" profile rails mounted on from side of cabinet Max installation depth of 450mm Cable entry on rear side, roof and base Passive ventilation slots Carton Dimension: 660*540*550
Specifications
| Safety | Class Rating IP20 |
| Door | 1x Door Lockable Safety Glass Door 210° door opening angle 1-point-locking-mechanism on the front door |
| Rails | 483 mm (19“) profile rails mounted on the front side inside of the cabinet, galvanized 483 mm (19“) profile rails are adjustable in depth and with height unit marking Type of profile rail: L-shaped |
| Material | 0.8 - 1.2 mm strong sheet steel with high load capacity, powder coated Cable entry on the rear side, roof and base (pre-punched break-outs) Roof is prepared for fan units (punched out entries) Ventilation slots for active and passive ventilation and exhausting 4 earthing points (base, side panel and front door) with protection cap |
| Colour | Grey |
| Number of Height Units | 9 |
| Ventilation | Passive |
| Physical | Roof Plate: Yes Earthing: 4 Earthing Points Front Door: Yes Rear Door: No Sidewall: Yes Demountable: No |
| Dimensions (mm) | 600 (w) x 450 (d) x 505 (h) |
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
