Product information:

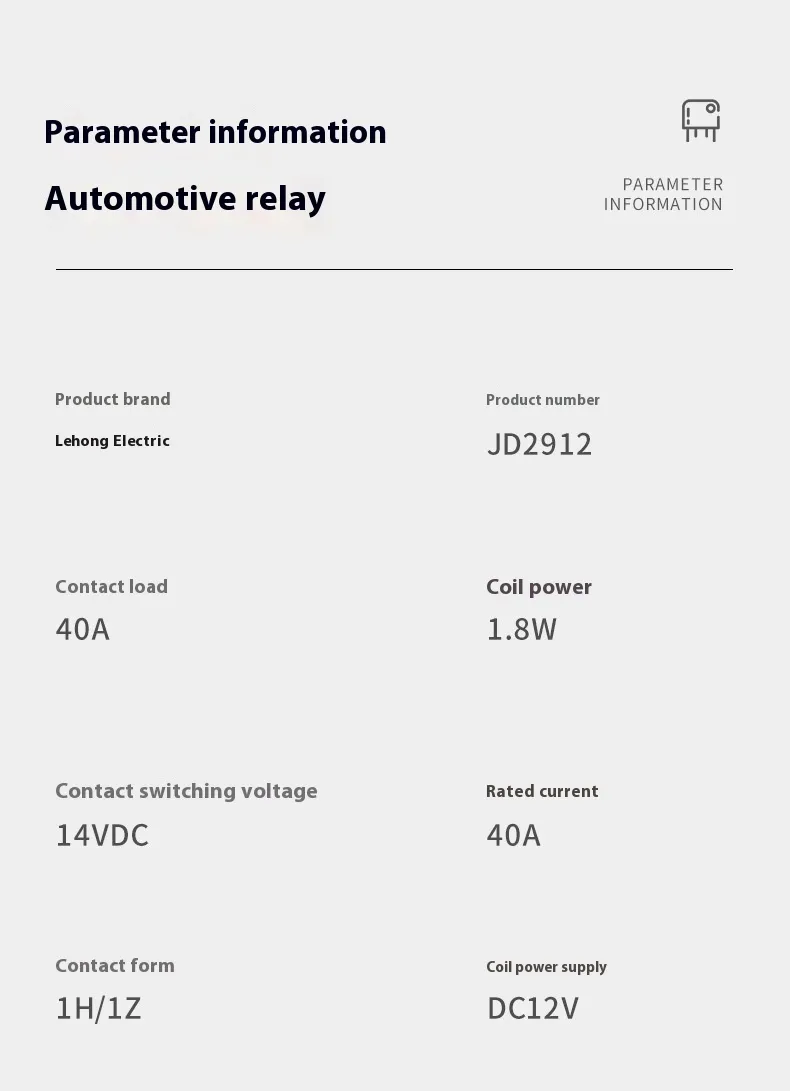

Type: automotive relay
Rated Voltage: 12V four pin socket included
Application Scope: Automobile
Application Field: Automotive Electronics

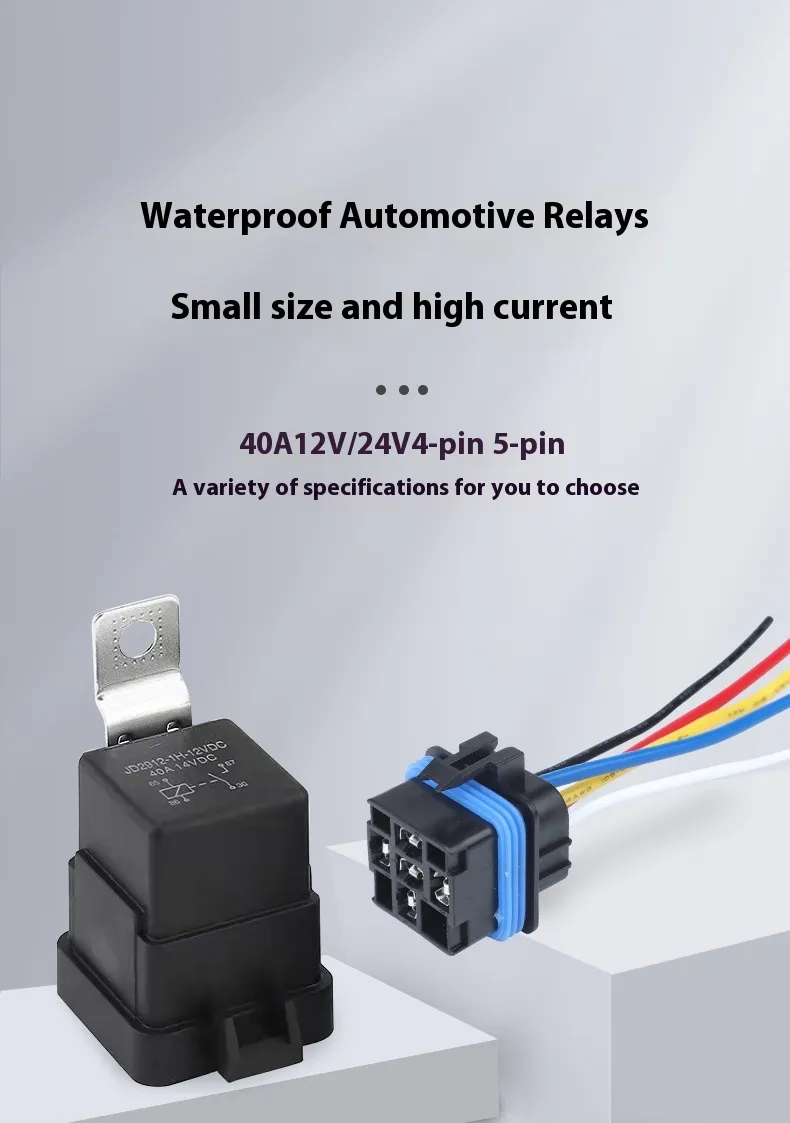

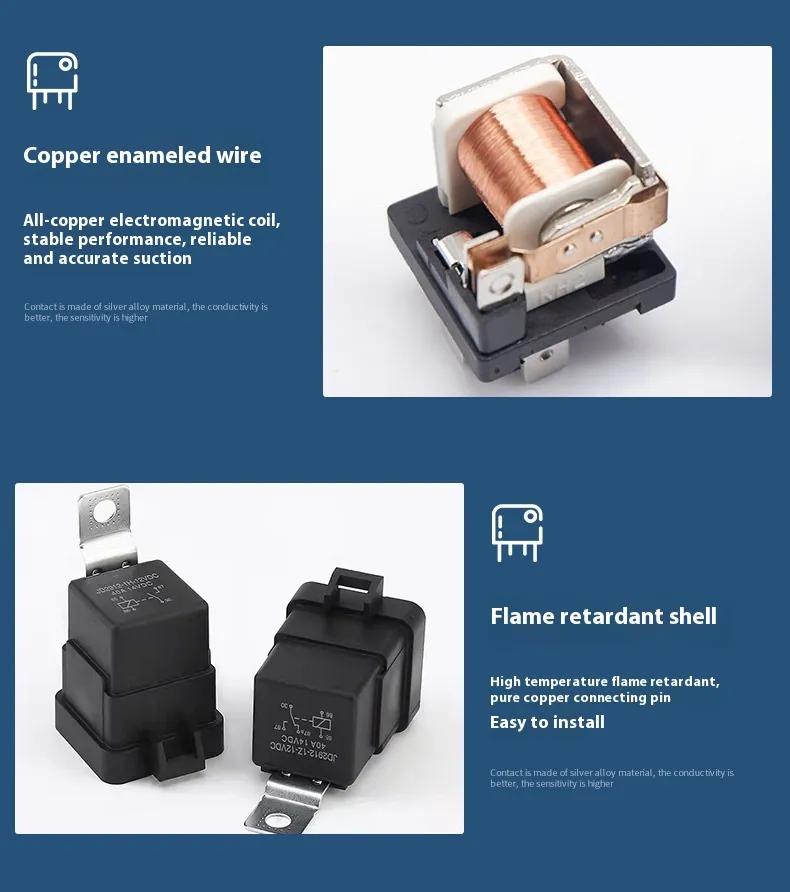

DC Relay with Socket – Reliable Switching for Power Control

Perfect for Automotive Systems, Industrial Controls, DIY Electronics, Power Management, and Automation Applications Worldwide

The DC Relay with Socket is designed for users who need dependable electrical switching in DC power systems. Ideal for automotive wiring, industrial control panels, robotics, home automation, and general electronics projects, this relay with a matching socket provides secure and efficient switching of high-current circuits using a low-current control signal. Its modular design simplifies installation and maintenance while delivering consistent performance.

Description – DC Relay with Socket

The DC Relay with Socket is an electromechanical switching solution engineered to control power flow in direct current (DC) systems. A relay allows one circuit to activate or deactivate another circuit by using a small control signal to operate a larger power connection. When the control input energises the relay coil, internal contacts shift to complete or break a high-current path, enabling efficient power management without placing excessive load on control circuits.

This relay package includes both the relay itself and a designated socket base. The socket provides a secure mounting point with clearly defined terminals for wiring connections. This modular arrangement allows the relay to be easily replaced without disturbing the wiring harness, simplifying service and upgrades. The socket typically includes locking features and numbered terminals, improving reliability and reducing installation errors.

DC relays are widely used in environments that require remote switching of loads such as motors, lighting, heaters, solenoids, pumps, and auxiliary systems. Because relays isolate the control side from the power side, they protect sensitive electronics from high current and voltage spikes. This separation enhances system safety and extends the life of control components.

The design of the relay and socket combination prioritises durability and stability. The relay’s internal contacts are rated to handle specific current and voltage levels, while the socket provides robust connections that resist vibration and loosening. This makes the assembly suitable for applications where electrical stability and performance consistency are critical.

Key selling points include secure modular installation, reliable contact switching, broad application compatibility, and ease of replacement. The DC relay with socket is a practical component for systems that require controlled power switching with minimal complexity.

Key Points

Electromechanical Switching

Uses a low-current control signal to reliably switch higher-current DC circuits.

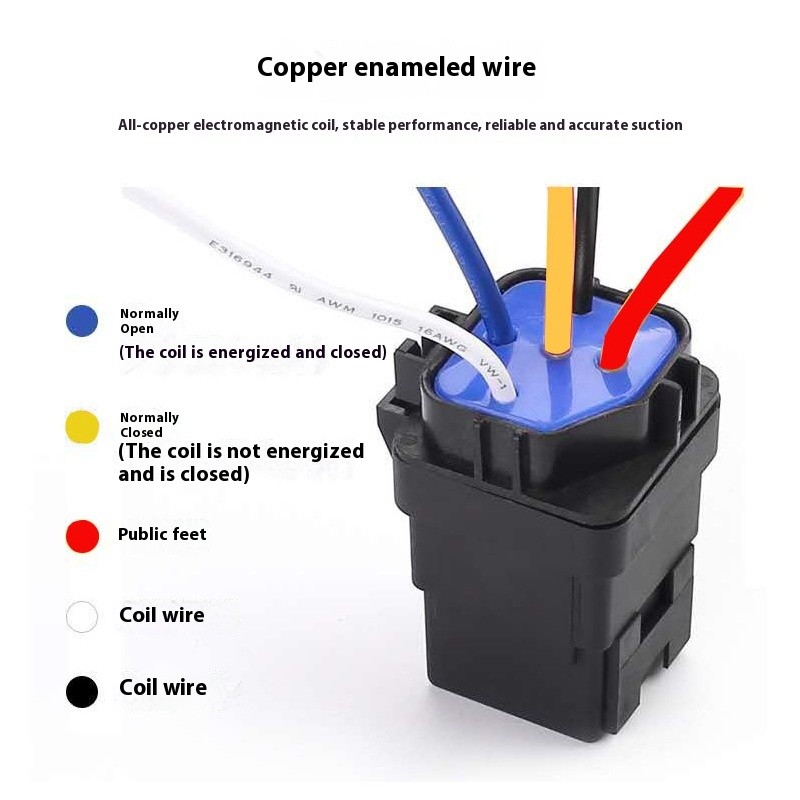

Integrated Socket Base

Provides a secure mounting platform with designated terminals for clean, organised wiring.

Modular Replaceability

Relay can be removed and replaced easily without rewiring, supporting maintenance efficiency.

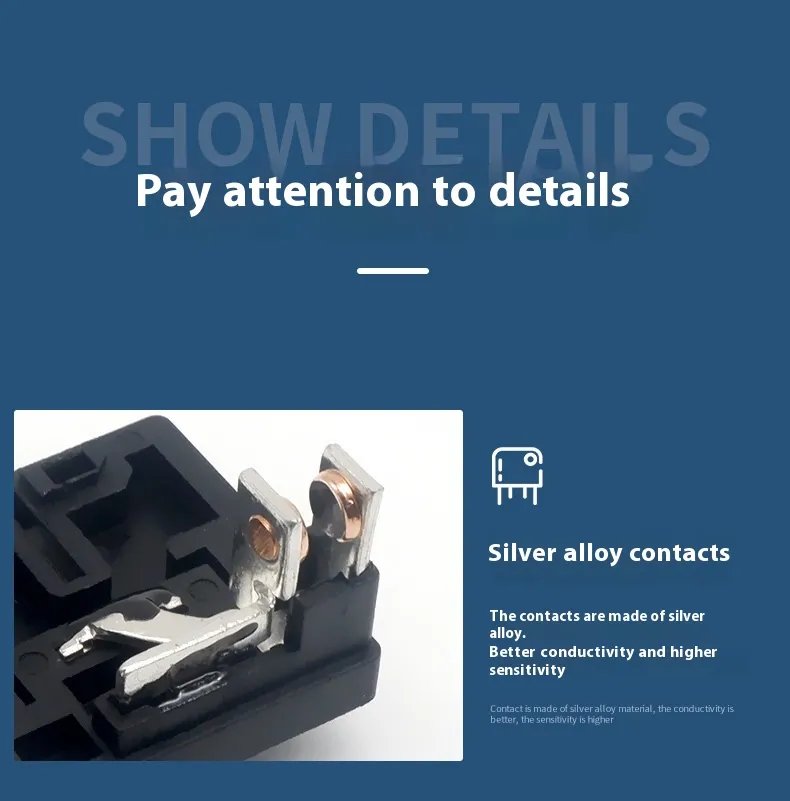

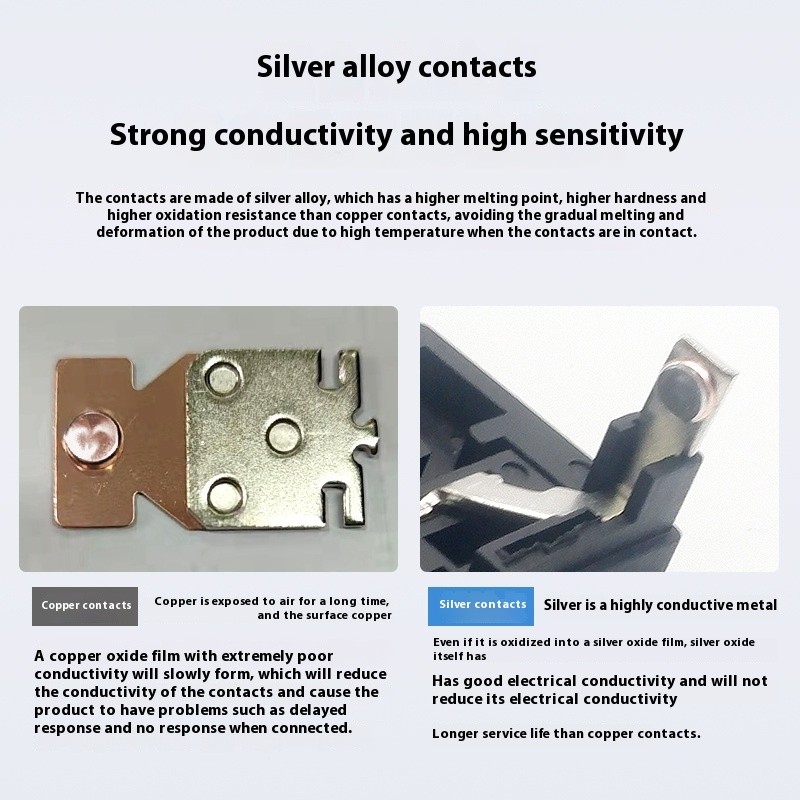

Durable Electrical Contacts

Rated for reliable performance under specified current loads and operating conditions.

Benefits

Protects Control Electronics

Isolates high-power circuits from low-current control lines, reducing stress on sensitive components.

Improves System Reliability

Secure socket connections and stable switching help reduce electrical faults and downtime.

Simplifies Installation and Service

Modular design allows quick swap-out and reduces service time during maintenance.

Supports Versatile Applications

Useful for automotive electronics, industrial controls, automation projects, and DIY systems.

Why Choose This DC Relay with Socket?

The DC Relay with Socket stands out due to its combination of performance, convenience, and flexibility. Unlike stand-alone relays that require direct soldering or wiring, this relay/socket package offers a clean, organised, and serviceable solution that minimises installation errors and simplifies future servicing.

For automotive users, it supports switching of lights, fans, pumps, and auxiliary systems with reduced stress on control switches and electronics. For industrial and automation applications, it delivers dependable action in control panels and machinery interfaces. For DIY electronics builders, it provides a clear and maintainable switching solution that integrates easily with project designs.

The socket base adds tangible value by improving wiring clarity and supporting secure electrical contact. When a relay needs replacement due to wear or performance change, the modular design ensures minimal system disruption.

Choosing this DC relay with socket means choosing a durable, maintainable, and effective power control solution that integrates easily with a wide range of DC electrical systems.

Conclusion

The DC Relay with Socket is a versatile and practical solution for controlled power switching in DC electrical systems. By combining a reliable relay with a complimentary socket base, it enhances safety, performance, and maintainability across automotive, industrial, and electronic applications.

Its modular design supports easy installation and replacement, while the electromechanical switching mechanism ensures dependable power control. Suitable for a variety of use cases, it provides a robust foundation for systems that require controlled switching without heavy wiring or complex circuitry.

For users seeking a dependable, serviceable, and flexible switching component, the DC relay with socket delivers consistent performance and everyday reliability.
