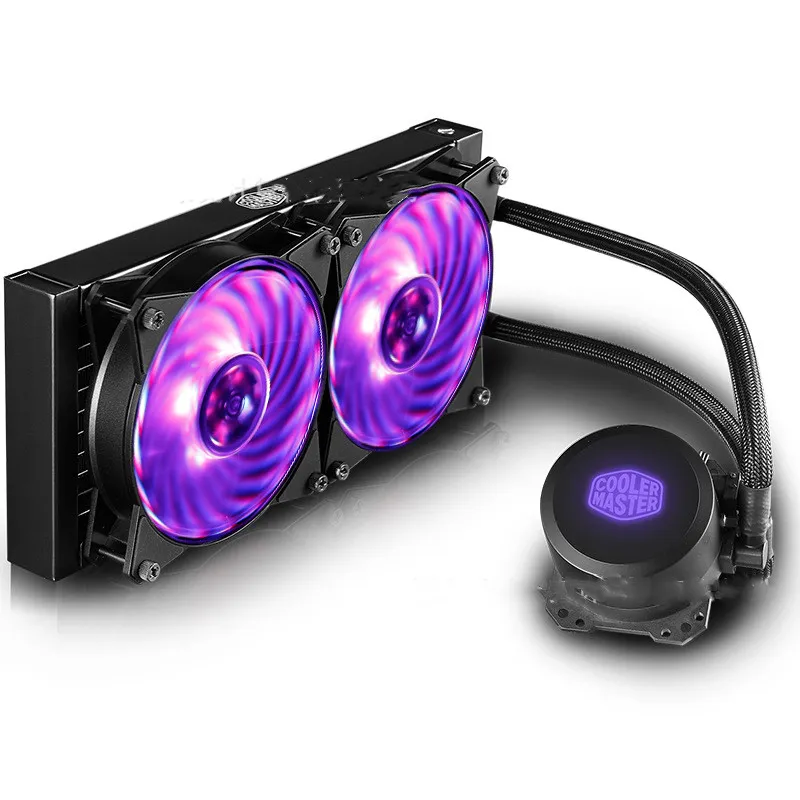

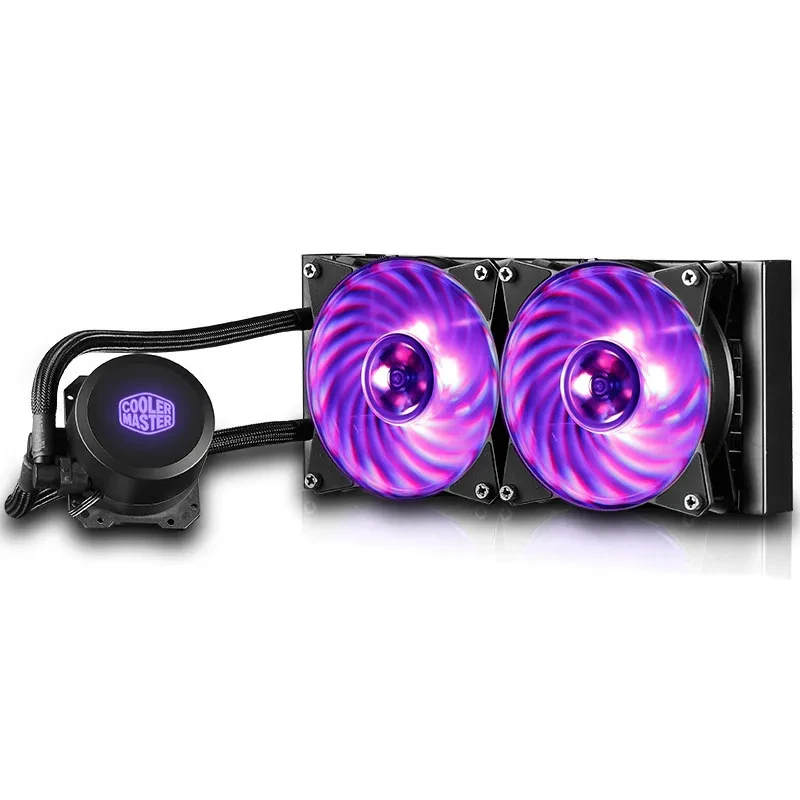

Cooler Bingshen 240Rgb Cpu Water Cooling Dual Chamber Water Pump Micro-Channel Design Balanced Fan

Product information:

Applicable accessory types: CPU, chassis, memory
Applicable brand model: Intel? LGA2066/ 2011-v3/ 2011/ 1366/ 1151/1150/ 11
Type: Water-cooled radiator
Material: Aluminum
Cooling method: water cooling
Product weight: 1.85 (KG)
Features: ultra-quiet

Packing list:

 Radiator x1, fan x2, 1 to 3 points wiring x1, RGB controller x1, backplane x1, Intel/AMD bracket x2

Bingshen 240 RGB CPU Water Cooler — Dual-Chamber Pump, Micro-Channel Cold Plate, Balanced Fans

Unlock cool, quiet performance with the Bingshen 240 RGB—a 240 mm liquid CPU cooler engineered for stable clocks, low noise, and clean aesthetics. A dual-chamber water pump isolates heat and turbulence for longer life, the micro-channel copper cold plate accelerates heat draw from your CPU, and a matched pair of balanced-pressure 120 mm RGB fans push steady airflow through dense radiators without the roar.

Why You’ll Love It

• Stronger, steadier cooling: Dual-chamber pump design improves reliability and thermal efficiency under gaming or rendering loads.

• Fast heat pickup: Fine micro-channel copper base increases surface contact for rapid heat transfer.

• Low-noise airflow: Tuned 120 mm fans balance static pressure and flow to feed the 240 mm radiator quietly.

• RGB that fits your build: Addressable lighting on fans and pump cap for synchronized effects with popular motherboard headers.

• Hassle-free setup: Pre-filled loop, flexible sleeved tubing, and wide socket support.


Key Features

Dual-Chamber Water Pump
Separates the impeller chamber from the motor/electronics to reduce heat soak and cavitation, improving durability and consistent flow across long sessions.

Micro-Channel Cold Plate (High-Density Copper)
Ultra-fine fins maximize coolant contact, pulling heat from modern multi-core CPUs quickly to keep boost clocks higher for longer.

240 mm Slim Radiator
Optimized fin density for performance in typical mid-towers; works great with the included pressure-balanced fans or in push-pull if you’re chasing every degree.

Balanced 120 mm RGB Fans
PWM-controlled (0–100%) for quiet idle and strong load performance. The blade geometry and sealed bearings focus on static pressure for radiators while keeping tonal noise pleasant.

ARGB Lighting, Clean Cables
Individually addressable RGB on the pump cap and fan hubs. Standard 3-pin 5 V ARGB leads and PWM fan headers simplify cable management and sync.

Durable, Flexible Tubing
Nylon-sleeved low-permeation rubber lines resist kinks and evaporation; generous length for top or front mounts.

Wide Platform Support
Mounting kits for mainstream Intel and AMD sockets (AM5/AM4; LGA1700/1200/115x; others model-dependent). Pre-applied thermal compound on the cold plate speeds installation.

Performance Snapshot (typical for a quality 240 mm AIO; environment-dependent)

• Use cases: 6–16-core CPUs at stock/boost, moderate overclocks

• Noise profile: Near-silent at desktop loads; controlled whoosh under heavy sustained render/games

• Thermal headroom: Keeps modern CPUs within boost targets when chassis airflow is reasonable


Installation Notes

1. Plan the mount: Top exhaust for quickest heat evacuation, or front intake for best CPU temps (ensure case exhaust is strong).

2. Radiator orientation: Keep pump lower than the highest radiator point when possible to keep air in the rad, not the pump.

3. Apply & seat: If paste isn’t pre-applied, add a pea-sized dot; snug screws in an X pattern.

4. Power & control:

   • Pump → CPU_FAN or PUMP header (run at full or high fixed RPM).

   • Fans → CPU_FAN/CPU_OPT or a PWM hub.

   • ARGB → 5 V 3-pin header/controller (never on 12 V).

5. Leak check & cable tidy: Power on, verify pump vibration and fan spin, then sync lighting in your software.


Specifications (may vary slightly by batch)

• Radiator: 240 mm aluminum, ~27 mm thick

• Cold Plate: Copper, high-density micro-channels

• Pump: Dual-chamber, 3-pin/4-pin power (PWM/tach model-dependent)

• Tubing: Sleeved low-permeation rubber, extended length

• Fans: 2×120 mm PWM, high static pressure, ARGB lighting

• Lighting: 5 V 3-pin ARGB (pump + fans)

• Sockets: Intel LGA1700/1200/115x; AMD AM5/AM4 (brackets included)


Tips for Best Results

• Airflow balance: Pair with at least one rear/top exhaust to prevent heat soak.

• Fan curve: Use a gentle slope—manual curves often beat aggressive auto ramps for acoustics.

• Dust control: Filters on intake and a quarterly dusting keep fins breathing freely.

• Ambient matters: Expect a ~delta-to-ambient relationship; cooler rooms = lower CPU temps.


What’s in the Box

• Bingshen 240 RGB liquid cooler (pump + radiator pre-assembled)

• 2×120 mm ARGB PWM radiator fans

• Intel/AMD mounting hardware, backplates, and screws

• ARGB splitter(s) and PWM fan splitter (model-dependent)

• Quick install guide; pre-applied thermal paste (where included)
