Product information:
Functions:
1. High corrosion resistance.

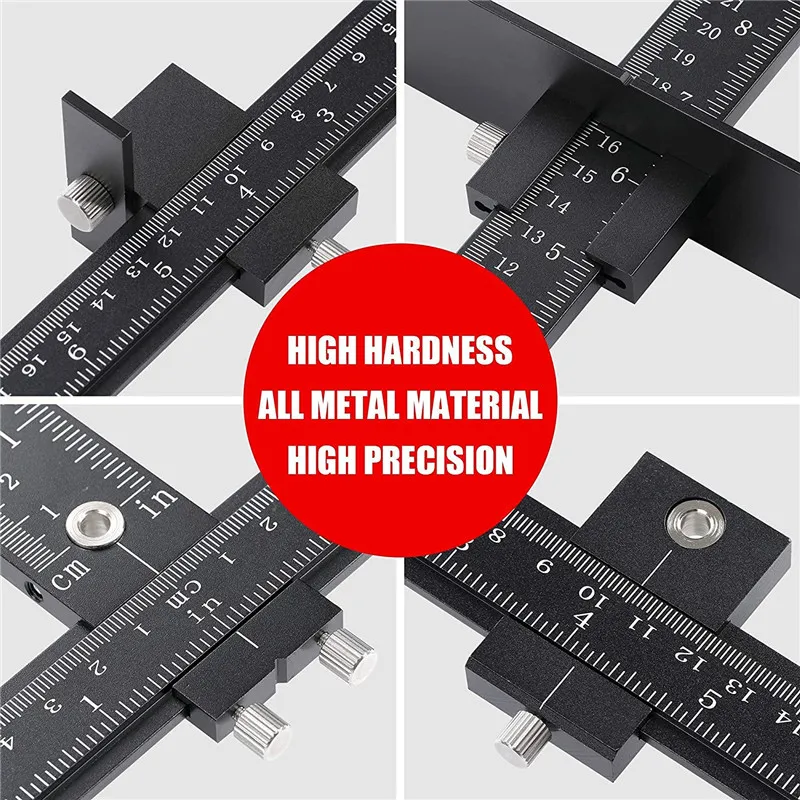

2. High strength and hardness.
3. High precision and wide adjustment range.

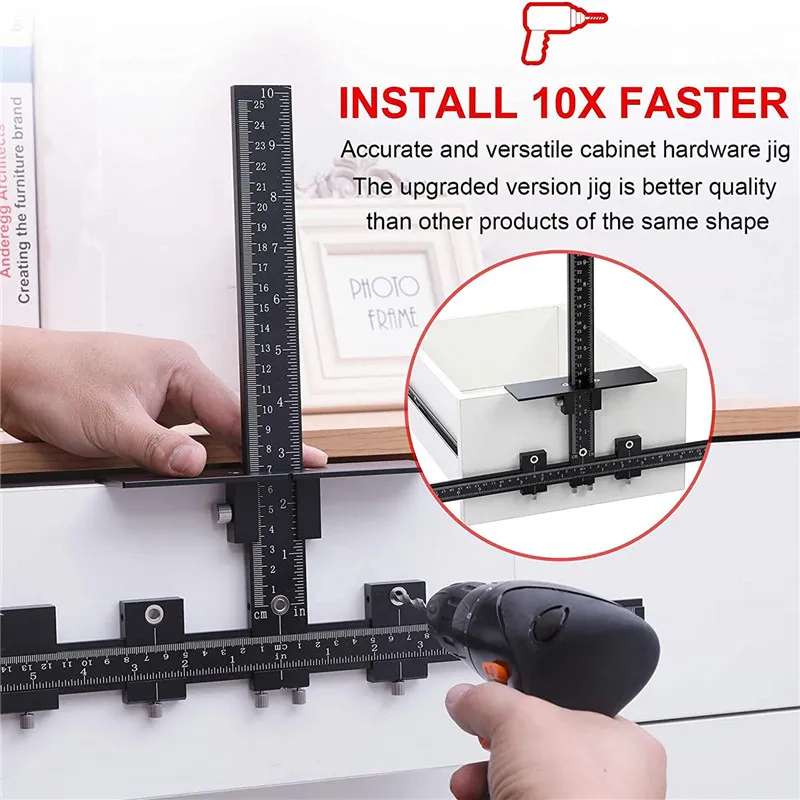

4. The fastest and most accurate hardware tool on the market-install hardware at 10 times the speed
5. Save time and waste to make wooden templates
6. Patent design helps eliminate drilling errors

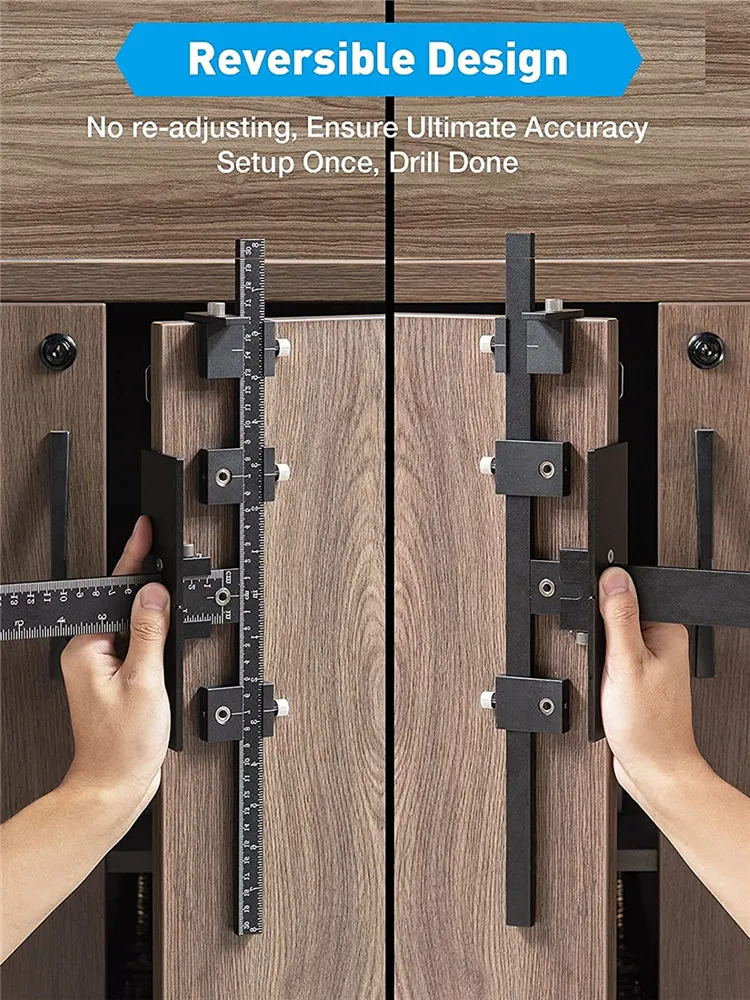

7. Fast Drilling reversible

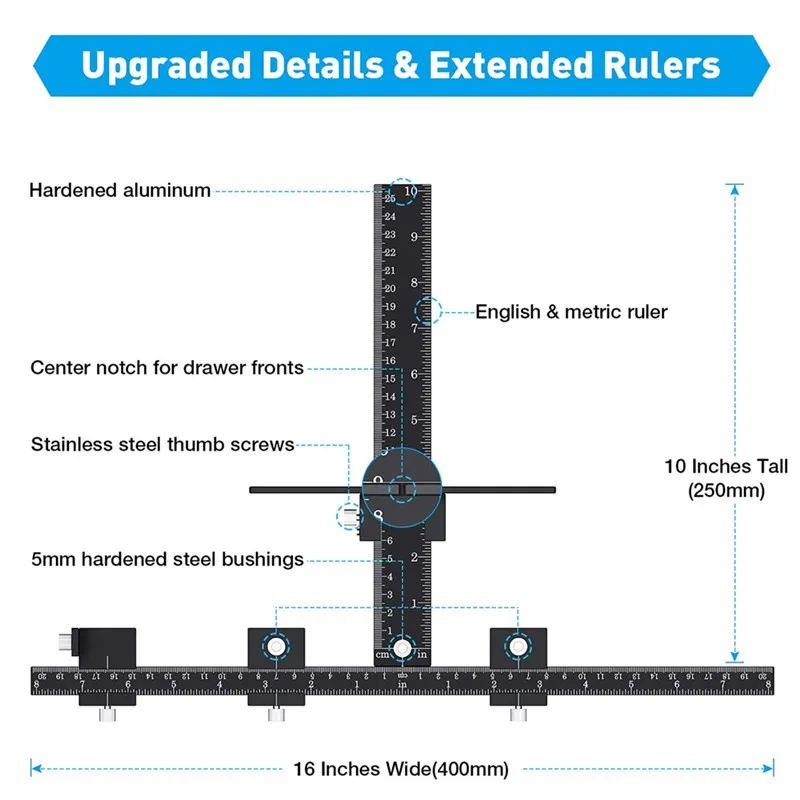

Specifications:
Material: aluminum alloy
Color: Black
Size: 40.6x 30.5cm/16x 12 inches

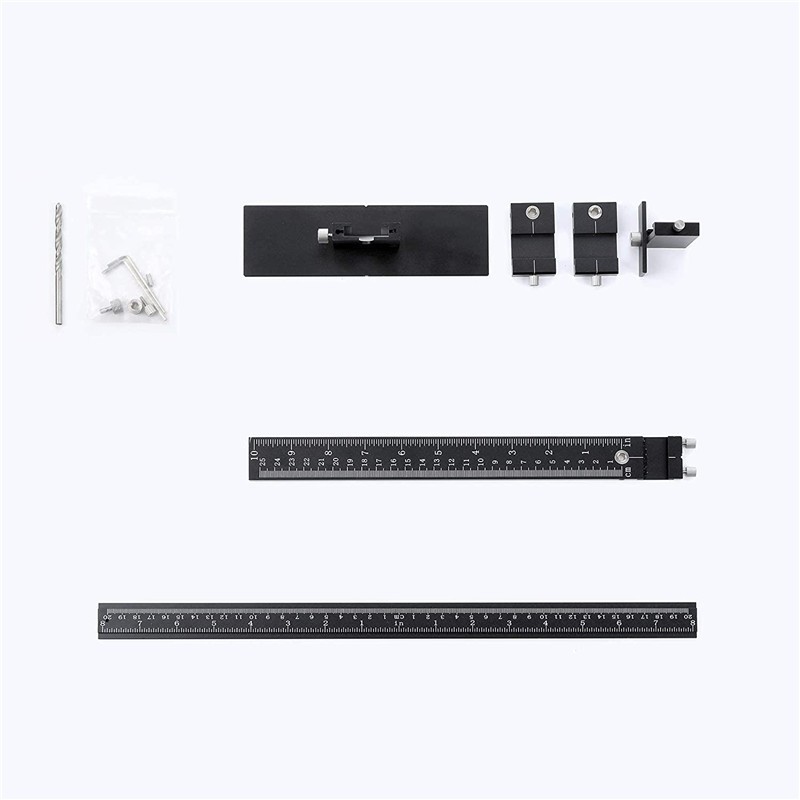

Twist Drill: 2mm,3mm,4mm,5mm
Application: installation handle/knob/slide door, cabinet, drawer, etc.

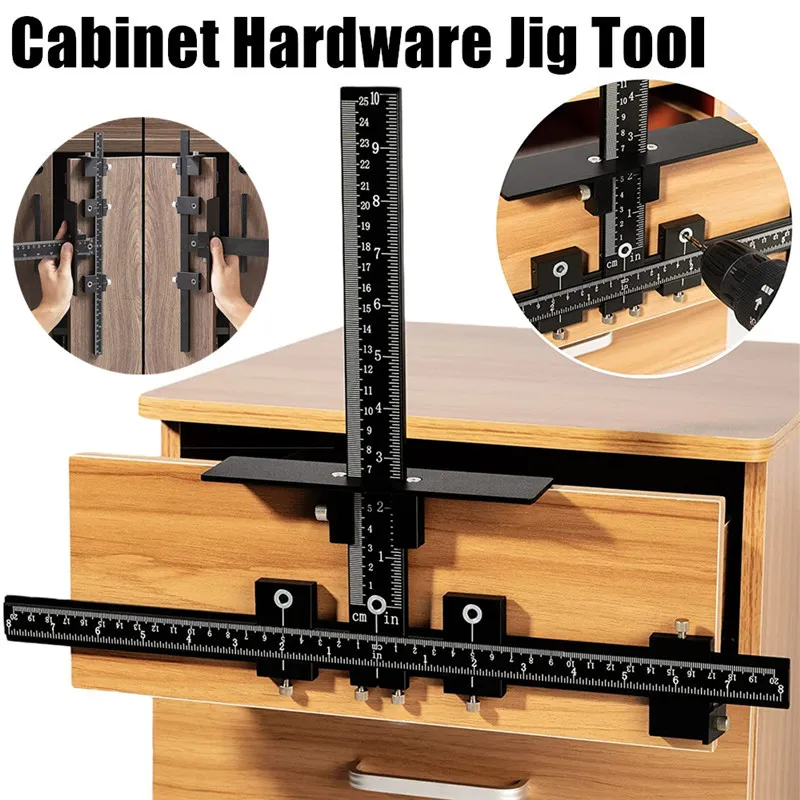

Cabinet Hardware Jig – Precision Alignment for Perfect Handle and Knob Installation

Perfect for DIY Projects, Cabinet Makers, Renovations, and Home Upgrades

The Cabinet Hardware Jig is designed for users in New Zealand who want accurate, repeatable, and professional results when installing cabinet handles, knobs, and pulls. Ideal for DIY renovators, homeowners, carpenters, and woodworking professionals, this jig removes guesswork from drilling by ensuring consistent spacing and alignment across drawers and doors. Whether upgrading a kitchen, bathroom, wardrobe, or custom cabinetry, it delivers clean results with less time and frustration.

Description – Cabinet Hardware Jig

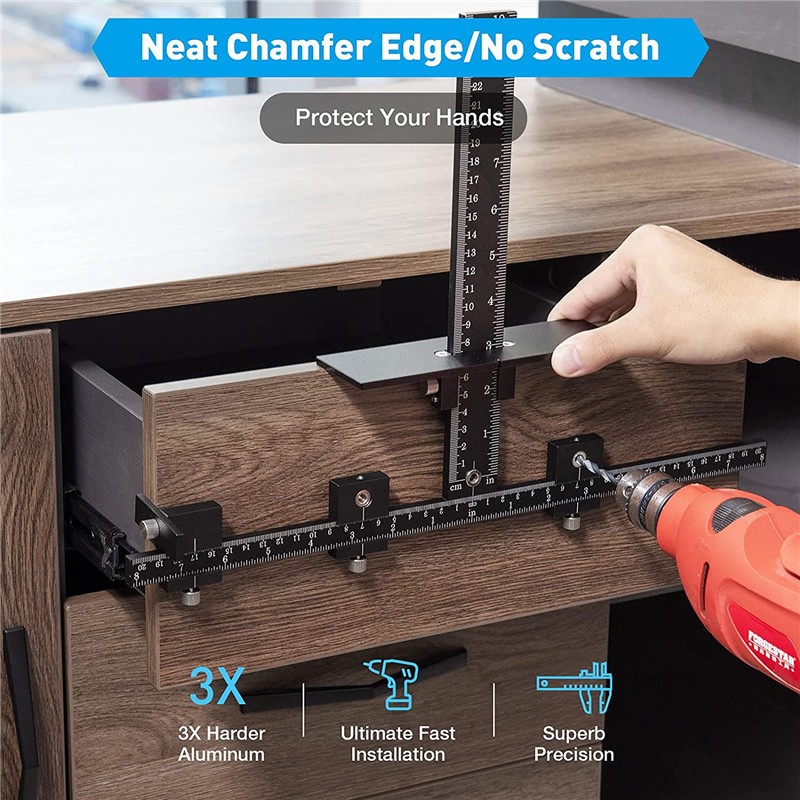

The Cabinet Hardware Jig is a precision measuring and drilling guide engineered to simplify cabinet hardware installation while ensuring consistent accuracy. It allows users to position drill holes correctly for handles and knobs, eliminating uneven placement and misaligned fittings that commonly occur with manual measuring.

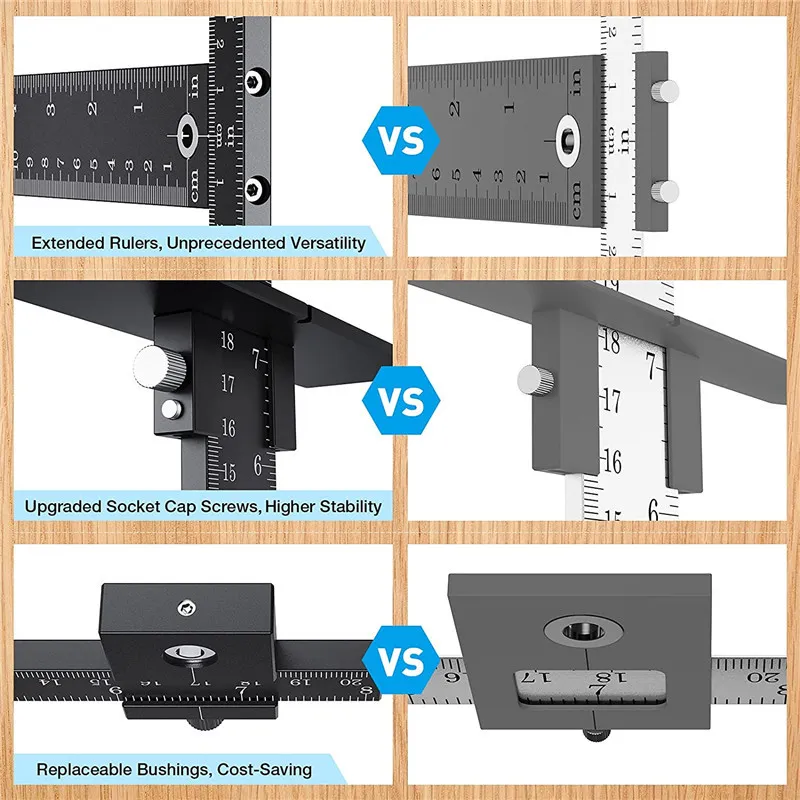

Constructed from durable, rigid materials, the jig maintains stability during use and resists flexing, ensuring reliable alignment every time. Its adjustable guides and measurement scales allow it to accommodate a wide range of cabinet sizes, hardware spacing, and door configurations, making it suitable for both new installations and replacement projects.

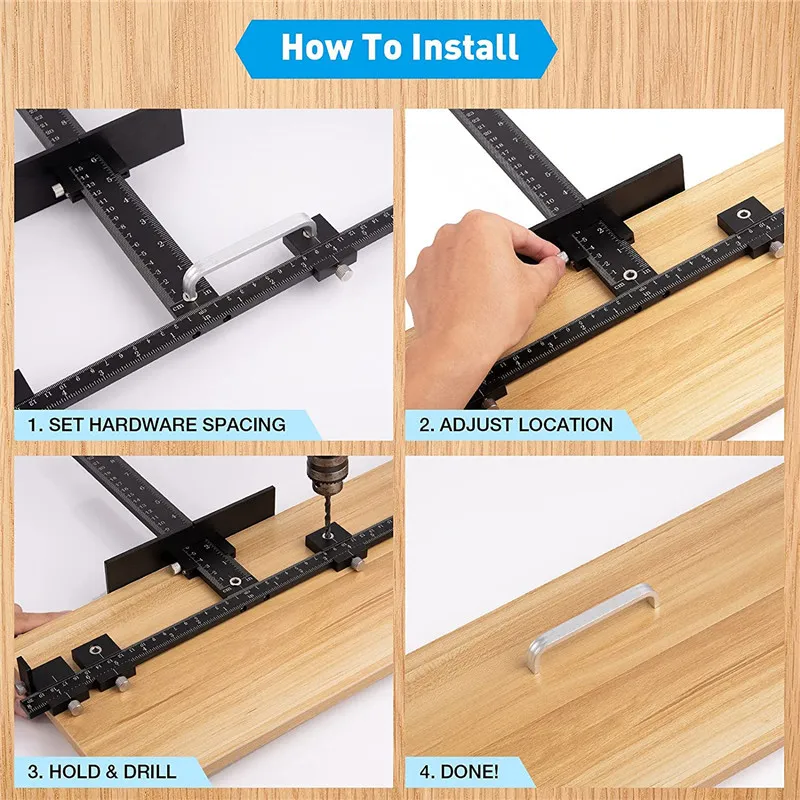

The jig is designed for intuitive setup. Once adjusted to the required spacing, it can be reused repeatedly across multiple doors and drawers, significantly reducing installation time. This repeatability is especially valuable for kitchens and large cabinetry projects where consistency is critical for a professional finish.

Built-in measurement markings provide clear reference points, helping users align hardware centrally or according to design preference. The jig supports both vertical and horizontal orientations, allowing precise placement on drawers, doors, and panels without repositioning errors.

By guiding the drill bit accurately, the Cabinet Hardware Jig helps prevent costly mistakes such as off-centre holes, surface damage, or wasted hardware. Its compact form makes it easy to store and transport, fitting neatly into toolboxes or workshop drawers.

Designed to improve efficiency and accuracy, this jig is a practical solution for anyone installing cabinet hardware regularly or occasionally, delivering consistent, clean results with minimal effort.

Key Points

Accurate Drilling Guide

Ensures precise hole placement for cabinet handles and knobs.

Adjustable for Multiple Sizes

Supports different cabinet dimensions and hardware spacing.

Durable, Rigid Construction

Maintains alignment without flexing during drilling.

Reusable and Time-Saving

Allows fast, repeatable installations across multiple cabinets.

Benefits

Professional-Looking Results

Achieves straight, evenly spaced hardware alignment every time.

Reduces Measuring Errors

Eliminates guesswork and manual marking mistakes.

Speeds Up Installation

Cuts down setup time for large cabinetry projects.

Suitable for DIY and Trade Use

Accessible for beginners while meeting professional standards.

Why Choose This Cabinet Hardware Jig?

Manual measuring and marking can lead to uneven or misaligned cabinet hardware, especially across multiple doors and drawers. The Cabinet Hardware Jig removes this risk by providing a fixed reference point that delivers consistent results.

For New Zealand homeowners and tradespeople undertaking renovations or cabinetry work, this jig offers a cost-effective way to achieve professional outcomes without specialised tools. Its adjustable design ensures compatibility with a wide range of cabinet styles and layouts.

Unlike improvised guides or templates, this jig is purpose-built for precision and repeatability. It improves confidence during drilling and reduces the chance of irreversible mistakes.

Choosing this jig means choosing accuracy, efficiency, and a cleaner finish for every cabinet installation.

Conclusion

The Cabinet Hardware Jig is an essential tool for accurate and efficient cabinet handle and knob installation. With its adjustable design, durable build, and precise drilling guidance, it simplifies one of the most error-prone steps in cabinetry work.

Suitable for both DIY projects and professional installations, it helps deliver consistent, polished results across kitchens, bathrooms, and custom furniture. Its reusable nature makes it a valuable long-term addition to any toolkit.

For anyone seeking reliable alignment and professional-quality cabinet hardware installation, the Cabinet Hardware Jig is a smart and dependable choice.
