Description:

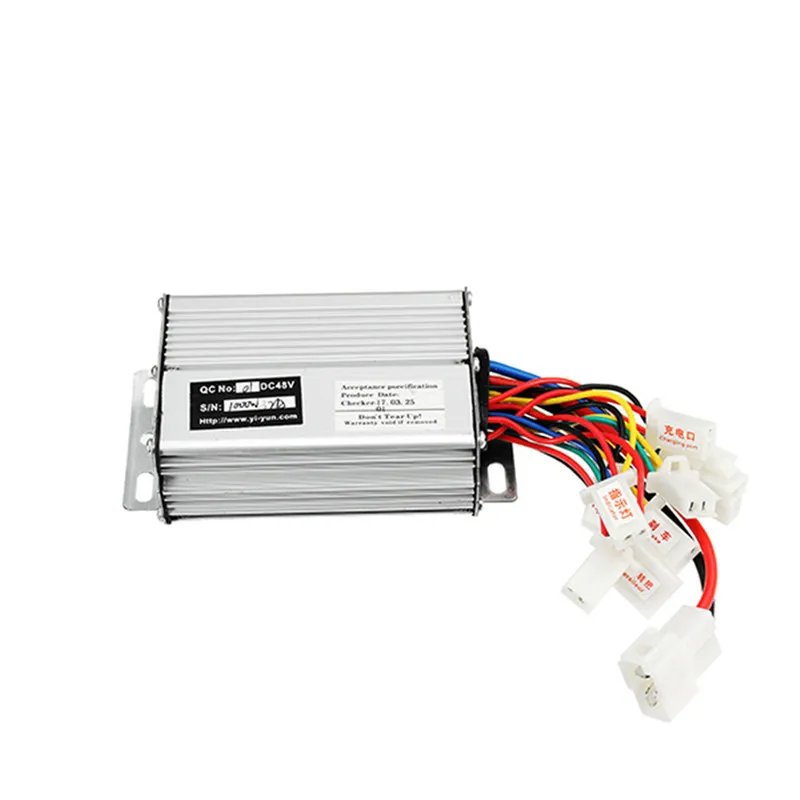

48V motor brushed controller:
Fits standard 7/8 inches(22.2mm) handle bars
Cable length is approximately 59 inches (1.5m)
Motor brush controller for electric bicycle & scooter

Specification:
Material: Plastic
Color: As shown
Rated Voltage: DC 48V
Current Limit : 32A
Rated Power: 1000 W
Under Voltage Protection: 42V
Matching Motor: DC brushed motor

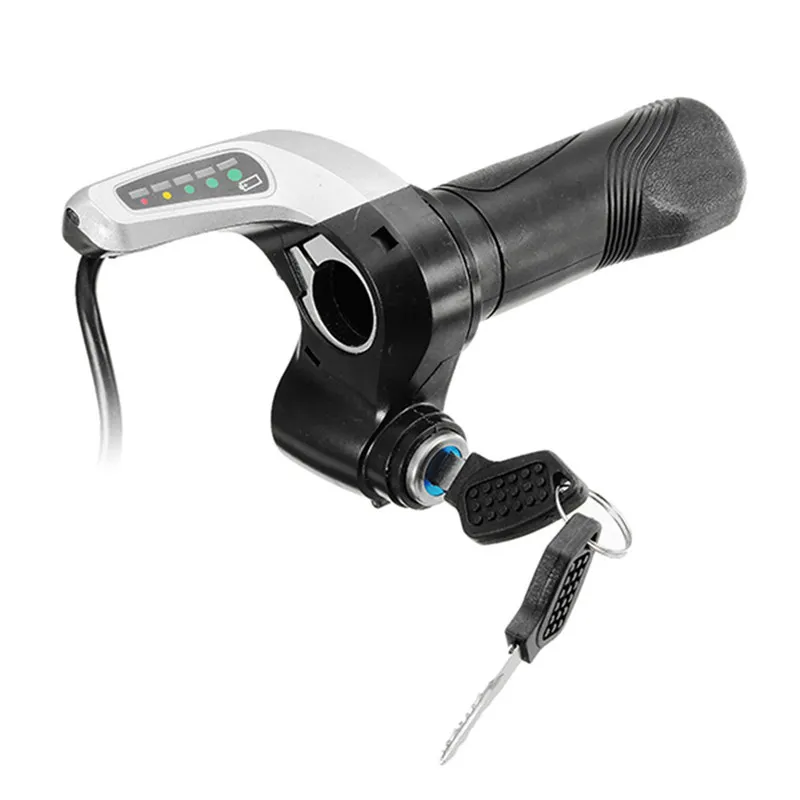

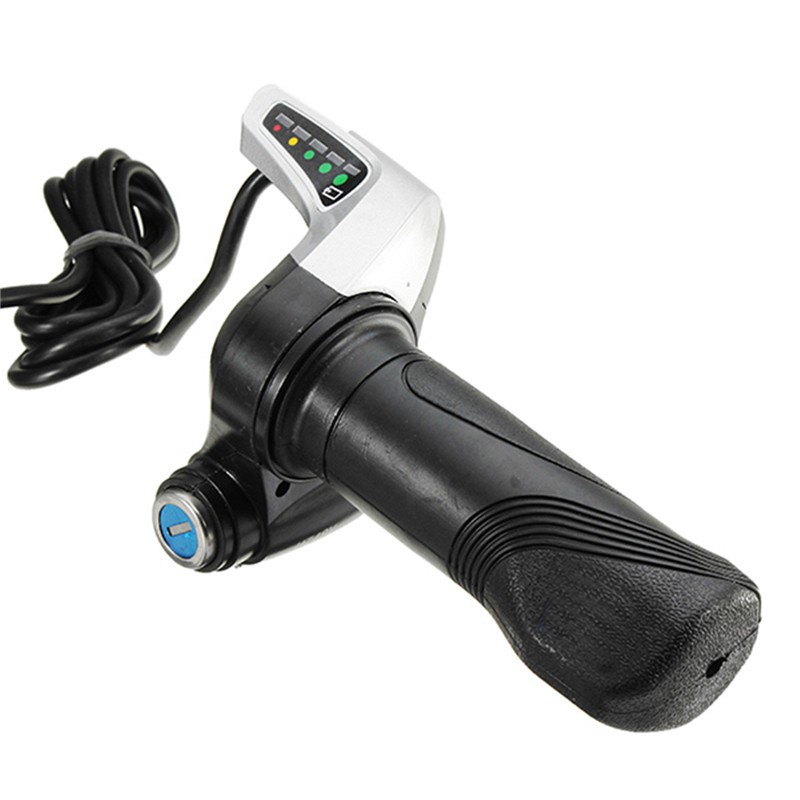

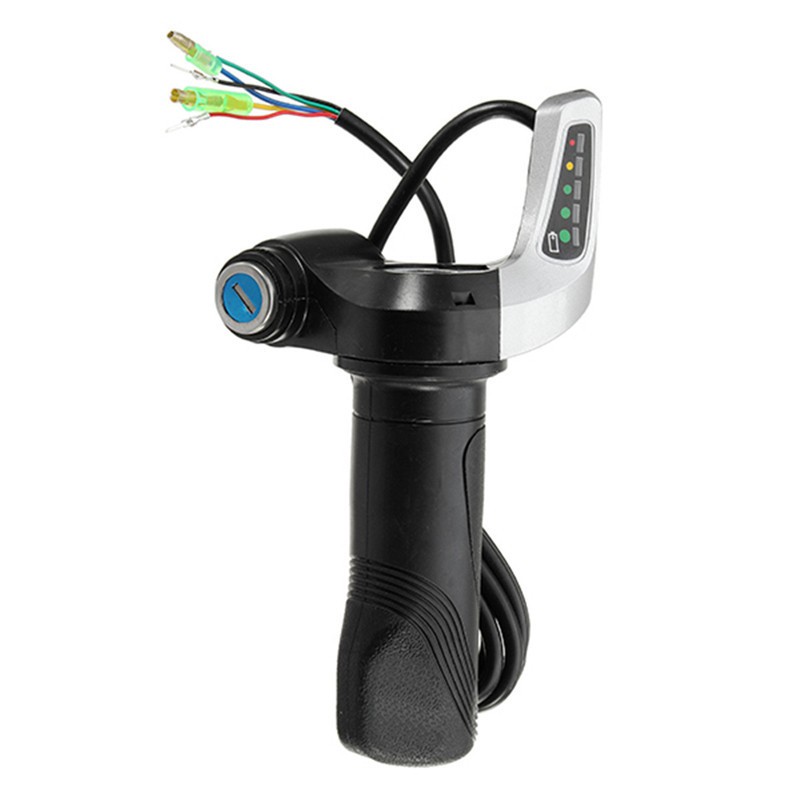

DC 48V Throttle Twist Grips:
Electric bike scooter twist throttle accelerator with power display, 5Led battery indicator.
Throttle Works Voltage: DC5V
Speed Adjusting Signal: 0.8V-4.3V
Power Display Voltage: DC 48V
Power Display:
Normal: 48V above, 3 Led Green
Half: 47V ~ 42V, Led Yellow
Empty: 42V or less, Led Red
Rotation Angle: 0 °~ 70 °
Working Temperature: -20 ~ +50

Controller Wires Interface Definition:
Battery : Thick black (power negative) /thick red (power positive)
Motor : Thick yellow (motor negative) /thick blue (motor positive)
Ignition Switch : Thin red(VCC)/thin blue
Indicator : Thin red (indicator power output) /thin black (indicator negative)
Brake : Thin yellow (brake signal)/thin black(negative power)
Speed Governor : Thin blue(speed handlebar signal input) /thin black (negtive power) /thin red(5V positive power)
Charge Port : Thin red (charge input power positive) /thin black (power negative)
Brake Light: Thin red (power positive) /thin black (power negative)
Sport: Thin yellow /thin green(speed limit, connected the wires together)

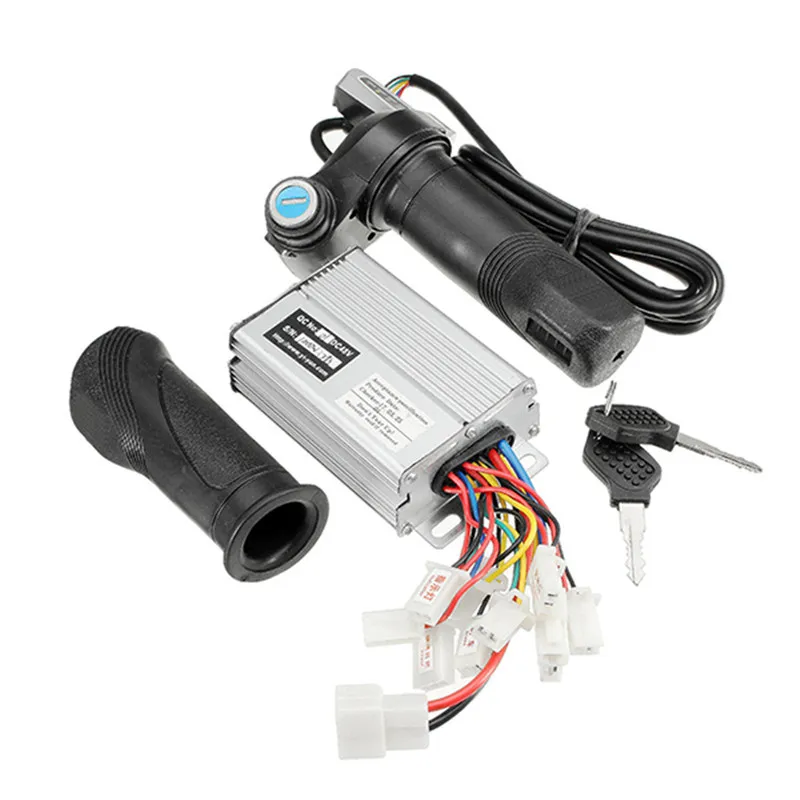

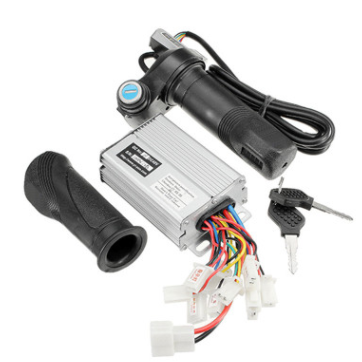

Package Included:
1 * 48V throttle grip with normal grip
1 * 48V 1000W controller
1 * black terminal ends

Bike Motor – Enhance Your Cycling Experience with Power and Efficiency

Perfect for E-Bikes, Motorized Bicycles, and DIY Enthusiasts

The Bike Motor is an essential component for transforming your traditional bicycle into a powerful and efficient motorized bike. Whether you’re looking to build your own e-bike, upgrade your current bicycle, or enhance your cycling experience with added power, a bike motor provides the perfect solution. Designed to be lightweight, efficient, and durable, this motor ensures smooth riding, improved speed, and increased range, all while reducing the effort required during pedaling.

Description – Bike Motor

The Bike Motor is a compact, high-performance motor designed to assist or fully drive a bicycle. It can be integrated into various parts of the bike, typically placed in the rear wheel hub, front wheel hub, or the pedal area (mid-drive motor), depending on your preference and the bike's design. These motors are powered by batteries that supply the necessary energy to propel the bike forward, making cycling easier and faster.

Bike motors come in different power outputs (measured in watts), allowing cyclists to choose a motor that suits their needs, whether for casual commuting or high-speed biking. In addition to providing extra power for acceleration and speed, many bike motors are also designed to be energy-efficient, extending the range of the e-bike and making long-distance cycling more practical.

The motor works in conjunction with the bike’s gearing system, ensuring that the extra power is used effectively, providing a seamless cycling experience with the ability to adjust to various terrains and conditions. The Bike Motor also features low noise levels, allowing for a quiet and pleasant ride, and comes with adjustable settings to customize power assistance based on individual needs.

Key Points

• Enhanced Pedaling Assistance: Provides extra power to help you accelerate faster, climb hills, and ride longer distances with less effort.

• Various Power Options: Available in different wattages (250W, 500W, 750W, etc.) to suit different cycling needs and performance preferences.

• Energy-Efficient: Designed to maximize battery life while providing adequate power for extended rides, making it suitable for long-distance commutes.

• Easy Integration: Simple to install on most bicycles, either in the wheel hub or pedal area, and works well with the bike’s existing components.


Benefits

Benefit 1: Increased Speed and Power

A bike motor enhances your speed and power, helping you achieve faster accelerations and maintain higher speeds without excessive pedaling. This makes commuting, long-distance rides, and climbing steep hills much easier and less strenuous.

Benefit 2: Improved Efficiency

The motor provides a significant boost to your cycling efficiency, especially during extended rides. It reduces the physical strain on the rider, allowing you to cycle for longer periods without fatigue. Whether you're cycling for leisure or commuting, the motor helps conserve your energy.

Benefit 3: Versatility and Customization

With various motor power options, you can select a bike motor that fits your specific needs. Whether you’re using the bike for casual rides or more intense workouts, the motor’s adjustable settings allow you to fine-tune power assistance to suit different terrains and cycling conditions.

Benefit 4: Eco-Friendly and Cost-Effective

Switching to a motorized bike helps reduce your reliance on traditional vehicles, lowering your carbon footprint and promoting eco-friendly transportation. Additionally, riding a motorized bike reduces fuel costs and offers a low-maintenance alternative to other forms of motorized transport.

Benefit 5: Quiet and Smooth Operation

The bike motor operates quietly, ensuring a smooth and enjoyable ride without disruptive noise. This is especially beneficial for urban commuting and recreational riders who enjoy peaceful outdoor experiences.

Benefit 6: Ideal for Various Terrains

The motor assists in both flat terrain and uphill climbs, making it perfect for cyclists who live in hilly areas. It also helps maintain a steady pace on more challenging surfaces, improving overall performance and ride comfort.

Why Choose This Bike Motor?

Choosing the Bike Motor offers a variety of advantages, from increased power and speed to enhanced efficiency and ease of use. Its versatility, ease of installation, and compatibility with a wide range of bicycles make it an excellent upgrade for anyone looking to enhance their cycling experience. Whether you're commuting, training, or just enjoying a recreational ride, a bike motor provides the perfect balance of power, efficiency, and convenience.

The motor is designed to deliver smooth, consistent power while maximizing battery life, making it a practical and long-lasting solution for cyclists. With options available to suit various needs, the Bike Motor helps make cycling more accessible, enjoyable, and efficient, whether you’re a seasoned rider or new to motorized biking.

Conclusion

The Bike Motor is a game-changer for anyone looking to improve their cycling experience. Whether you're aiming for faster speeds, better efficiency, or a more comfortable ride, this motor provides the power boost you need. With its customizable features, quiet operation, and environmental benefits, the bike motor is a valuable addition to your bike, enhancing your overall performance and making every ride more enjoyable.
