Battery Monitor Current Power Meter 300A Shunt – Advanced Monitoring for High-Powered Systems

The Battery Monitor Current Power Meter 300A Shunt is an essential tool for monitoring the health and efficiency of high-powered battery systems. Whether you are managing a large vehicle battery, an off-grid solar system, or a commercial fleet, this advanced battery monitor provides real-time data on your system’s power usage, battery charge, and current flow. By utilizing a 300A shunt, this monitor is designed to handle larger power systems, ensuring that you can track the performance of your battery bank and make data-driven decisions to optimize energy use and extend battery life.

This system provides valuable insights, preventing issues like overcharging, deep discharging, and excessive power drain. With its easy installation, clear display, and durable construction, the Battery Monitor Current Power Meter 300A Shunt is the ideal solution for anyone seeking accurate and reliable battery management for high-power systems.

Overview

The Battery Monitor Current Power Meter 300A Shunt works by measuring the current flowing in and out of your battery system using a 300A shunt. It then displays this data on a monitor, giving you real-time information about your battery’s charge levels, voltage, and power consumption. This system is particularly useful for large batteries that require accurate monitoring, such as those found in electric vehicles, off-grid solar setups, and commercial vehicles.

By tracking critical parameters like charge percentage, current flow, and voltage, the Battery Monitor Current Power Meter 300A Shunt ensures that your battery system is always operating within optimal parameters, protecting your investment and extending the life of your battery bank.

Key Benefits:

• High-Current Monitoring: Capable of handling systems with up to 300A of current, perfect for larger batteries and high-demand systems.
• Real-Time Performance Tracking: Provides continuous, real-time data on current, voltage, and power consumption.
• Prevents Battery Damage: Helps prevent issues such as overcharging or deep discharging, extending the lifespan of your battery.
• Wide Application Range: Ideal for vehicles, off-grid solar systems, RVs, boats, and commercial fleet vehicles.
• Easy-to-Read Display: The monitor provides clear, actionable information, making it easy to track your battery’s performance at a glance.

Key Features and Benefits

Real-Time Monitoring of Battery Performance

• Monitor Key Metrics: The Battery Monitor Current Power Meter 300A Shunt continuously tracks the current, voltage, and power consumption of your battery system. With real-time data, you can easily monitor the health and efficiency of your batteries, ensuring they are performing as expected.
• Detailed Data on Power Flow: With a 300A shunt, this monitor accurately measures current flow, allowing you to track the charge and discharge cycles of your battery system. This is particularly useful in large applications like electric vehicles or off-grid power setups where precise power management is essential.

Protects Your Battery System

• Prevents Overcharging and Deep Discharging: One of the most significant risks to battery health is overcharging or deep discharging. The Battery Monitor Current Power Meter 300A Shunt helps prevent these issues by providing real-time information that lets you know when to charge or disconnect the battery. This ensures that your battery operates within safe voltage ranges, prolonging its life.
• Maximizes Battery Lifespan: By avoiding overcharging, undercharging, and deep discharges, this monitor helps optimize the health of your battery system, ensuring it lasts longer and works more efficiently.

High-Current Monitoring for Large Systems

• Handles 300A Current: Designed to handle up to 300A of current, this monitor is ideal for larger systems, such as those used in electric vehicles, boats, RVs, or commercial fleet vehicles. It provides accurate readings for high-demand systems, ensuring that all the power usage data is captured effectively.
• Wide Application Range: Whether you're managing a solar energy storage system, monitoring battery performance in a heavy-duty vehicle, or simply optimizing an electric vehicle’s battery management, this system is capable of handling a wide range of power applications.

Durable and Reliable

• Built to Withstand Harsh Environments: The Battery Monitor Current Power Meter 300A Shunt is designed to operate in a variety of environments. Whether you're using it in a vehicle, an RV, a boat, or an off-grid solar system, this monitor is built to withstand the rigors of daily use, providing long-lasting performance.
• Reliable Data Transmission: With a durable shunt and high-quality construction, this monitoring system delivers consistent and accurate data over time, ensuring that you can rely on it for continuous battery performance tracking.

Easy Installation and Integration

• Quick and Simple Setup: The monitor system is easy to install, whether you're replacing an old unit or installing it on a new system. The 300A shunt is designed for simple integration into your existing battery setup, and the display unit is user-friendly with clear instructions for mounting and wiring.
• Plug-and-Play System: This system is designed for ease of use, and the monitor integrates seamlessly with most battery banks and systems that require current monitoring. Whether you’re upgrading your existing setup or creating a new one, the Battery Monitor Current Power Meter 300A Shunt offers an accessible solution.

Battery Health Insights for Optimization

• Track Battery Charge Percentage: The system provides continuous feedback on your battery’s charge level, helping you track the state of charge and prevent overdischarge. It also lets you know when it's time to recharge, which is vital for maintaining battery health.
• Real-Time Consumption Data: By monitoring power consumption, the system helps you optimize energy usage, whether you're using the battery for a vehicle, off-grid power, or renewable energy storage.

Applications and Versatility

Automotive Use

• Electric Vehicles: The Battery Monitor Current Power Meter 300A Shunt is perfect for electric vehicles (EVs), allowing you to track real-time battery performance and power consumption. This is particularly important for maximizing range, performance, and longevity in electric cars and trucks.
• Heavy-Duty Vehicles: For trucks and large commercial vehicles with extensive battery systems, the monitor provides critical data for managing energy use and optimizing battery performance.

Off-Grid Solar and Renewable Energy Systems

• Solar Battery Monitoring: For those with off-grid solar power systems, the Battery Monitor Current Power Meter 300A Shunt allows you to monitor your solar batteries' performance in real time. This helps you optimize the charging cycles, avoid overcharging, and ensure maximum energy storage for later use.
• Wind and Hydro Systems: If you have a wind or hydro power system that uses large battery banks, this monitor helps track performance, ensuring your renewable energy setup is working efficiently.

Boats and Marine Applications

• Marine Battery Management: The monitor is ideal for boats, especially those with large battery banks for energy storage. It provides real-time data, ensuring the proper management of your marine batteries, protecting them from overcharging or deep discharge during your trips.

Commercial and Fleet Vehicles

• Fleet Battery Monitoring: For businesses with fleet vehicles, maintaining optimal battery performance is crucial. This system allows fleet managers to track the health of vehicle batteries in real time, preventing issues such as power failures, excessive wear, and costly repairs.
• Heavy Equipment and Machinery: For commercial vehicles, construction equipment, and machinery that rely on large battery banks, the Battery Monitor Current Power Meter 300A Shunt ensures that power systems run smoothly and efficiently, reducing downtime and maintenance costs.

Customer Testimonials and Local Expertise

Customers in New Zealand have praised the Battery Monitor Current Power Meter 300A Shunt for its performance and reliability. One customer from Auckland shared, "I use this monitor for my off-grid solar system, and it’s been fantastic. It gives me real-time feedback on my battery system, helping me make adjustments to optimize my energy use." Another customer from Wellington said, "This monitor is essential for my electric vehicle. I can track my battery’s charge and performance, which gives me peace of mind while driving."

Conclusion: Optimize Your Battery System with the 300A Shunt Power Meter

In conclusion, the Battery Monitor Current Power Meter 300A Shunt is the perfect solution for anyone who needs accurate, real-time monitoring of high-powered battery systems. Whether you’re using it for an electric vehicle, an off-grid solar setup, or a commercial vehicle fleet, this system provides valuable insights into your battery’s health, performance, and energy consumption. By preventing overcharging and deep discharging, it helps extend the lifespan of your batteries and improve overall system efficiency.

Invest in the Battery Monitor Current Power Meter 300A Shunt today to optimize your battery performance, reduce maintenance costs, and ensure that your energy systems are always operating at their best.

This listing is for one brand new LCD Digital Monitor Watt Meter Ammeter RC Battery Power Volt Amp Analyser Battery Display Volt Meter Car Digital Voltage Gauge Current Power Monitor

• 100% Brand new and high quality
• PZEM-015 battery tester internal and external DC voltage current power capacity

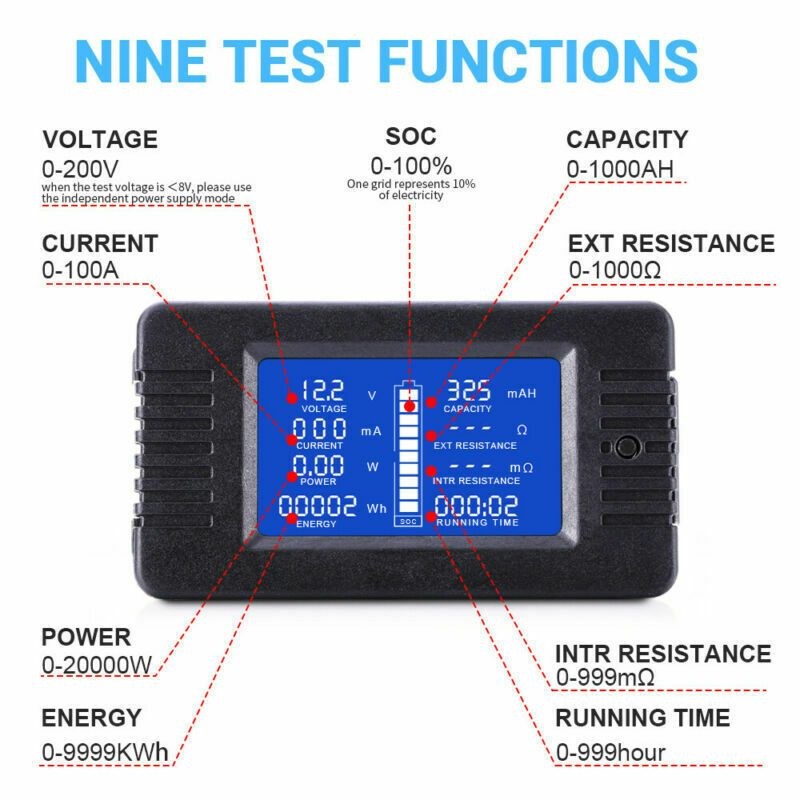

*This meter is mainly used to test all kinds of battery's voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, dump energy, energy consumption and running time, and display the measurement data through LCD screen.

Specification:

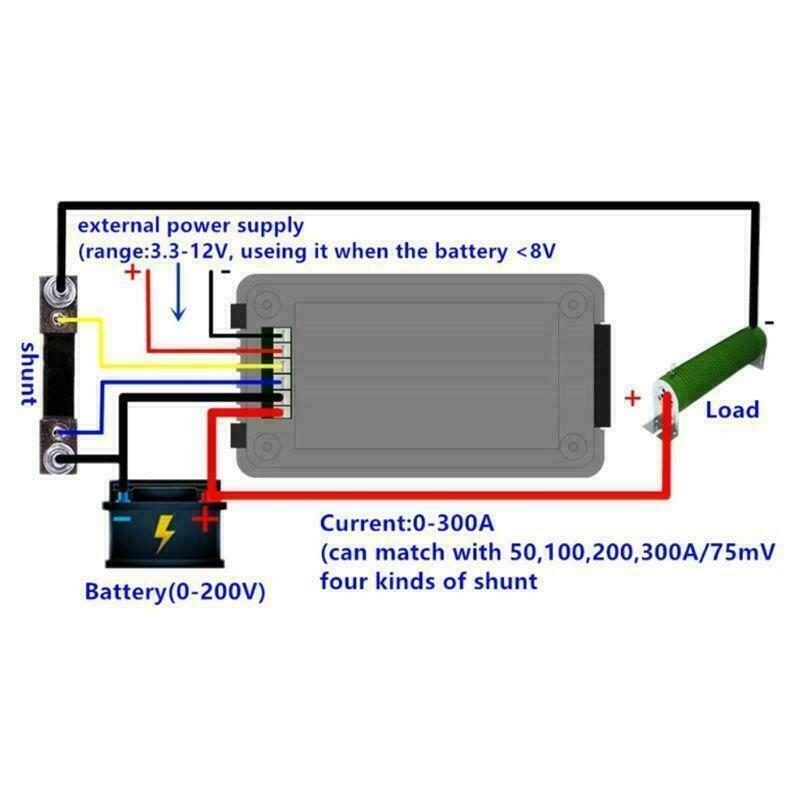

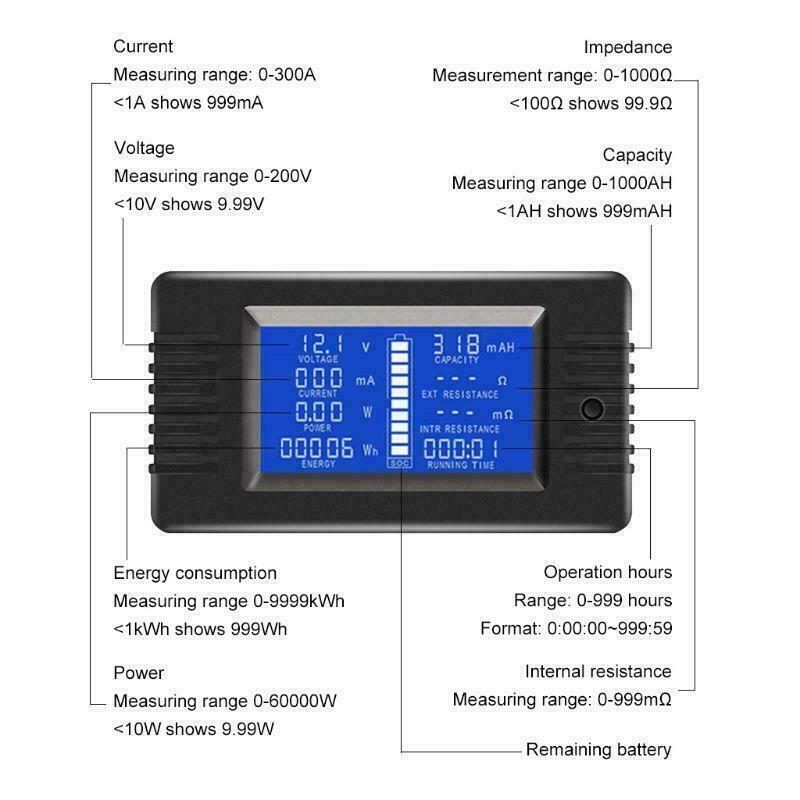

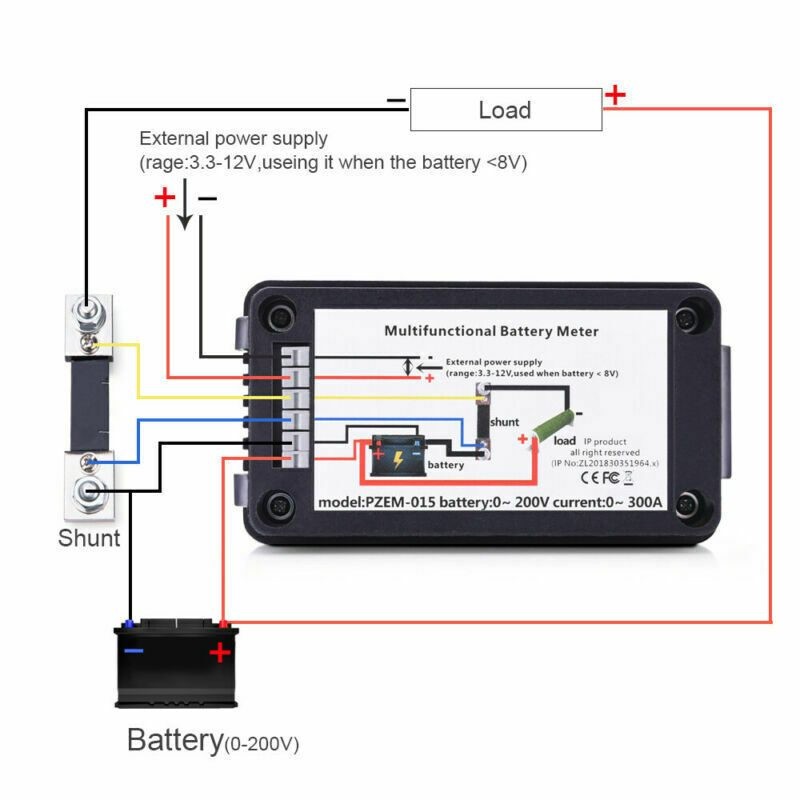

*PZ-015: Measuring range 300A (using external shunt, can match 50A, 100A, 200A, 300A four shunts). *Voltage measurement range: 0-200V. (When the test voltage is <8V, please use the independent power mode) *Minimum voltage resolution: 0.01V *Voltage start test voltage: 0.05V *Voltage measurement accuracy: 1% *Current minimum resolution: 1mA *Current start test current: 10mA *Current measurement accuracy: 1% *Power measurement range: 0-60000W *Power minimum resolution: 0.01W *Power start test power: 0.2W *Power measurement accuracy: 1% *Impedance = voltage / current *Impedance measurement range: 0-1000 O (displayed "--" when the test range or current is zero) *Minimum impedance resolution: 0.1O *Impedance measurement accuracy: 1% *Internal Resistance Minimum resolution: 1mO *Internal Resistance Measurement accuracy:1%

Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy. Dump energy is calculated via the current battery voltage value, before test you should preset the full voltage and the cut-off voltage depend on the battery type; every grid voltage = (the highest voltage – the lowest voltage) / 10. *Accumulate energy consumption *Measuring range: 0~9999kWh (Over the test range will become zero.) *Minimum resolution: 1Wh Measurement accuracy:1% (Note: 1Wh=0.001kWh=0.001 Kilowatt)

Package Contents:

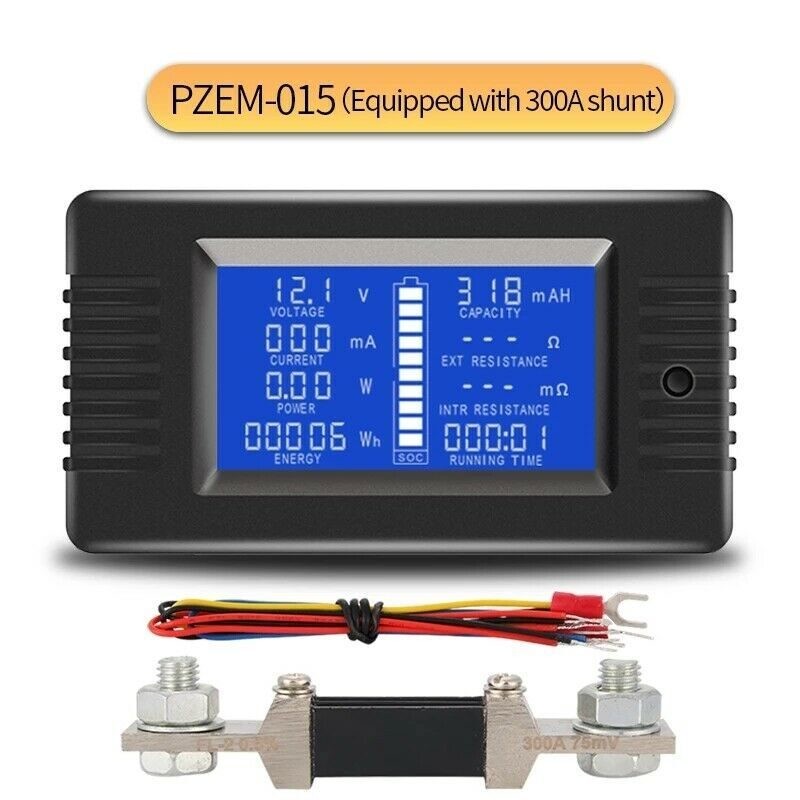

1 Set DC Multimeter Battery Tester Monitor 1 x Shunt 300A
