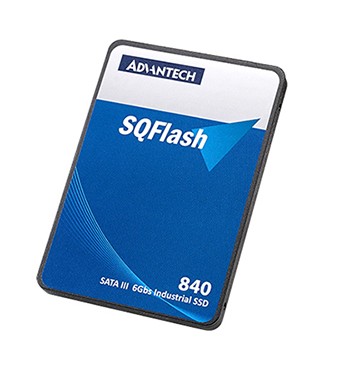

Advantech 840s 2.5" SATA3 Industrial TLC ECC 480GB SSD

SATA 6Gb/s, 480GB Capacity. 560MB/s Read, 531MB/s Write, 606 TBW, BiCS4 TLC Flash. Supports Error Correction Code, Wear Leveling, Bad Block Management, Power Loss Protection, Over-Provision, and Thermal Throttling.

Specifications

GUI management tool & software API package Shock resistance, anti-vibration and low power consumption Optional support for voltage stabilizer Support AES256 and Quick Erase Supports Fragment Writing and Flush Manager Support LDPC with RAID ECC Compliant with SATA III and SATA v3.2 standard

Advantech 840s 2.5" SATA3 Industrial TLC ECC 480GB SSD

Introduction

The Advantech 840s 2.5" SATA3 Industrial TLC ECC 480GB SSD is engineered to meet the rigorous demands of industrial applications. With its robust design and advanced features, this SSD offers reliable performance, making it an ideal choice for embedded systems, industrial automation, and mission-critical environments.

Key Features

1. High Capacity and Performance

• Capacity: 480GB

• Sequential Read Speed: Up to 560 MB/s

• Sequential Write Speed: Up to 531 MB/s

• Interface: SATA III 6Gb/s

• Form Factor: 2.5"

• Flash Type: 3D TLC BiCS4


2. Advanced Error Correction and Data Integrity

• Error Correction: LDPC (Low-Density Parity-Check) with RAID ECC

• Data Protection: Supports TRIM, Wear Leveling, Bad Block Management

• Security: AES-256 Encryption, TCG-OPAL Compliance


3. Robust Endurance and Reliability

• Endurance: 606 TBW (Terabytes Written)

• Operating Temperature: 0°C to 70°C

• Storage Temperature: -40°C to 85°C

• Shock Resistance: 1,500G peak / 0.5 ms

• Vibration Resistance: 20G peak / 80 ~ 2,000 Hz


4. Power Loss Protection and Thermal Management

• Power Loss Protection: Ensures data integrity during unexpected power outages

• Thermal Throttling: Prevents overheating to maintain optimal performance


Benefits

• Enhanced Performance: Achieve high-speed data transfer rates, improving system responsiveness and efficiency.

• Data Integrity: Advanced error correction and data protection features ensure reliable storage.

• Durability: Built to withstand harsh industrial conditions, ensuring long-term reliability.

• Security: AES-256 encryption and TCG-OPAL compliance provide robust data security.

• Energy Efficiency: Low power consumption contributes to energy savings in industrial applications.


Why Choose the Advantech 840s 2.5" SATA3 Industrial TLC ECC 480GB SSD?

Opting for the Advantech 840s SSD means investing in a storage solution that combines speed, reliability, and durability. Whether you're upgrading existing systems or designing new industrial applications, this SSD offers the performance and resilience needed to meet the demands of modern industrial environments.
