Adjustable Knee Fixation Brace Lower Extremity Support

Product information:
Material: aluminum alloy
Product Category: Knee Brace
Color: gray, black
Specifications: one size
Applicable parts: legs

Note: the price is more than 50$, not responsible for any after-sales, mind not to shoot

Features:
1. Anti-theft device: The leg brace lock hinge acts as an anti-theft device, it has the ability to lock any radius, there is a sliding switch on both sides of the support frame, you can adjust it according to the range of motion. If these slide switches are set to zero, you can set the lock/unlock switch on each side to "lock" and it will then act as an immobilizer. Bilateral motion parameter ranges can be adjusted between 0°-120° flexion and 0°-90.
2. Non-slip shoulder straps - Equipped with adjustable and detachable shoulder straps that won't slip or slip. You don't have to readjust it very often.

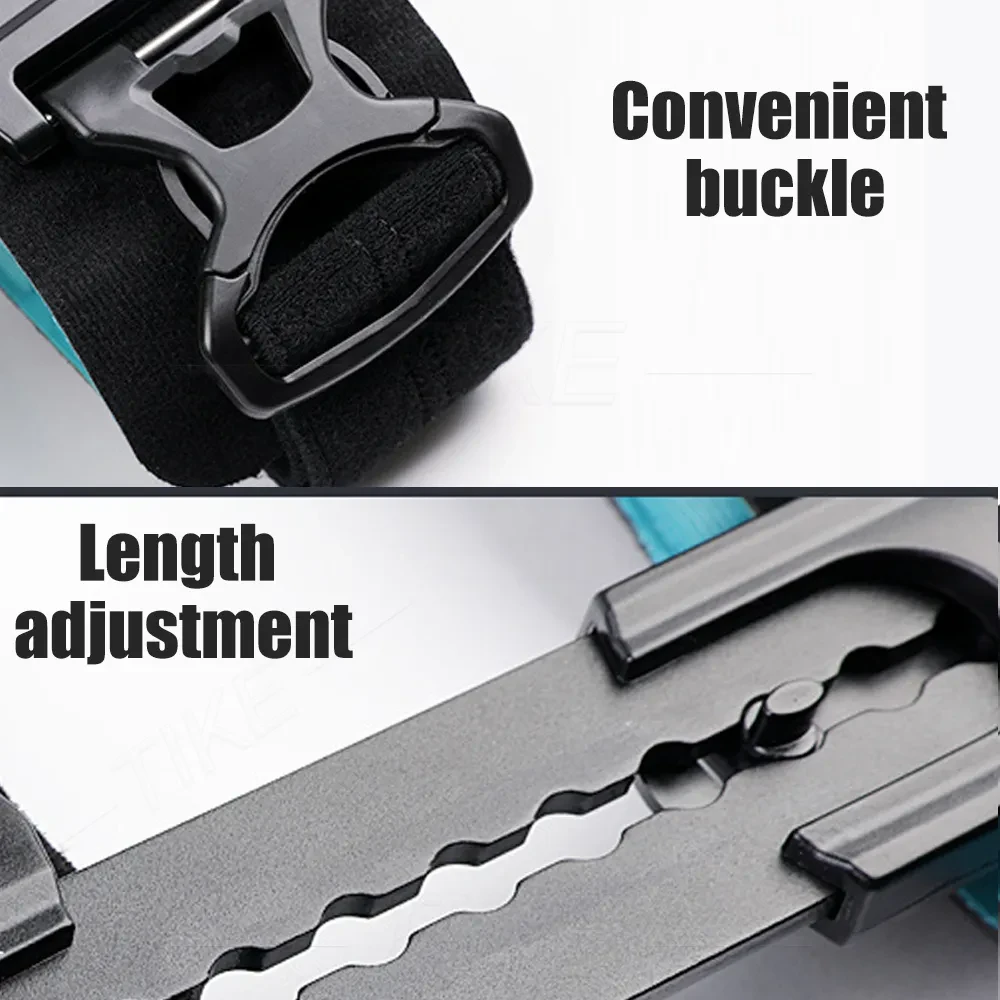

3. The lengthened hinge allows to adjust the length by button, 48-62cm/18.8~24.4inch, which can be adjusted according to individual needs.
4. Thigh girth measurements for this knee brace: It does not fit a specific girth. Velcro straps fit most thigh sizes. If you have wide thighs, it works for me too.

Packing list:
Bracket x1
Strap x1
Airbag x1

Adjustable Knee Fixation Brace — Lower Extremity Support

Stabilize, protect, and recover with an adjustable knee fixation brace designed to control motion after injury or surgery. With quick-set hinges, wide wrap straps, and a breathable liner, it delivers targeted support for ligaments, meniscus repairs, fractures, and post-op protocols—at home, in clinic, or during early rehab.

Key Features

• Rigid Frame Stabilization
  Lightweight aluminum side uprights reduce varus/valgus movement while distributing pressure comfortably along the thigh and calf.

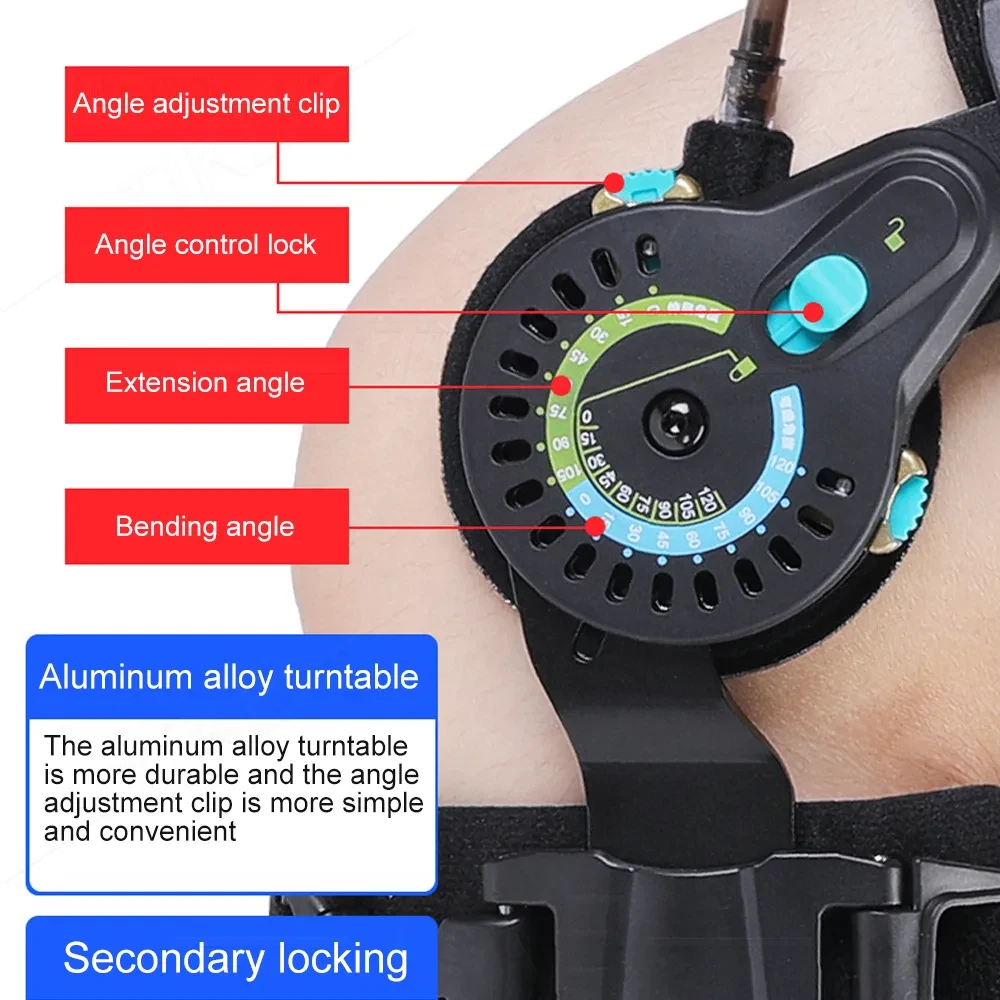

• Adjustable ROM Hinges
  Tool-free dial settings let clinicians or users set flexion/extension limits (e.g., 0°–120°) to match your recovery stage. Lock at full extension if immobilization is prescribed.

• Custom Fit Strapping
  Four to six wide hook-and-loop straps with quick-release buckles provide secure, even compression and minimize migration during wear.

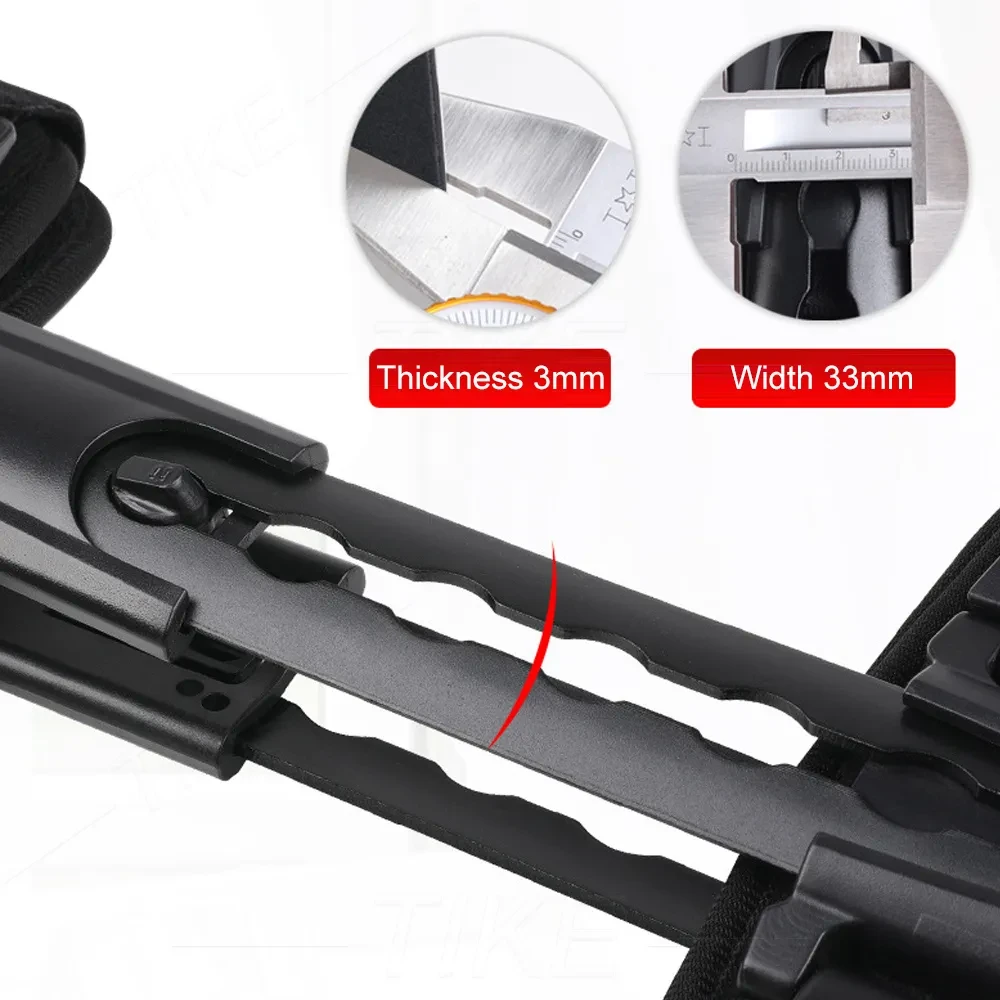

• Length & Circumference Fit
  Telescoping uprights and trimmable straps accommodate a broad range of leg lengths and thigh/calf sizes.

• Breathable, Skin-Friendly Padding
  Moisture-wicking liner with anti-slip zones enhances comfort during extended use; removable pads for easy cleaning.

• Open Patella & Popliteal Relief
  Reduces pressure over the kneecap and behind the knee to improve circulation and comfort when sitting.

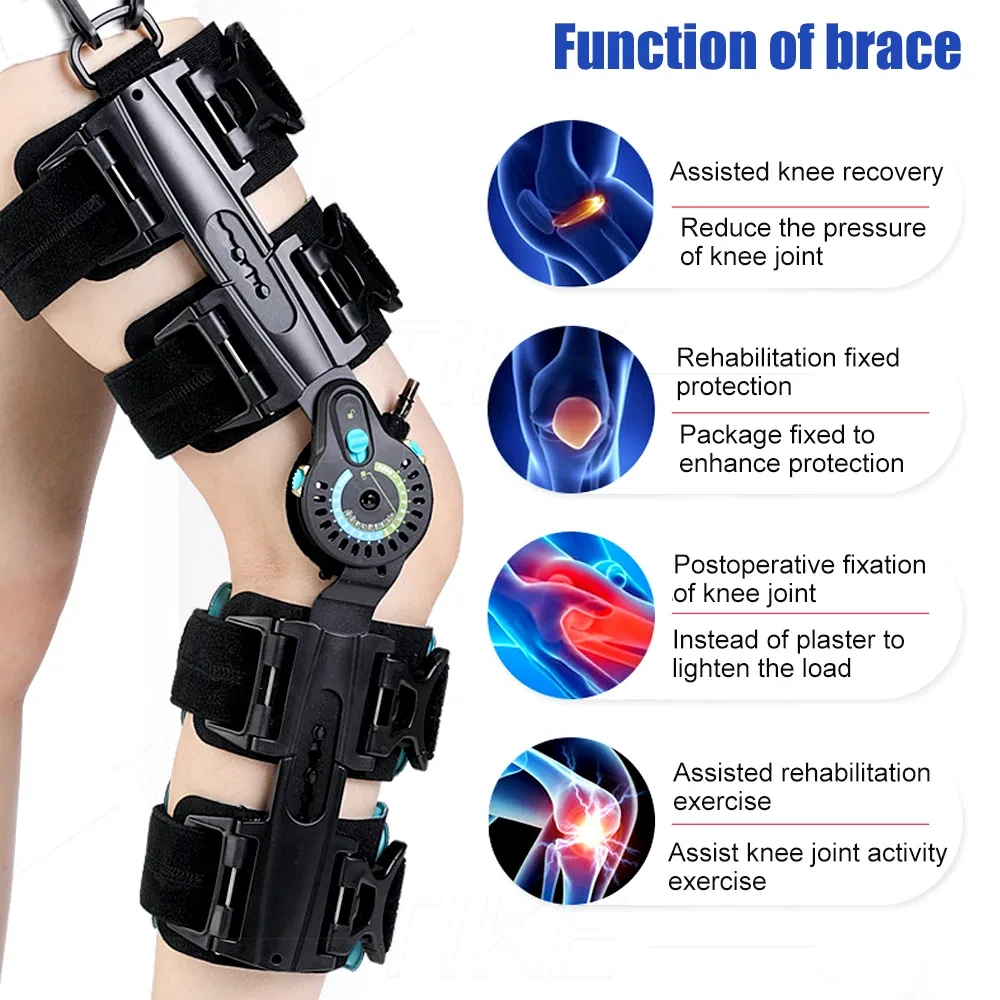

Indications (as directed by a clinician)

• Post-operative stabilization (ACL/PCL/MCL/LCL repairs)

• Meniscus procedures and osteotomy protection

• Patellar stabilization and recurrent instability management

• Controlled-motion support after fractures or sprains

• Chronic ligament laxity requiring external support


Sizing & Fit

• Universal/Left-Right: Fits either leg; choose standard or long length per clinician guidance.

• Range of Fit: Typically accommodates thigh 14–26 in (35–66 cm) and calf 12–22 in (30–56 cm); verify model chart.


How to Apply

1. Sit & Align: Center the hinges with the knee joint line; position uprights mid-thigh and mid-calf.

2. Set ROM: Adjust flexion/extension stops to the prescribed angles (or lock).

3. Secure Straps: Fasten in alternating sequence (proximal → distal) for balanced compression.

4. Check Motion: Stand and flex gently to confirm comfort and that the brace doesn’t migrate. Re-adjust as needed.


Care & Maintenance

• Hand-wash pads in cool water; air-dry.

• Wipe uprights/hinges with a damp cloth; keep sand/debris out of hinge dials.

• Inspect straps and buckles regularly; replace worn components promptly.


Safety Notes

• Use under medical guidance. Incorrect ROM settings or fit can delay healing.

• Do not overtighten; check skin for irritation or numbness.

• Remove for sleep only if approved; follow weight-bearing instructions from your clinician.


What’s Included

• Adjustable knee brace with bilateral ROM hinges

• Telescoping uprights (model dependent)

• Detachable, washable padding set

• Quick fit & ROM guide
