43-inch IPS Screen 1080p High-definition Industrial Endoscope 8m Handheld Camera

Product information:
Purpose: Automobile
Specification: 5 m hard wire
Size: 8mm wide

Packing list:

Instruction manual * 1
Packaging * 1
Single machine * 1
Line with lens * 1
Hook * 3
Charging cable * 1

Product Image:

4.3-Inch IPS 1080p Industrial Endoscope — 8 m Handheld Inspection Camera

See more, fix faster. This industrial endoscope pairs a bright 4.3-inch IPS display with a 1080p HD camera on an extra-long 8 m semi-rigid cable, giving you clear visuals deep inside pipes, walls, engines, and equipment—no phone or app required.

Key Features

4.3" IPS Color Screen
Wide-view IPS panel stays sharp and color-true from any angle, with anti-glare coating for indoor/outdoor use. Live view is immediate—no pairing or lag.

1080p HD Camera Head
High-resolution sensor captures fine detail for diagnostics and documentation. Optional photo/video recording to microSD (model-dependent).

8 m Semi-Rigid Probe
Extra reach for long conduit and duct runs. The semi-rigid design holds its shape to navigate bends while remaining push-friendly.

Adjustable LED Illumination
High-intensity ring LEDs with multi-level brightness cut through darkness and reduce glare in reflective spaces like metal pipes.

Waterproof Probe (IP67)
Camera head and cable withstand water, oil mist, and dust—ideal for automotive, HVAC, plumbing, and industrial maintenance.

One-Handed Controls
Tactile buttons for LED dimming, image flip/rotate, capture, and playback. Hook/magnet/mirror accessories help retrieve or view around corners (kit-dependent).

Standalone, Rechargeable
Built-in lithium battery powers hours of field work; recharge via USB. No phone, Wi-Fi, or apps needed—reliable in RF-noisy sites.

Benefits

• Diagnose quickly: 1080p detail exposes cracks, corrosion, blockages, and wear patterns.

• Reach farther: 8 m cable accesses long vertical stacks, wall cavities, and tanks.

• Work anywhere: Bright IPS screen + onboard power means true grab-and-go.

• Reduce tear-downs: Inspect before disassembly to save time and parts.

• Document easily: (If equipped) record stills/video for reports and customer sign-off.


Typical Applications

• Plumbing & HVAC: Drain/vent inspections, exchanger coils, ducting.

• Automotive & Marine: Cylinder/valve viewing, wiring routes, bilge checks.

• Electrical & Construction: Wall/ceiling cavities, conduit, junction boxes.

• Industrial MRO: Gearboxes, tanks, machinery guards, production lines.

• Home Inspection: Roof voids, crawlspaces, appliance internals.


Specifications (may vary by model)

• Display: 4.3" IPS color LCD

• Resolution: 1080p HD sensor (photo/video capture on microSD, optional)

• Probe Length: 8 m semi-rigid; Diameter: ~5.5–8 mm camera head

• Illumination: 6–8× adjustable LEDs at camera head

• Water/Dust Rating: IP67 probe/camera (monitor body splash-resistant)

• Focus/DOF: Close-focus macro, typical DOF ~3–10 cm (with wider range model-dependent)

• Power: Rechargeable Li-ion; USB charging; 3–6 h typical runtime

• Functions: Image rotate/flip, brightness, capture/playback (if equipped), menu OSD

• Accessories: Hook, magnet, side-view mirror, protective cap (kit-dependent)

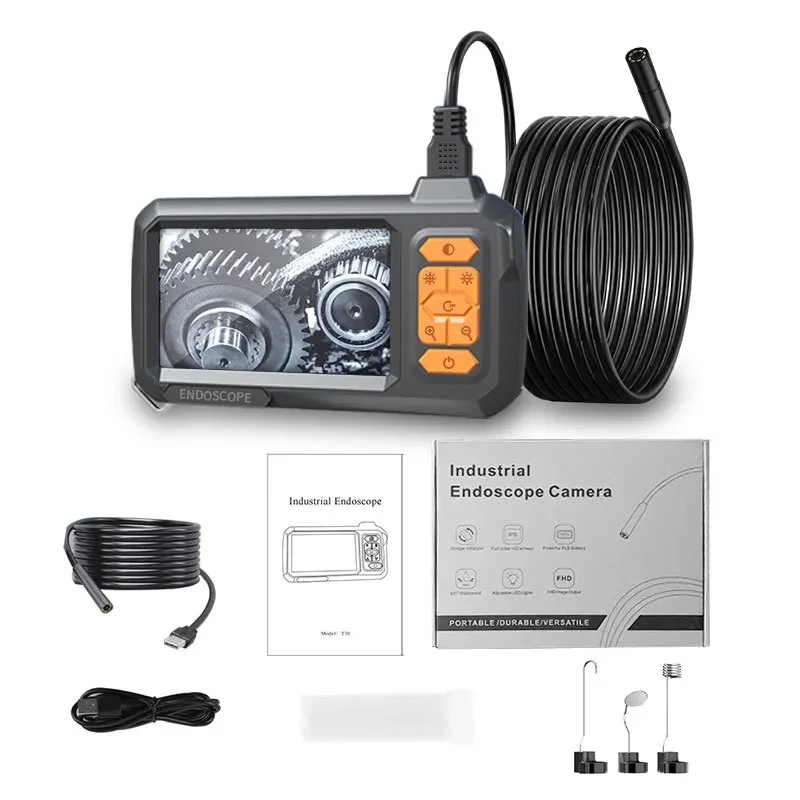

What’s in the Box

• Handheld endoscope monitor with 4.3" IPS screen

• 8 m waterproof camera probe

• USB charging cable

• Accessory set (hook/magnet/mirror)

• User guide (and microSD card if included)


Tips for Best Results

• Start with low LED brightness to minimize glare in shiny pipes, then raise as needed.

• Use the side-view mirror attachment to inspect lateral walls.

• Keep the lens clean; wipe with a soft cloth after oily environments.

• Coil the probe loosely after use to protect the semi-rigid spine.


Why Choose This Endoscope

You get long-reach access, a clear IPS display, and true 1080p clarity in a self-contained tool that’s ready the moment you arrive—ideal for professionals who need reliable, detailed inspection without the hassle of phones or fragile tethers.
