Origin: Mainland China
is_customized: Yes
Number of Contacts: Other
Certification: CE
Certification: RoHS
Conductor Size: Other
Model Number: D-ST2.5-QU D-ST 2.5-QU
Usage: Distribution Cabinet
Application: Electrical wiring conductor
Mount Type: Direct mounting
DESCRIPTION

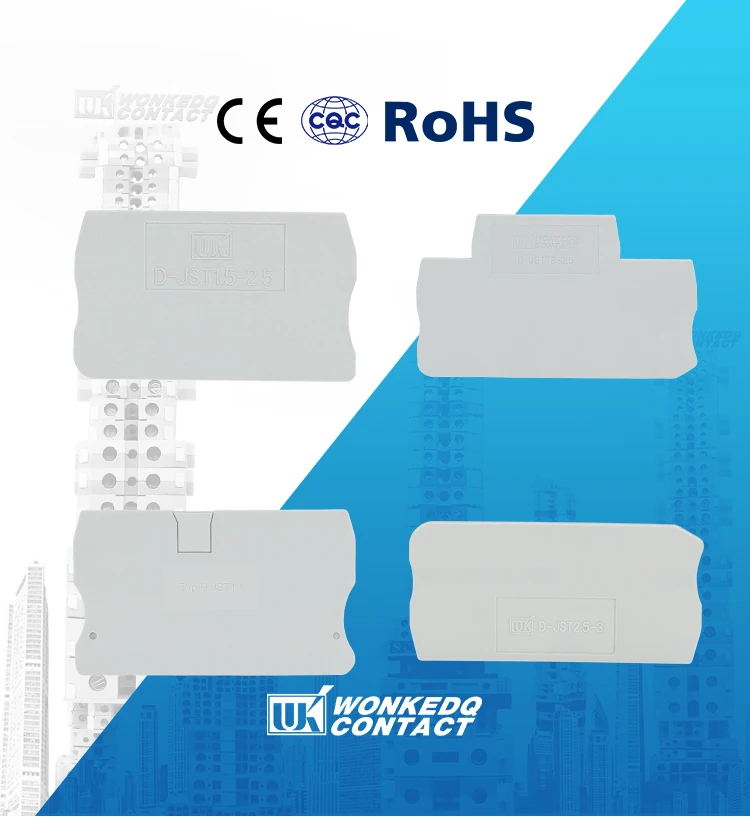

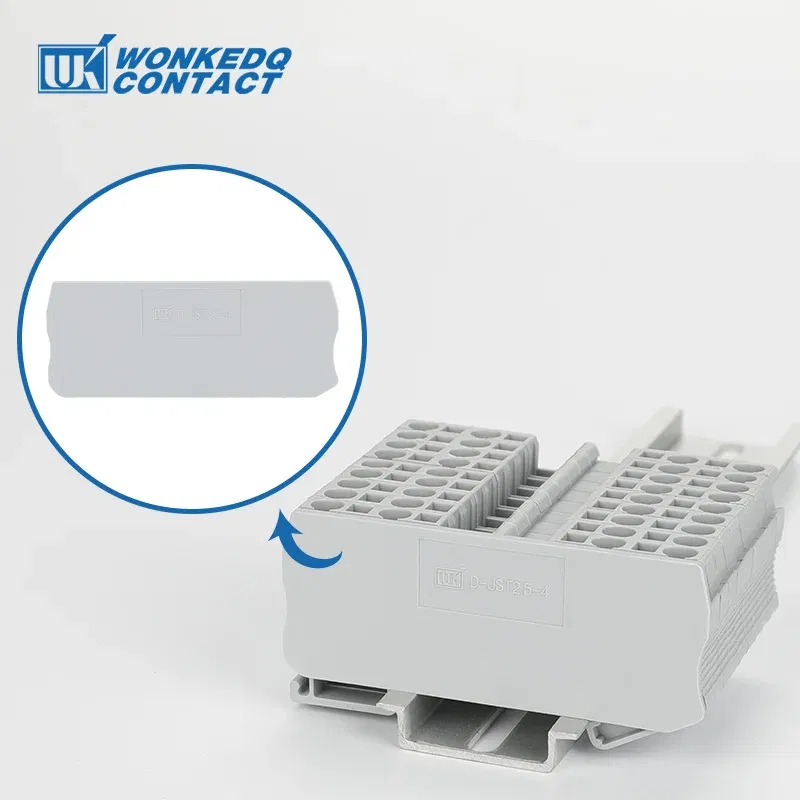

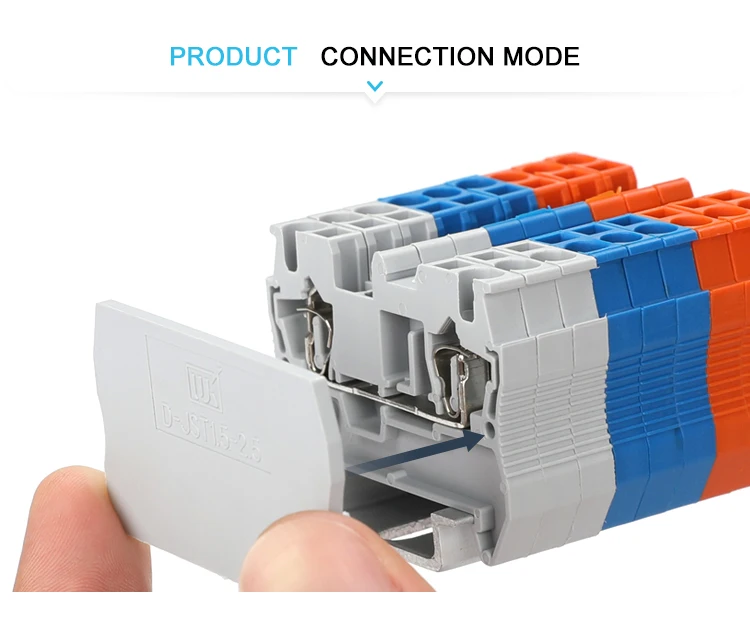

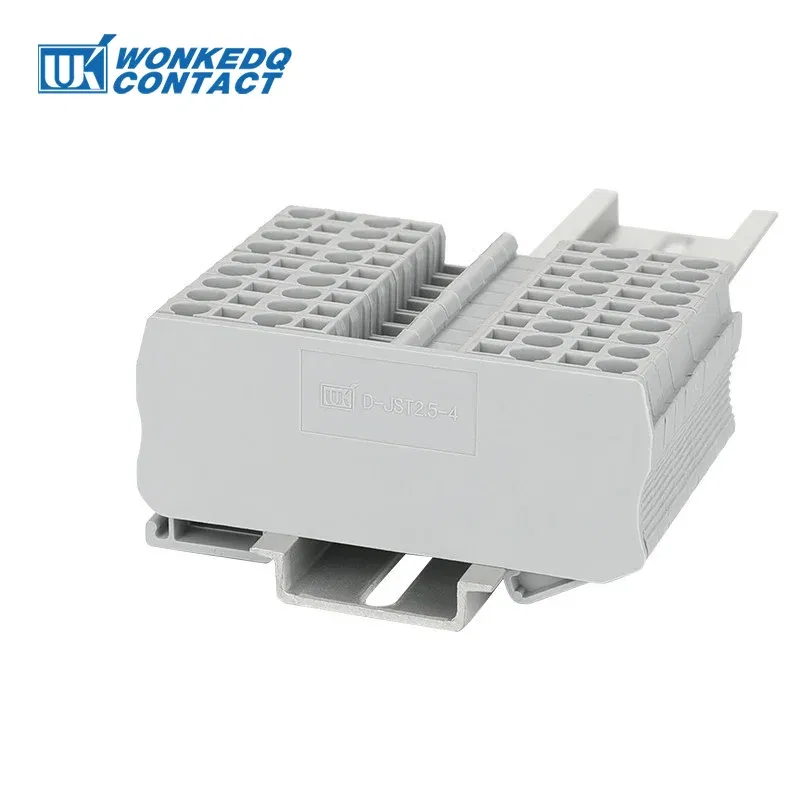

End Cover/plate for ST Series DIN rail terminal blocks, detail as below:
Type No. | Details | Suit for |
D-ST 2.5-QU | L72/H29.5/W2.2 mm | ST 2.5-QU, PT 2.5-QU |
TECHNICAL PARAMETERS
Terminal Blocks Model No. | End Cover Model No. | Dimension(mm) |
ST 1.5 | D-ST 1.5-2.5 | 49.2x30x2.2 |
ST 2.5 | ||
ST 4 | D-ST 4 | 56.5x30x2.2 |
ST 6 | D-ST 6 | 70x36.6x2.2 |
ST 10 | D-ST 10 | 71.5x43x2.3 |
ST 2.5-TW | D-ST2.5-TW | 61x29.5x2.2 |
ST 2.5-QU | D-ST2.5-QU | 72x29.5x2.2 |
ST 4-QU | D-ST4-QU | 87.5x30x2.2 |
STTB 2.5 | D-STTB 2.5 | 68x40x2.2 |
ST 2.5-3L | D-ST2.5-3L | 99x51x2.2 |
Terminal Blocks Model No. | End Cover Model No. | Dimension |
PT 1.5 | D-PT 1.5 | L54.5/H24.6/W2.2mm |
PT 2.5 | D-ST 2.5 | L49.2/H30/W2.2 mm |
PT 4 | D-ST4 | L56.5/H30/W2.2 mm |
PT 6 | D-PT6 | L57.7/H36/W2.2 mm |
PT10 | D-ST 10 | L71.5/H43/W2.3 mm |
PT2.5-TW | D-ST2.5-TW | L61/H29.5/W2.2 mm |
PT 2.5-QU | D-ST2.5-QU | L72/H29.5/W2.2 mm |
PT 4-TW | D-PT 4-TW | L77H29/W2.2mm |
PT 4-QU | D-PT4-QU | L56/H29/W2.2mm |
PTTB 2.5 | D-PTTB 2.5 | L68.8/H40/W2.2mm |
PT 2.5-3L | D-PT2.5-3L | L103/H51/W2 mm |
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
