2 Beam 150 M Infrared Detector Infrared Anti-theft Alarm

Product information:
Detection angle: Shooting
Scope of Application: Warehouse community shopping mall Villa wall
Operating voltage: 12
Detection distance: 30-150
Communication method: Wired
Operating temperature:-25-55
Static current: 3

2-Beam 150 m Infrared Detector — Active IR Anti-Theft Perimeter Alarm

Build a reliable invisible fence for long driveways, fences, rooftops, and compound walls with this 2-beam active infrared detector. A synchronized transmitter/receiver pair creates two parallel IR beams up to 150 m (outdoor) or longer indoor LOS, triggering an alarm the moment both beams are interrupted—reducing false alarms from birds, leaves, or light rain.

Key Features

• Long-Range Protection (150 m Outdoor)
  Dual active IR beams maintain stable links across yards, carparks, and site perimeters; extended ranges indoors.

• Dual-Beam AND Logic
  Alarm trips only when both beams are broken, filtering small objects and improving immunity to environmental noise.

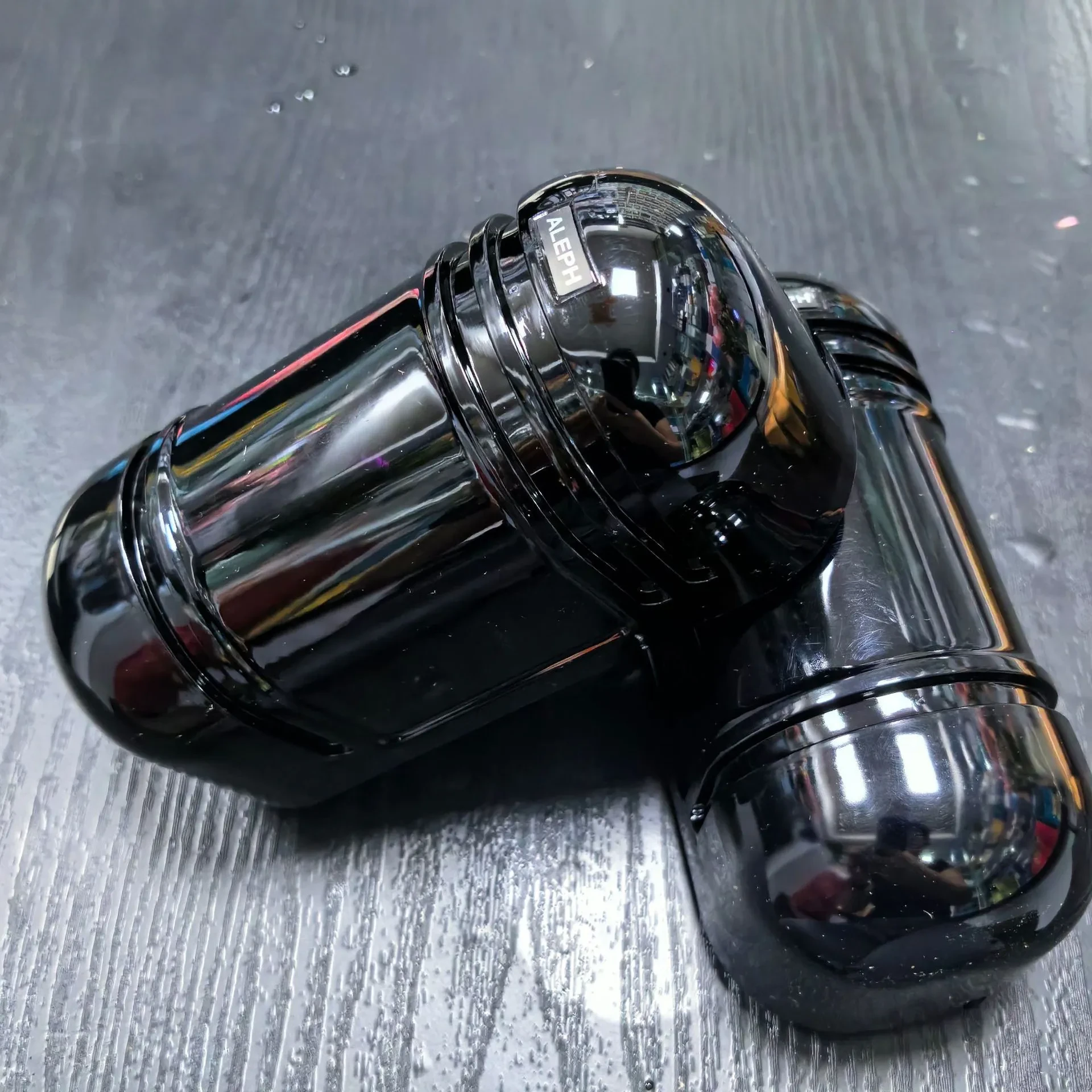

• Weather-Tough Housing (IP65-class)
  Sealed, UV-resistant covers with anti-fog channels and hooded apertures for rain, dust, and sun protection.

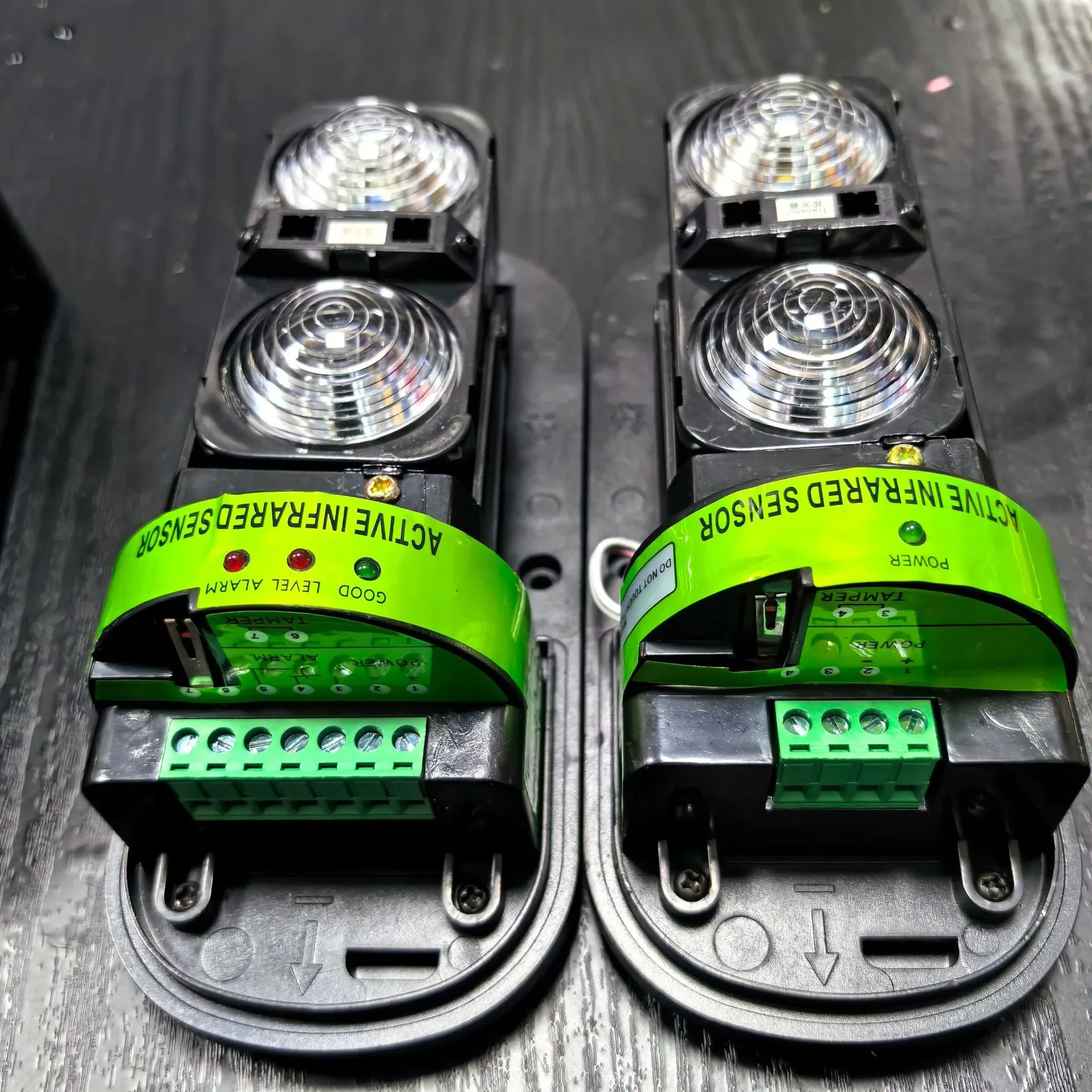

• Precise Optical Alignment
  Internal optical scopes/LED indicators and ±10–15° horizontal & vertical adjustment make aiming fast and accurate; alignment tone on many models.

• Selectable Response Time
  Adjustable alarm delay (e.g., 50–700 ms) to ignore brief obstructions and reduce nuisance triggers.

• Tamper & Fault Outputs
  Cover-open tamper switch and signal-loss fault tie into your panel for maintenance alerts.

• Universal Alarm Integration
  NC/NO relay output interfaces with burglary panels, sirens, GSM/4G dialers, access systems, or CCTV for PTZ presets.

• Heater/Anti-frost (Optional)
  Low-temp heater kit for winter climates; wide operating temperature range.


Specifications (typical; may vary by model)

• Type: Active infrared dual-beam, synchronized

• Range: Up to 150 m outdoor (≈492 ft); farther indoors

• Power: 12–24 V DC (±10%)

• Current: ~60–120 mA per head (heater adds draw)

• Outputs: Alarm relay NC/NO, 30 VDC/0.5 A; Tamper NC

• Response: Adjustable pulse/response time

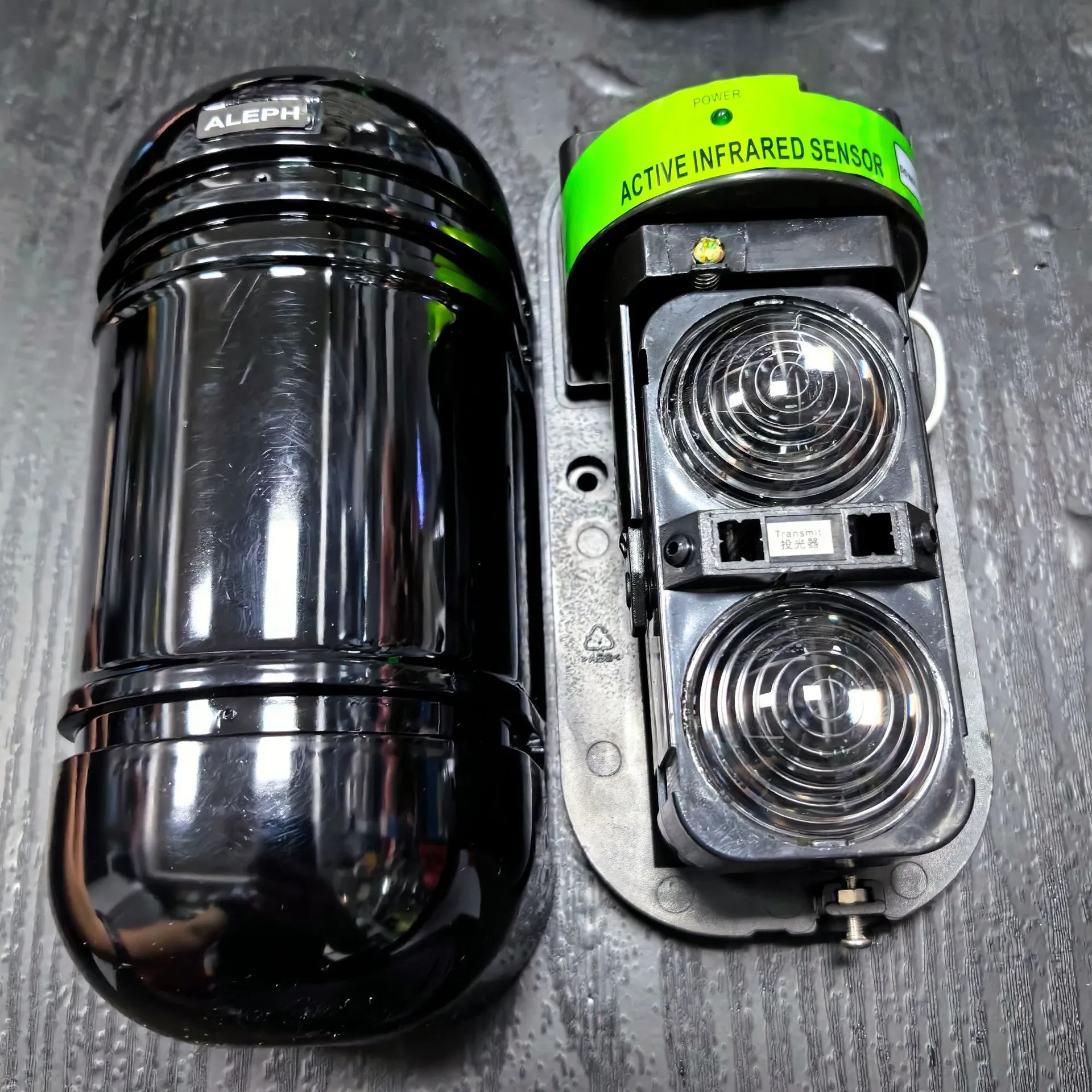

• Alignment: Optical viewer + LED/buzzer; 3-axis bracket or internal gimbals

• Housing: IP65-rated, UV-stabilized polycarbonate; smoked lens window

• Temperature: −25 °C to +55 °C (heater option for lower)

• Size: Slim tower-mount or wall-mount enclosure


Installation Guidance

1. Plan the line-of-sight: Mount transmitter and receiver at the same height (≈0.8–1.2 m for perimeter) on rigid posts or walls.

2. Avoid obstructions: Keep branches, banners, and reflective surfaces out of the path; allow for seasonal foliage.

3. Power & wire: Feed 12–24 V DC to both heads; run alarm/tamper lines back to your panel.

4. Align: Use the built-in scope/LED/buzzer; tweak vertical/horizontal angles for peak signal.

5. Set response delay: Choose a value that ignores brief passes but catches intrusions.

6. Test: Walk-test at several points; verify panel zones, siren, and notifications.


Best Practices

• Use dual-beam towers every corner; stagger heights or add additional beams in high-risk corridors.

• For long spans or harsh environments, consider adding sunshades and enabling heater/defog.

• Pair with CCTV to auto-call up cameras on alarm.

• Perform seasonal checks: clean lenses, trim foliage, re-verify alignment.

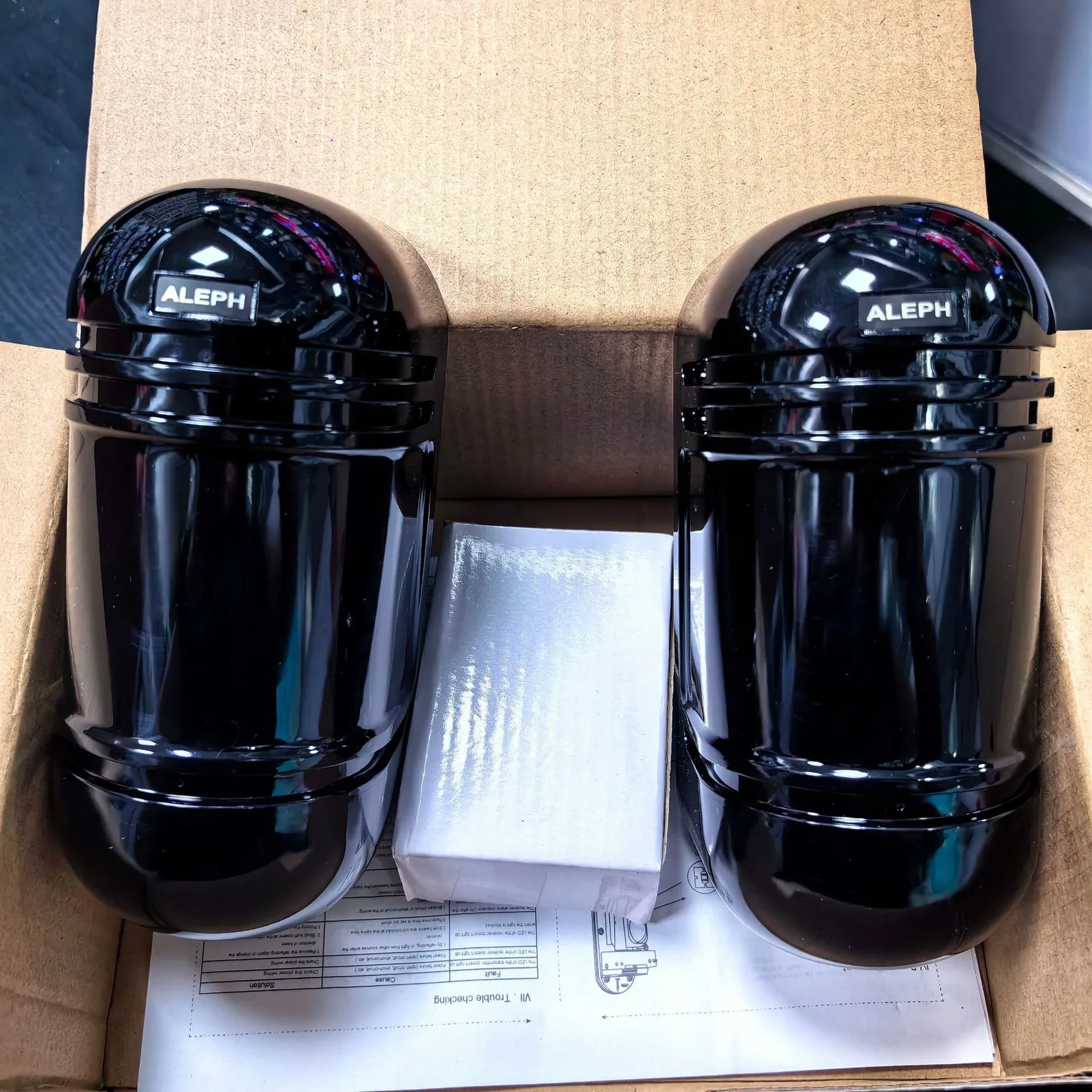

What’s in the Box

• 1× IR transmitter head

• 1× IR receiver head

• Mounting hardware & gaskets

• Quick alignment/installation guide


Why Choose This Detector

You get long-range, low-false-alarm perimeter security in a robust, installer-friendly package. The 2-beam 150 m design filters noise, integrates with any standard alarm panel, and stands up to weather—delivering dependable anti-theft detection day and night.
