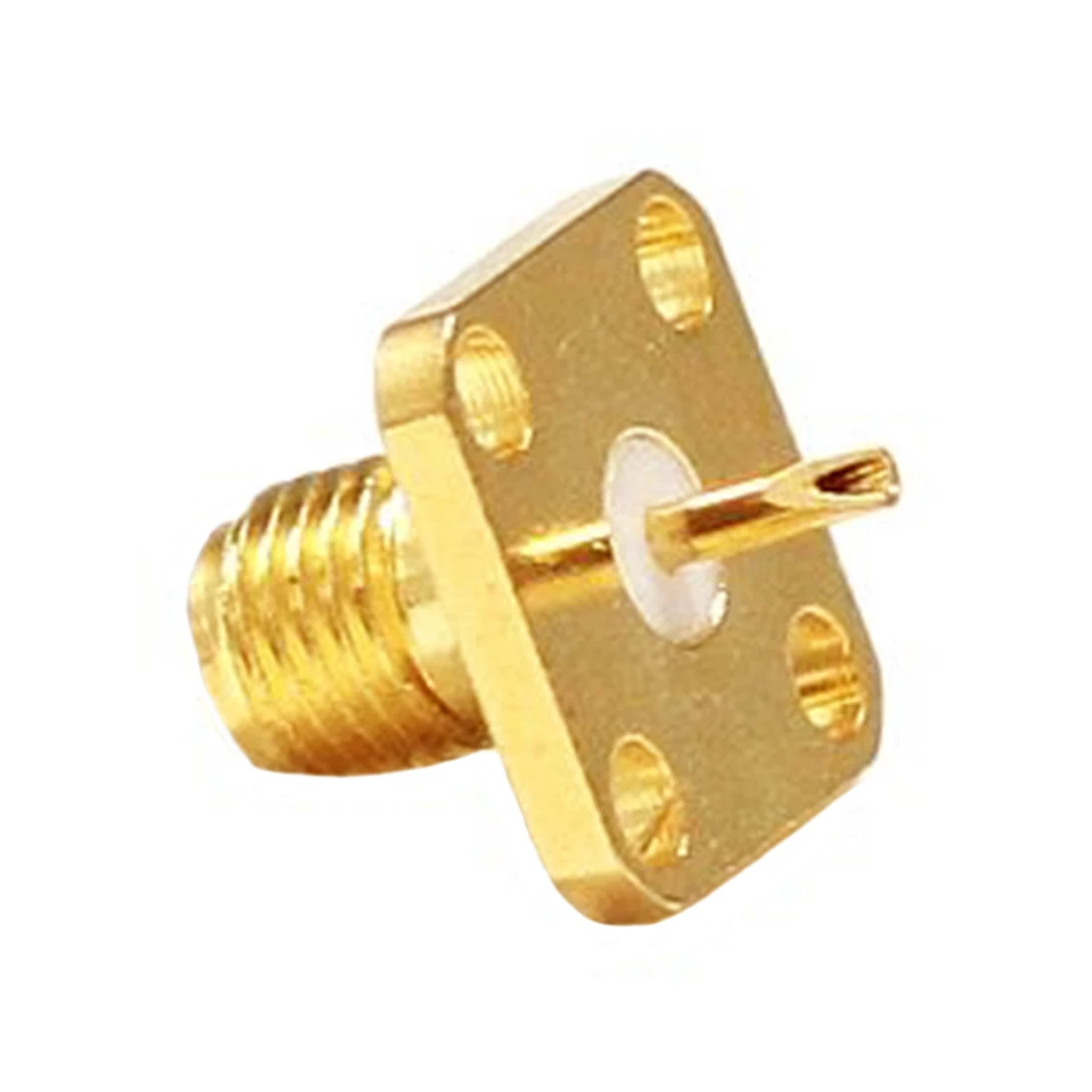

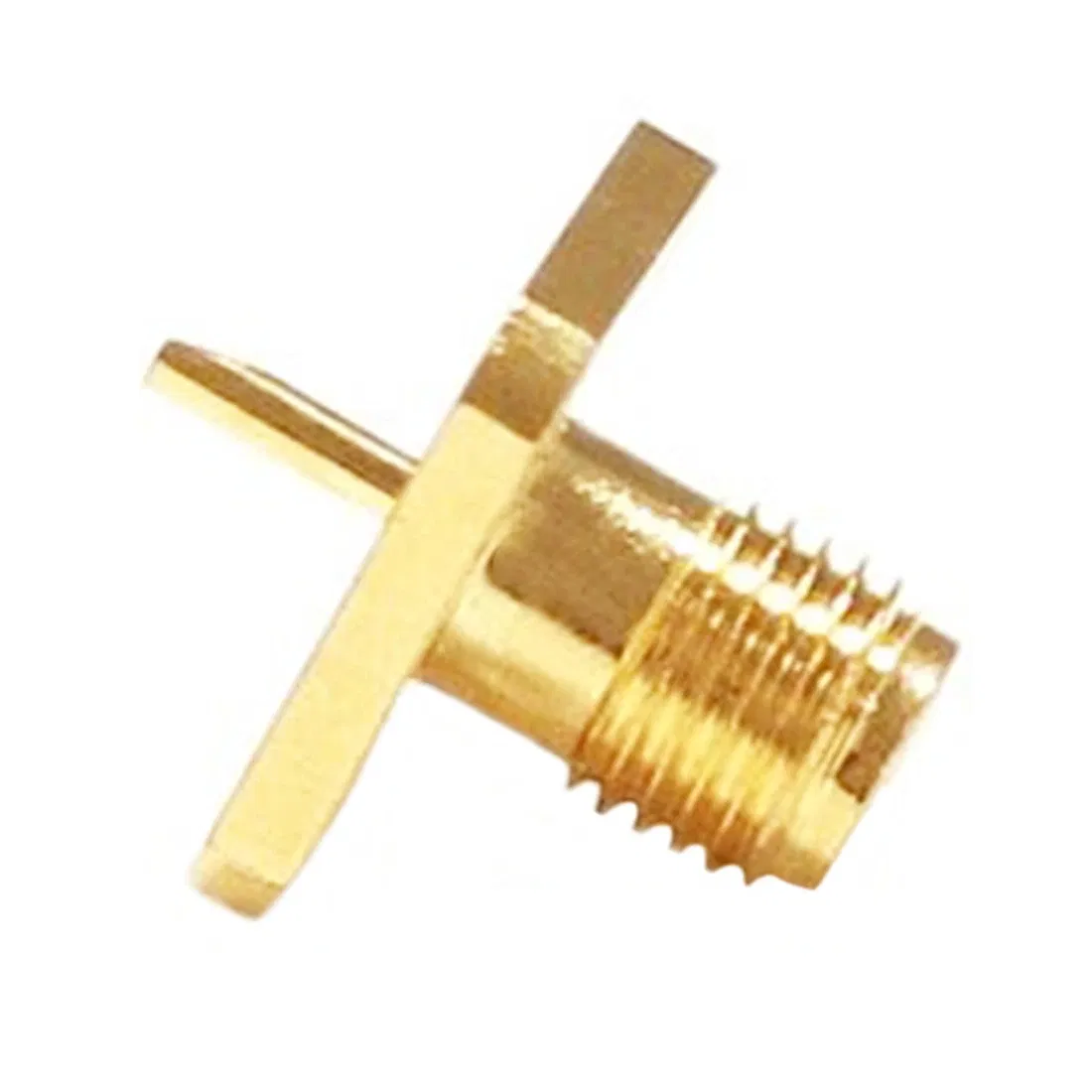

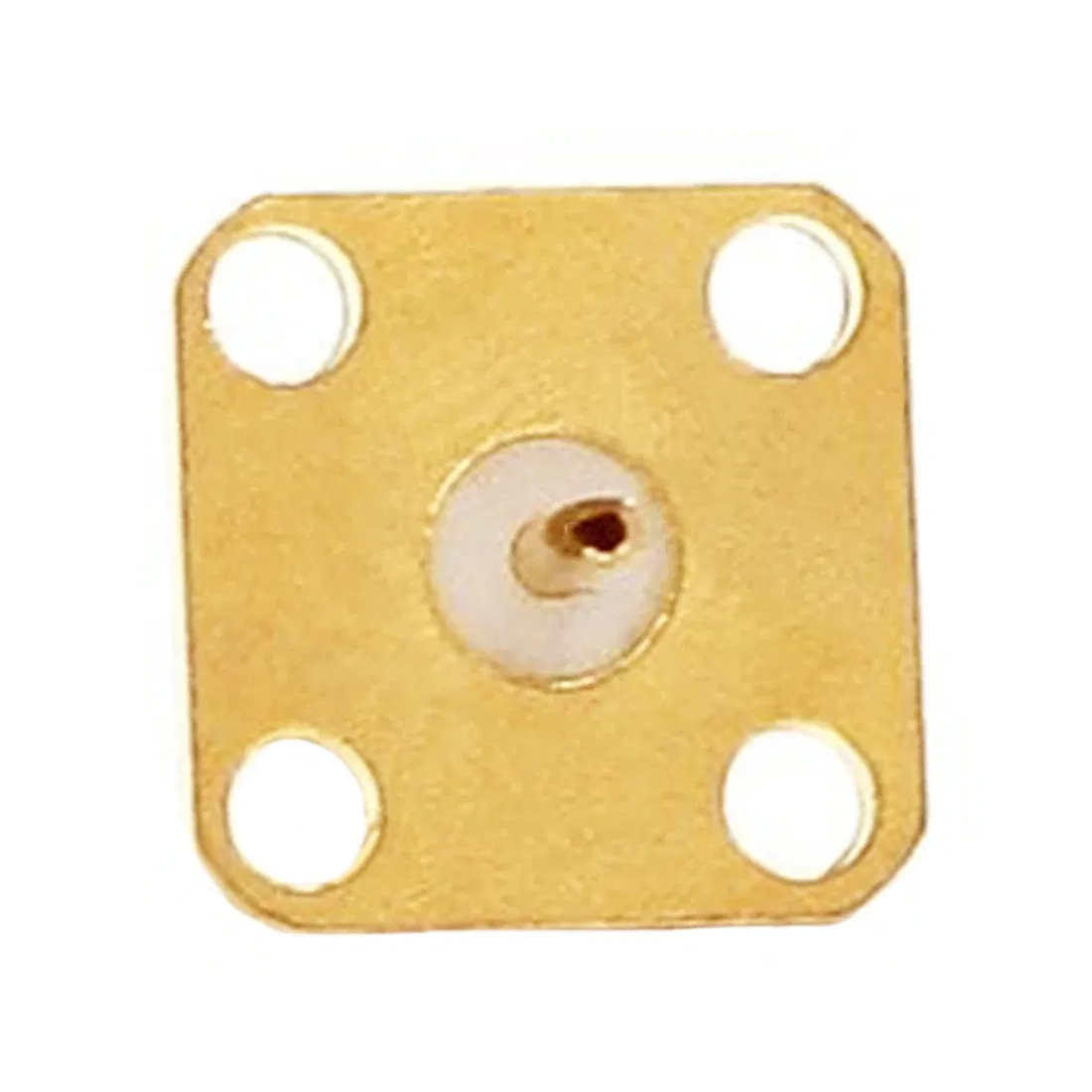

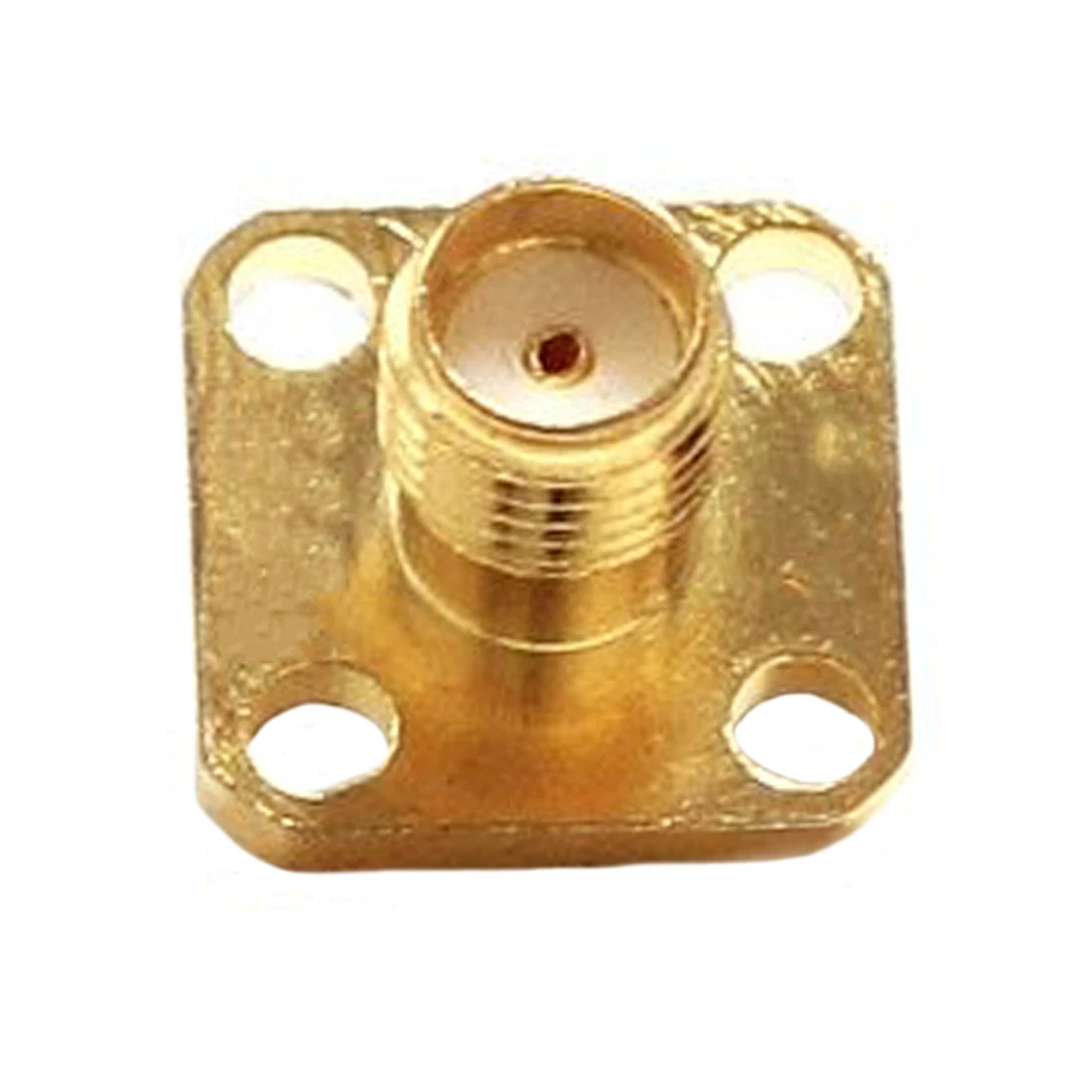

1pc SMA Female Chassis Jack 4-Hole Panel Mount Flange RF Connector With Solder Cup Welding Terminal Wholesale Fast Shipping
Model Number: SMA panel connector
Voltage: 24V
Certification: CE
Plating: Goldplated
Gender: female jack
Style: 4-hole panel mount with solder cup
Place of Origin: Guangdong, China (Mainland)
Material: Brass
Impedance: 50 Ohm
is_customized: Yes
Choice: yes
semi_Choice: yes
SMA Female Chassis Panel Mount 4-hole RF Connector with Solder Cup Soldering Terminal Wholesale Fast Shipping
Buy 10PCS of this Connector at a wholesale price
SMA connectorseries product is a widely used small coaxial connectors with threaded connections. The SMA series inch threaded connections, high strength, good shock resistance. The outer conductor ends in direct contact, so that the insertion loss to a minimum.
Applications
1.Antennas
2.Broadcast
3.radios
4.Electronic test equipment
5.Serial digital and Analog interface
6,Non-professional radio antenna connections
50Ω Specifications
Electrical | ||||
Impedance | 50 Ω | |||
Frequency Range | 0-4 GHz with low reflection | |||
Voltage Rating | 500 volts peak | |||
Dielectric Withstanding Voltage | 1,500 volts rms | |||
VSWR | M39012 straight connectors: 1.3 max 0-4 GHz M39012 right angle connectors: 1.35 max 0-4 GHz | |||
MIL-C-39012 Contact Resistance | Center contact: ≤3mΩ; Outer contact: ≤2mΩ | |||
MIL-C-39012 Insulation Resistance | 5,000 MΩ | |||
Durability | 500Â Cycles | |||
APPLICABLE STANDARD |
| |||
Material | ||||
Contact | Brass,goldplated | |||
Insulator | PTFE | |||
Crimp Ferrule | Copper/brass | |||
Environmental | ||||
Temperature Range | TFE insulators: - 65°C to + 165 °C Copolymer of Styrene: - 55°C to + 85°C | |||
Note: These characteristics are typical but may not apply to all connectors.
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
