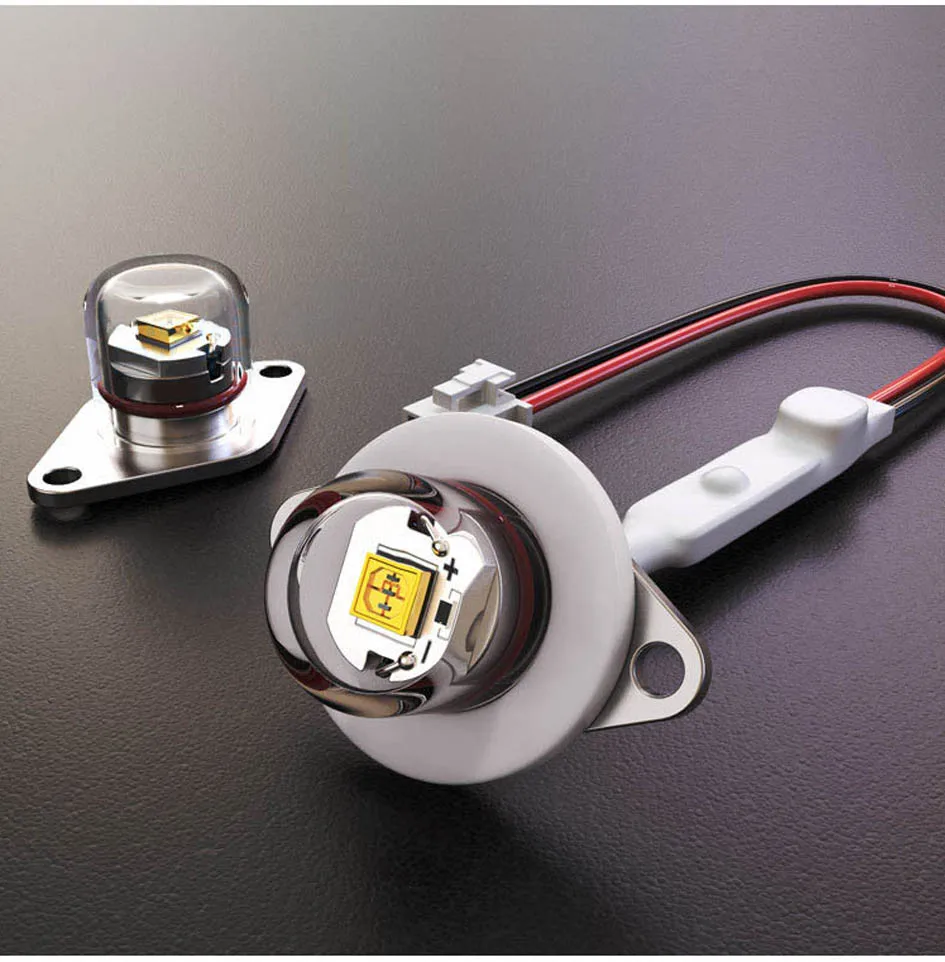

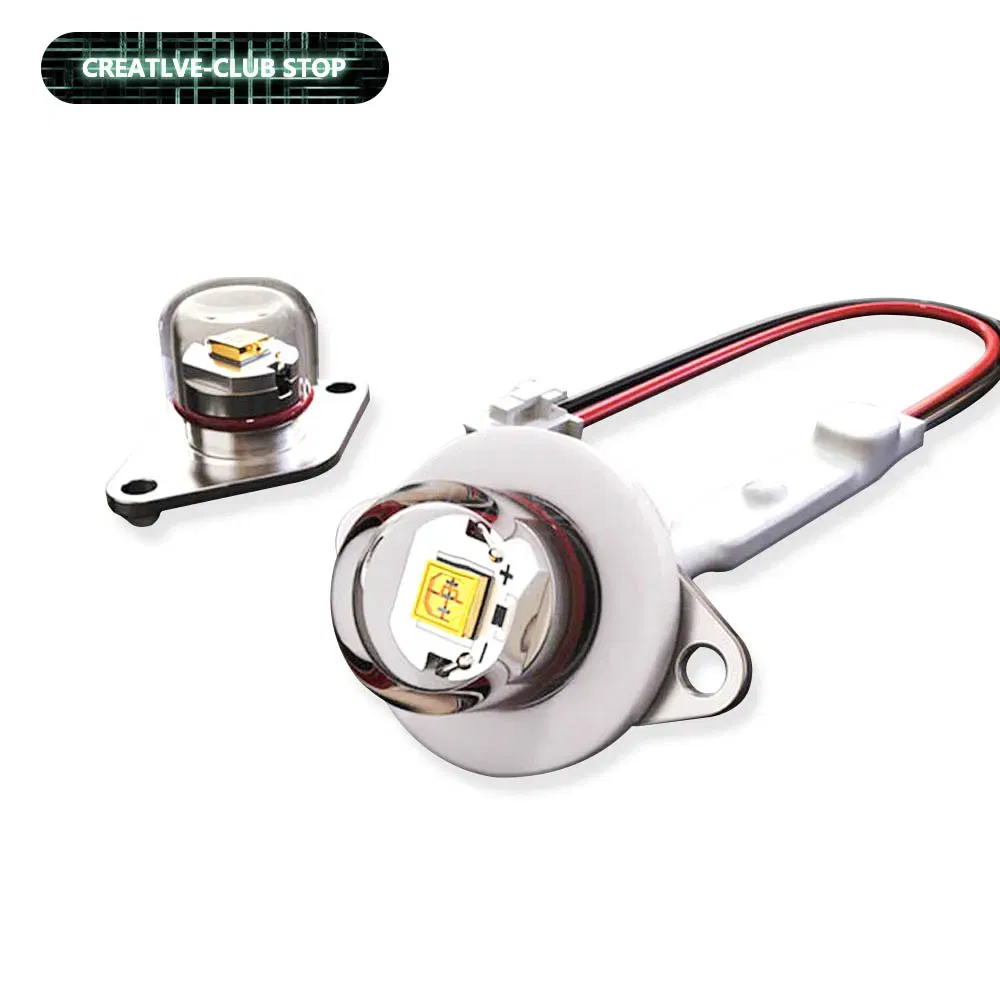

Wattage: 1w - High Quality Deep UV LED Ultraviolet Lamps 270nm 275nm 280nm UVC 12V 24V For Water Purification Disinfection Sterilization DIY
Certification: CCC
Certification: ce
Certification: CQC
Certification: ROHS
Color Temp(K): 100000
Luminous Flux: 4-8mW
Features: Sterilization
Item Type: Ultraviolet lamps
Warranty: 3years
Voltage: 24V
Average Life (hrs): 10000H

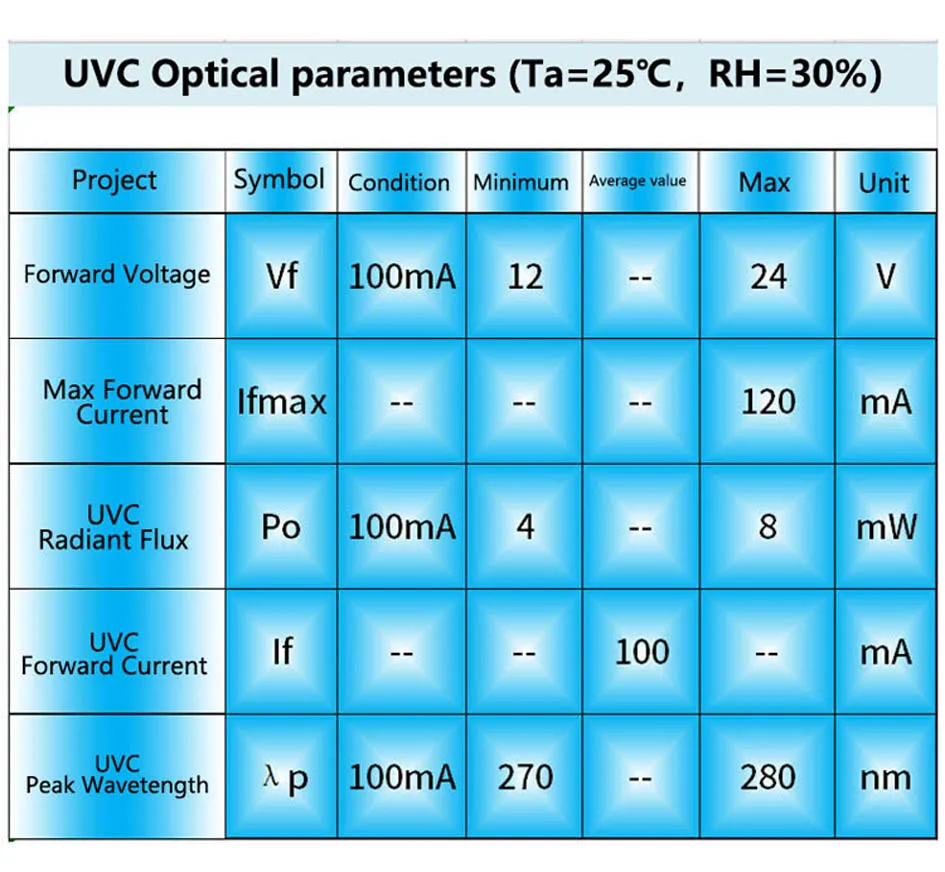

Forward Voltage: DC12-24V
UVC Forward Current: 100mA
UVC Radiant Flux: 8mW
UVC Peak Wavetength: 270-280nm
Disinfection band: 270-280nm
Scenes to be used: Disinfection of water dispenser humidifier

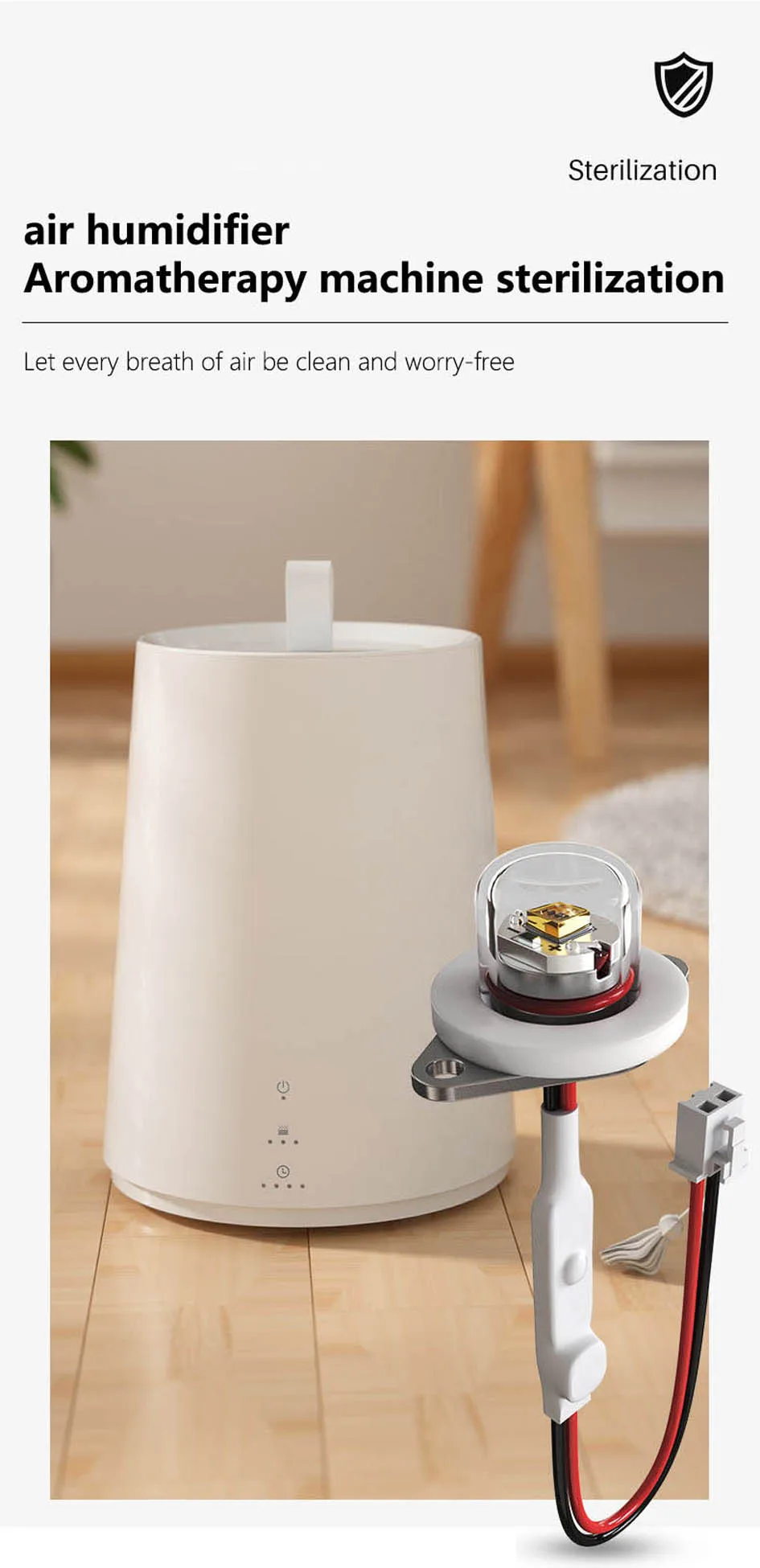

Application place 1: Air humidifier disinfection module

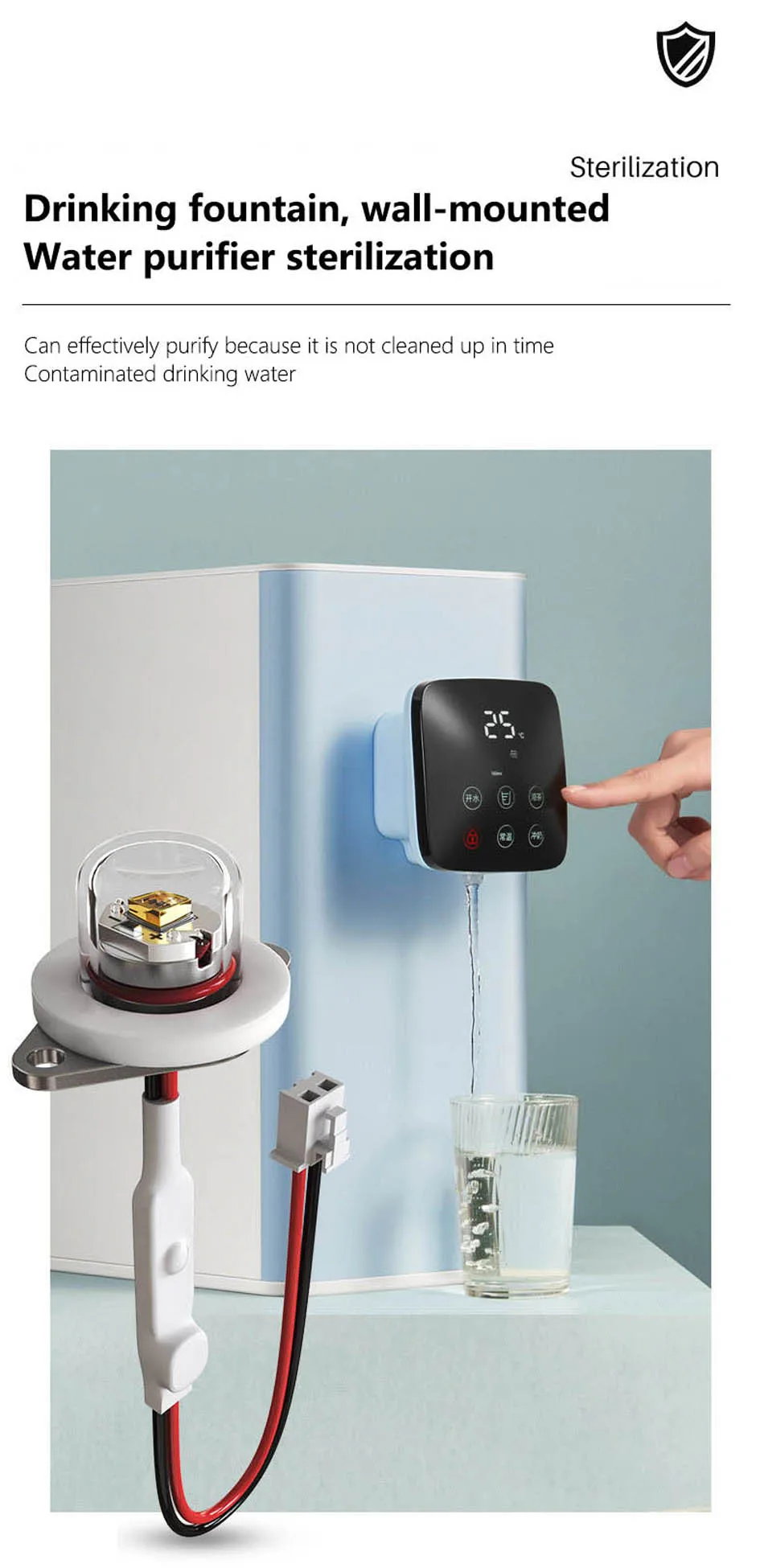

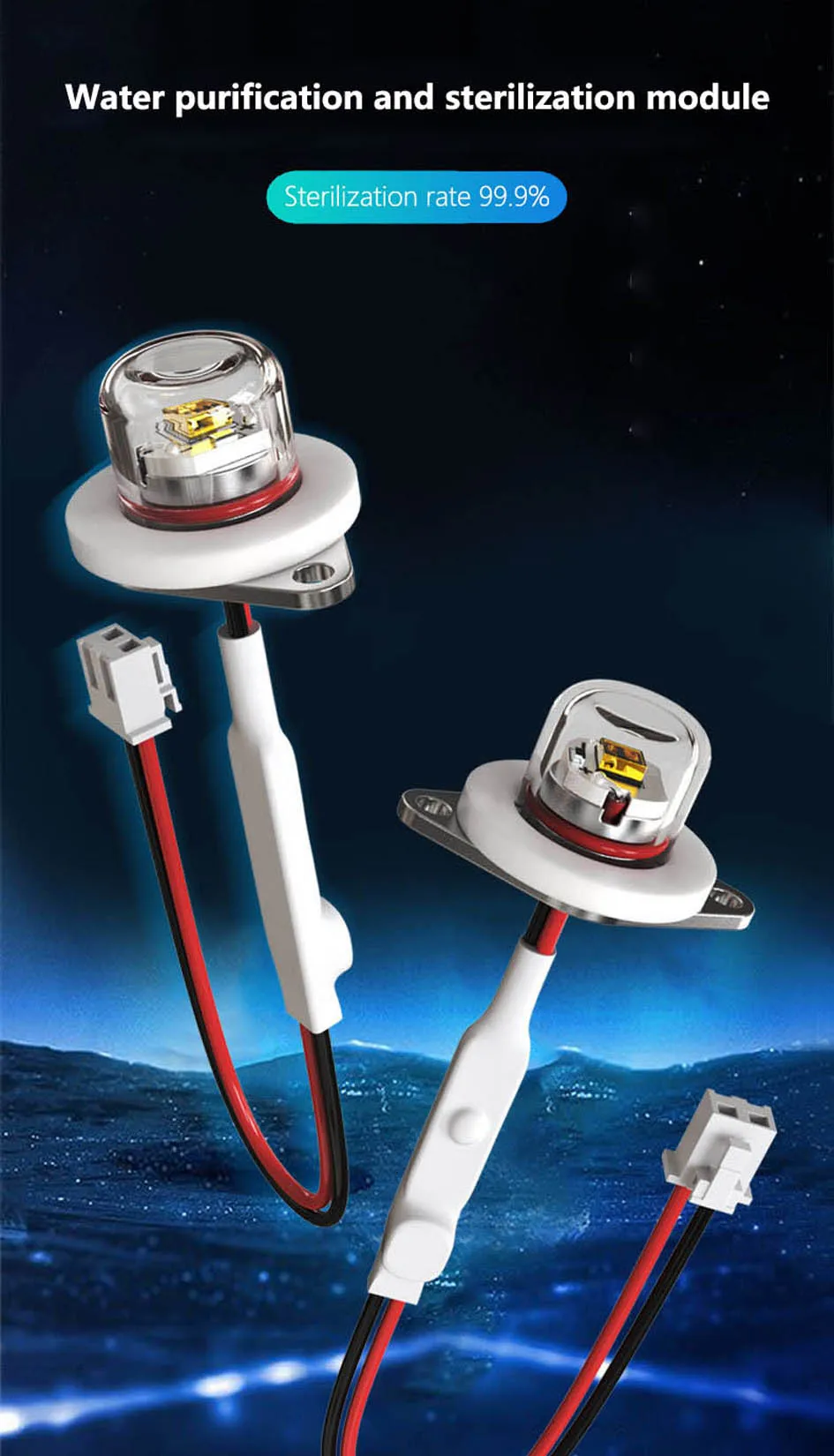

Application place 2: UVC ultraviolet water purifier sterilization

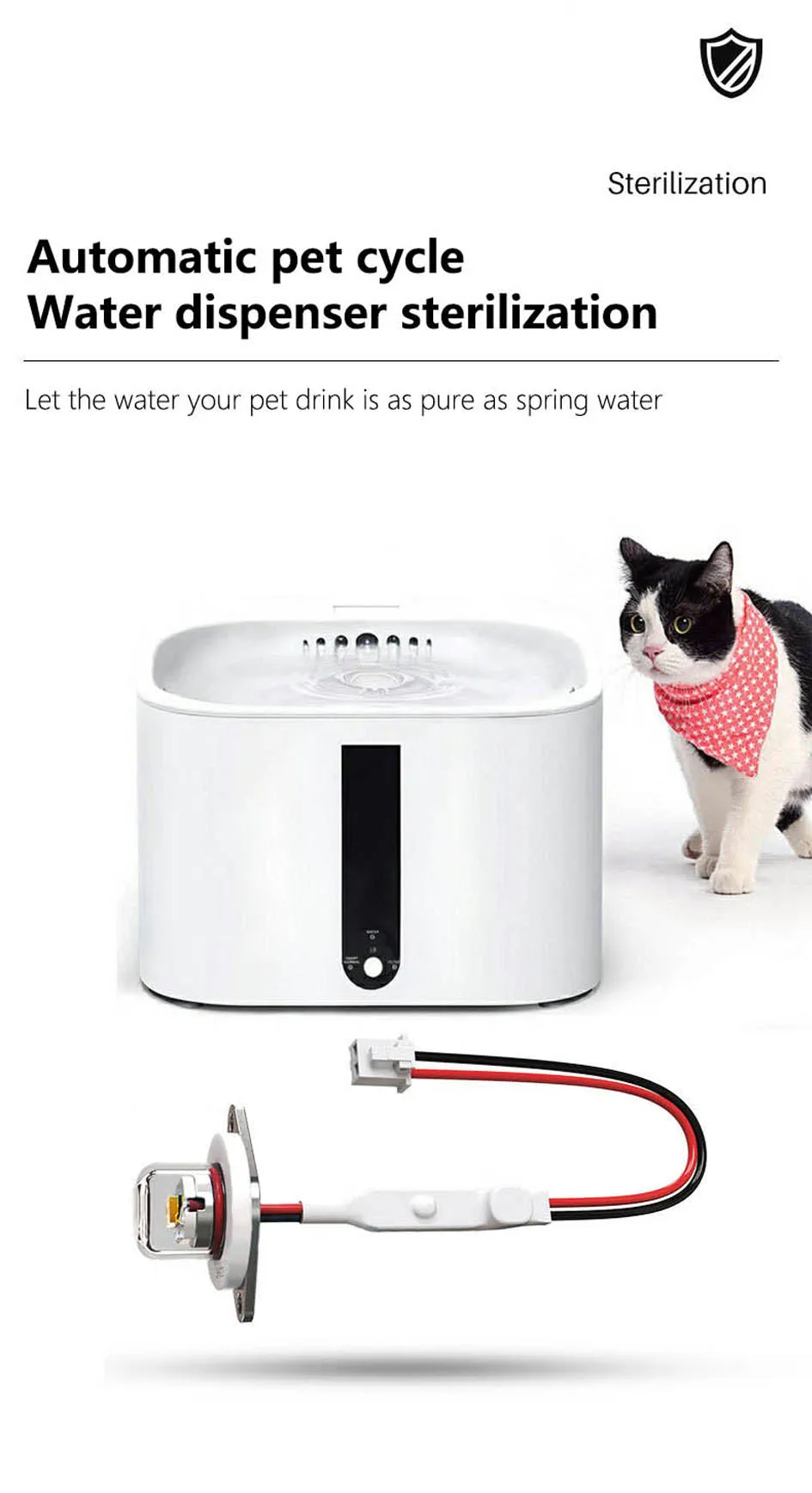

Application place 3: LED disinfection module for pet water dispenser
Application place 4: uv lamp for water
Application place 5: 280nm uv
Application place 6: isdt k4
Application place 7: uvc led waterproof
Drive input voltage: AC180-220V
Reliability parameter
1. Module input power: 0.8 ± 10% W UVC working current: 100 ± 10mA
2. Ultraviolet light power test: using an ultraviolet integrating sphere, the
ultraviolet light power output is not less than 4 mW.
3. Ultraviolet wavelength range test: 270nm-280nm
4. Sterilization efficiency: continuous irradiation [water tank capacity
(L) *20] min, E. coli inactivation rate ≥99.9%
Antibacterial efficiency: Irradiation per hour [water tank capacity (L) *5] min
natural colony <50cfu/ml (within 200h)
5. Life test: input 100mA current at normal temperature
LED works continuously for 10000 hours, power attenuation ≤50%
no abnormal phenomena in other performance
6.High and low temperature test: the product can work reliably within
the temperature range of 30°C~60°C;
The product can be reliably stored in the temperature range of
-30°C ~ 100°C. (Ambient temperature for use: ≤60°C)
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
