Video Transmitter 2W VTX-1G3TE 1.2GHz 1.3GHz 2000mW 9CH With Tramp VTX Control For FPV Long Range Drones
Is Electric: No battery
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
RC Parts & Accs: 2W Transmitter
Size: AN
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: VTX
Remote Control Peripherals/Devices: Remote Controller
Tool Supplies: Assembly Category
Quantity: 1 pcs
Technical parameters: KV1100
Model Number: Video Transmitter 2W VTX-1G3TE
Four-wheel Drive Attributes: Assemblage
Wheelbase: Bottom Plate
Choice: yes

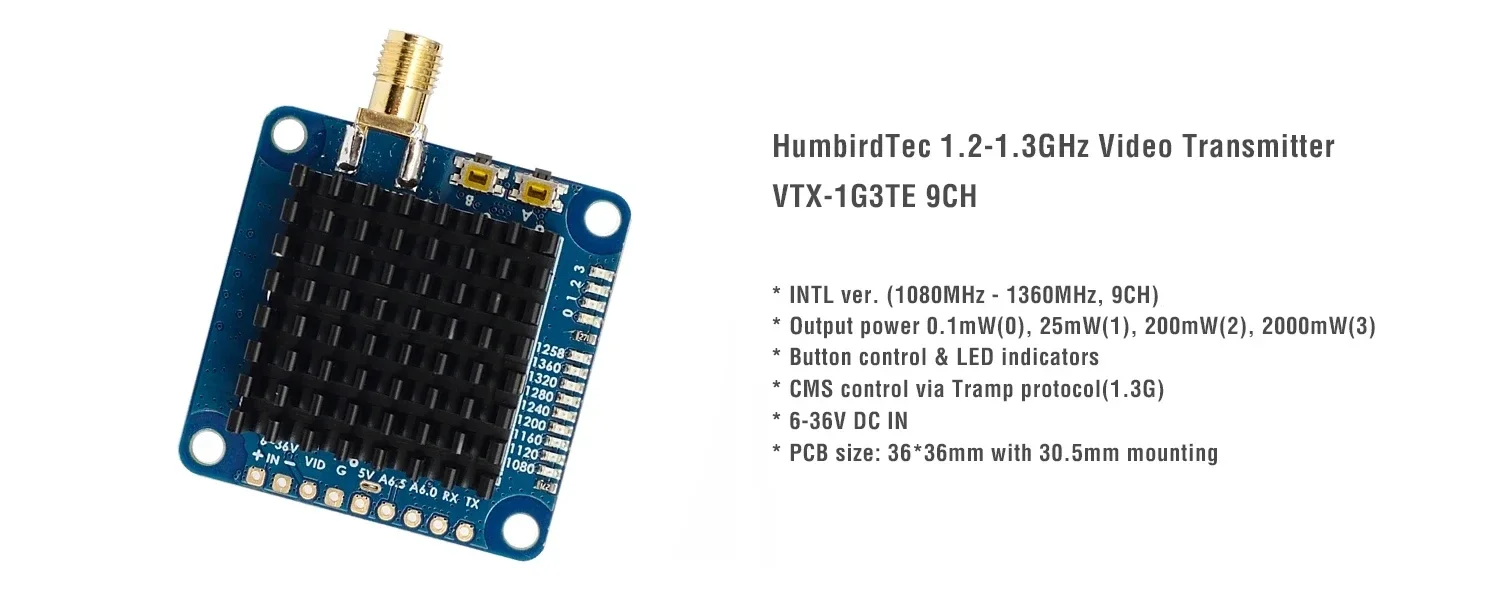

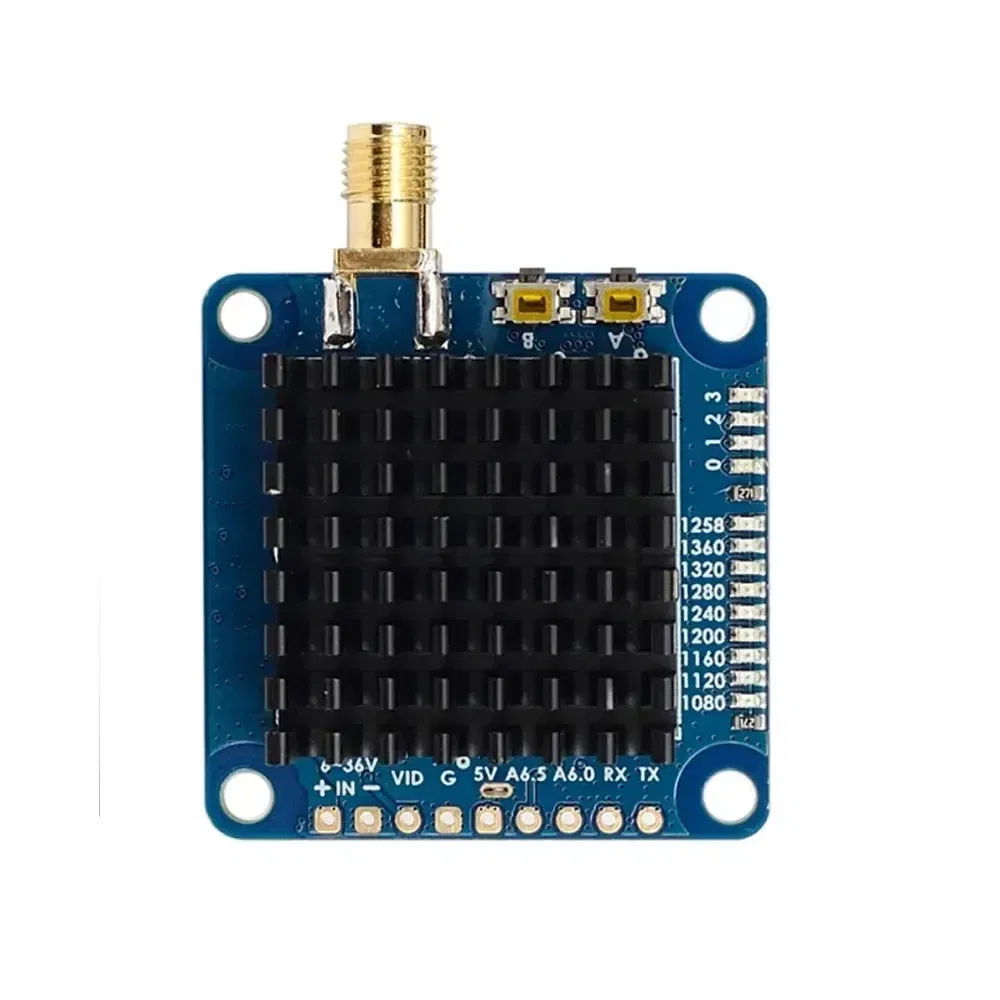

HumbirdTec 1.2-1.3GHz Video Transmitter VTX-1G3TE 9CH
* INTL ver.(1080MHz-1360MHz,9CH)
* Output power 0.1mW(0), 25mW(1),200mW(2),2000mW(3)* Button control & LED indicators
* CMS control via Tramp protocol(1.3G)* 6-36V DCIN
* PCB size: 36*36mm with 30.5mm mounting

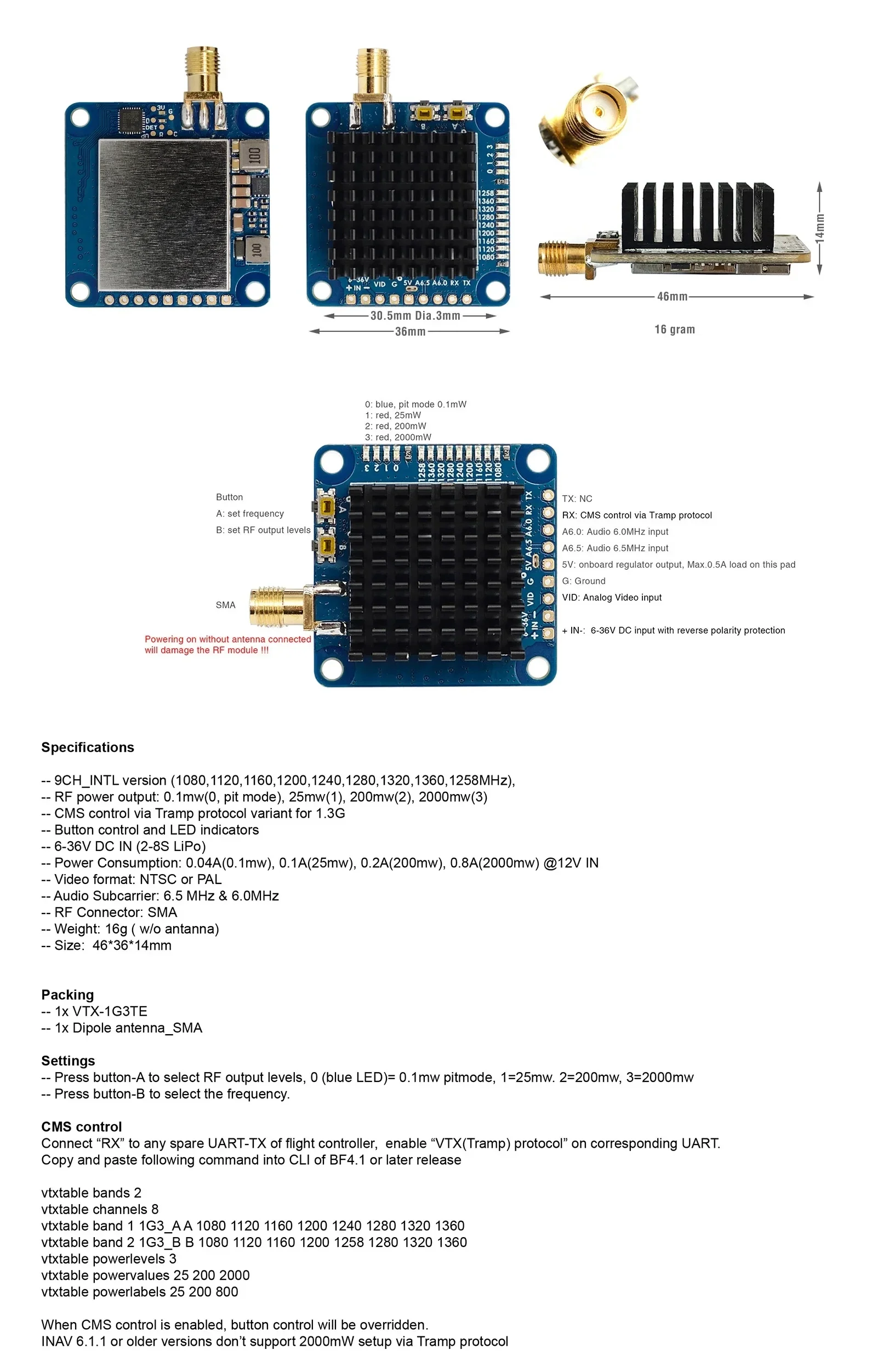

Specifications
-- 9CH_INTL version(1080,1120,1160,1200,1240,1280,1320,1360,1258MHz), -- RF power output: 0.1mw(0,pit mode), 25mw(1), 200mw(2), 2000mw(3) -- CMS control via Tramp protocol variant for 1.3G -- Button control and LED indicators -- 6-36V DC IN (2-8S LiPo)
-- Power Consumption:0.04A(0.1mw), 0.1A(25mw),0.2A(200mw),0.8A(2000mw) @12V IN -- Video format:NTSC or PAL
--Audio Subcarrier: 6.5 MHz& 6.0MHz -- RF Connector:SMA

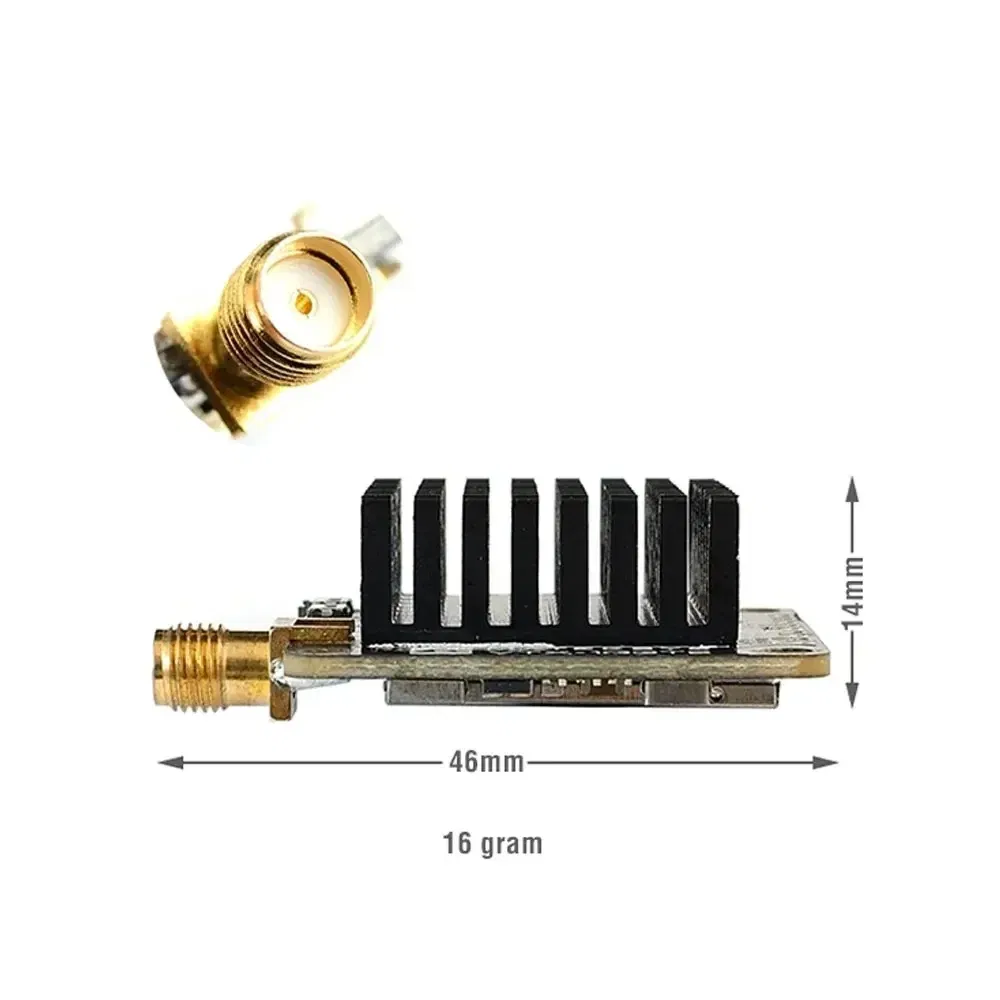

-- Weight: 16g (w/o antanna) -- Size: 46*36*14mm
Packing
-- 1xVTX-1G3TE

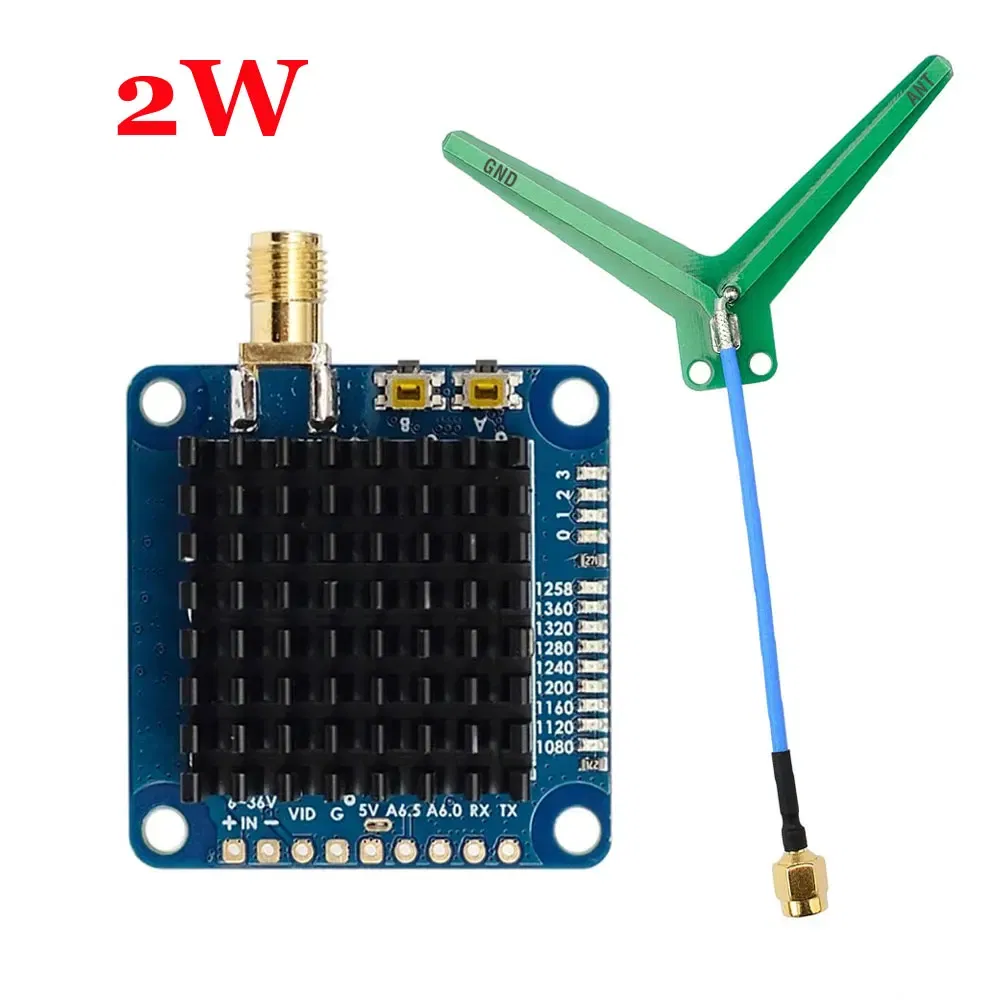

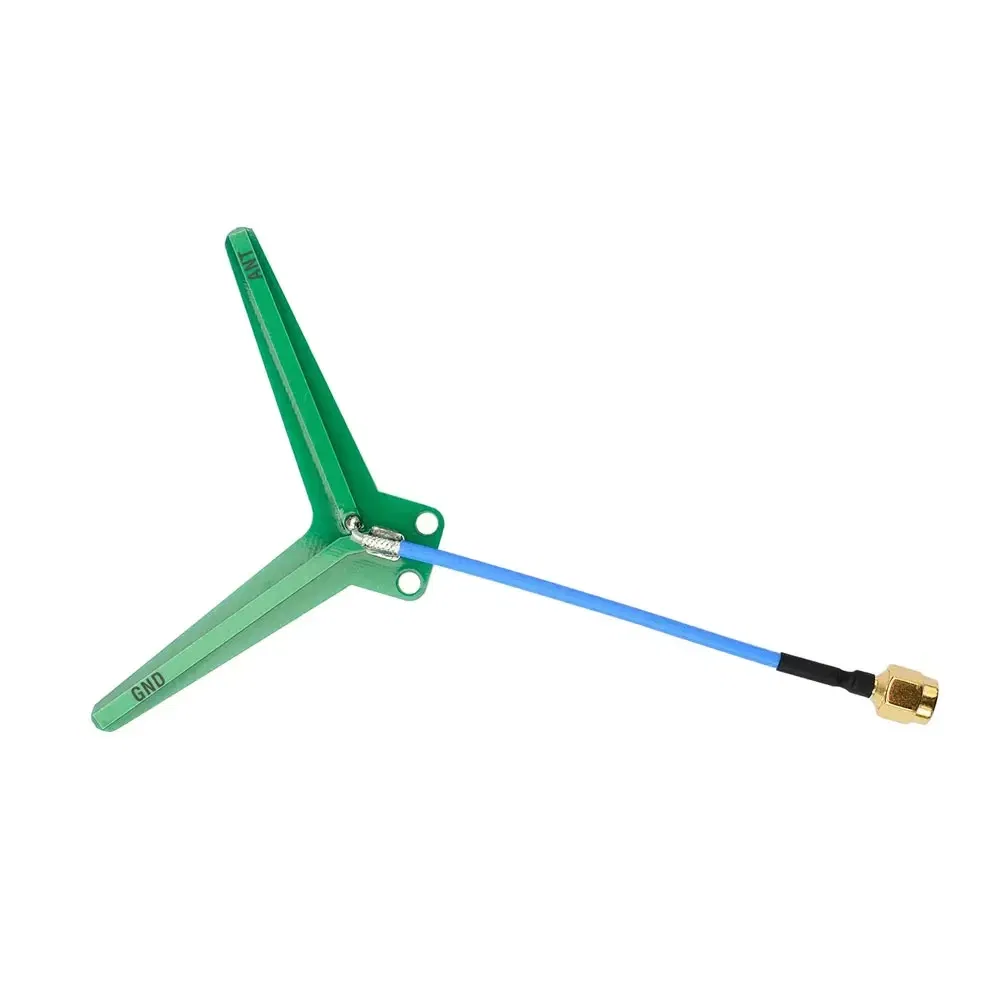

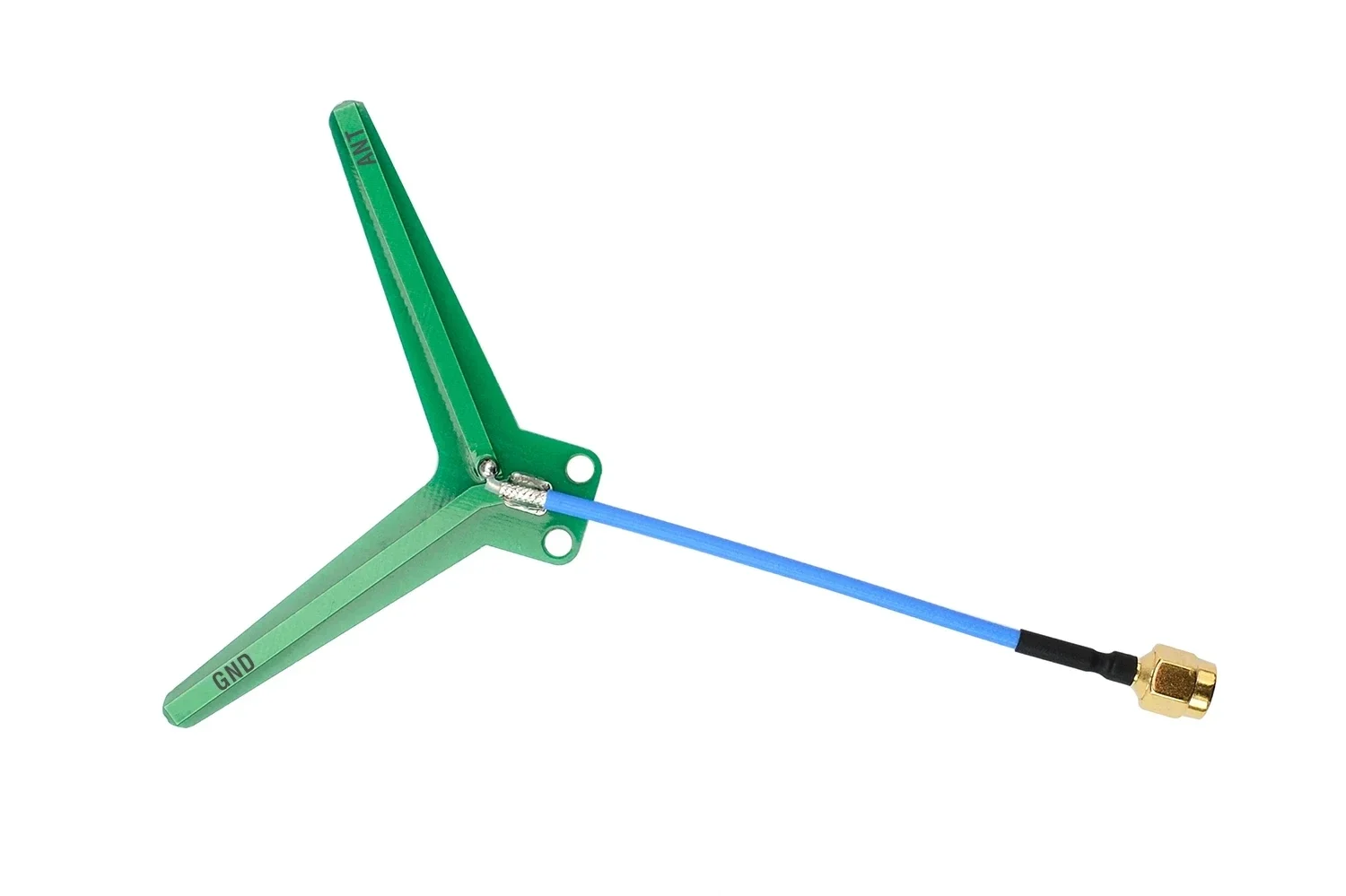

-- 1x Dipole antenna_SMA Settings

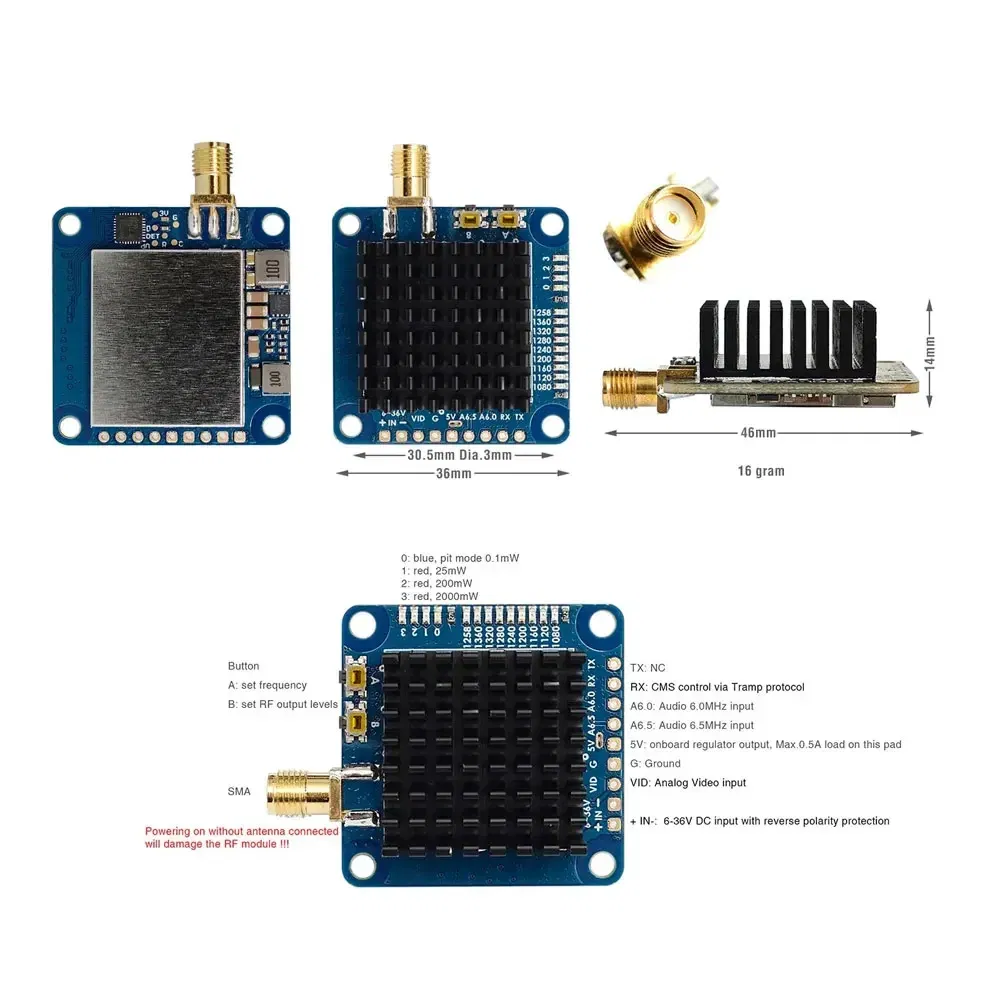

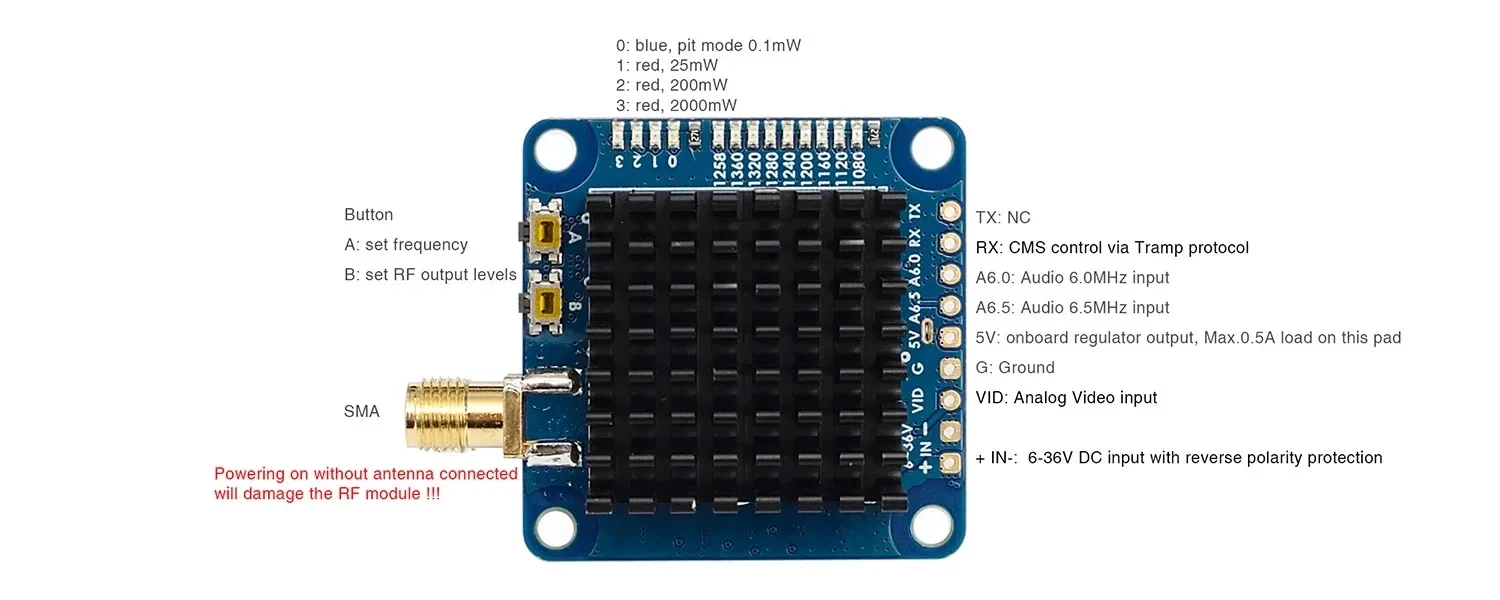

-- Press button-A to select RF output levels, 0(blue LED)= 0.1mw pitmode, 1=25mw.2=200mw,3=2000mw -- Press button-B to select the frequency.
CMS control
Connect "RX" to any spare UART-TX of flight controller, enable"VTX(Tramp) protocol" on corresponding UART. Copy and paste following command into CLI of BF4.1 or later release vtxtable bands 2 vtxtable channels 8
vtxtable band 1 1G3_AA 108011201160 1200 1240 1280 1320 1360 vtxtable band 2 1G3_B B 1080 1120 1160 1200 1258 1280 1320 1360 vtxtable powerlevels 3
vtxtable powervalues 25200 2000 vtxtable powerlabels 25 200 800
When CMS control is enabled, button control will be overridden.
INAV 6.1.1 or older versions don't support2000mW setup via Tramp protocol
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
