USB to 485 RS485/422/232/TTL Converter Serial Interface with FT232RNL Chip 4 in 1 Serial adapter with FTDI Chip
Output Connector: Terminal Block
IC Chips: FTDI Chip
USB Serial Apapter: USB to RS232 convertor
USB to RS485 convertor: USB to RS422convertor
USB to TTL convertor: 4 in 1 Serial Apapter
Model Number: PCM-KW-468
Package: Yes
Hign-concerned Chemical: None
Origin: Mainland China
Certification: RoHS
Type: USB Adapter
Choice: yes
semi_Choice: yes
Product description

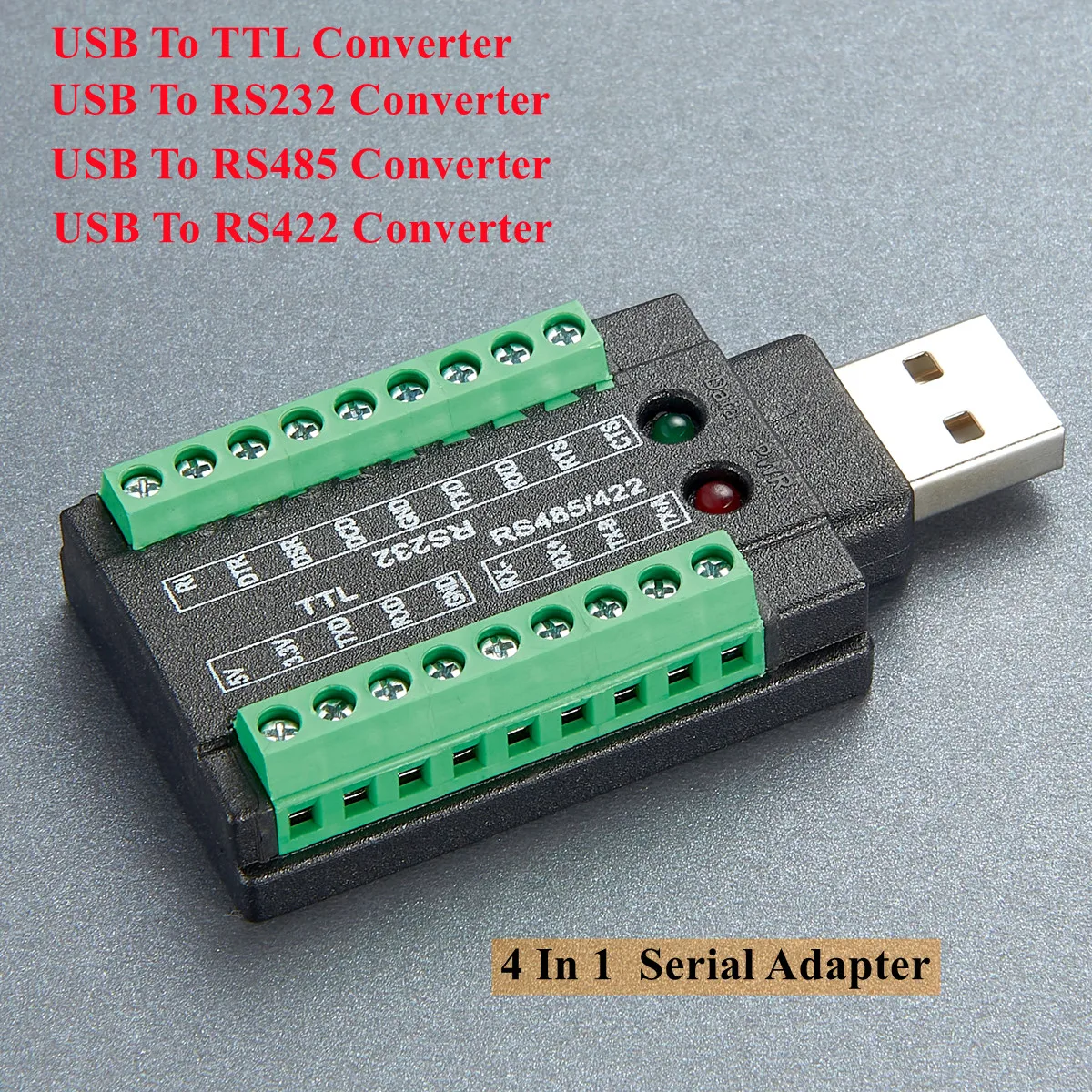

The PCM-KW-468 is a USB to Multi-Protocol Serial adapter cable,It supports RS232 serial, TTL UART serial,RS485 and RS422.
This 4 in 1 Serial Cable with  terminal block and screwdriver, so you don't need to do any soldering or use special cables,just plug directly into a computer's USB A or C port and use a Phillips screwdriver to open the terminal and insert a solid or stranded-core wire.
As the PC industry growing, most of the low speed external ports are replaced by USB port. In industrial environment, lots of important equipments still adopt RS-485/422 interface design. With this, most of the users use USB to RS-485/422 converter to transmit the data between PC and RS-485/422 equipments.
PCM-KW-468 is a universal USB to RS232/RS-485/422/TTL converter. There is no need external power; it is compatible with USB and RS-485/422 standards. PCM-KW-468 4 in1 Serialcable enables to convert USB signal to balanced differential RS-232/485/422/TTL signal. It provides each wire with surge protection; the tiny interelectrode capacitance ensures high speed transmission for RS-232/422/485 ports. RS-485/422 adopts USB male as connector; internal zero delay auto receiving and transmitting function, unique I/O circuit auto control data flow direction without any handshake signal (RTS, DTR) ; there is no need jumper wire setting for full duplex (RS-422) and half duplex (RS-485) mode, plug & play. All these ensure that it is compatible with all the communication software and interface hardware.
Product characteristics：
Industrial Grade Isolated USB Converter:USB TO RS232/485/422/TTL. Adopt original FT232RNL chip, fast communicating, stable and reliable, better compatibility
Multi System Support:Supports Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, Etc.

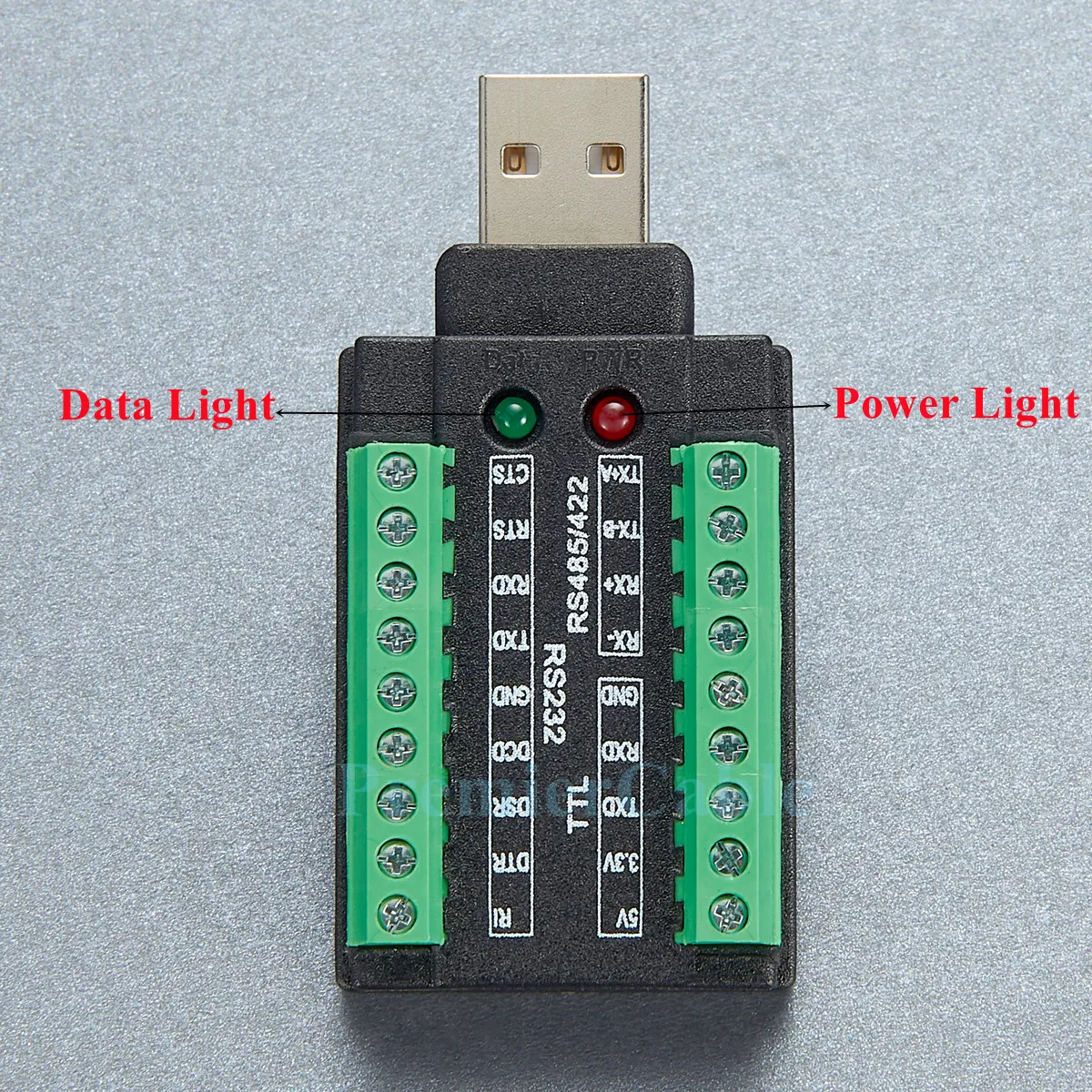

LED Light:Red 'Power good' LED, Green 'Data transmission' LED

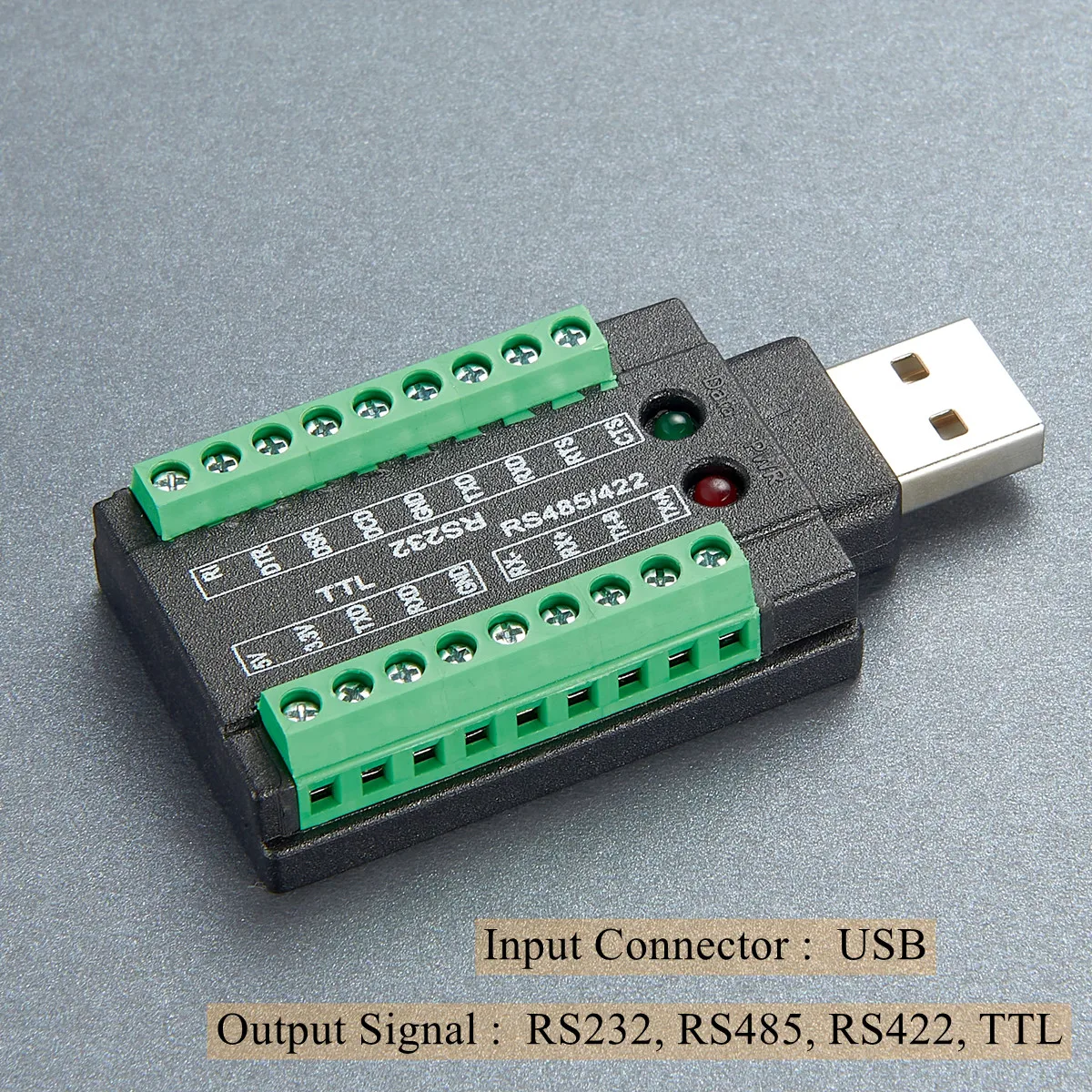

Input Connector : USB

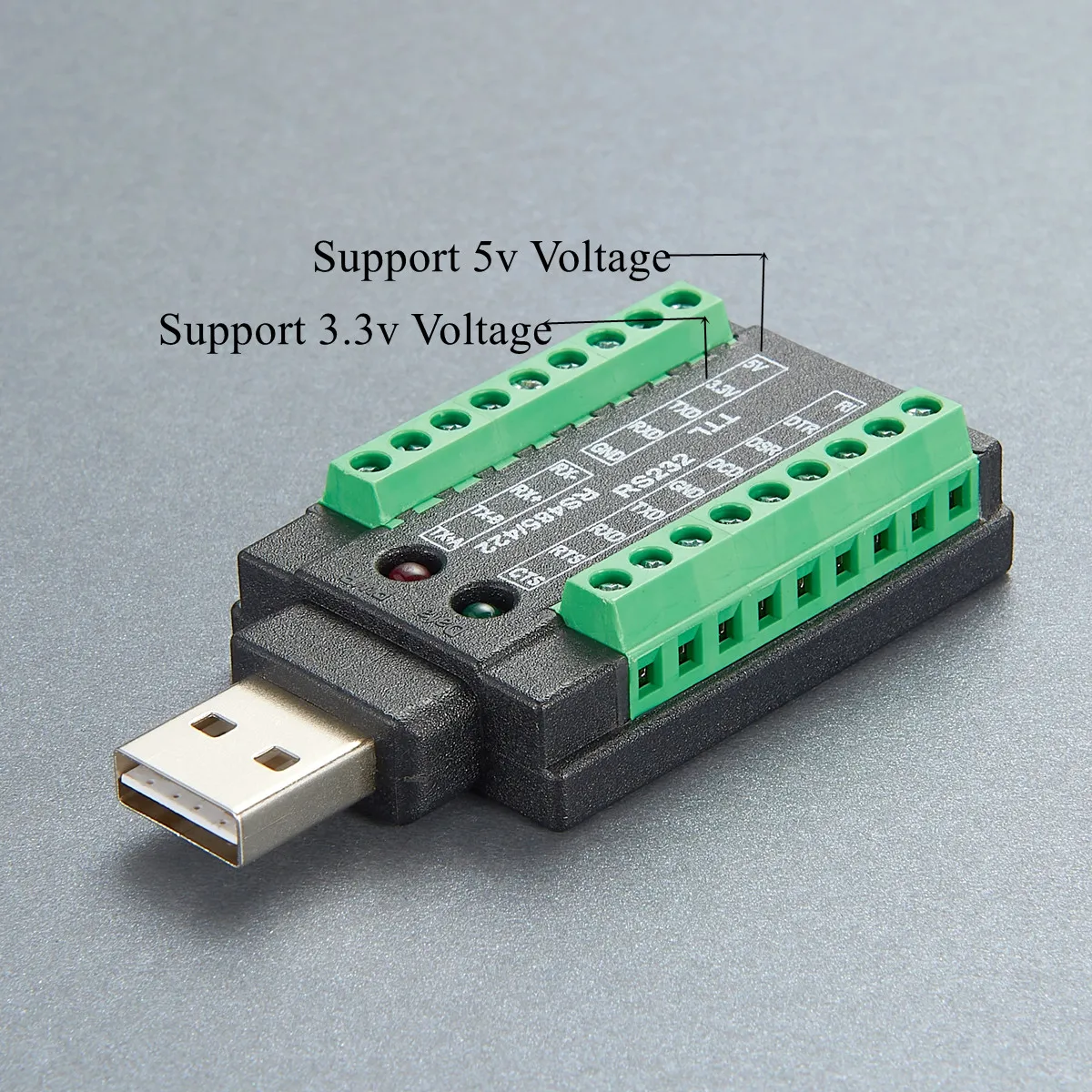

Output Voltage : 3.3V, 5V
Output Connector : Terminal Block

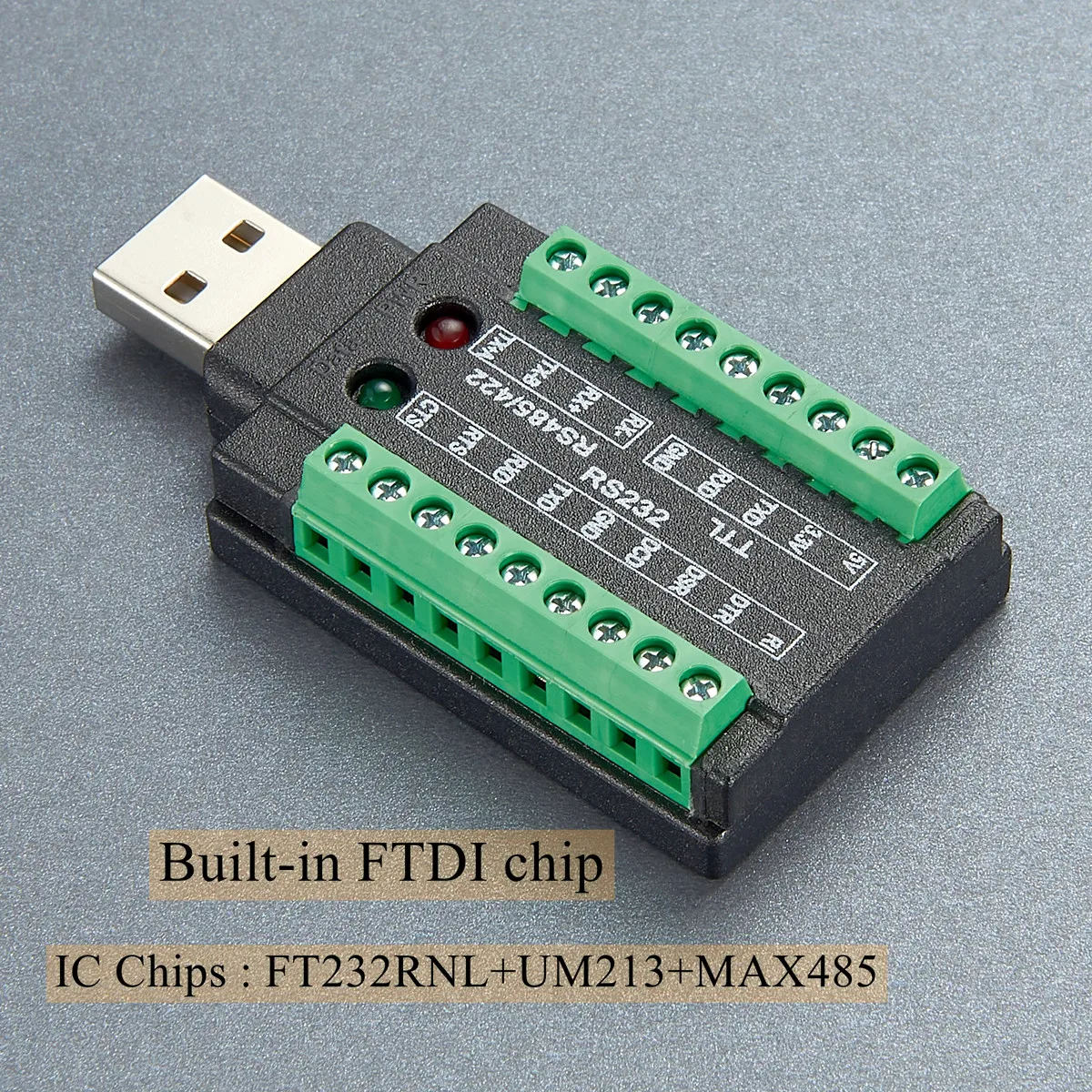

IC Chips : FTDI FT232RNL+UM213+MAX485
Output Signal : RS232, RS485, RS422, TTL

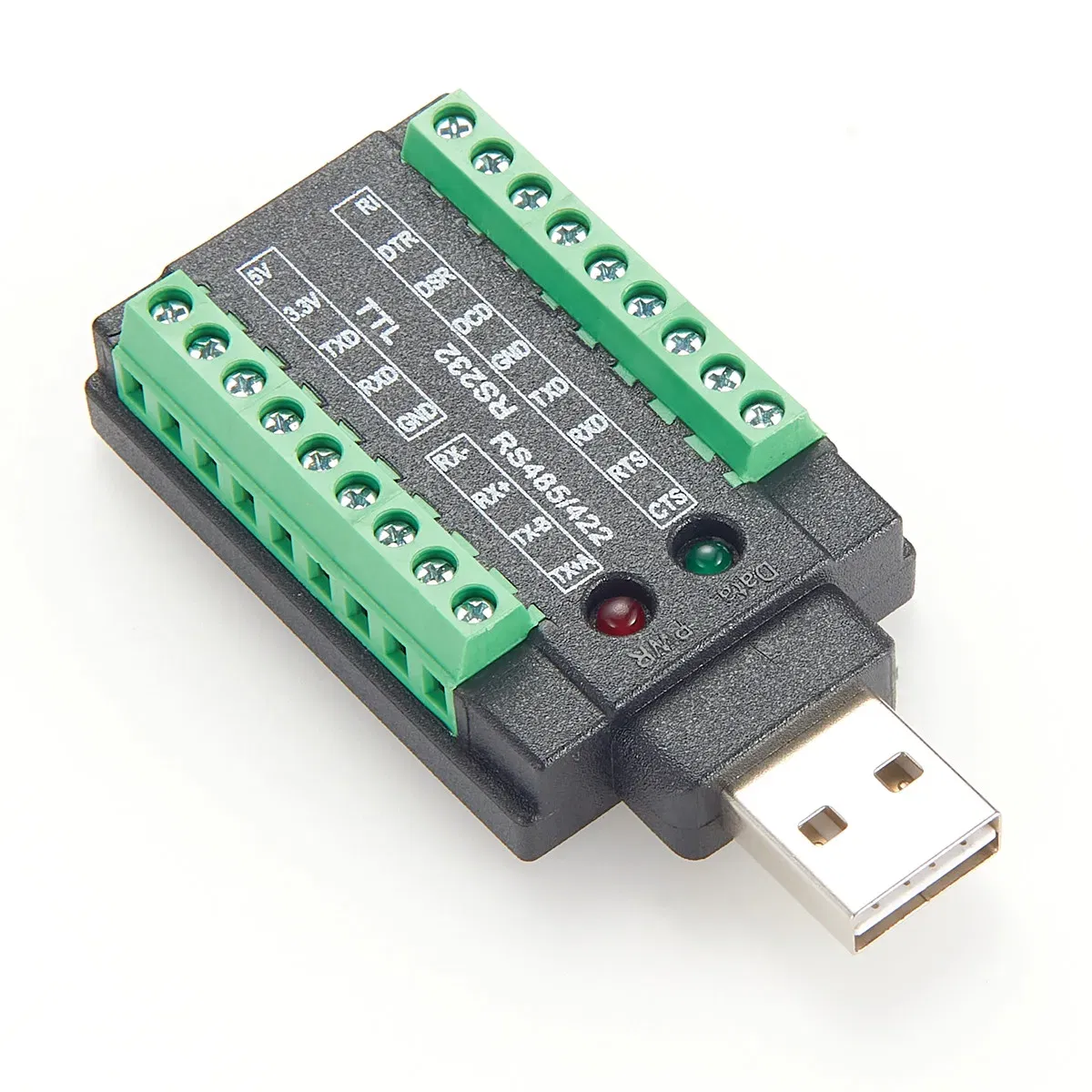

Product display

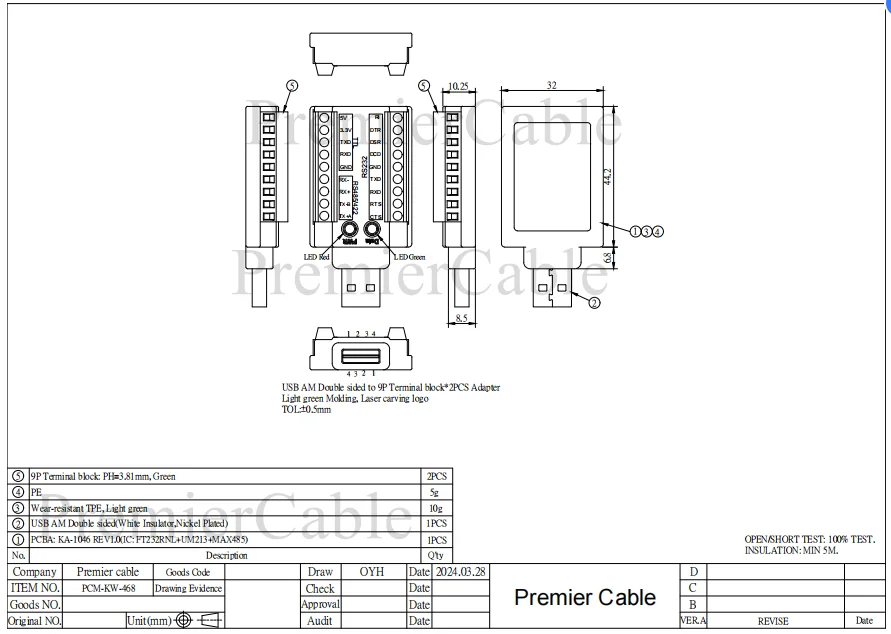

The drawing is as follows:
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
