TDX Hot Water Cylinder Switch – Complete Connection Kit for Hot Water Cylinder Installations

Perfect for Hot Water Cylinders, Electrical Installations, Renovations and New Builds

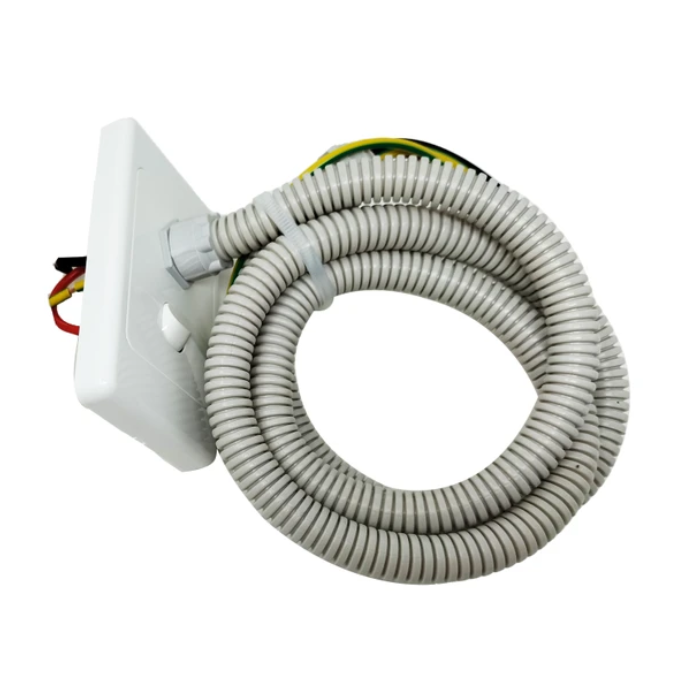

The TDX Hot Water Cylinder Switch is a practical electrical connection kit designed for compatible hot water cylinder installations in New Zealand. Supplied with a 250V 35A switch mechanism and plate, 1.5M flexible conduit, conduit wire, earthing cable, cable connectors and mounting accessories, it brings together essential components for a neat and organised hot water cylinder electrical connection.

Description – TDX Hot Water Cylinder Switch

The TDX Hot Water Cylinder Switch is designed specifically for use with compatible hot water cylinder installations. Rather than supplying only the switch itself, the kit includes a useful selection of electrical connection components required for a complete installation setup.

At the centre of the kit is a 250V 35A switch mechanism and plate, providing a dedicated switching point for a compatible hot water cylinder circuit.

The package includes 1.5 metres of flexible conduit with a 16mm diameter, along with two 16mm flexible conduit glands. These components provide a practical pathway and connection arrangement for the supplied wiring.

For electrical connection, the kit includes three 1.8-metre strands of 2.5mm² conduit wire, providing suitable lengths for the intended installation configuration.

A 400mm earthing cable is also supplied, together with a copper cable lug on the earth connection. These components provide the dedicated earthing provisions required as part of the appropriate electrical installation.

The kit also contains two 32A cable connectors and a 34mm mounting block, helping provide the necessary components for an organised and secure installation.

By combining the switch, wiring, conduit and connection accessories into one package, the TDX Hot Water Cylinder Switch provides a convenient solution for compatible new installations, replacements and renovation projects.

As this product involves mains electrical wiring, installation should be completed by an appropriately qualified electrical professional in accordance with applicable New Zealand electrical requirements.

Key Points

250V 35A Switch: Includes a dedicated switch mechanism and plate designed for compatible hot water cylinder installations.

Flexible Conduit Included: Supplied with 1.5M of 16mm flexible conduit and two matching 16mm conduit glands.

Wiring and Earthing Components: Includes three 1.8M strands of 2.5mm² conduit wire, a 400mm earthing cable and copper cable lug.

Installation Accessories Included: Comes with two 32A cable connectors and a 34mm mounting block for a more complete setup.

Benefits

Convenient Complete Kit: Combines multiple electrical connection components in one package for easier installation preparation.

Designed for Hot Water Cylinders: Provides a practical switching and connection solution for compatible hot water cylinder systems.

Organised Installation: Flexible conduit, glands, wiring and mounting components help create a neat electrical connection arrangement.

Ideal for Renovations and New Builds: Suitable for compatible hot water cylinder replacements, upgrades and new installations.

Why Choose This TDX Hot Water Cylinder Switch?

The TDX Hot Water Cylinder Switch provides more than a basic switch by including the conduit, wiring, earthing and connection components needed for a compatible installation.

With a 250V 35A switch, 2.5mm² conduit wire, 16mm flexible conduit, 32A cable connectors and dedicated earthing components, it provides a convenient package for New Zealand hot water cylinder installation projects.

Conclusion

The TDX Hot Water Cylinder Switch is a practical electrical connection kit for compatible hot water cylinder installations.

Featuring a 250V 35A switch and plate, 1.5M flexible conduit, conduit wire, earthing cable, cable connectors and mounting block, it provides essential components in one convenient package for professional New Zealand installations.
