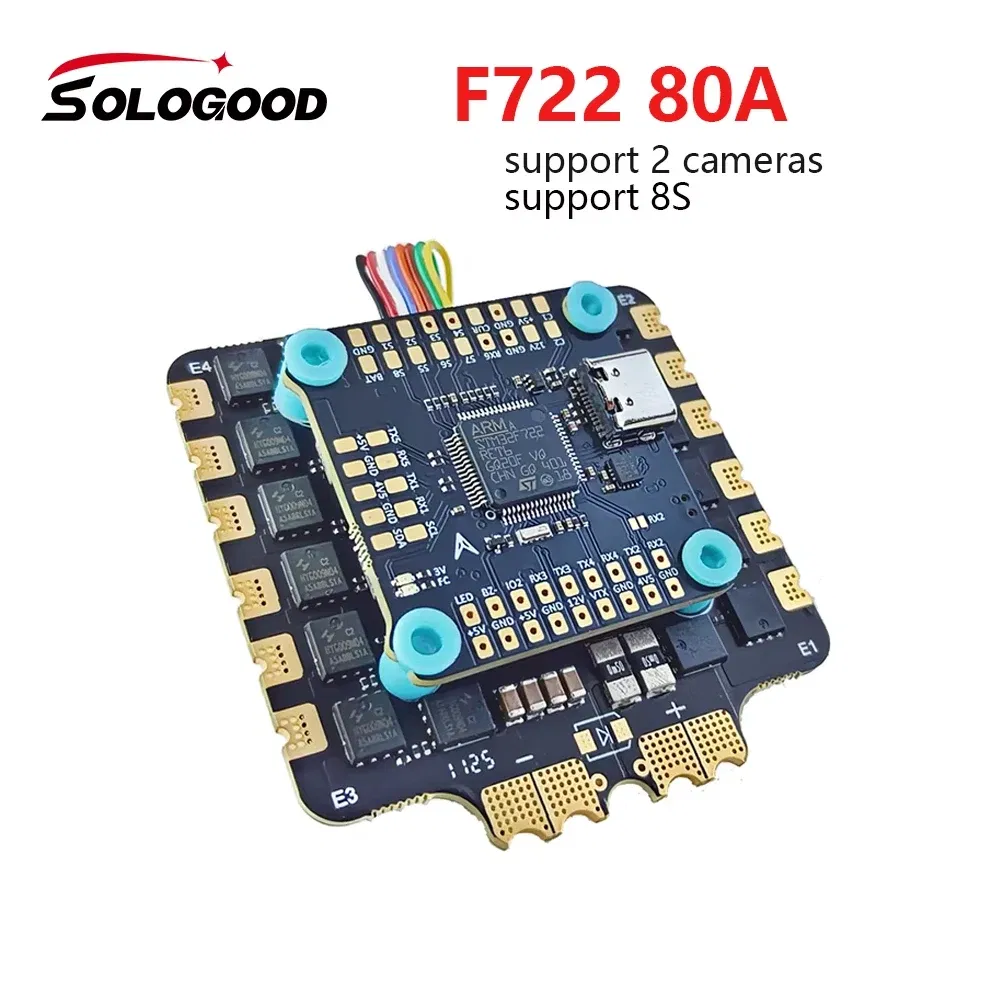

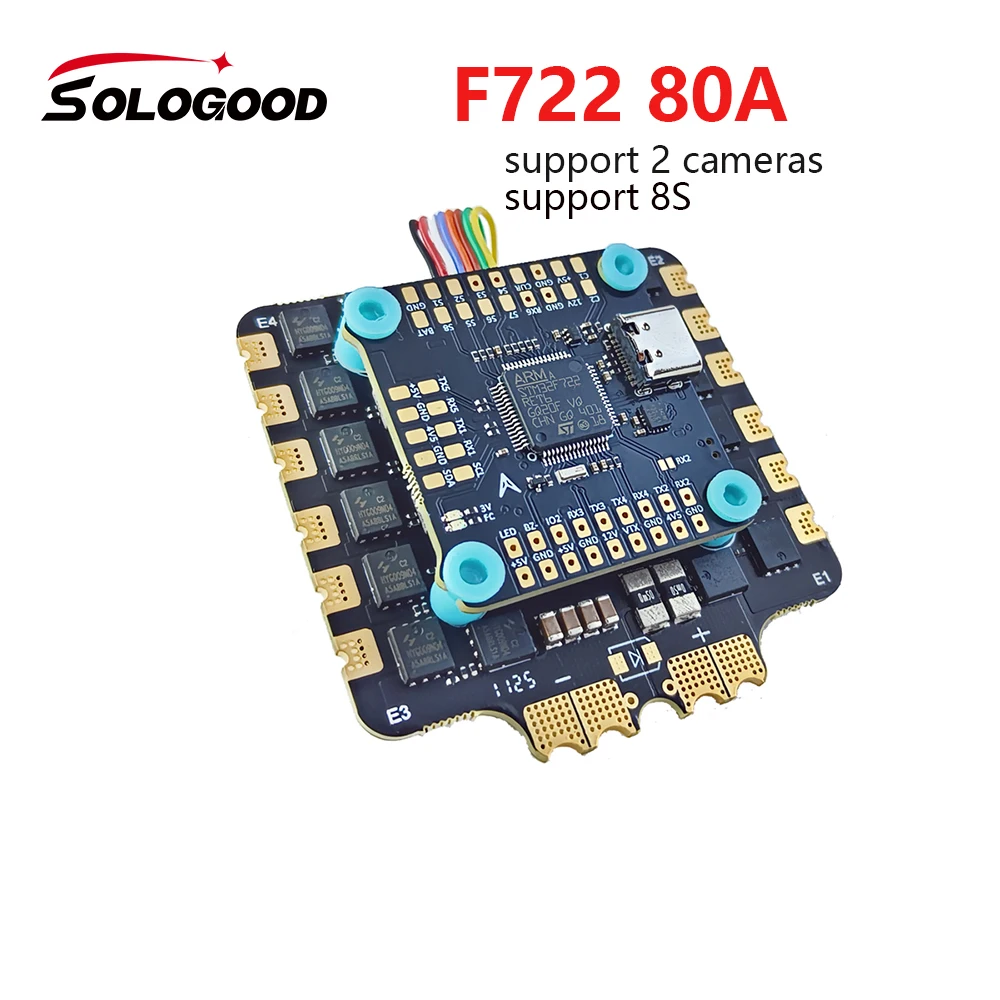

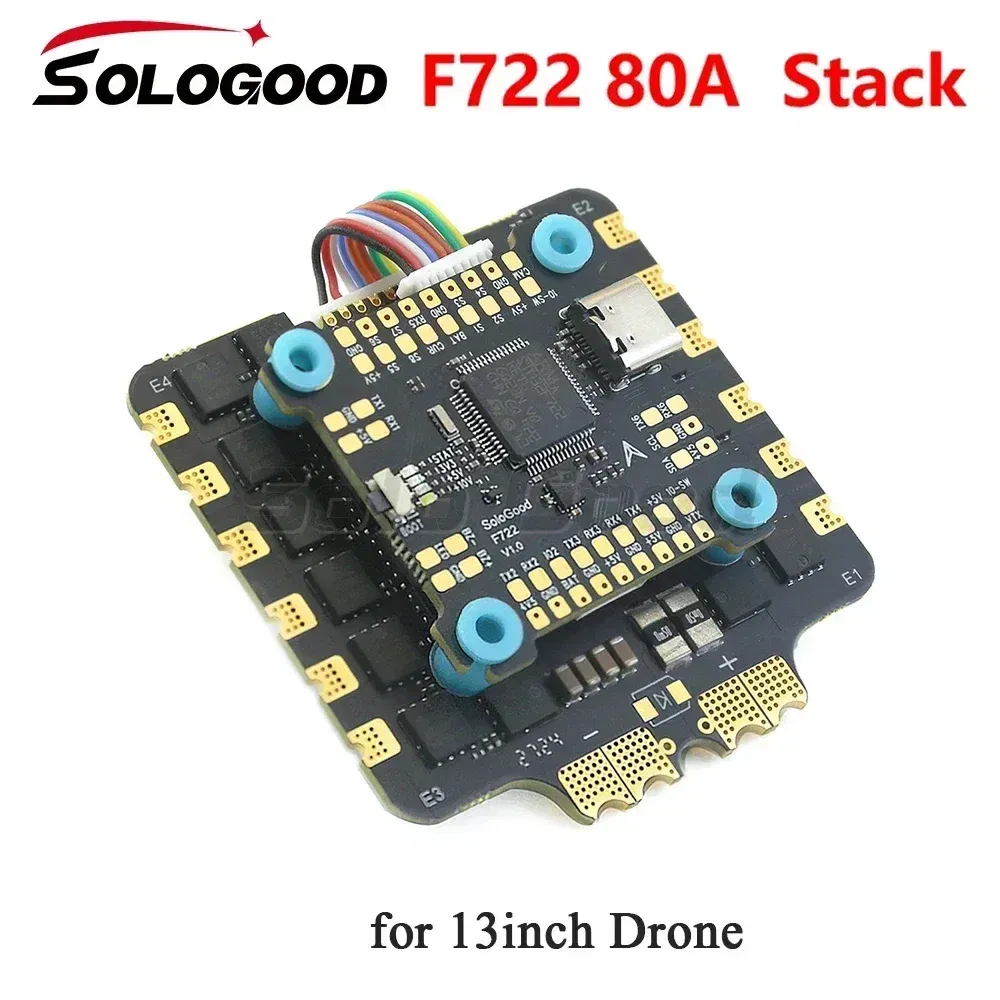

SoloGood F722 80A Stack 8S Flight Control Suitable for 13 inch FPV Freestyle Drone
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Origin: Mainland China
Is Batteries Included: No
Material: Composite Material
Recommend Age: 14+y
RC Parts & Accs: Gyros
Size: 58*58.4mm
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Remote Control Peripherals/Devices: Remote Controller
Tool Supplies: Grinded
Quantity: 1 pcs
Technical parameters: value 2
Model Number: F722 80A Stack
Four-wheel Drive Attributes: Assemblage
Wheelbase: Bottom Plate
Choice: yes

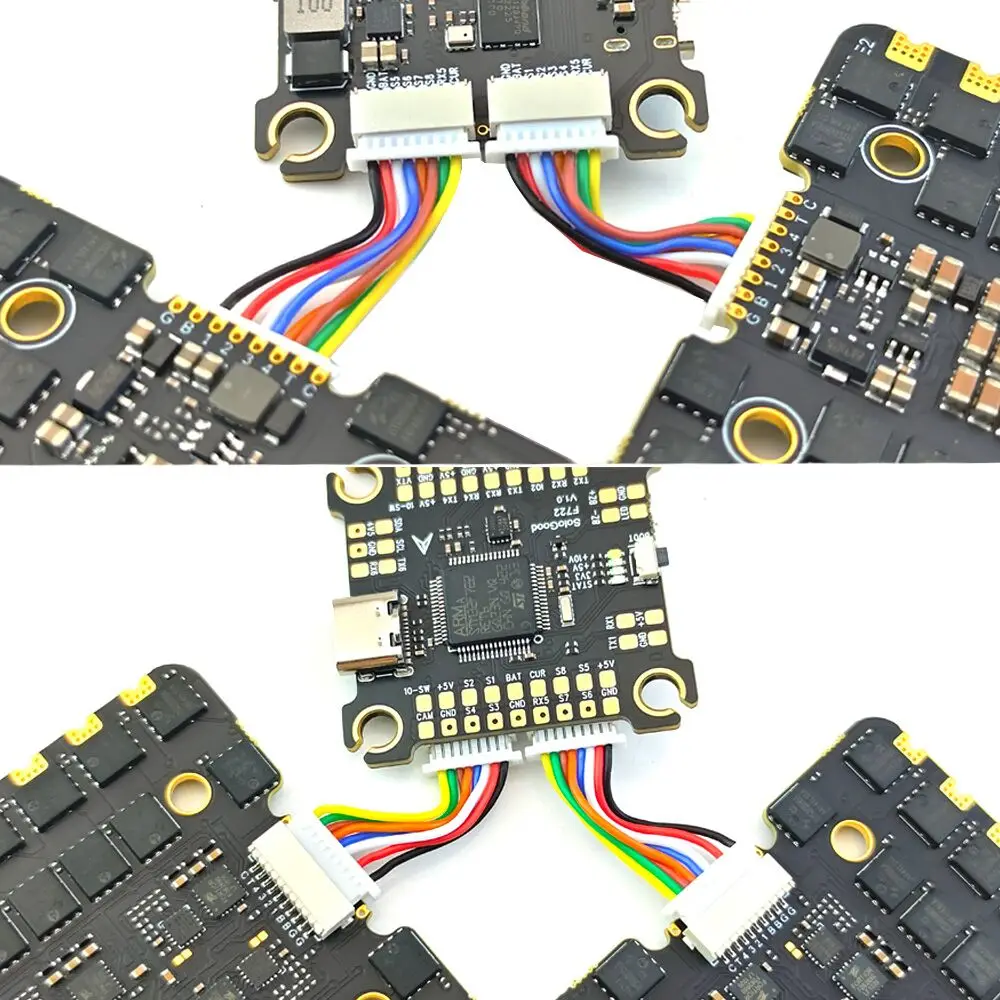

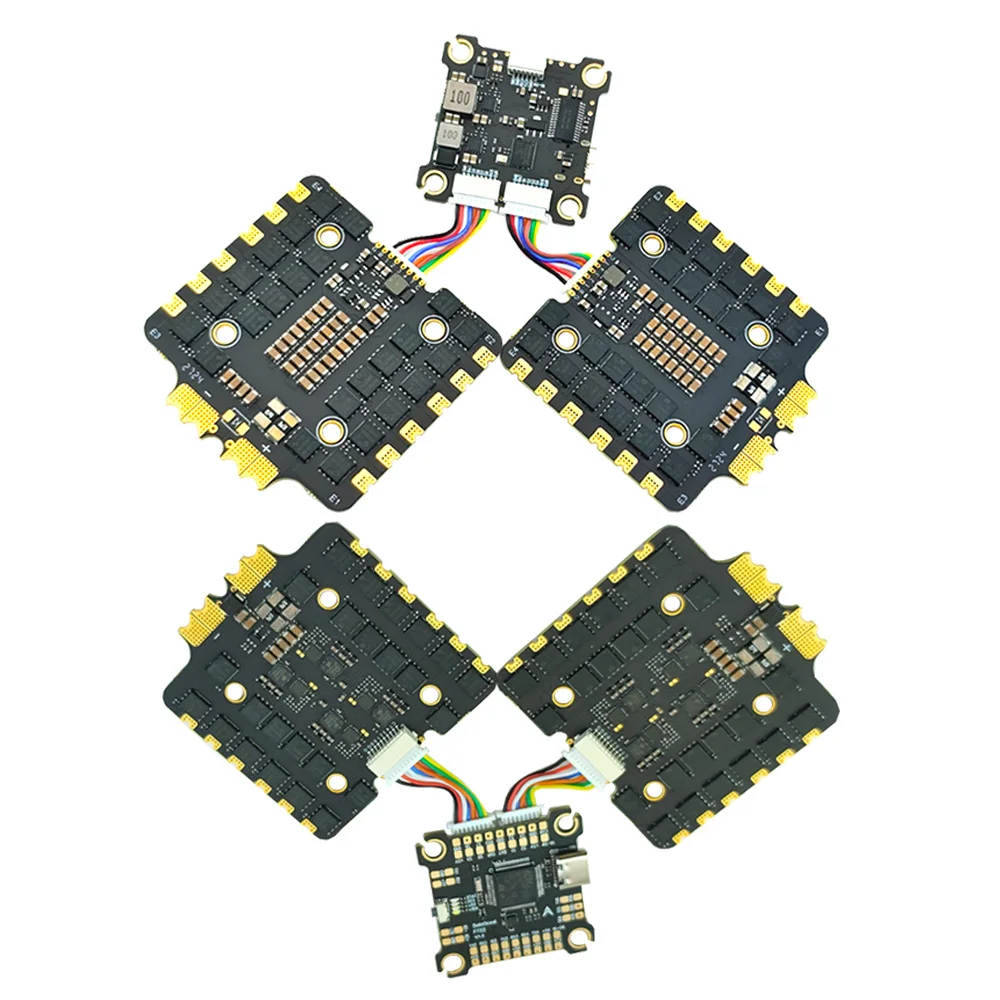

Support up to 8 motor outputs to easily build X8 drones.
Integrated 5V/10V dual BEC ensures stable operation
Four LED status indicators display the working status under different states.
Although the flight control is small, it has all five internal components. The F722 main control chip, onboard OSD chip, barometer, and onboard black box chip.
The use of large pads ensures that the pads are kept away from components to ensure perfect soldering for beginners.
SoloGood 6S F722 Stack
Input voltage: 3-6S Lipo(11v-26v max)
Installing Hole: 30.5*30.5mm, M3
Support Protocols: DShot600/300
Weight: 23g
FC Specifications
Main control: STM32F722RET6
Gyroscope: ICM42688P
Barometer: Support (SPL-06)
OSD: Support (AT7456E)
BEC: 10V/2A, 5V/2A
UART port: 6
Black box: onboard (16M flash memory)
Number of supported motors: M1-M8
Firmware name: BETAFLIGHT: SOLOGOODF722
Input voltage: 3-6S lithium battery (11-30V MAX)
Output voltage: VBAT
Installation hole: 30.5x30.5mm (4mm aperture)
Flight control size: 38.5x38.5mm
Weight: 8.1 grams
LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication
DJI/Vista: Support/6pin
Electric regulation
TVS protective diode: Yes

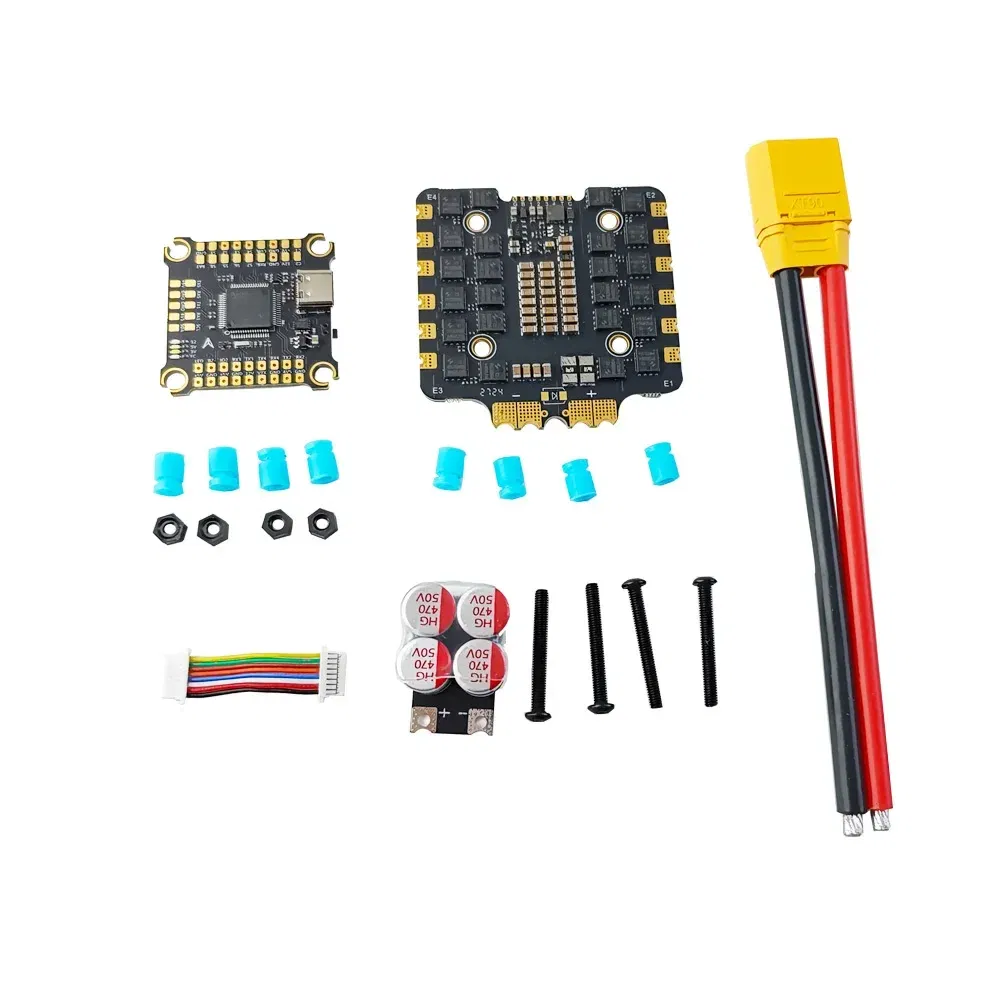

External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)
ESC/Motor Protocol: DSHOT300/600
Continuous current: 60A
Maximum current :65A
Installation hole: 30.5x30.5mm (4mm aperture)
For more info about FC, pls scan this app
Input voltage: 3-6S Lipo(11v-26v max)
Installing Hole: 30.5*30.5mm, M3
Support Protocols: DShot600/300
Weight: 23g

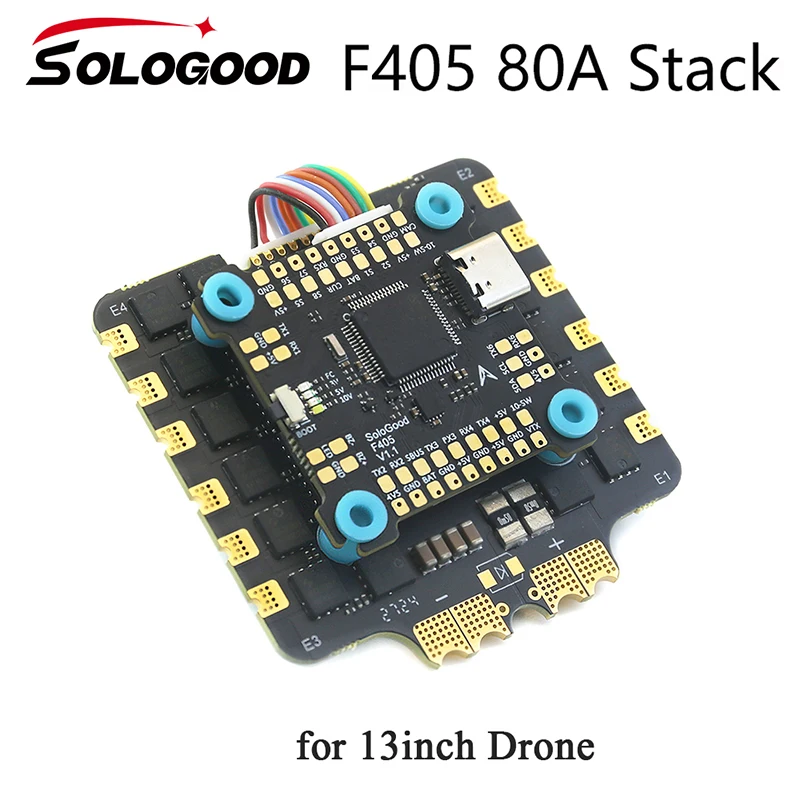

FC Specifications
Main control: STM32F405
Gyroscope: ICM42688P
Barometer: Support SPL-06
OSD: Support (AT7456E)
BEC: 10V/2A, 5V/2A
UART port: 6
Black box: onboard (16M flash memory)
Number of supported motors: M1-M8
Firmware name: BETAFLIGHT: SOLOGOODF405
Input voltage: 3-6S lithium battery (11-30V MAX)
Output voltage: VBAT
Installation hole: 30.5x30.5mm (4mm aperture)
Flight control size: 38.5x38.5mm
Weight: 8.1 grams
LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication
DJI/Vista: Support/6pin
Electric regulation
TVS protective diode: Yes
External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)
ESC/Motor Protocol: DSHOT300/600
Continuous current: 55A
Maximum current :65A
Installation hole: 30.5x30.5mm (4mm aperture)

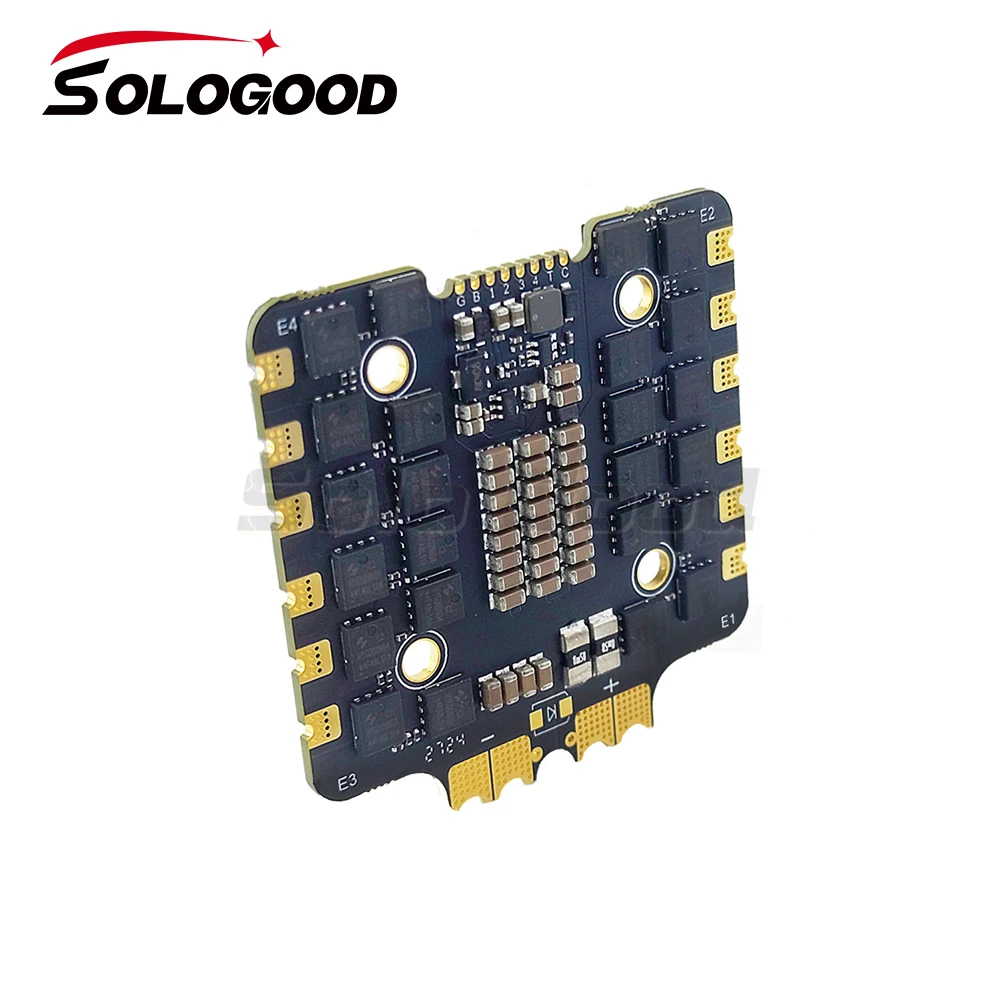

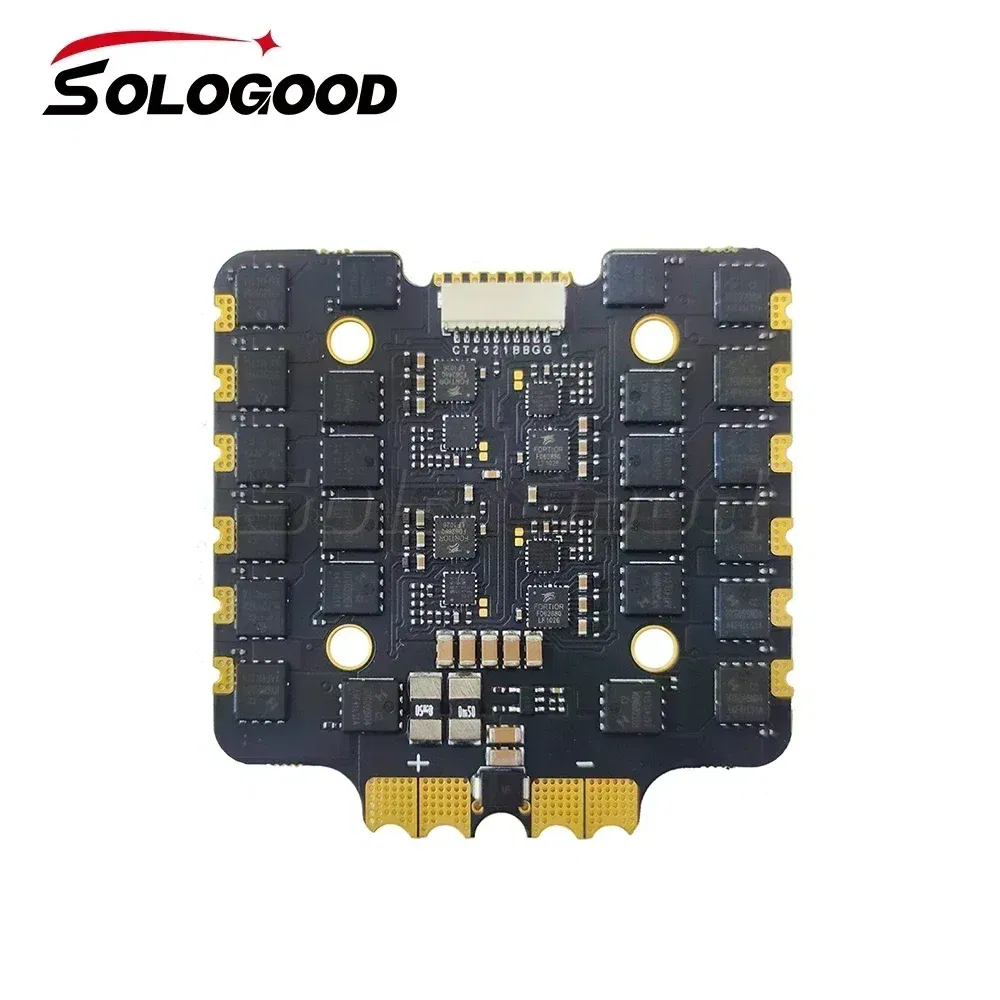

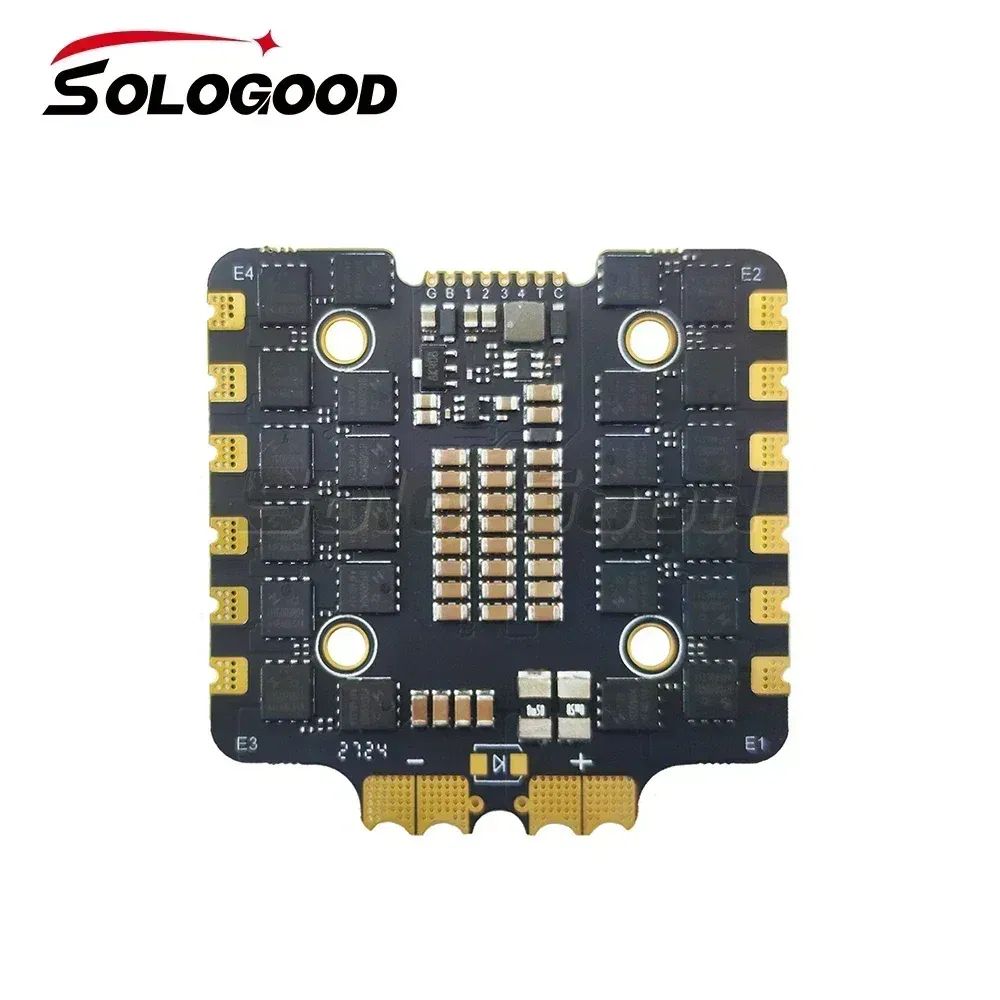

Sologood 8S 80A 4in1 ESC SPEC:
BLS 8-bit ESC-80A
Firmware:B_X_40_24_V0.21
Current scaling value:110
Input Voltage:3-8s
Continuous current:80A
Instantaneous current:90A
Size:58*58.4mm
Fixing hole:30.5*30.5 M4
Weight:28.4g
8S flight control spec:
Main control: STM32F722RET6
Gyroscope: ICM42688P
Input voltage: 3-8S
Barometer: Supports (spl06)
Output voltage: VBAT
OSD: Support (AT7456E)
Installation hole: 30.5x30.5MM
BEC: bec12v/2A,5v/2A
Flight control size: 38.5x38.5MM
UART port: 6
Weight: Approximately 9 grams
Black box: onboard (16M flash memory)
DJI/Vista: Support/6-pin
Number of supported motors: M1-M8
|
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
